Hatco  |  SKU: HDW-3BN

Hatco HDW-3BN Drawer Warmers

$4,058.16
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Catalog brochure Color chart
Related Searches
Countertop Food Warming Drawer Warmers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

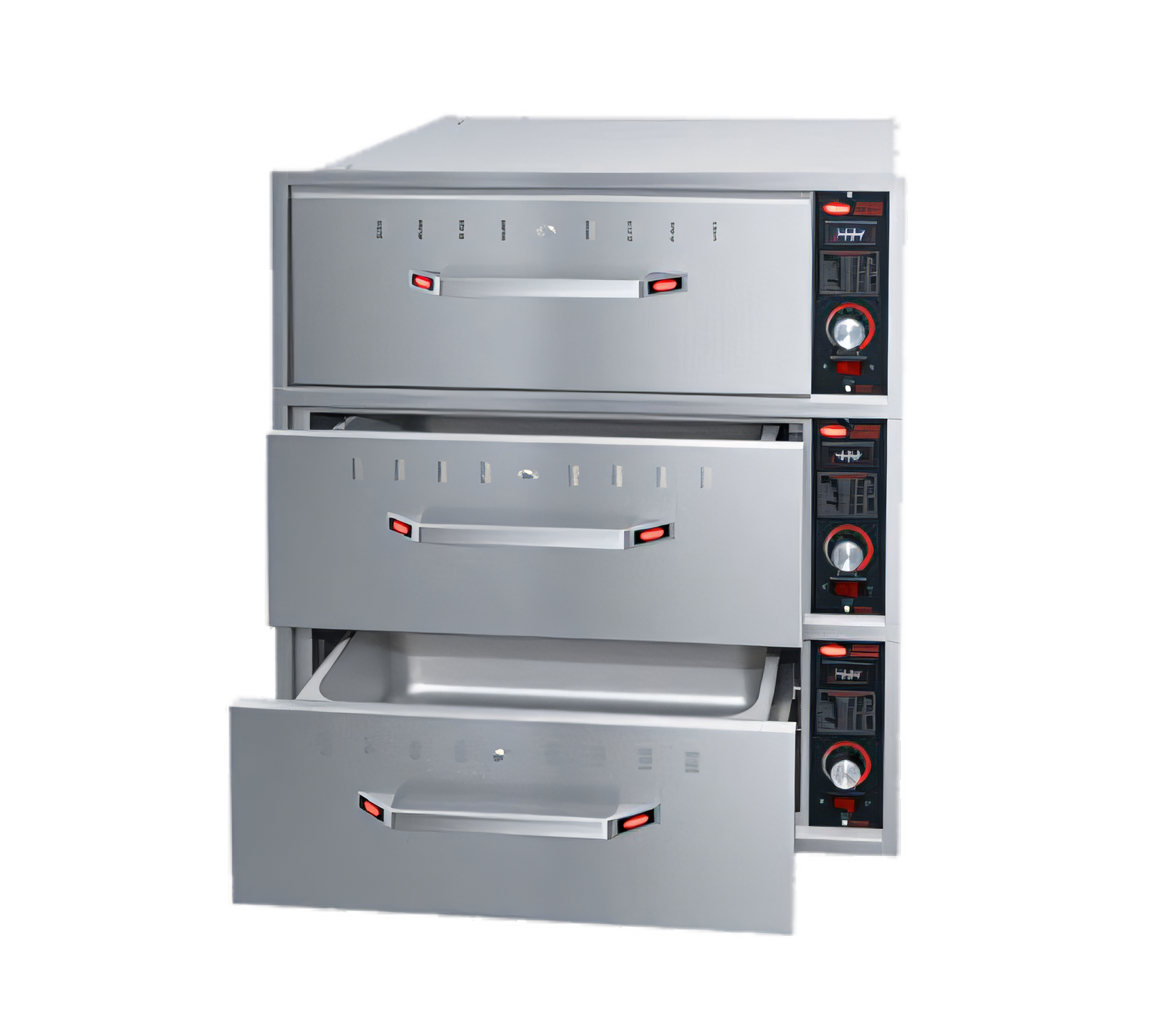

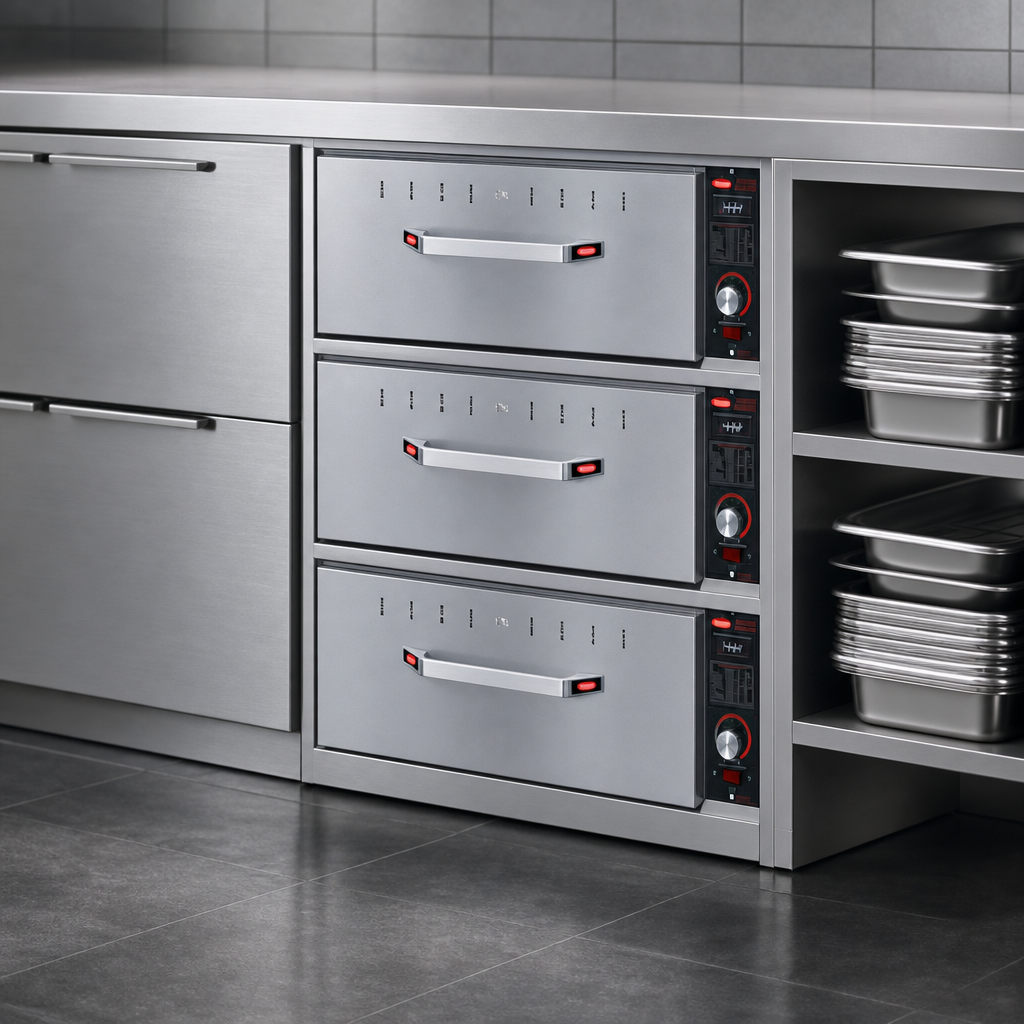

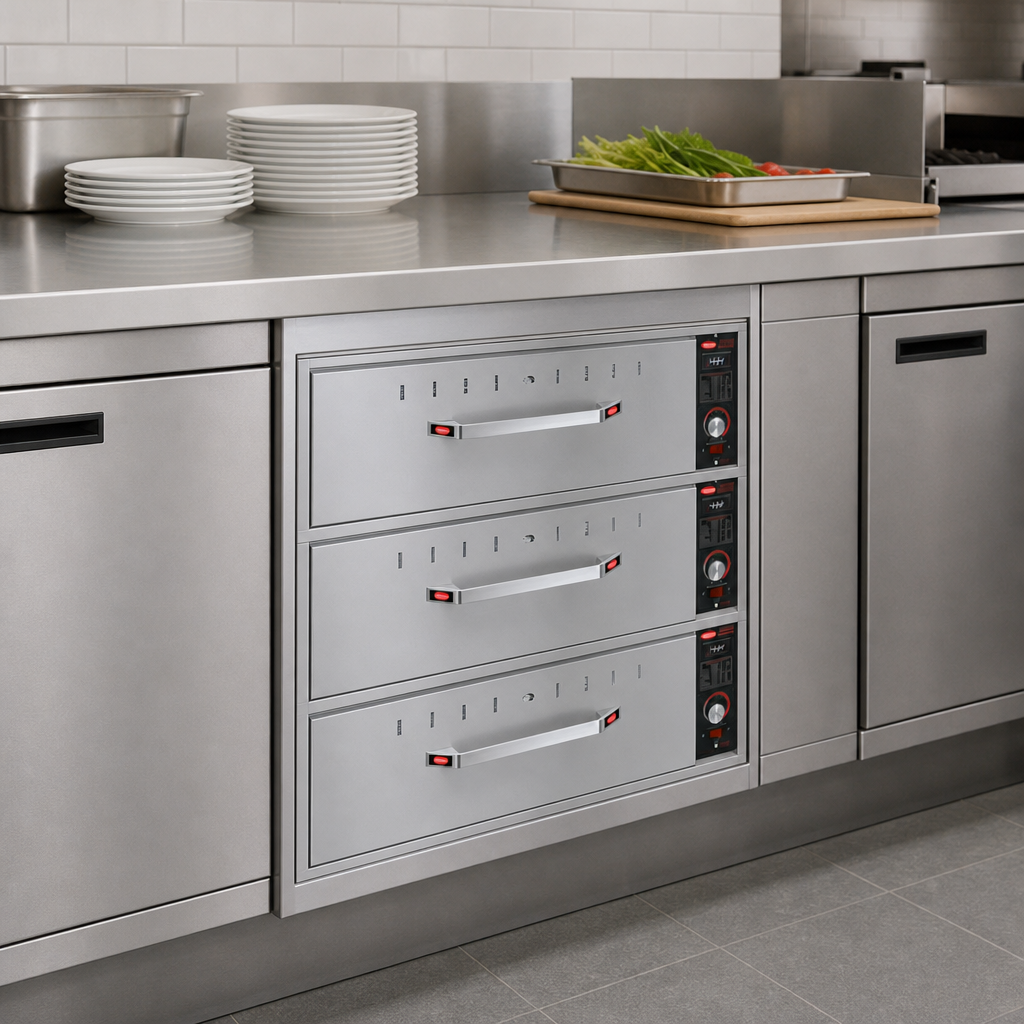

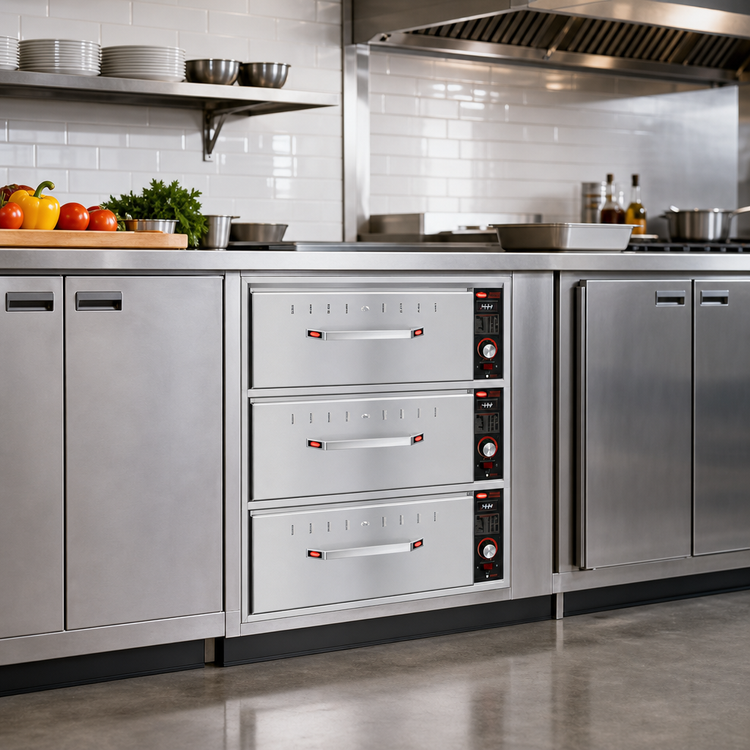

Hatco HDW-3BN Narrow Built-In 3-Drawer Warmer

High-capacity, space-saving food holding for busy commercial kitchens

Keep meats, sides and bakery items hot, fresh and ready for service without giving up valuable cabinet space. At just 19.5 inches wide, the Hatco HDW-3BN fits neatly into millwork while delivering three fully independent warming drawers—each with its own thermostat, temperature monitor and humidity vent.

Key benefits

  • Ultra-narrow 19.46" wide chassis maximizes line & prep-area space.
  • All-stainless steel interior and exterior for unmatched durability and quick sanitation.
  • (3) 6" deep stainless steel food pans (one per drawer) included—ready to load and serve.
  • Individual thermostatic control, power switch & temperature monitor per drawer for precise holding of different menu items.
  • Adjustable sliding vents on each drawer let you fine-tune humidity to keep foods moist or crisp.
  • Heavy-duty drawer slides with nylon rollers provide smooth, full-extension access to pans.
  • Completely insulated cavities boost energy efficiency and keep exterior surfaces cooler to the touch.
  • Ships with a 4' (1219 mm) flexible conduit for straightforward hard-wired installation.
  • NSF & cULus listed; proudly Made in the USA.

Ideal for

  • Carving stations & buffet lines
  • Quick-service & fast-casual restaurants
  • Banquet kitchens & catered events
  • Convenience stores & concessions

Specifications

Model HDW-3BN (Built-In, Narrow, 3 Drawers)
Exterior dimensions* 19.46" W × 26.72" D × 30.03" H (494 × 679 × 763 mm)
Flange / handle allowances Add 1.14" (29 mm) to width or height for flange; add 1.25" (32 mm) to depth for drawer handles
Built-in cut-out** 19.7" W × 28.375" D × 30.75" H (500 × 720 × 771 mm)
Electrical Single phase, hard-wired; 1350 W (5.6 A @ 240 V / 6.1 A @ 220 V)
Included pans (3) full-size, 6" deep stainless steel steam-table pans
Shipping weight Approx. 232 lb (106 kg)
Certifications NSF, cULus
Country of origin USA

*Dimensions shown without flange or handle.
**Depth includes 1.5" (38 mm) for conduit connector.

What’s included

  • Hatco HDW-3BN built-in warming drawer assembly with 4' flexible conduit
  • (3) 6" deep stainless steel food pans
  • Installation & operating manual

Factory options & accessories

  • ITC digital temperature controller per drawer
  • Touchscreen display controller (TTC)
  • Designer-color drawer fronts
  • Custom trivets, water/spillage pans & splash baffles
Installation notice: This warmer is supplied without a cord and plug and must be hard-wired by a qualified electrician in accordance with local codes.

Questions about sizing or accessories? Contact our equipment specialists—we’re happy to help.

Features & Specs

Manufacturer

Hatco

Certifications

NSF, cULus, Made in USA

Height

30.13in

Width

19.5in

Depth

26.75in

Shipping Weight

223.0lbs

Style

narrow drawer

Drawers

3 drawers

Controls

thermostatic controls

Specifications

Warming Drawer Unit, Built-in, narrow, three drawers, includes (1) standard 6" deep food pan per drawer, stainless steel construction, thermostatic controls, NSF, cULus, Made in USA
