Key specifications

Amps
13.5/11.3/6.5/5.6 Amps
Phase
1-Phase
Dimensions
29.5"W × 22.63"D × 31.25"H
Type
Warming Drawer
Style
Standard
Installation Type
Floor Model
Spec sheet
Hatco SKU: HDW-3

Hatco HDW-3 3-Drawer Thermostatic Warming Drawer

$4,291.10
/each
Estimated to ship in 9–12 business days
Drawer count
Width
ElectricalRequired
Drawer type
Controls
Drawer front color
Included: Hatco warranty 24/7 parts and service assistance is available in the United States and Canada

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $397/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Warming Drawer
Style Standard
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Controls Thermostatic Controls
Drawer Count 3 Drawers
Pan Size 20.75 x 12.75 x 6 in
Pan Capacity 1 Pan Per Drawer
Leg Height 4 in
Cord Length 6 ft
Voltage 100/120/208/240 Volts
Watts 1,350 Watts
Amps 13.5/11.3/6.5/5.6 Amps
Phase 1-Phase
Plug Type JIS C 8303; NEMA 5-15P; NEMA 6-15P
Height Note Excludes legs and casters
Depth Note Add 1.25 in for drawer handle

Description

The Hatco HDW-3 is a freestanding warming drawer unit with three drawers, stainless steel construction, and thermostatic controls.

  • Includes one standard 6-inch-deep food pan per drawer.
  • Each drawer has an individual thermostatic control, temperature monitor, and On/Off switch.
  • Adjustable sliding vents and insulated individual cavities support hot-food holding.
  • Includes 4-inch legs.

Overall Dimensions:

29.5"W x 22.63"D x 31.25"H

Product Weight:

232.0 lb

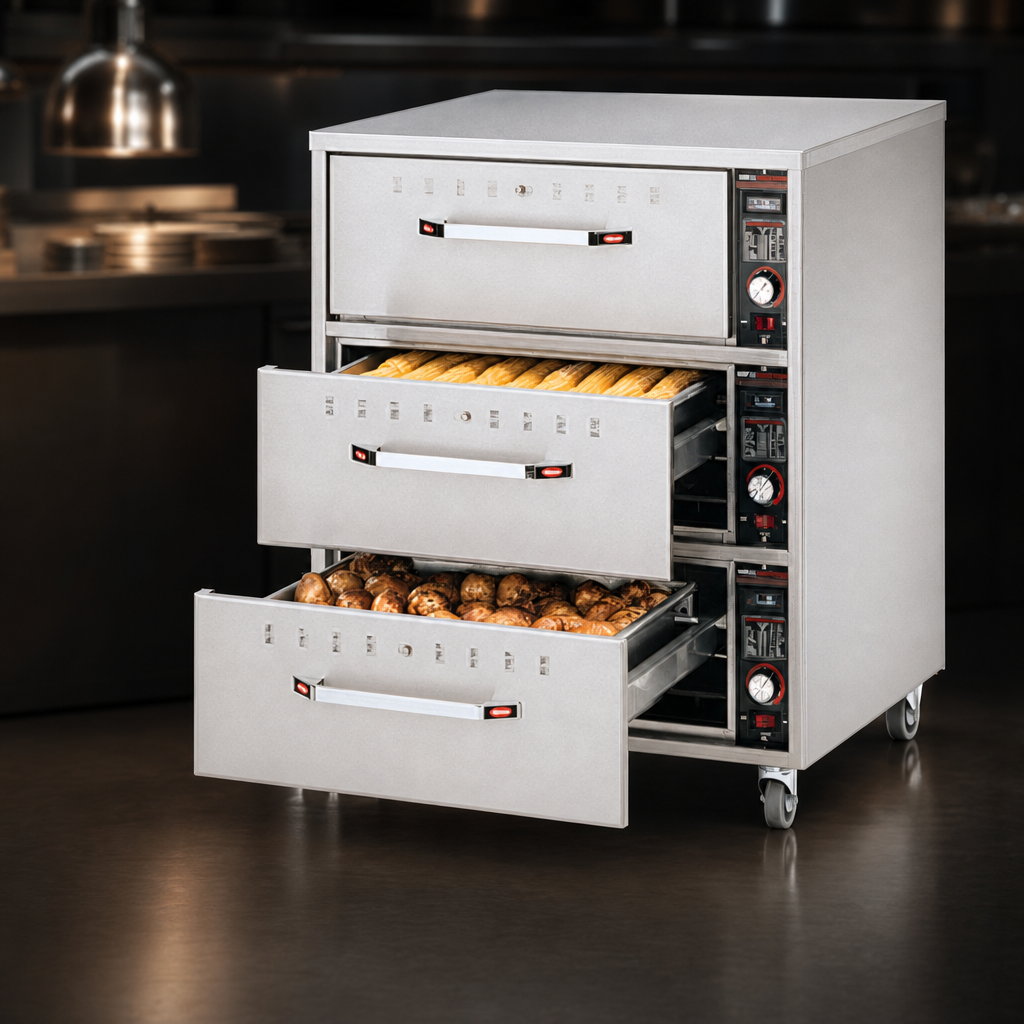

Three Drawers

The unit has three standard-width drawers.

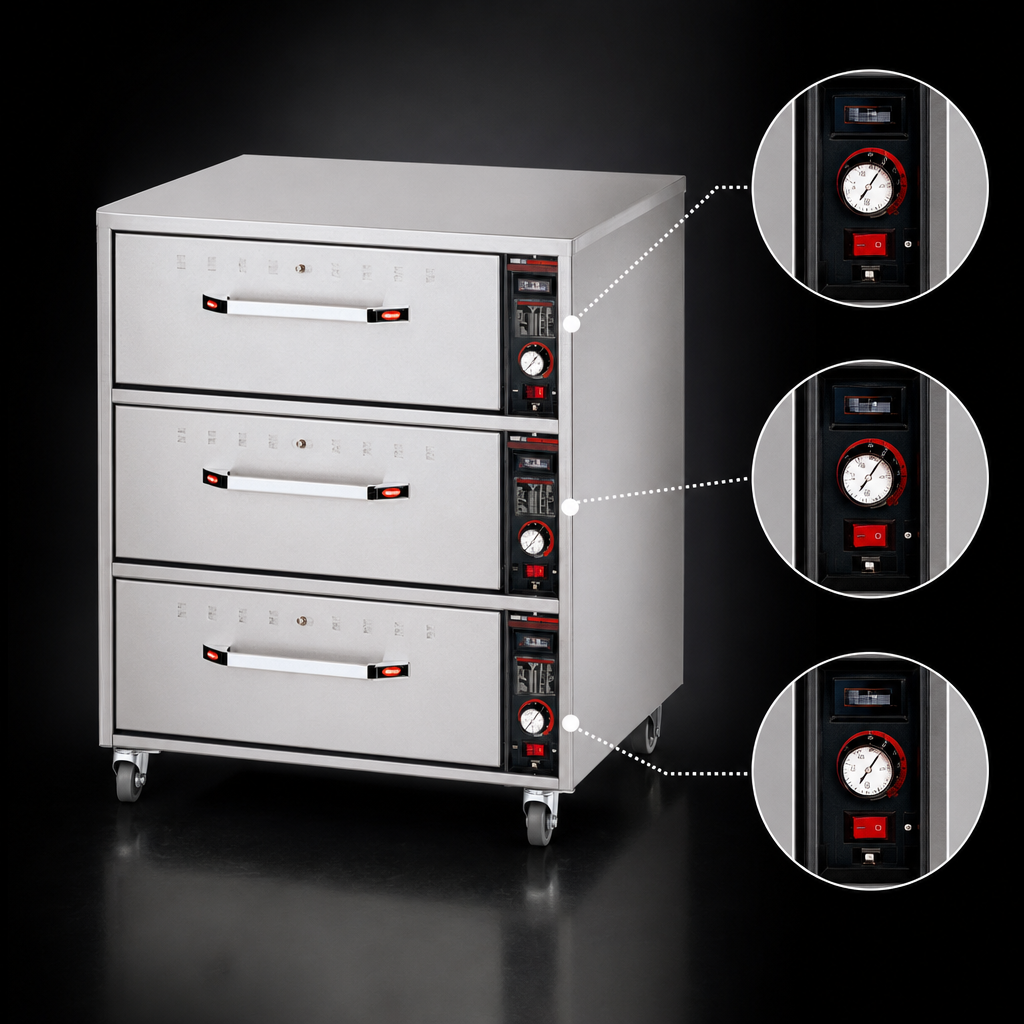

Individual Thermostatic Controls

Each drawer has a recessed thermostatic control, temperature monitor, and On/Off switch.

Included Food Pans

One standard 6-inch-deep food pan is included per drawer.

Stainless Steel Construction

The exterior, interior, drawer slides, and assembly are stainless steel.

Adjustable Sliding Vents

Each drawer has an adjustable sliding vent.

Insulated Cavities

The individual drawer cavities are insulated.

Drawer Slides

Heavy-duty drawer slides use nylon rollers.

Full-Extension Drawers

The standard-width drawer assembly fully extends to allow pan removal without tilting.

Frequently Asked Questions

The HDW-3 has three drawers.
Yes. One standard 6-inch-deep food pan is included per drawer.
Each drawer has an individual thermostatic control, temperature monitor, and On/Off switch.
The listed dimensions are 29.5 inches wide by 22.63 inches deep by 31.25 inches high, with a listed weight of 232 pounds. The specification sheet notes that height excludes legs and casters and that 1.25 inches should be added to depth for the drawer handle.
The specification sheet lists 100, 120, 208, and 240 Volt, 1-Phase configurations at 1,350 Watts. Listed amperage is 13.5 Amps at 100 Volts, 11.3 Amps at 120 Volts, 6.5 Amps at 208 Volts, and 5.6 Amps at 240 Volts.
The HDW-3 is made in the USA.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
