Hatco HDW-1N Drawer Warmers
Description

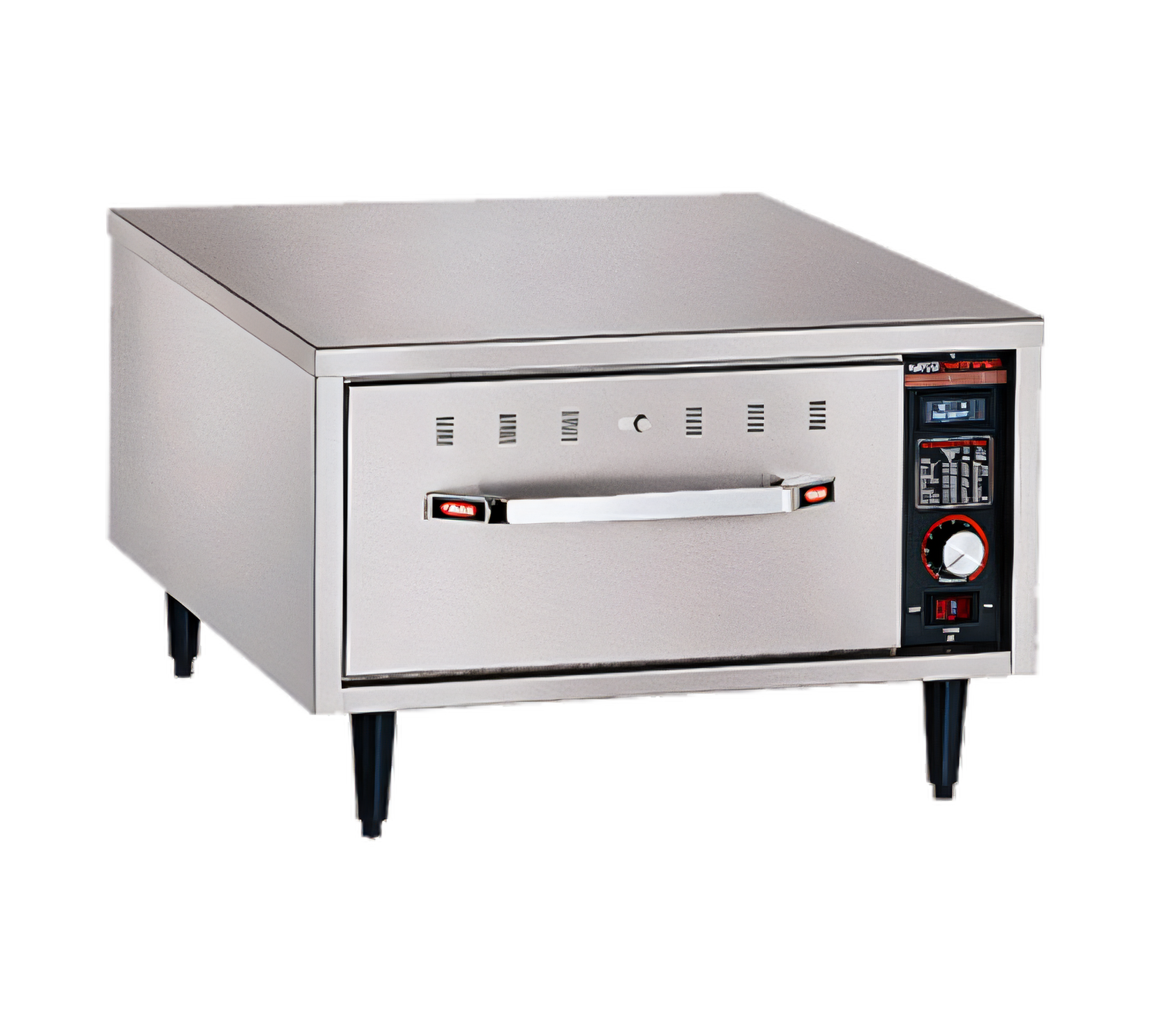

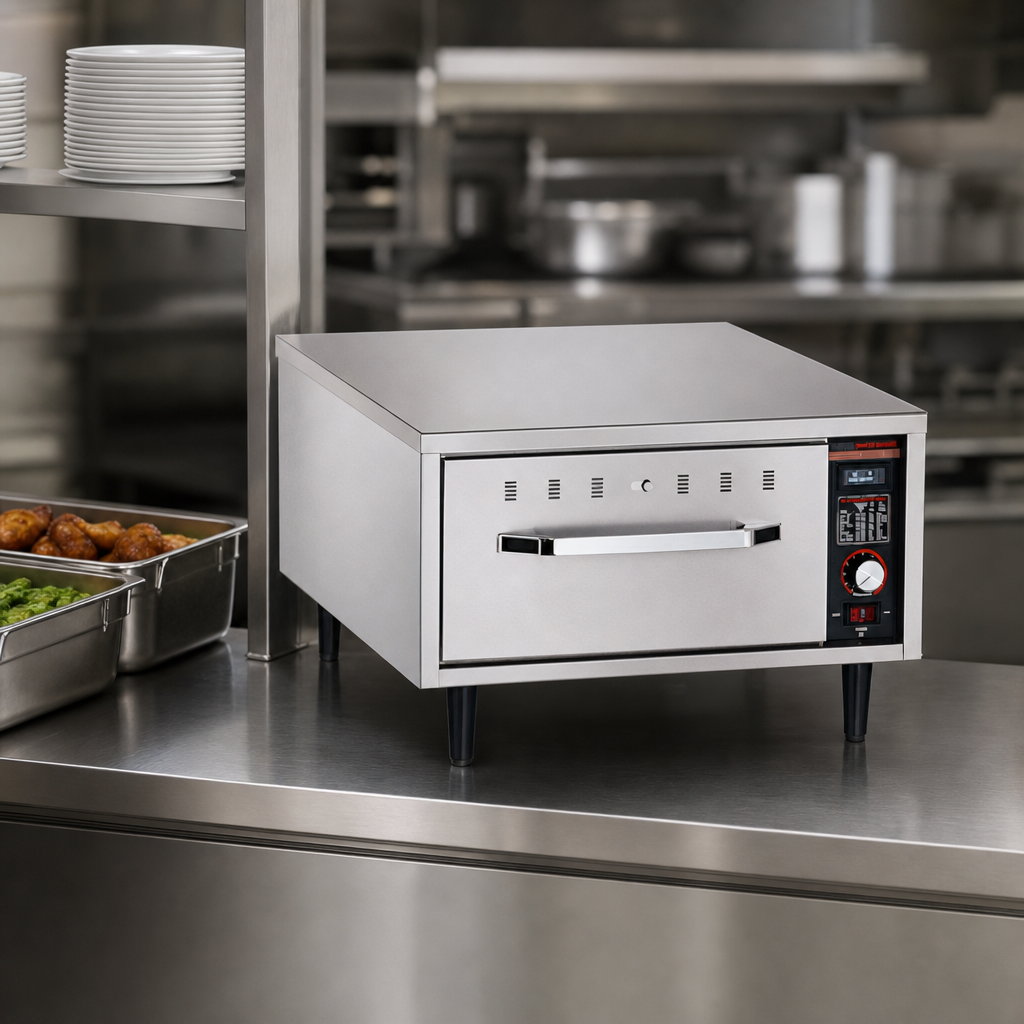

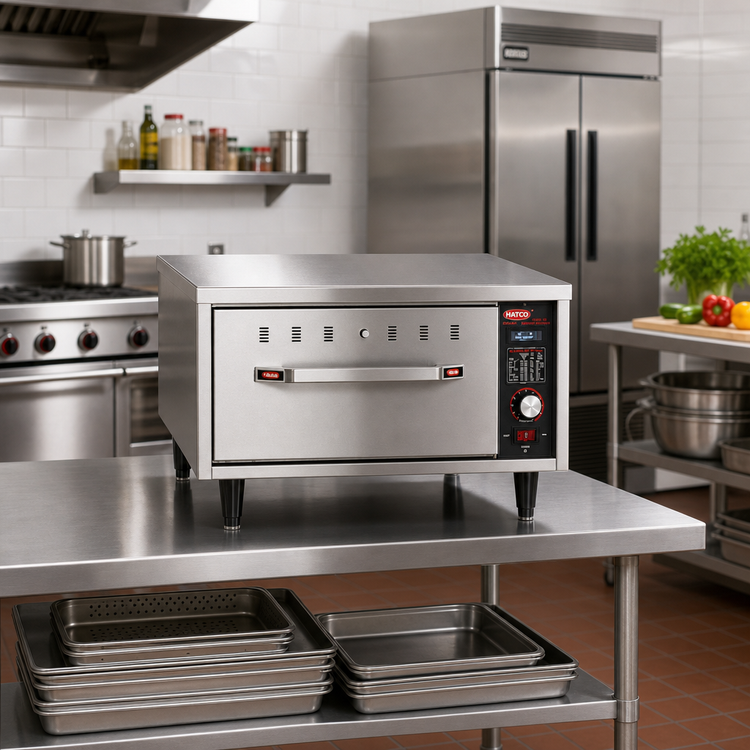

Hatco HDW-1N Narrow Freestanding Warming Drawer
Space-saving, one-drawer hot holding with legendary Hatco reliabilityKeep entrées, sides and baked goods at perfect serving temperature without drying them out. The HDW-1N combines a slim 20 7⁄8" footprint with rugged stainless-steel construction, insulated cavity and precise thermostatic controls—ideal for cooklines, carving stations, grab-and-go programs and more.
Built for Busy Kitchens
- Space-efficient narrow chassis—only 20.88" wide; fits where full-size units can’t.
- Includes one full-size, 6" deep stainless steel food pan that lifts straight up for fast change-outs.
- Individual thermostatic knob with temperature monitor & lighted On/Off switch for set-and-forget holding.
- Adjustable sliding vent lets you fine-tune moisture level for crisp or humid holding.
- “Blanket” heating element and fully insulated cavity maintain uniform heat while saving energy.
- Heavy-duty drawer slides with nylon rollers guarantee smooth, full-extension access shift after shift.
- Standard 4" legs provide clearance for cleaning and are removable for drop-in installations.
- Stainless steel interior & exterior wipe clean easily and stand up to commercial abuse.
- Meets the toughest standards—NSF, cULus & CE listed; proudly Made in the USA.
Perfect For
- Quick-service & fast-casual restaurants
- Hotel breakfast buffets & banquets
- C-stores & grab-and-go merchandisers
- Catering lines, carving or omelet stations
- Any operation that needs extra hot-holding without sacrificing counter space
Technical Specs
| Model | HDW-1N (narrow, one drawer) |
|---|---|
| Capacity | (1) full-size steam table pan, 6" deep (included) |
| Exterior Dimensions | 20.88" W × 27" D × 11" H (530 × 686 × 279 mm) Add 4" (102 mm) for included legs. |
| Construction | All-stainless steel body, drawer & slides; high-density cavity insulation |
| Heat Source | Blanket-style element under drawer pan |
| Temperature Control | Infinite mechanical thermostat with analog temperature monitor |
| Electrical |
450 W, single-phase 100 V 4.5 A • 120 V 3.8 A • 208 V 2.2 A • 240 V 1.9 A Factory-installed 6' cord & NEMA 5-15P (120 V) plug standard |
| Certifications | NSF 4, cULus, CE |
| Ship Weight | Approx. 97 lb (44 kg) |
| Origin | Made in USA |
Popular Options (factory order)
- 6" adjustable stainless legs or caster kits (2", 3" or 5"—two locking)
- Water/Spillage pan & splash baffle for humidified holding
- Custom designer drawer front colors (Warm Red, Black, Gray Granite, etc.)
- Touchscreen control package with digital timer & alerts
- Chip guard for high-volume fry programs
Performance data and certification marks apply only when the unit is installed, operated and maintained in accordance with Hatco’s published instructions.
