Hatco HCWBIX-6DA Steam Tables & Food Wells
Description

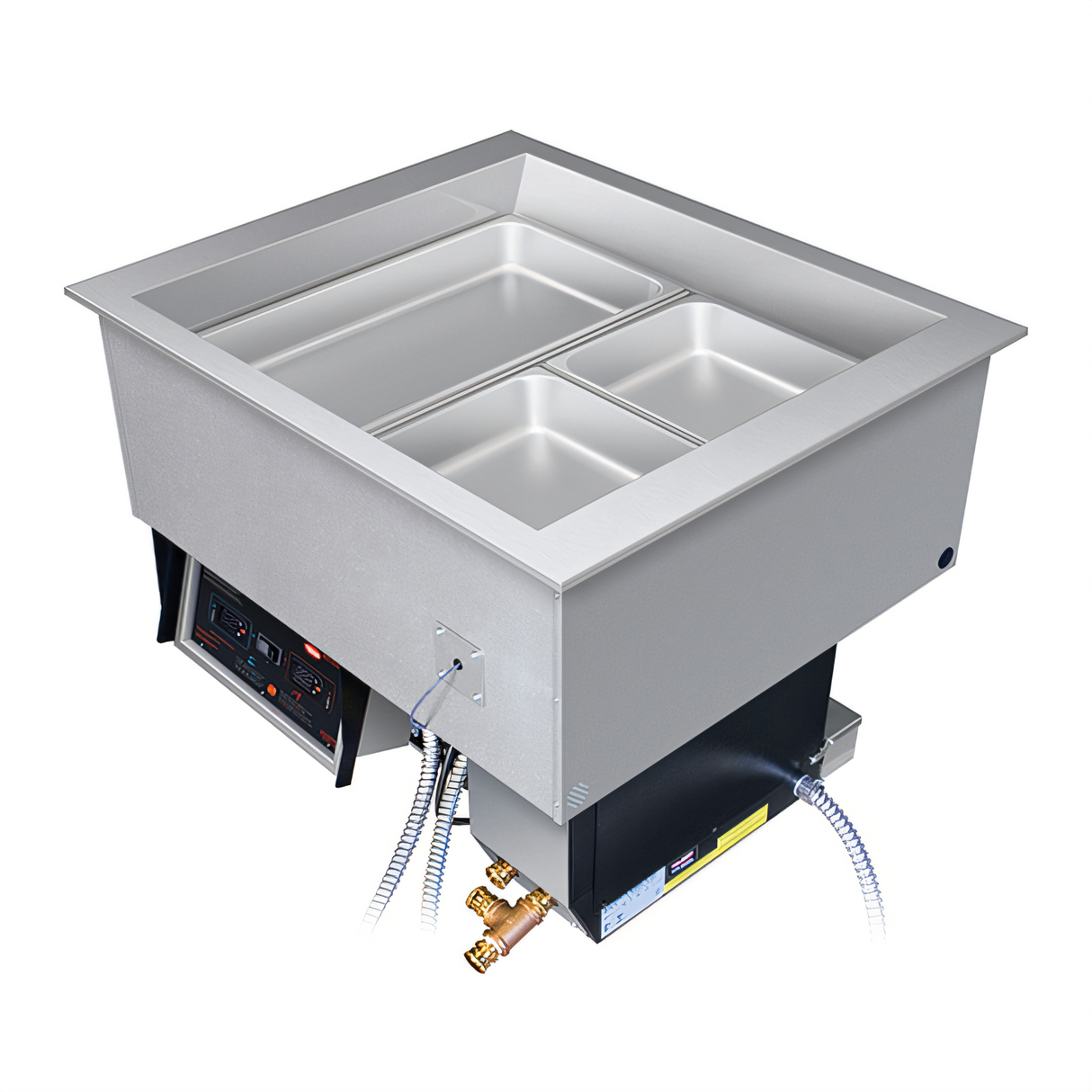

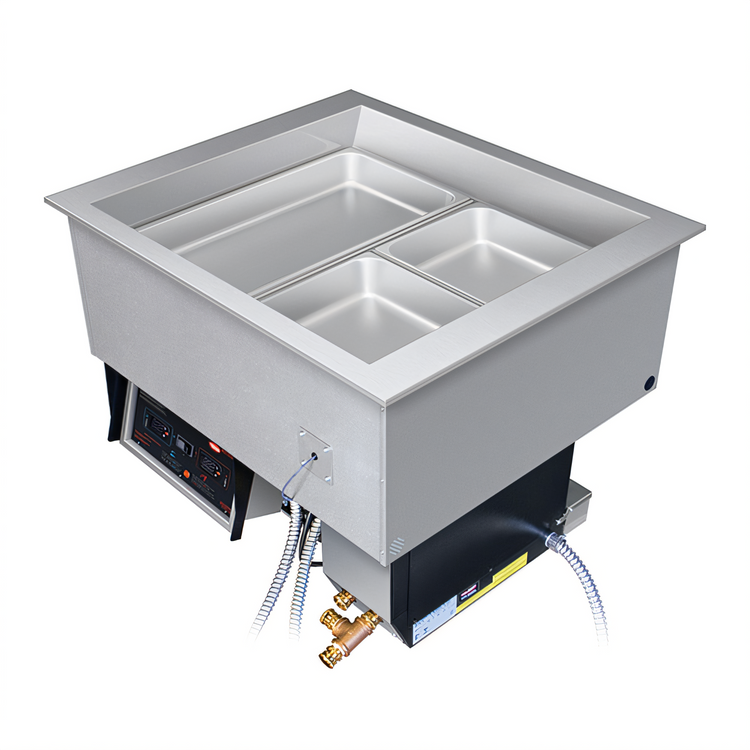

Hatco Remote Drop-In Hot/Cold Well – 6 Pan
Model HCWBIR-6DA | 6000 W Hot / 5⁄8 HP ColdTurn one counter cut-out into a breakfast buffet, salad bar or dessert station—without ever swapping equipment. Hatco’s HCWBIR-6DA drop-in well instantly switches between hot and cold modes, holding up to six full-size pans at precise, food-safe temperatures while keeping noise and heat away from guests thanks to a remote condenser.
Why you’ll love it
- Dual-mode design toggles from Cold ➞ Off ➞ Hot via a simple rocker switch.
- Separate digital read-outs and adjustable set points let you dial in exact temperatures for any menu item.
- 6 kW FR2 “free-flow” Hydro-Heater delivers even water circulation, automatic fill and low-water protection.
- Cold mode features auto-defrost, thick insulation and an energy-efficient R-513A remote condenser.
- Remote control box mounts to any vertical surface within 5 ft for intuitive operation.
- Stainless-steel pan support bars (included) fit hot or cold frames for safer, easier pan changes.
- Remote condenser can be field-mounted up to 50 ft from the well to reduce front-of-house heat & noise.
- Built in America, cULus listed and NSF component compliant.
At-a-glance specs
| Pan capacity | 6 full-size 12" × 20" (or fractional equivalents) |
|---|---|
| Hot mode | 65 – 192 °F (18 – 89 °C) | 6000 W FR2 Hydro-Heater | automatic water fill & drain |
| Cold mode | 10 – 50 °F (-12 – 10 °C) | 5⁄8 HP remote condenser | R-513A refrigerant | auto-defrost |
| Overall well size | 84" W × 27" D × 26.54" H (2134 × 686 × 674 mm) |
| Counter cut-out | 82.125"–83" W × 25.19"–26" D |
| Electrical | 120/208–240 V, 1 Ø 28.8 A / 3 Ø 16.7 A, 60 Hz |
| Remote leads | 60" pre-wired power whip & 20' control-to-condenser harness |
| Ship weight | ≈ 370 lb (168 kg) |
| Certifications | cULus, NSF component |
What’s in the box
- 6-pan hot/cold drop-in well
- Remote condensing unit (ships loose) with TXV & filter-drier
- Remote-mount electronic control panel
- Stainless-steel pan support bars (hot & cold frames)
- 60" power whip + 20' control cable
- Installation & operating manual
Food pans, drain hose kit and other accessories sold separately.
