Hatco HCWBIX-2DA Steam Tables & Food Wells
Description

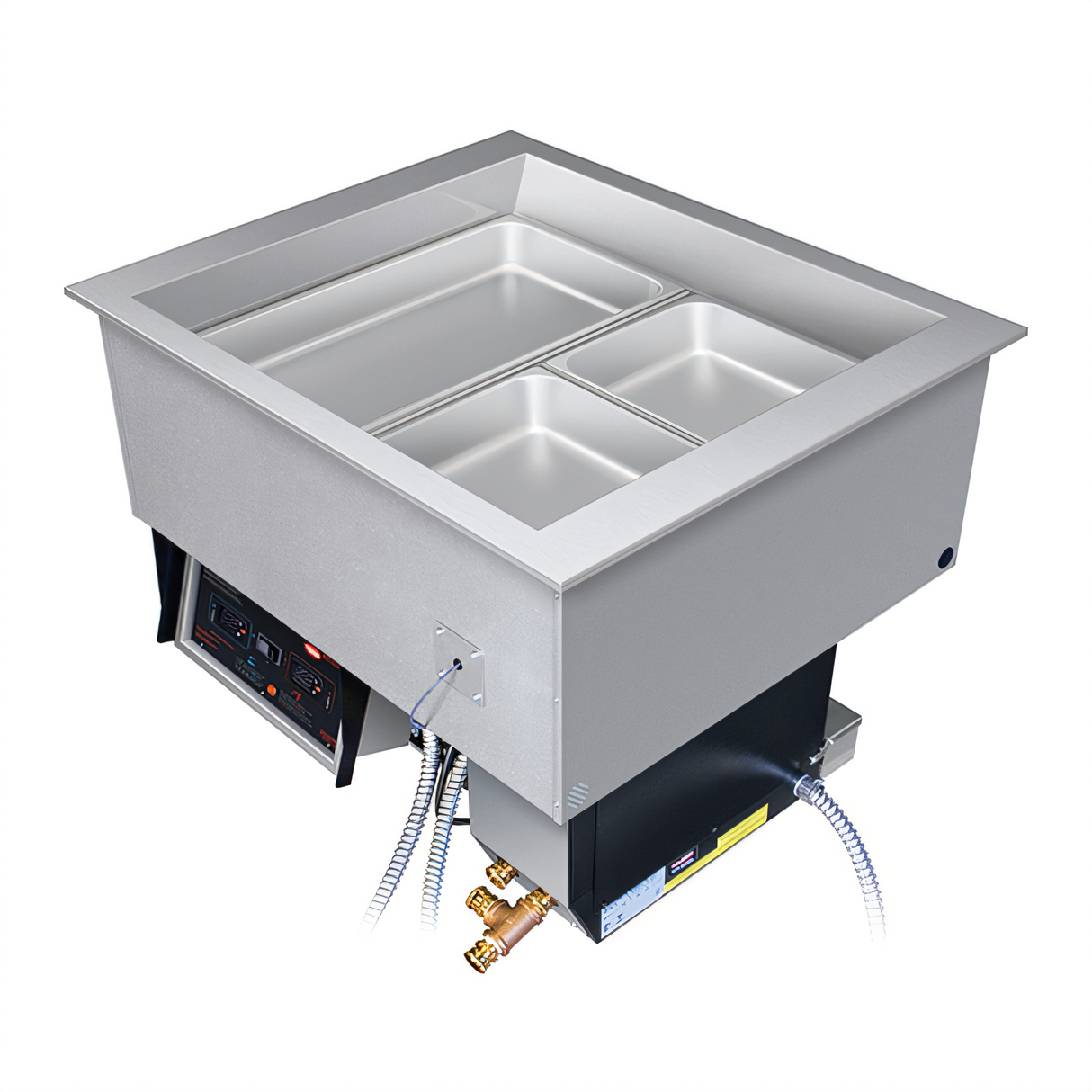

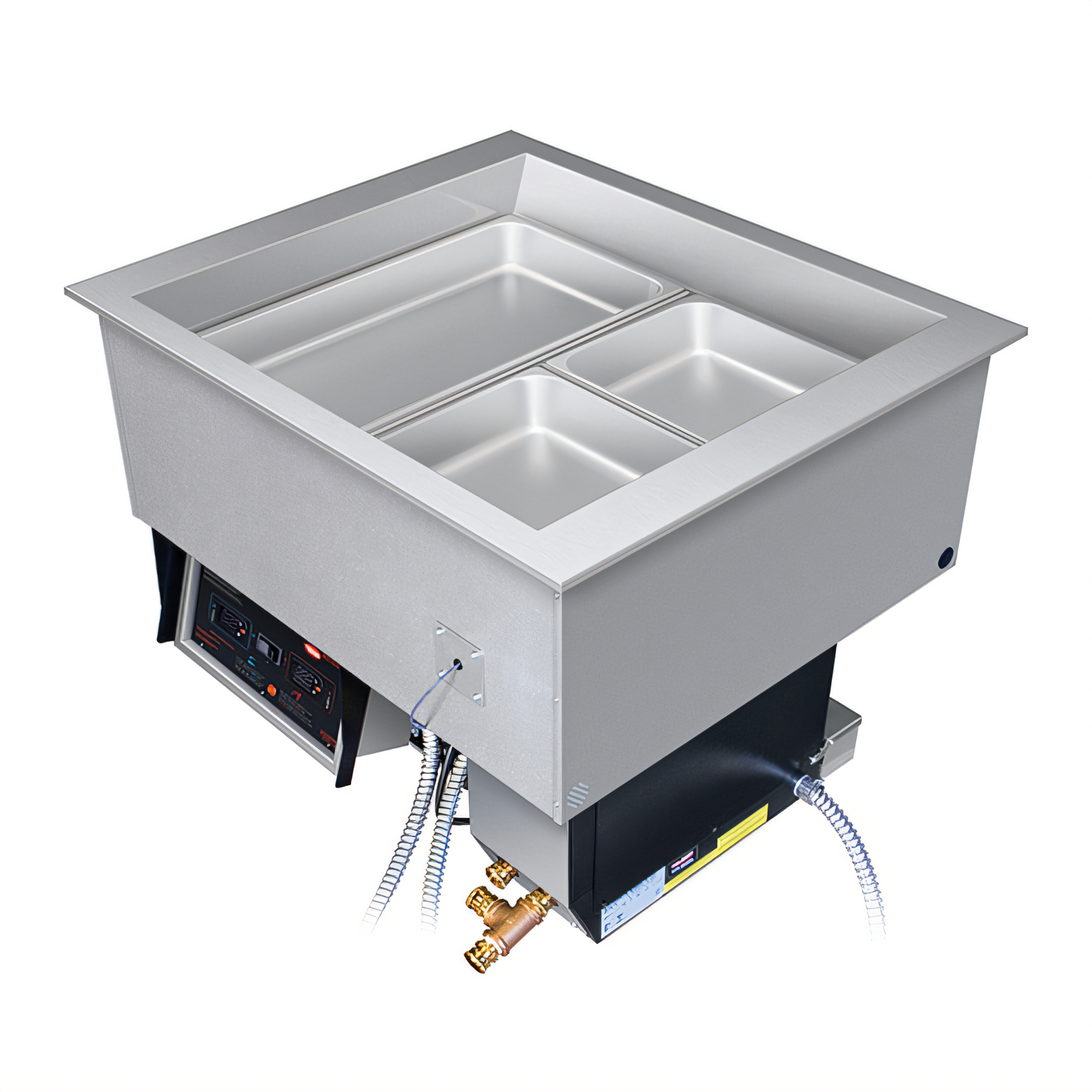

Hatco HCWBIR-2DA Remote Drop-In Hot/Cold Well
2-Pan | Switchable Hot or Cold Holding | Remote CondenserServe sizzling entrées at breakfast and crisp, chilled salads by lunch without changing equipment. The Hatco HCWBIR-2DA combines a high-performance Bain-Marie heater and an energy-efficient cold well in a single, space-saving drop-in unit—giving you total menu flexibility with the flip of a switch.
Key Features & Benefits
- Dual-mode operation: Electronic control toggles from Cold (32–50 °F) to Hot (65–192 °F)—ideal for all-day service.
- FR2 Hydro-Heater: “Free-flow” Bain-Marie system delivers even heat, auto-fills, drains, and protects itself with low-water cut-off.
- Efficient cold well: R-513A remote condenser with auto-defrost blankets products in cold air for food-safe holding.
- Remote-mount control panel: 20 ft (6.1 m) harness lets you install controls on any convenient vertical surface.
- Pan flexibility: Includes support bars for two full-size pans (or fractional equivalents) in both hot and cold modes.
- Quick changeovers: Allow about 60 minutes to transition between modes—no separate wells needed.
- Plug-and-play wiring: Ships with a 60" pre-wired power whip for faster installation.
- cULus listed, NSF component | Made in the USA
Technical Specifications
| Model | HCWBIR-2DA |
|---|---|
| Capacity | 2 full-size 12" × 20" steam pans (or 4 half-size / 6 third-size) |
| Overall Dimensions | 32" W × 27" D × 26.54" H (813 × 686 × 674 mm) |
| Counter Cut-Out | 30.125–31" W × 25.19–26" D (765–787 mm × 640–660 mm) |
| Well Depth | 12" (305 mm) |
| Heating Power | 3,000 W FR2 Hydro-Heater |
| Refrigeration | 1/5 HP remote condensing unit (R-513A), ships loose |
| Electrical | 120/208-240 V | 1-ph 14.5 A / 3-ph 8.4 A |
| Shipping Weight | Approx. 214 lb (97 kg) |
Condensing unit can be field-mounted up to 50 ft (15.24 m) from the well. Unit ships dry; refrigeration circuit must be evacuated and charged on-site.
What’s Included
- HCWBIR-2DA drop-in hot/cold well (2-pan)
- Remote R-513A condensing unit
- FR2 Hydro-Heater assembly
- Electronic control panel & 20' harness
- Pan support bars (hot & cold)
- TXV valve & filter-drier
- 60" pre-wired power supply whip
- Installation & operation manual
Upgrade your serving line with the Hatco HCWBIR-2DA and keep every dish at its perfect serving temperature—morning, noon, or night.
