Hatco HCWBIR-5DA Steam Tables & Food Wells
Description

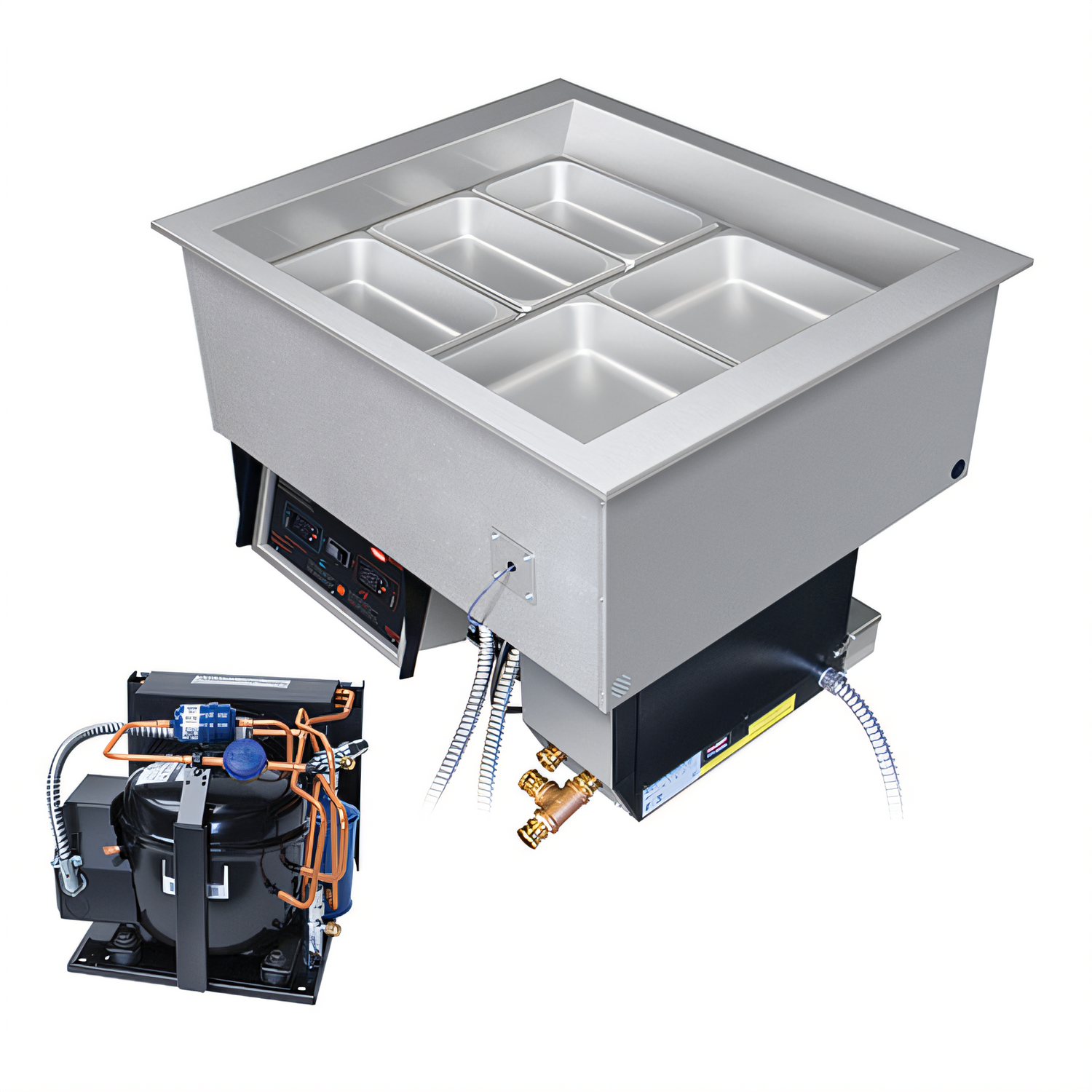

Hatco HCWBIR-5DA Remote Drop-In Hot/Cold Well
5-pan capacity • 6000 W • 5/8 HP compressorServe sizzling entrées at breakfast and chilled salads at lunch from the exact same well. Hatco’s HCWBIR-5DA gives you true hot-and-cold versatility in one seamless drop-in, keeping every menu item at a food-safe, customer-pleasing temperature.
Top benefits
- Dual-mode design holds foods either 32 °F / 0 °C cold or up to 192 °F / 89 °C hot at the flip of a switch.
- Remote electronic panel (mounts up to 5 ft away) with digital temperature read-outs and a simple COLD – OFF – HOT rocker switch.
- Patented FR2 Hydro-Heater delivers even, gentle Bain-Marie heat with automatic water fill, low-water cut-off and quick-drain valve.
- High-efficiency refrigeration system with R-513A refrigerant, automatic defrost and 5/8 HP compressor for consistent cold-air blanketing.
- Angled interior walls improve product visibility and pan access while directing cold air evenly over food.
- Includes hot-mode frame, cold-mode pan support bars and a 60" pre-wired power supply whip for quicker installs.
- Condensing unit ships loose and can be mounted up to 50 ft away—keep noise and heat out of the serving area.
- cULus and NSF component recognized; proudly made in Wisconsin, USA.
At-a-glance specs
| Model | HCWBIR-5DA |
|---|---|
| Pan capacity | (5) full-size 12 × 20 in (or fractional equivalents) |
| Overall dimensions | 71 × 27 × 26.54 in (1803 × 686 × 674 mm) |
| Counter cut-out (W × D) | 69.125–70 in × 25.19–26 in (1756–1778 mm × 640–660 mm) |
| Well depth | 12 in (305 mm) |
| Electrical | 6000 W, 120/208-240 V, 1- or 3-phase |
| Refrigeration | 5/8 HP remote condensing unit, R-513A |
| Control cable length | 20 ft (6.1 m) |
| Power whip length | 60 in (1.5 m) |
| Shipping weight | ≈ 343 lb (156 kg) |
| Certifications | cULus, NSF, Made in USA |
Cold mode highlights
- Factory set-point 32 °F (0 °C); adjustable 10–50 °F (-12–10 °C).
- Automatic defrost cycle maintains coil efficiency—no manual ice scraping.
- Pan support bars included; no frost build-up on pan bottoms.
Hot mode highlights
- Water temperature adjustable 65–192 °F (18–89 °C).
- Auto-fill keeps water at proper level; low-water cut-off protects components.
- Integrated drain simplifies end-of-day cleaning—no heavy lifting required.
Looking for matching Hatco wells or replacement pans? Contact us and we’ll help you build a perfectly integrated serving line.
