Hatco HCWBIR-4DA Steam Tables & Food Wells
Hatco HCWBIR-4DA Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

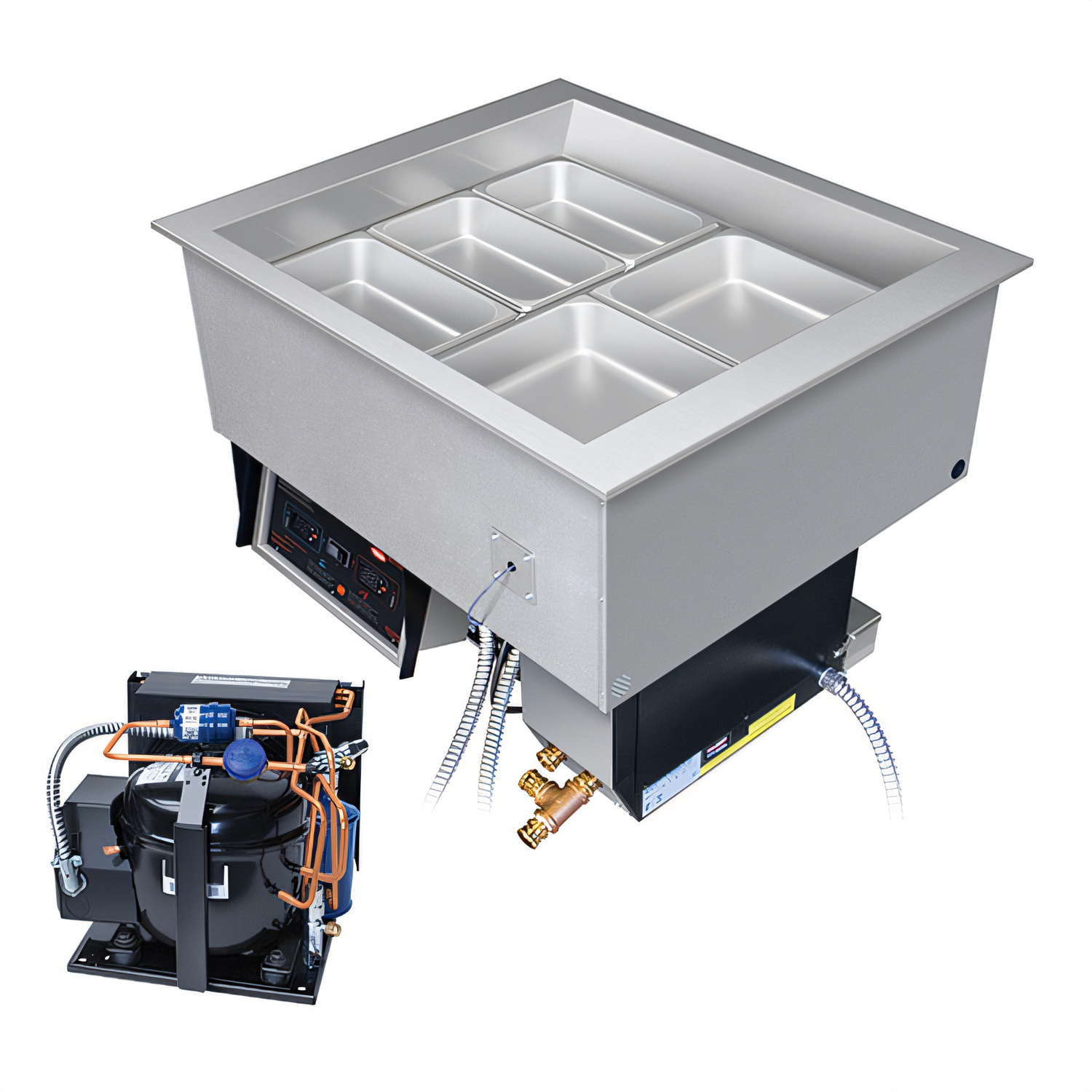

Hatco HCWBIR-4DA Remote Drop-In Hot/Cold Well
4-Pan | 4000 W | 1/3 HP | Made in USAGive your buffet, salad bar, or grab-and-go station unmatched menu flexibility with Hatco’s HCWBIR-4DA. This remote drop-in system instantly converts from refrigerator-cold to steamy-hot, keeping four full-size pans of product at perfect serving temperatures—all at the touch of a button.
Why you’ll love it
- Dual-Mode Performance – switch from COLD → >OFF → HOT with a single rocker.
- Precise digital control – independent LED read-outs and adjustable set-points: 10–50 °F (-12–10 °C) in cold mode | 65–192 °F (18–89 °C) in hot mode.
- FR2 Hydro-Heater – Hatco’s “free-flow” Bain Marie technology delivers even, gentle heat with automatic water fill and low-water protection.
- Auto-Defrost Refrigeration – efficient R-513A condensing unit keeps food safely chilled and defrosts itself on schedule.
- Remote-Mount Panel – 20 ft factory-wired harness lets you place the control box up to 5 ft from the counter face for ergonomic operation.
- Includes pan supports for both hot and cold operation—accommodates full-, half- or third-size pans up to 6" deep.
- Field-friendly installation – factory-sealed TXV valve, 60" flexible power whip and loose-shipped condenser can be mounted up to 50 ft away.
- Built to last – fully insulated stainless & aluminized-steel well, cULus listed and backed by Hatco’s legendary service.
Key specifications
Model | HCWBIR-4DA |
---|---|

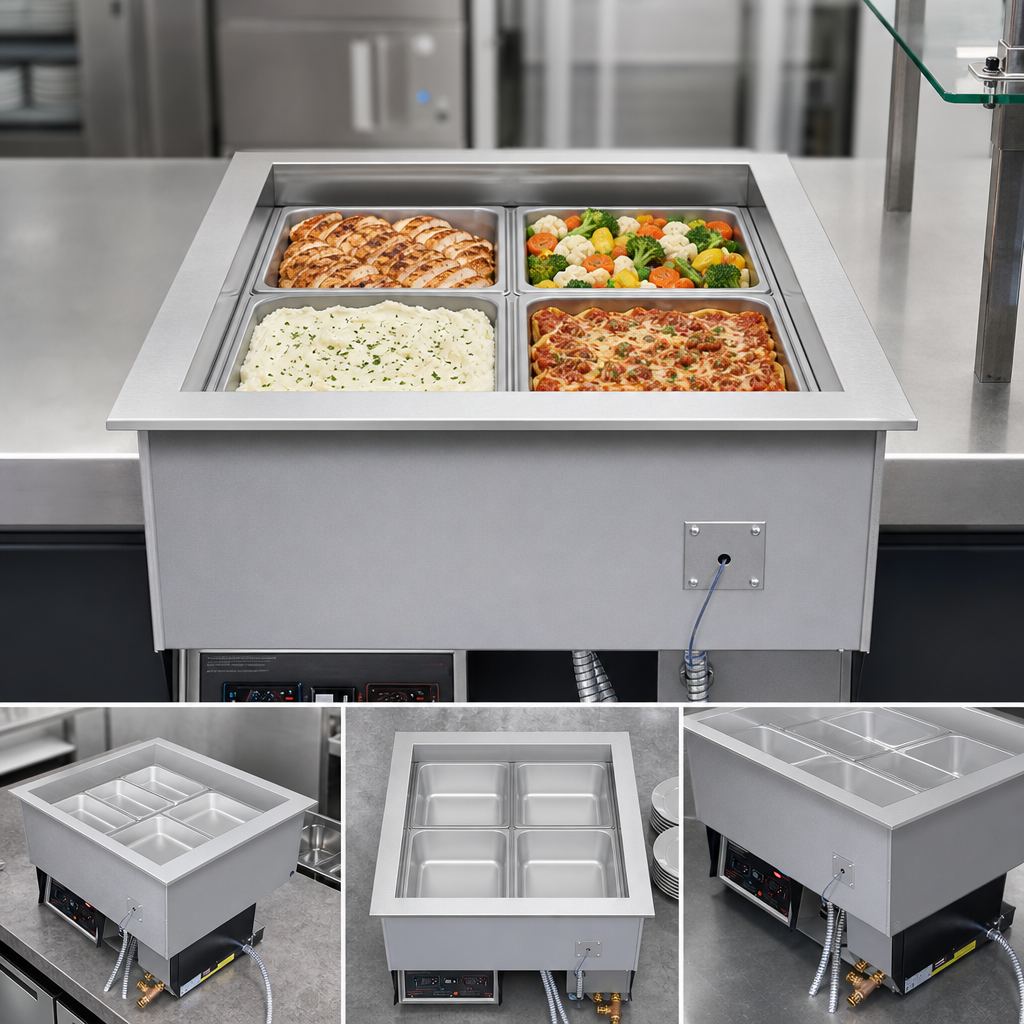

Pan capacity | (4) full-size 12" x 20" pans (or fractional equivalents) |
Overall well size | 58" W × 27" D × 26.54" H |
Counter cut-out | 56.125–57" W × 25.19–26" D × 12" H |
Wattage / Voltage | 4000 W | 120/208 V or 120/240 V, 1- or 3-phase |
Full-load amps (1 φ) | 19.2 A @ 120/208 V | 16.7 A @ 120/240 V |
Compressor | 1/3 HP, R-513A refrigerant (condensing unit ships loose) |
Temperature range | Cold: 10–50 °F (-12–10 °C) | Hot: 65–192 °F (18–89 °C) |
Control cable | 20 ft (6.1 m) from well to control panel |
Power connection | 60" (1.5 m) factory-whipped flexible conduit – hard-wire |
Shipping weight | Approx. 285 lb (129 kg) |
Certifications | cULus, NSF component |
Country of origin | USA |
• Install condenser in a well-ventilated location; maintain line-set length ≤ 50 ft (15.24 m).
Warranty & support
Hatco includes 24/7 parts & service assistance throughout the U.S. and Canada, plus a standard 1-year parts & labor warranty on the entire unit.
