Description

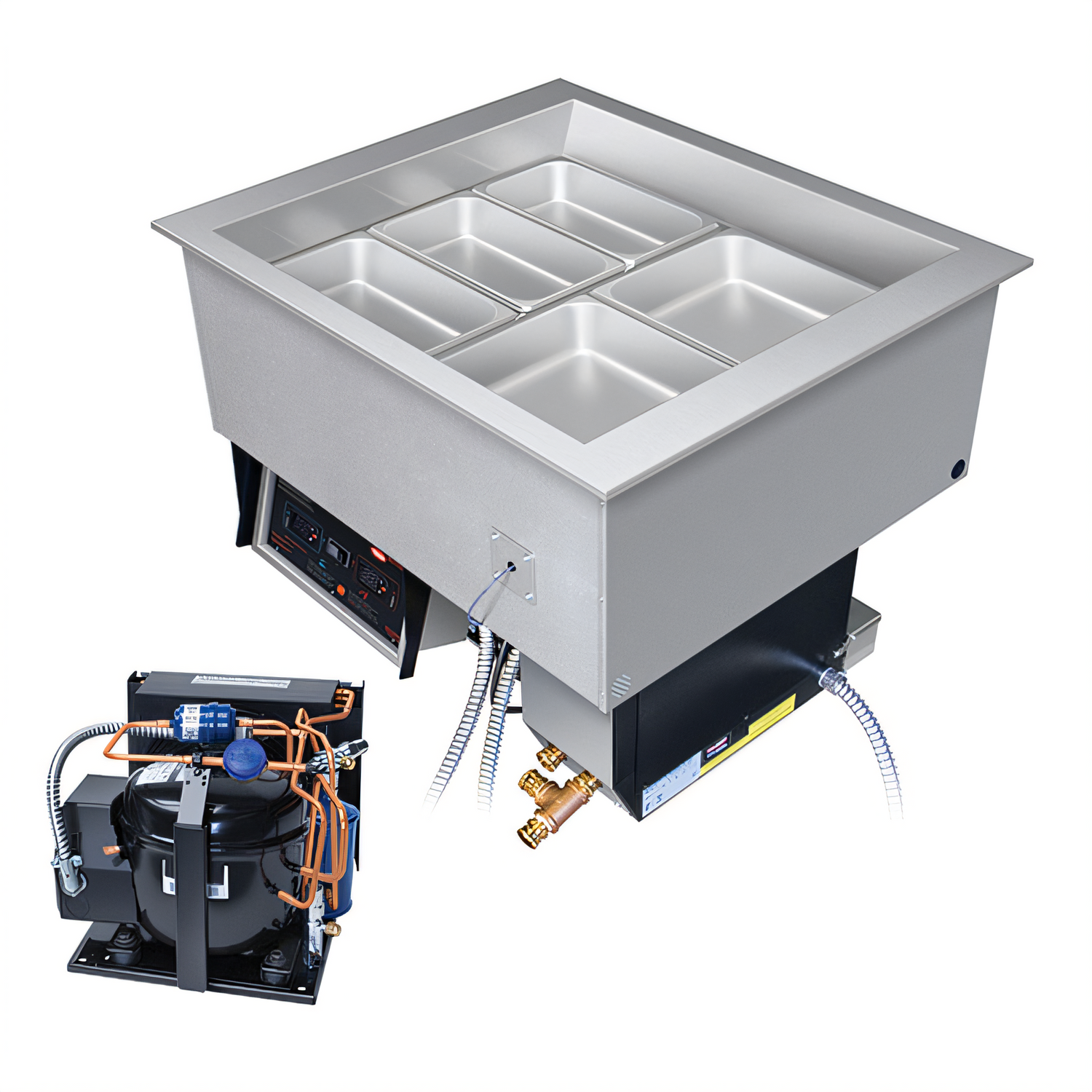

Hatco HCWBIR-3DA Remote Drop-In Hot/Cold Well – 3 Pan

Serve chilled greens at lunch and hot entrées at dinner from the exact same well.

The HCWBIR-3DA gives you true menu flexibility in a single, compact footprint. With independent hot and cold modes, an easy-to-mount remote control panel, and Hatco’s proven FR2 Hydro-Heater, this unit keeps product at safe, appetizing temperatures all day long.

Why You’ll Love It

  • Dual-temperature design instantly switches between refrigerated holding and Bain-Marie hot holding.
  • Fits three full-size 12" × 20" pans (or fractional sizes with adapters).
  • Electronic controller with separate digital displays for Hot & Cold modes.
  • Auto-defrost refrigeration and automatic water fill reduce daily labor.
  • FR2 Hydro-Heater “free-flow” technology delivers even water circulation for consistent heat.
  • Remote control panel mounts up to 5' (1.5 m) from the counter face for ergonomic access.
  • 20' factory-wired harness between control box and condensing unit for flexible placement.
  • Includes cold-mode pan support bars and hot-mode pan frame—no extras to buy.
  • 60" pre-wired power supply whip for quick field connection.
  • cULus & NSF listed; proudly Made in the USA.

Temperature Performance

  • Cold Mode set-point: 32 °F (0 °C), adjustable 10–50 °F (-12–10 °C).
  • Hot Mode set-point: 192 °F (89 °C), adjustable 65–192 °F (18–89 °C).
  • 3 kW heating system paired with a 1/5 HP R-513A compressor for fast recovery.

Specifications

Model HCWBIR-3DA
Pan Capacity 3 full-size pans (12" × 20")
Overall Dimensions 45" W × 27" D × 26.54" H (1143 × 686 × 674 mm)
Cut-Out (min/max) 43.125"–44" W × 25.19"–26" D
Wattage 3000 W
Compressor 1/5 HP, R-513A refrigerant
Voltage 120/208 V or 120/240 V, 1-phase or 3-phase
Amps (120/208 V) 14.5 A (1-ph)  •  8.4 A (3-ph)
Shipping Weight Approx. 237 lb (108 kg)
Included Components Remote control panel, FR2 Hydro-Heater, TXV valve, condensing unit, pan supports, 60" power whip
Certifications cULus, NSF
Origin Made in USA

Allow at least 60 minutes for the well to transition between Hot and Cold modes.

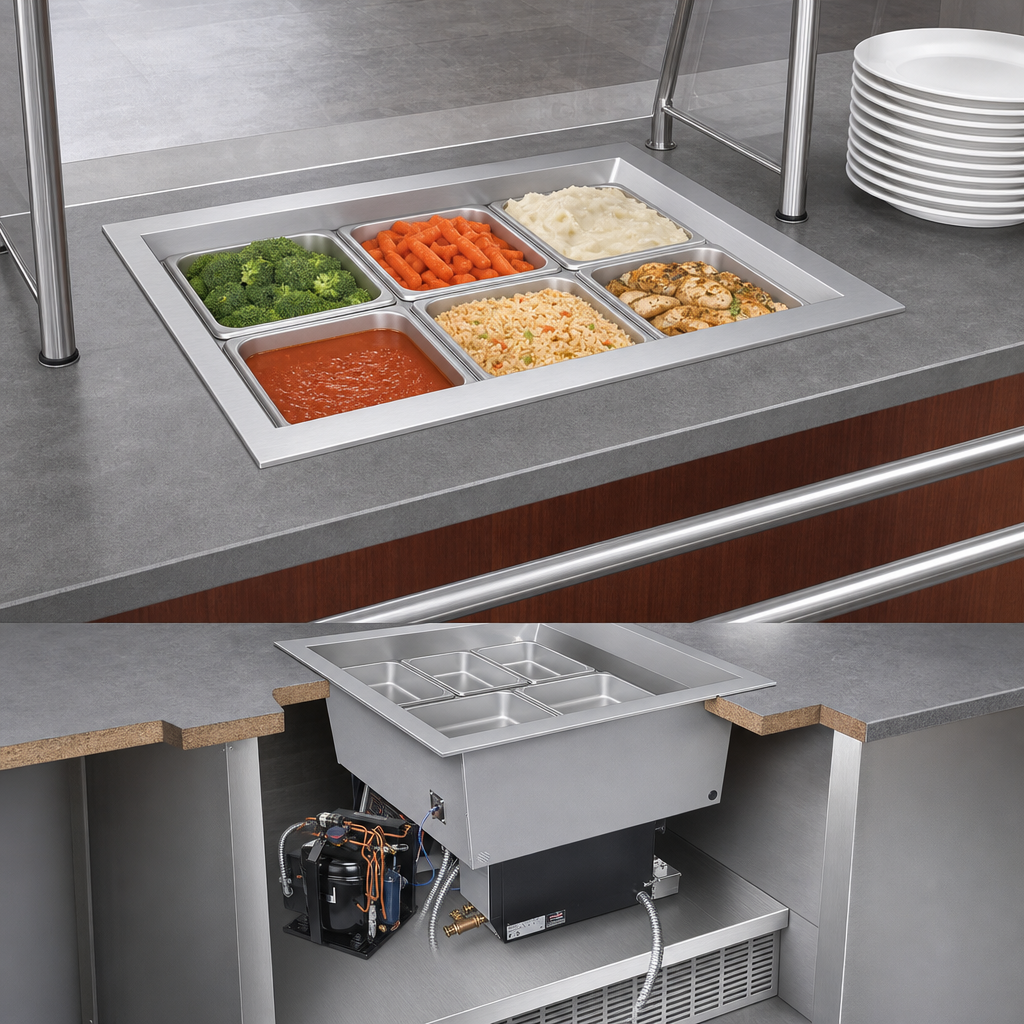

Installation note: The condensing unit ships loose and can be mounted up to 50' (15.24 m) from the well. Electrical connections must be hard-wired by a qualified professional.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

26.5in

Width

45.0in

Depth

27.0in

Shipping Weight

237.0lbs

Controls

single controls

Cooling Style

mechanically cooled

Type

hot/cold

Pan Qty

3-pan

Finish

stainless steel top & well, aluminized steel exterior

Specifications

Drop-In Hot/Cold Well, accommodates (3) full-size pans, condensing unit, FR2 hydro-heater, TXV valve, remote mountable panel, 60" power supply whip, electronic temperature control, auto defrost, automatic water fill, condensing unit, comes with pan support bars, 3000 watts, 1/5 HP, cULus, Made in USA
