Hatco HCSSBX-3618 Steam Tables & Food Wells
Description

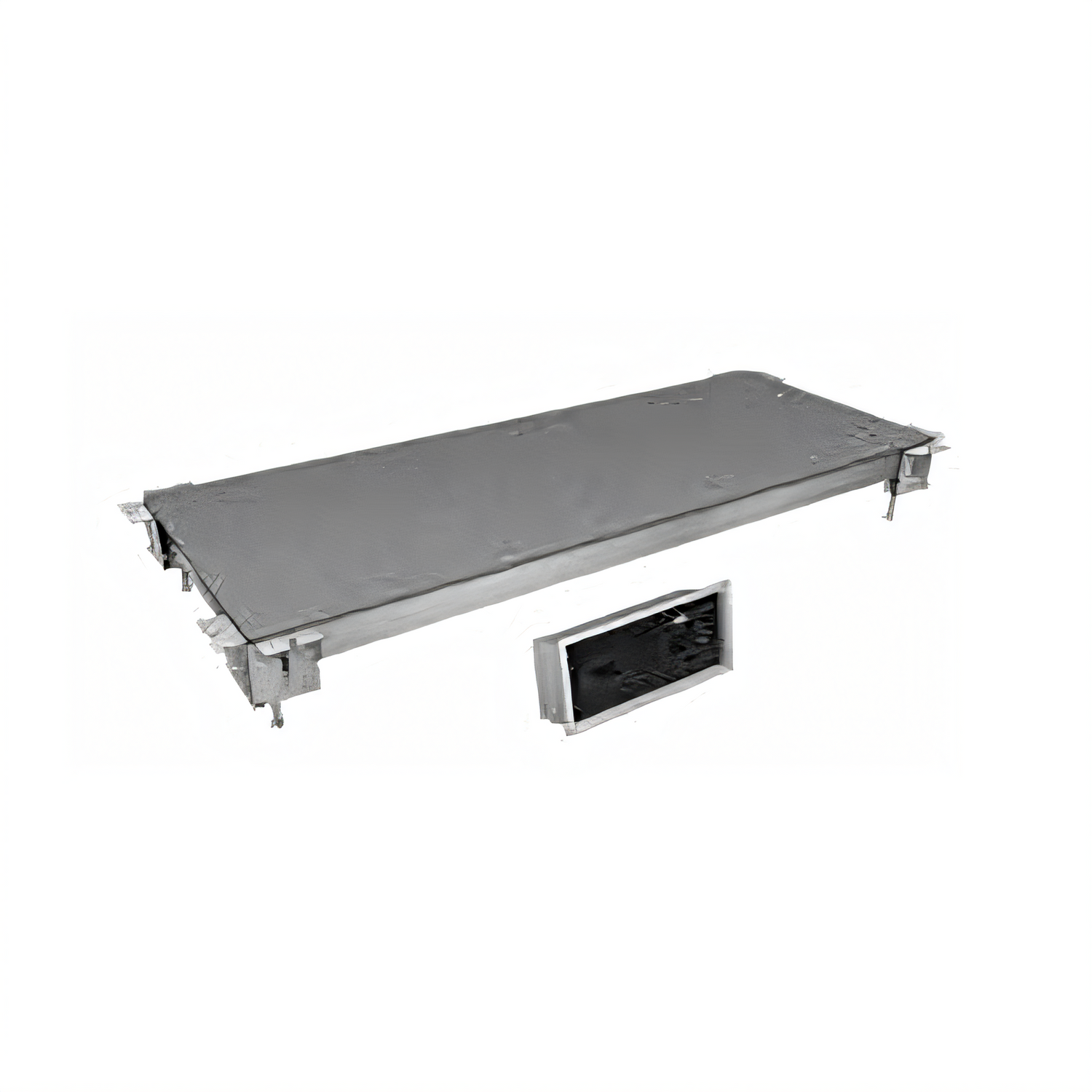

Hatco HCSSBX-3618 Remote-Ready Hot/Cold Simulated Stone Shelf
36" W x 18" D flush, bottom-mount shelf – switch from buffet-hot to market-cold in minutesBring true all-day versatility to your counter line-up. Hatco’s patented HCSSBX-3618 Simulated Stone Shelf lets you chill breakfast parfaits at dawn, keep entrées piping hot at lunch, and switch back to dessert-cold for the evening rush – all on a single, seamless surface.
Why you’ll love it
- Dual-mode performance – change from hot to cold or cold to hot in as little as 30 minutes.
- Remote-ready design – shelf ships with TXV, solenoid valve and loose Electronic Temperature Control Box; simply connect to your own 1,347 BTU/hr remote condensing unit.
- Premium Simulated Stone top – choose from Swanstone® colors or Dekton® stone surfaces for a high-end, scratch-resistant presentation.
- Flush, bottom-mount installation keeps sightlines clean and maximizes usable merchandizing space.
- Patented thermal break virtually eliminates condensation and stops heat/cold transfer to adjacent counter material.
- Easy-to-read electronic controller (4' lead) provides precise set-points for both hot and cold modes.
- cULus listed, NSF component recognized and proudly Made in the USA.
At-a-glance specs
| Usable surface | 36" W × 18" D (914 × 457 mm) |
|---|---|
| Overall (installed) | 39" W × 21" D × 7.54" H (991 × 533 × 191 mm) |
| Electrical – hot side |
120 V / 610 W / 5.1 A |
220 V / 558 W / 2.5 A |
230 V / 610 W / 2.7 A |
240 V / 664 W / 2.8 A 50/60 Hz, single phase (no plug supplied) |
| Refrigeration load | 1,347 BTU/hr evaporator (R-513A recommended – other refrigerants acceptable) |
| Control box | Loose-shipped; mounts up to 4' (1.22 m) from shelf (optional 7.5' lead available) |
| Shipping weight | Approx. 125 lb (57 kg) |
| Certifications | cULus, NSF Component |
Included with your shelf
- Simulated Stone shelf assembly with temperature probe
- Pre-installed TXV & liquid-line solenoid valve
- Electronic Temperature Control Box (loose)
- 72" control harness & 108" probe wires for easy routing
- Adjustable mounting brackets & hardware

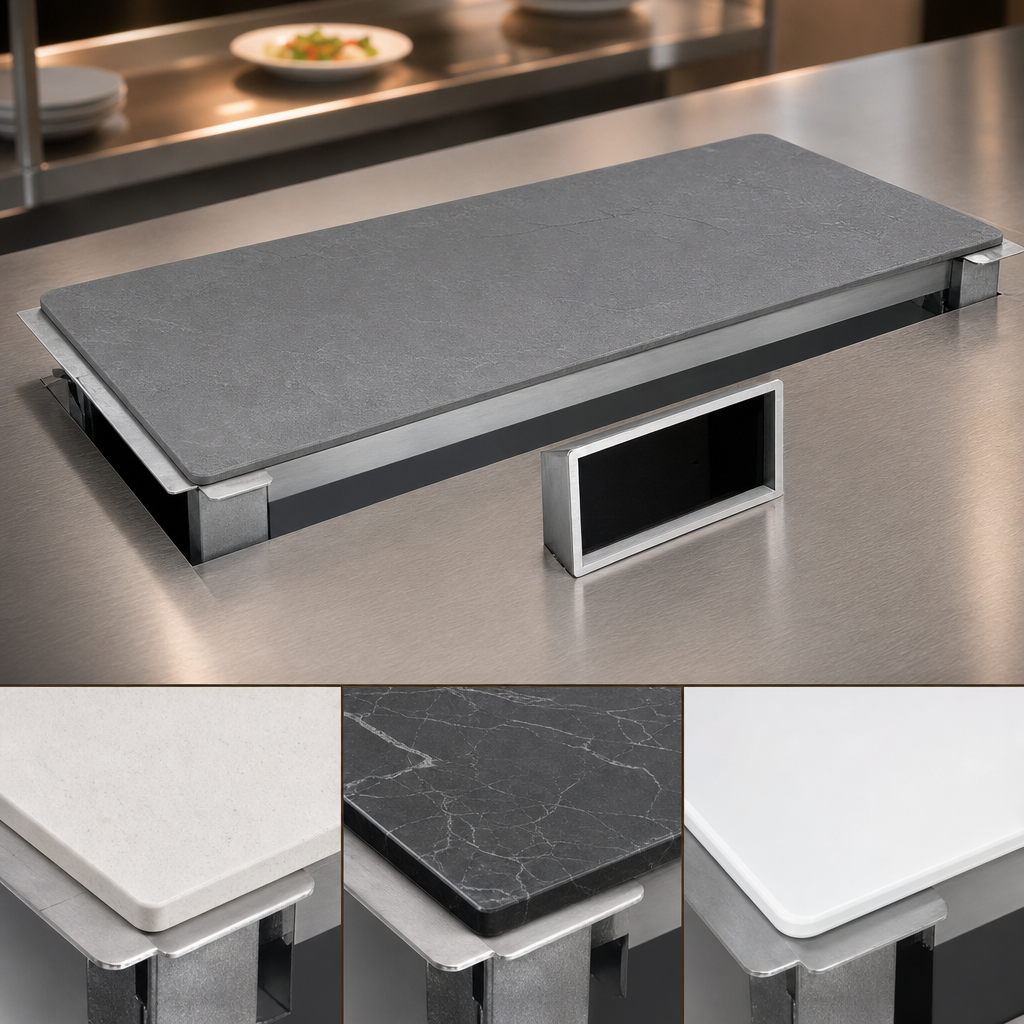

Popular surface options
- Swanstone®: Night Sky (standard), Gray Granite, Bermuda Sand
- Dekton®: Rem, Domoos, Soke
- Ceramic glass: Black or White for a sleek, ultra-smooth finish
Non-standard stone and all Dekton®/glass tops are non-returnable. Select your finish at time of order.
For cut-out dimensions, wiring diagrams and complete installation guidelines, please download the Hatco HCSSBX manual.
