Hatco HCSSBR-2418 Steam Tables & Food Wells
Description

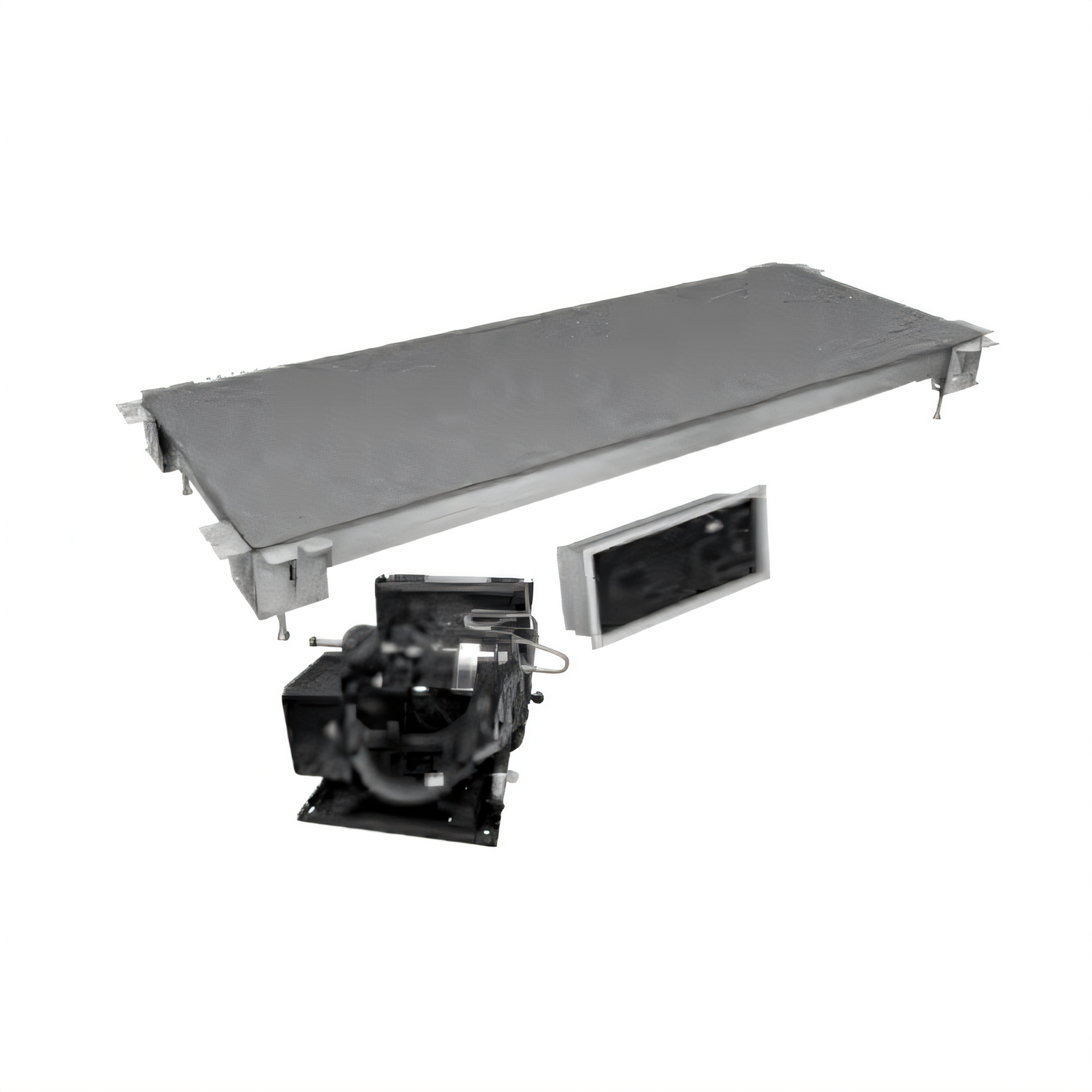

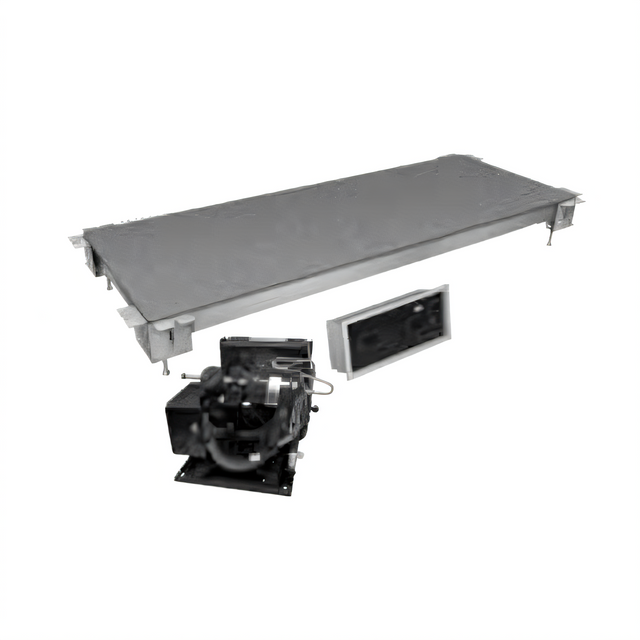

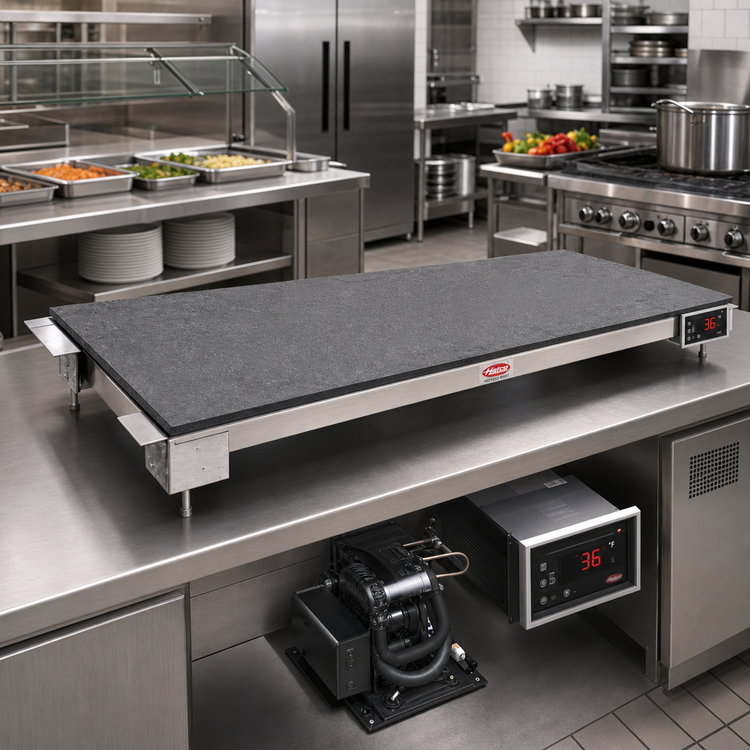

Hatco HCSSBR-2418 Hot/Cold Simulated Stone Shelf – 24" × 18"
Built-in, remote refrigeration, flush-mount countertop flexibilitySwitch effortlessly between buffet-ready heat and market-fresh chill in the same footprint. Hatco’s patented Hot/Cold Simulated Stone Shelf delivers rapid day-part changeovers, eye-catching stone aesthetics, and the installation freedom of a remote condensing unit.
Key advantages
- Dual-mode operation – electronic control toggles between hot holding and cold holding at the touch of a button.
- Rapid transition – reaches serving temperature in 30 minutes or less when switching modes.
- Remote 1/5-HP condensing unit (R-513A) ships loose and can be mounted up to 4 ft (1219 mm) from the shelf.
- Unattached Electronic Temperature Control Box (4 ft lead) installs outside the heat zone for precise, reliable set-points.
- Flush, bottom-mount design blends seamlessly into counters and wipes clean with ease.
- Patented thermal break minimizes condensation and prevents heat transfer to adjacent surfaces.
- Available in three Swanstone® colors, three Dekton® surfaces, or black/white ceramic glass to complement any décor.
- cULus listed, NSF component recognized, and proudly Made in the USA.
Performance at a glance
| Model | HCSSBR-2418 (simulated stone, remote) |
|---|---|
| Usable surface | 24 in W × 18 in D (610 mm × 457 mm) |
| Overall footprint | 27 in W × 21 in D × 7.54 in H (686 mm × 533 mm × 191 mm) |
| Mounting style | Built-in, bottom mount, flush with countertop |
| Compressor | 1/5 HP, R-513A refrigerant |
| Electrical | 120, 220, 230, or 240 V single-phase (select voltage when ordering) |
| Cold-mode power | 300 – 1344 W (voltage dependent) |
| Hot-mode power | 405 – 441 W (voltage dependent) |
| Current draw | 3.8 – 5.6 A |
| Shipping weight | Approx. 112 lb (51 kg) |
Ideal applications
- Hotel breakfast bars moving from chilled yogurt to hot oatmeal.
- Grocery delis showcasing rotating seasonal offerings.
- Campus or corporate dining rooms requiring fast day-part changeovers.
- Suite catering or stadium clubs demanding a sleek, built-in presentation.
What’s included
- Simulated Stone Shelf assembly with temperature probe

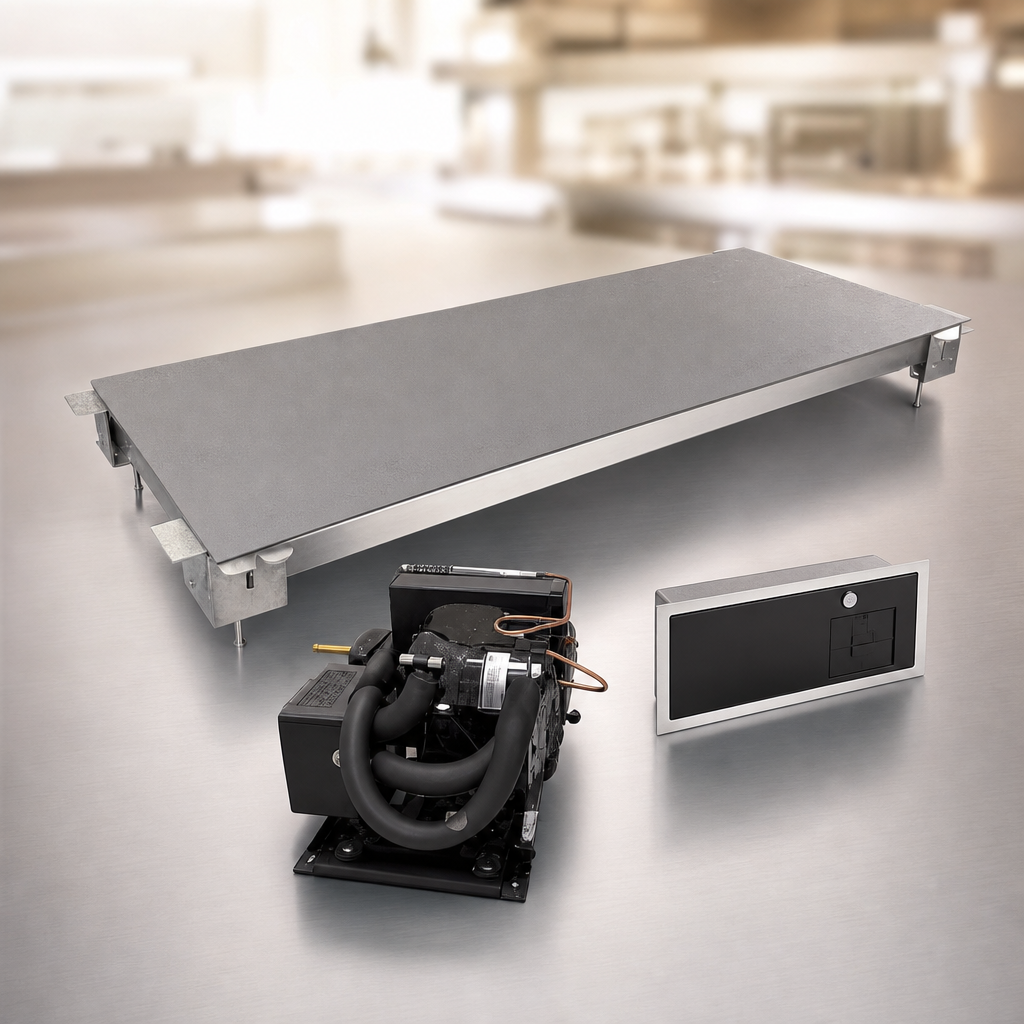

- Remote condensing unit with flexible refrigerant line (ships loose)
- Unattached Electronic Temperature Control Box with 4 ft (1219 mm) lead
- Factory-installed TXV valve & liquid-line solenoid valve
- Adjustable mounting brackets and hardware
- Installation & Operating Manual
Need more reach? Optional 7.5 ft (2286 mm) conduits for the control box and condenser are available at the time of order.
Add an extended four-year compressor parts warranty at checkout (U.S./Canada only).
