Hatco HCSSBFX-48-I Steam Tables & Food Wells
Description

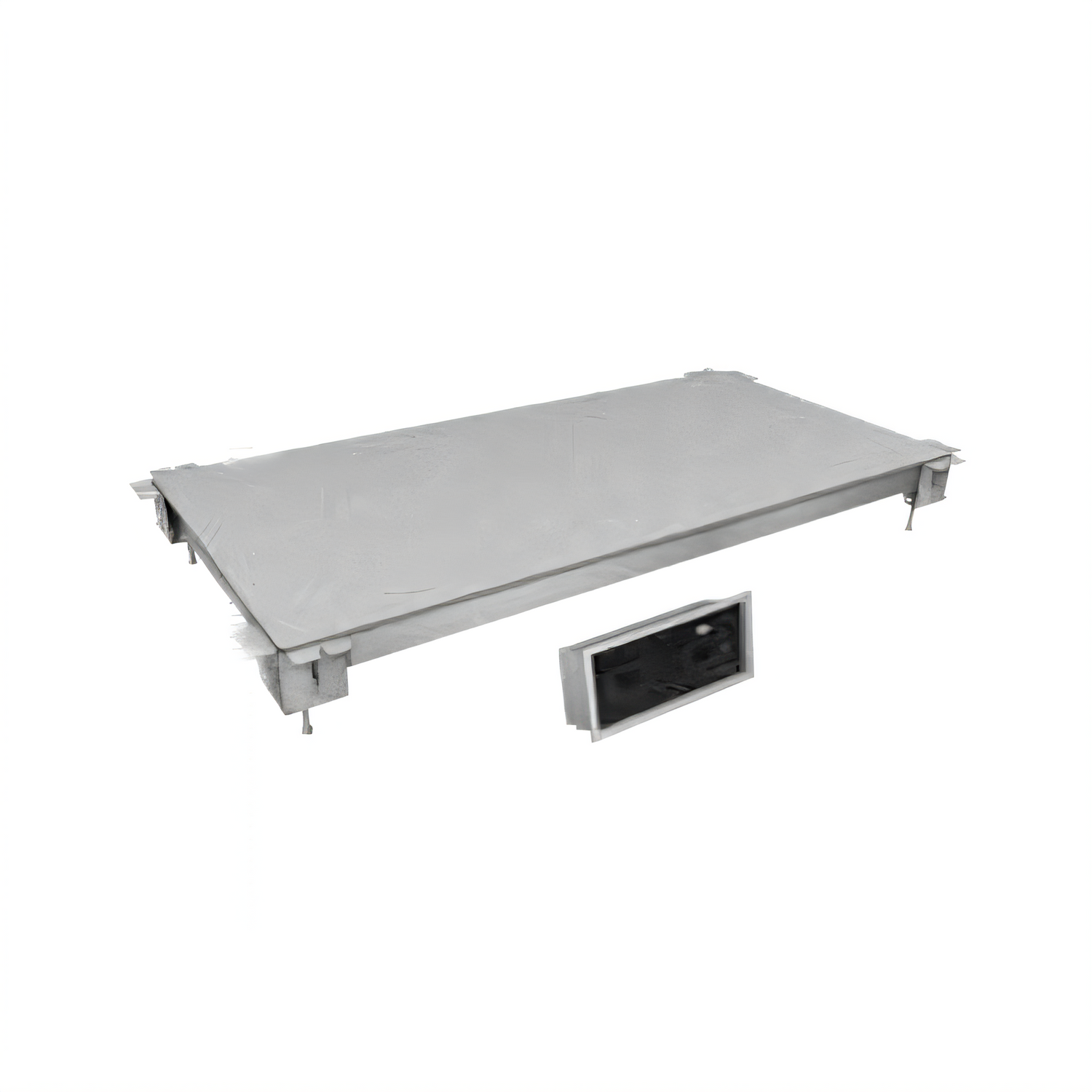

Hatco HCSSBFX-48-I Hot/Cold Simulated Stone Shelf – 48" W
Flush-mount • Remote-refrigeration ready • Made in USASeamlessly roll from hot breakfast sandwiches to chilled grab-and-go salads on the same counter. Hatco’s patented Hot/Cold Simulated Stone Shelf brings all-day merchandising flexibility with a premium Swanstone® surface that installs perfectly flush with your countertop.
Why operators love it
- Dual-mode technology shifts from hot to cold (or vice-versa) in as little as 30 minutes.

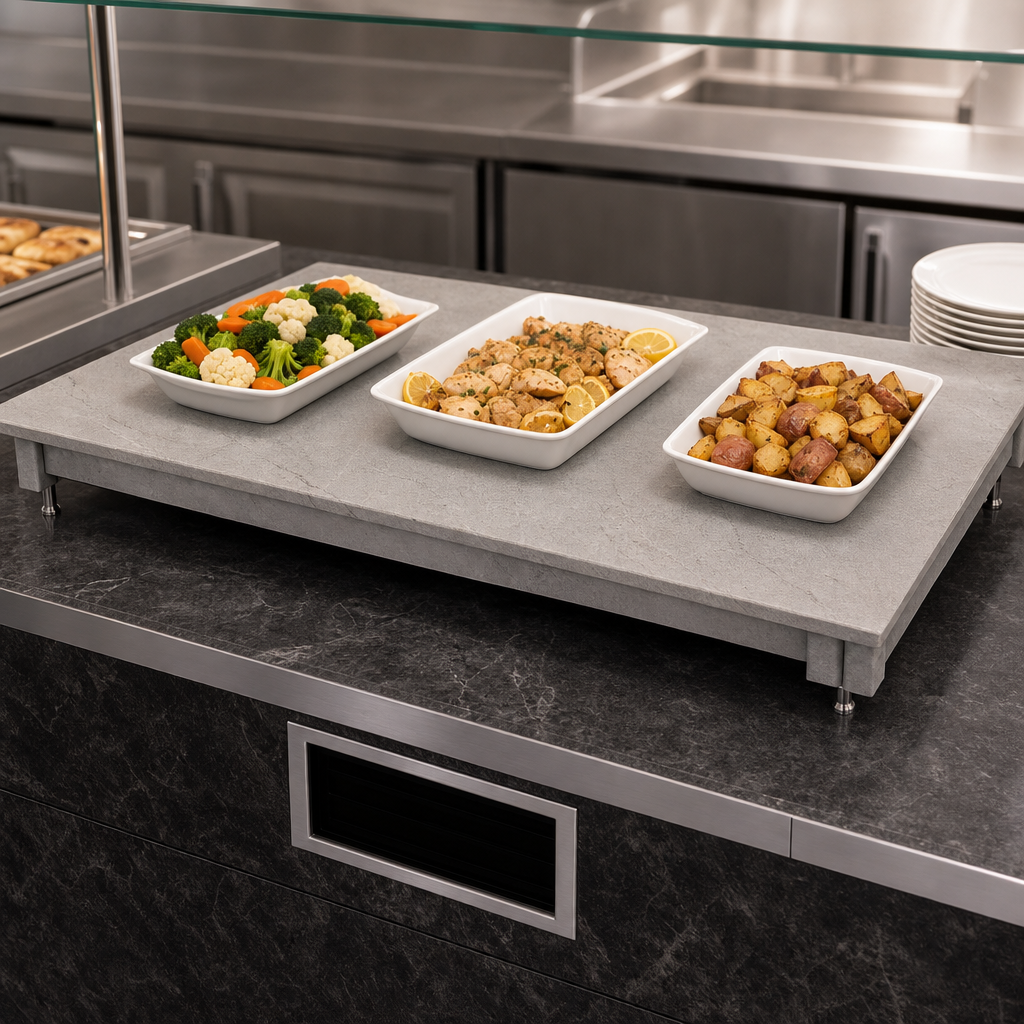

- Sleek ½" simulated stone top available in Night Sky, Gray Granite or Bermuda Sand.
- Bottom-mount, flush design delivers a clean, continuous presentation surface.
- “X” configuration ships without a condenser—ideal for tying into an existing rack or custom remote system.
- Electronic Temperature Control box (shipped loose) with 4 ft (1219 mm) lead for easy, out-of-sight mounting.
- Factory-installed TXV and liquid-line solenoid valve speed up refrigeration hook-up.
- Patented thermal break drastically reduces condensation on surrounding counters.
- cULus & NSF component listed for food-safe peace of mind.
- Proudly manufactured and supported in Milwaukee, Wisconsin USA.
Perfect for
- C-stores & travel centers switching menus throughout the day.
- Hotel breakfast areas, cafeterias and buffets.
- Bakeries, delis and market counters demanding premium presentation.
Specifications
| Model | HCSSBFX-48-I (Remote – no condenser) |
|---|---|
| Overall dimensions (W × D × H) | 51" × 22.5" × 7.52" (1295 × 572 × 191 mm) |
| Usable heated / cooled surface | 48" × 19.5" (1219 × 495 mm) |
| Surface material | Swanstone® simulated stone |
| Mounting style | Bottom-mount, flush with countertop |
| Hot side load | Approx. 890 W @ 240 V |
| Cold side load (remote) | Approx. 814 W @ 220 V – connect to external condenser |
| Electrical | 120–240 V, 1-phase (field wired); control box requires 120 V supply |
| Refrigeration | Remote—condenser not included; compatible with common eco-friendly refrigerants (R-404A, R-448A, R-449A, R-513A, etc.) |
| Control box lead | 4 ft (1219 mm) standard | Optional 7.5 ft (2286 mm) |
| Shipping weight | 169 lb (77 kg) |
Other widths (24" & 36") and full or square depths are available. Contact us for options, lead times and pricing.
