Hatco HCSSBFX-48-F Steam Tables & Food Wells
Description

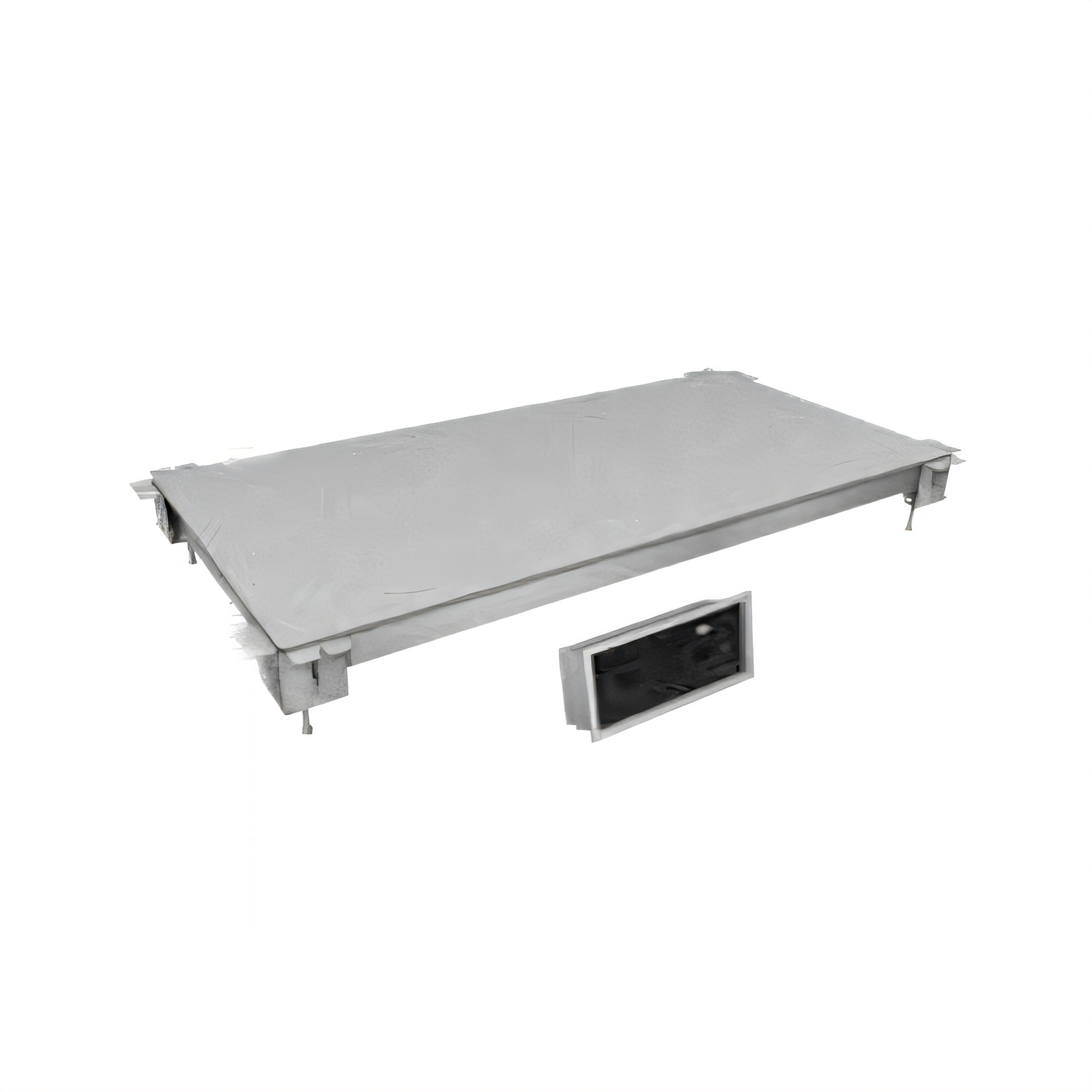

Hatco HCSSBFX-48-F Hot/Cold Simulated Stone Shelf — 48" × 15-1/2"
Built-in flush top • remote refrigeration ready • cULus Listed • Made in USASwitch from sizzling hot holding to perfectly chilled presentation on the very same surface. Hatco’s patented HCSSBFX-48-F Hot/Cold Simulated Stone Shelf drops flush into your counter and changes modes in as little as 30 minutes, giving you unmatched menu flexibility without sacrificing valuable counter space.
Key advantages
- Dual-mode technology – one shelf handles both heated and refrigerated foods.
- Mode changeover in approximately 30 minutes for seamless day-part transitions.

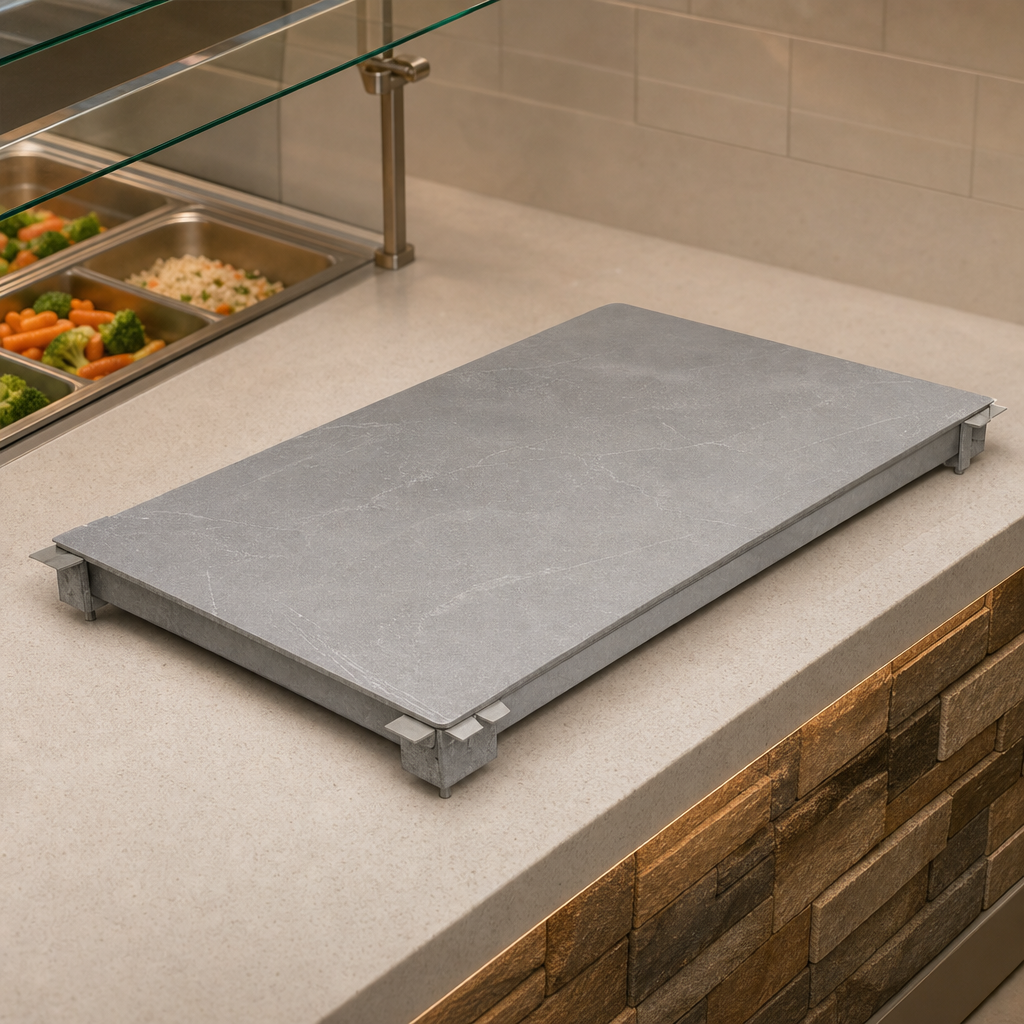

- Food-safe Swanstone® simulated stone in Night Sky (standard) with optional Gray Granite or Bermuda Sand.
- Remote-X design ships without a condenser, allowing connection to an existing or custom remote refrigeration system with the refrigerant of your choice.
- Electronic Temperature Control box (4 ft lead, ships loose) for precise set-point management of both hot and cold operation.
- Patented perimeter thermal break minimizes condensation and prevents temperature transfer to adjacent surfaces.
- Bottom-mount, flush-top construction delivers a sleek, upscale presentation and easy wipe-down cleaning.
- cULus Listed, NSF component recognized, and proudly built in Wisconsin, USA.
What’s included
- 48" × 15-1/2" Hot/Cold shelf assembly with built-in temperature probe
- TXV valve (ships loose for installation)
- Electronic Temperature Control box with 4' (1219 mm) lead (7.5' lead available at time of order)
- Liquid-line solenoid valve attached to shelf
- Installation & Operating Manual
Technical specifications
| Model | HCSSBFX-48-F |
|---|---|
| Operating modes | User-selectable hot holding or refrigerated display |
| Overall dimensions | 51" W × 18.5" D × 7.52" H (1295 × 470 × 191 mm) |
| Usable heated/cooled surface | 48" W × 15.5" D (1219 × 394 mm) |
| Countertop cut-out | 48.375" W × 15.875" D with 3/8" (10 mm) radius corners (1229 × 403 mm) |
| Electrical (hot mode) | 120, 230 or 240 V, single-phase, up to ≈ 773 W / ≈ 6 A (consult spec sheet for exact values by voltage) |
| Refrigeration | Designed for connection to a field-supplied remote condenser – allows alternative refrigerants |
| Lead length – control box | 4' (1219 mm) standard |
| Certifications | cULus, NSF component |
| Country of origin | Made in USA |
Looking for a different size or depth? Hatco Hot/Cold Simulated Stone Shelves are available from 24" to 48" widths and multiple depths. Contact us for custom configurations, color samples, or help integrating with your remote refrigeration system.
