Hatco HCSSBFX-36-S Steam Tables & Food Wells
Description

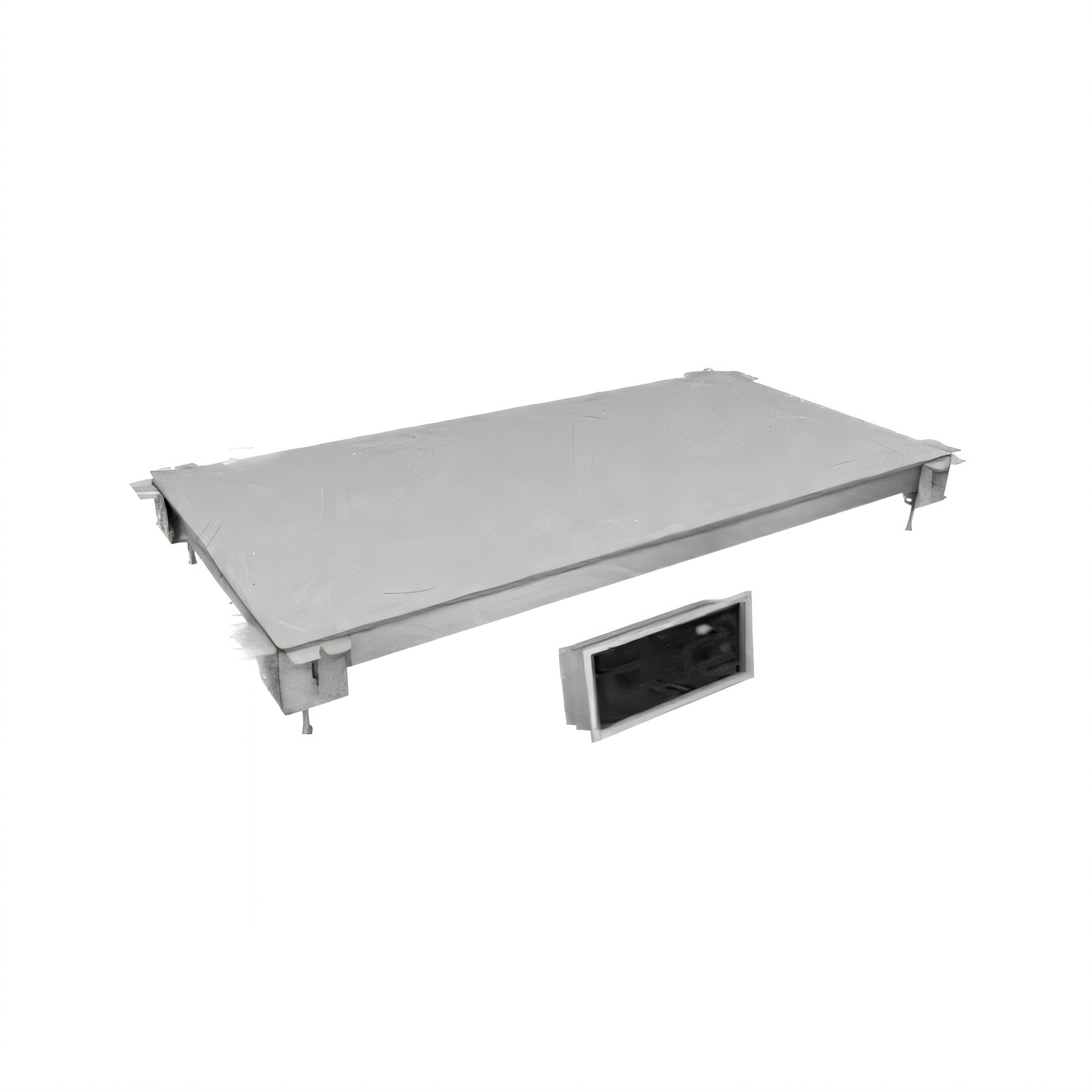

Hatco Hot/Cold Simulated Stone Shelf – 36" × 24"
Model HCSSBFX-36-S | Built-In Flush Top | Remote Refrigeration-ReadySwitch effortlessly between chilled merchandising and hot holding with Hatco’s patented Hot/Cold Simulated Stone Shelf. In just 30 minutes the same surface can display frosted fruit cups or keep entrées at serve-ready temperatures—perfect for operations that demand all-day versatility.
Why you’ll love it
- Rapid mode change – hot ↔ cold in as little as 30 minutes.

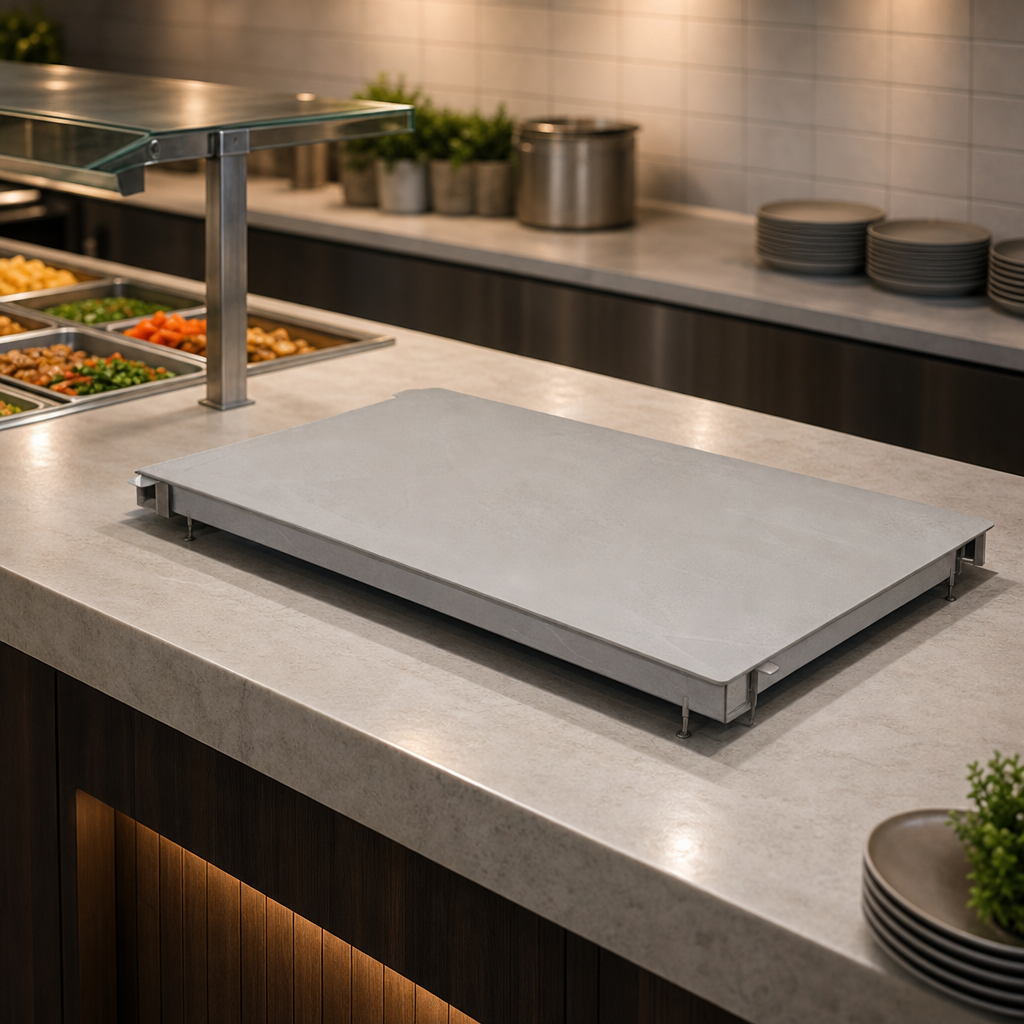

- Swanstone® simulated stone top delivers an upscale, easy-clean presentation.
- Remote condenser design lets you tie into an existing refrigeration system (condenser & refrigerant supplied by others).
- Electronic temperature control box (ships loose) provides precise °F/°C set-points and mounts up to 4 ft (1219 mm) from the shelf.
- Patented thermal break minimizes condensation and prevents heat transfer to your countertop.

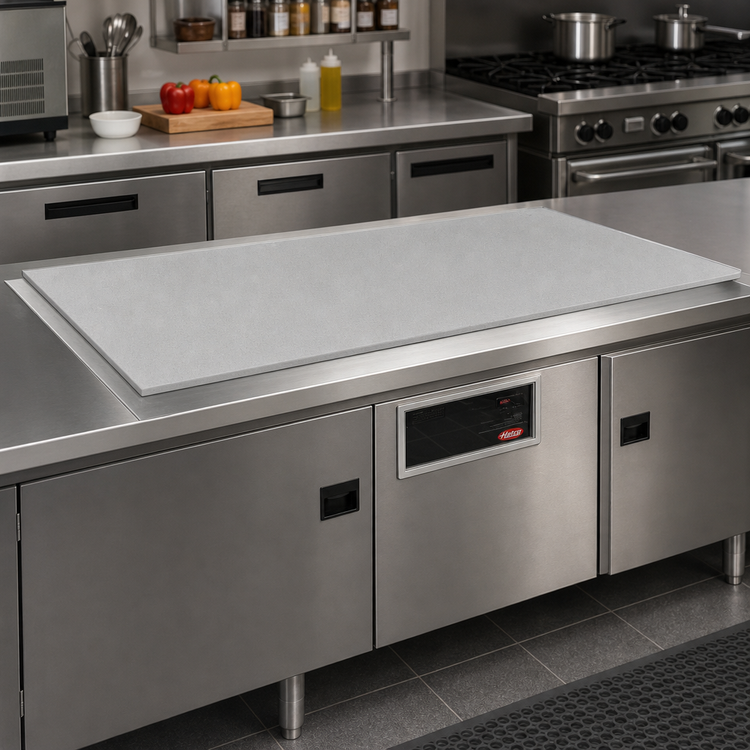

- Bottom-mount, flush installation keeps sight lines clean and maximizes serving space.
- Made in the USA and listed to cULus standards.
Temperature performance
| Mode | Surface range |
|---|---|
| Cold | ≈ 37–41 °F (2.8–5 °C) |
| Hot | Up to 145 °F (63 °C) |
| Changeover time | ≈ 30 minutes* |
*From steady-state hot to cold (or vice versa) under typical ambient conditions.
Technical specifications
| Overall dimensions (WxDxH) | 39" × 27" × 7.52" (991 × 686 × 191 mm) |
|---|---|
| Usable heated/cooled surface | 36" × 24" (914 × 610 mm) |
| Countertop cut-out | 38 ⅜" × 26 ⅜" (975 × 670 mm) with ⅜" radius corners |
| Electrical |
120 V / 825 W / 6.9 A (60 Hz) 220-240 V / ≈ 895-898 W / 3.7-4.0 A (50/60 Hz) |
| Remote refrigeration load | 1,649 BTU/hr | ≈ ¼–⅓ HP condenser (not included) |
| Refrigerant | Field-supplied (R-513A, R-404A, or equivalent) |
| Net weight | 153 lb (69 kg) |
| Certifications | cULus Listed, NSF (component) |
What ships with this model
- Simulated stone shelf with integrated heater/cold plate & temperature probe
- TXV valve (loose) and liquid-line solenoid valve (pre-installed)
- Electronic temperature control box with 4 ft (1219 mm) lead
- Mounting brackets, leveling bolts & installation manual
Finish options (factory order)
- Gray Granite – standard
- Bermuda Sand
- Night Sky
Special-order colors are non-returnable.
Ideal for
- Buffet lines that switch from breakfast to lunch service
- Grab-and-go stations needing both chilled and hot offerings
- C-stores, cafés & catering counters with limited space
Upgrade your presentation and streamline day-part changes with the Hatco Hot/Cold Simulated Stone Shelf—the single piece of equipment that does the work of two.
