Hatco HCSSBFX-36-F Steam Tables & Food Wells
Description

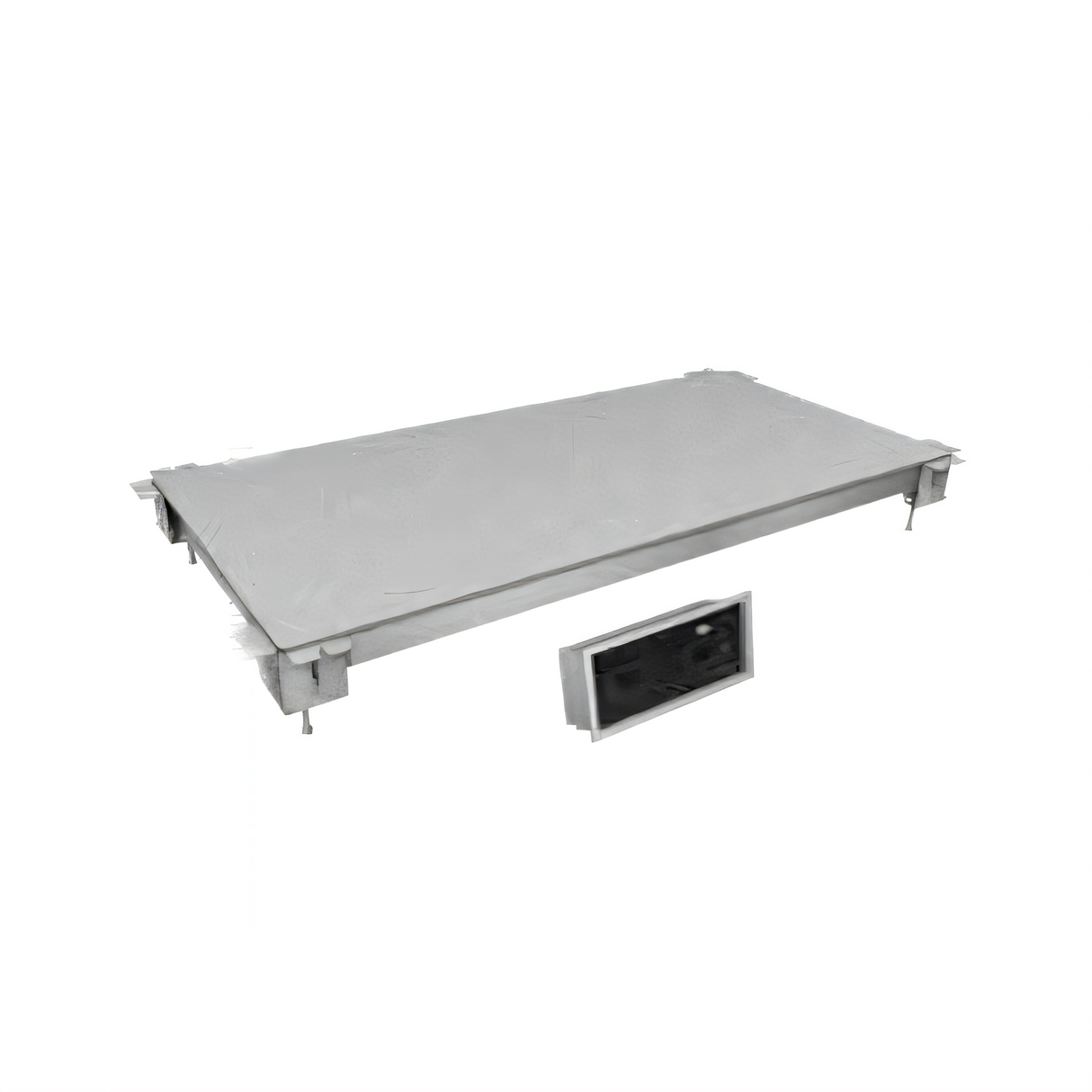

Hatco Hot/Cold Simulated Stone Built-In Shelf – 36" x 15 1⁄2"
Model HCSSBFX-36-F | remote refrigeration ready (condenser not included)Instantly convert the same display space from heat to chill and back again with Hatco’s patented Hot/Cold Simulated Stone Shelf. The 36 inch flush-mount deck delivers high-end aesthetics, precise electronic control, and unmatched day-part flexibility for buffets, cafés, c-stores and more.
Key advantages
- Dual-mode performance – go from hot to cold (or vice-versa) in as little as 30 minutes.
- Remote refrigeration design – plumb to your existing rack or a field-supplied condenser for a clean, quiet counter.
- Food-safe Swanstone® surface – simulated stone resists scratches & stains and wipes clean fast.
- Electronic Temperature Control (ETC) – loose-shipped control box with 4 ft lead lets you mount controls where you want them; optional 7.5 ft cord available.

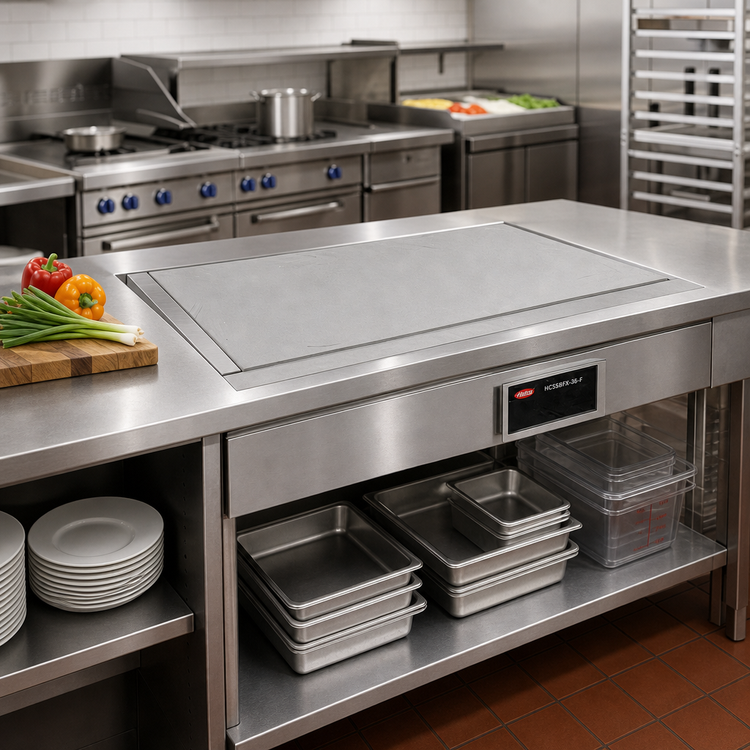

- Bottom-mount, flush top – creates a seamless merchandising zone that’s easy for guests to access and staff to service.
- Patented thermal break – minimizes condensation and temperature migration to adjacent counters.
- Built to last – cULus listed, proudly made in the USA, and backed by Hatco’s industry-leading support.
Specifications

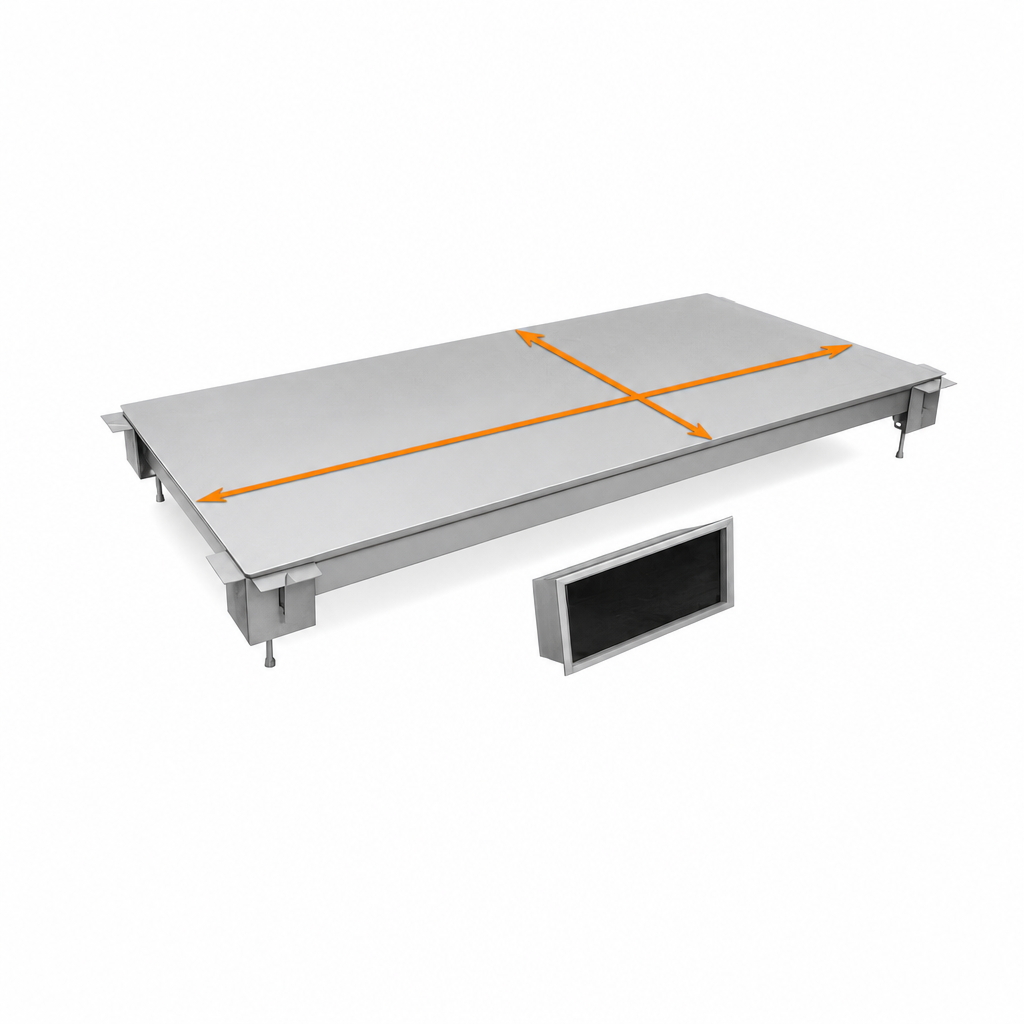

| Usable deck | 36" W × 15 1⁄2" D (914 × 394 mm) |
|---|---|
| Overall (including flange) | 39" W × 18 1⁄2" D × 7 1⁄2" H (991 × 470 × 191 mm) |
| Countertop cut-out | 36 3⁄8" W × 15 7⁄8" D with 3⁄8" radius corners (924 × 403 mm) |
| Electrical (hot mode) |
120 V, 503 W, ≈2.5 A, 60 Hz 230 V, 593 W, ≈2.3 A, 50 / 60 Hz |
| Refrigeration (cold mode) | Designed for remote condensing; evaporator load 1,216 BTU/hr |
| Surface temperature range | Hot side ≈ 140 °F – 175 °F (60 °C – 80 °C) Cold side ≈ 34 °F – 41 °F (1 °C – 5 °C) |
| Finish options | Night Sky (standard), Gray Granite, Bermuda Sand |
| Shipping weight | ~146 lb (66 kg) |
| Certifications | cULus, NSF Component |
| Country of origin | Made in USA |
Ideal applications
- Breakfast hot bar that converts to chilled yogurt & fruit mid-morning.
- Grab-and-go café counters needing seasonal flexibility.
- Hotel buffets & casinos requiring continuous service with rapid menu changeovers.
- Display kitchens where premium presentation and quiet operation are critical.
Looking for a self-contained solution? Check out Hatco model HCSSBF-36-F with an attached condensing unit. Need a larger display? 48" × 24" shelves are also available.
