Hatco HCSSBFR-48-I Steam Tables & Food Wells
Description
Hatco HCSSBFR-48-I Hot/Cold Simulated Stone Shelf
48" W x 19-1/2" D | Built-In Flush-Top | Remote Refrigeration IncludedInstantly transform your counter from a rugged hot well to a frost-cool merchandiser—then back again—all with one sleek, food-safe Swanstone® surface. The Hatco HCSSBFR-48-I is the ultimate “day-part chameleon,” giving operators the freedom to display everything from sizzling skillets to chilled desserts without changing out equipment.
Key Features & Benefits
- Rapid mode change: Switches from hot to cold (or vice-versa) in as little as 30 minutes.
- Large usable surface: 48" x 19-1/2" simulated stone top delivers even heating & cooling edge-to-edge.
- Remote refrigeration package: 1/3 HP condensing unit and electronic Control Box ship loose for installation flexibility—mount up to 4' (1219 mm) from shelf (7.5' kits available).
- Bottom-mount, flush design: Sits level with your countertop for a seamless, custom built-in look.
- Electronic temperature control: One-touch set-points and clear digital read-out simplify operation.
- Patented thermal break: Minimises condensation and heat transfer to adjacent surfaces.
- Durable Swanstone® finish: Non-porous, knife-friendly and NSF component listed; standard Night Sky with optional Gray Granite or Bermuda Sand (non-returnable).
- Environmentally focused: Uses R-513A refrigerant and high-efficiency compressor.
- Built to last: cULus listed, NSF component recognised, and proudly Made in the USA.
Ideal For
- Buffet & serving lines
- Chef-action & carving stations
- Grab-and-go merchandising
- C-stores & coffee bars
- Catering & banqueting setups
Technical Specifications
| Model | HCSSBFR-48-I |
|---|---|
| Overall Dimensions (W × D × H) | 51" × 22-1/2" × 7-1/2" (1295 × 572 × 191 mm) |
| Usable Heated/Chilled Surface | 48" × 19-1/2" (1219 × 495 mm) |
| Compressor | 1/3 HP, bottom-mount remote (ships loose) |
| Refrigerant | R-513A (factory charged) |
| Electrical | 120 V or 220-240 V, 1 ph, 60/50 Hz (see Options) |
| Power Consumption | Cold Side ≈ 826–984 W | Hot Side ≈ 814–969 W (varies by voltage) |
| Shipping Weight | ≈ 206 lb (94 kg) |
| Certifications | cULus, NSF (Component), Ecoization, Made in USA |

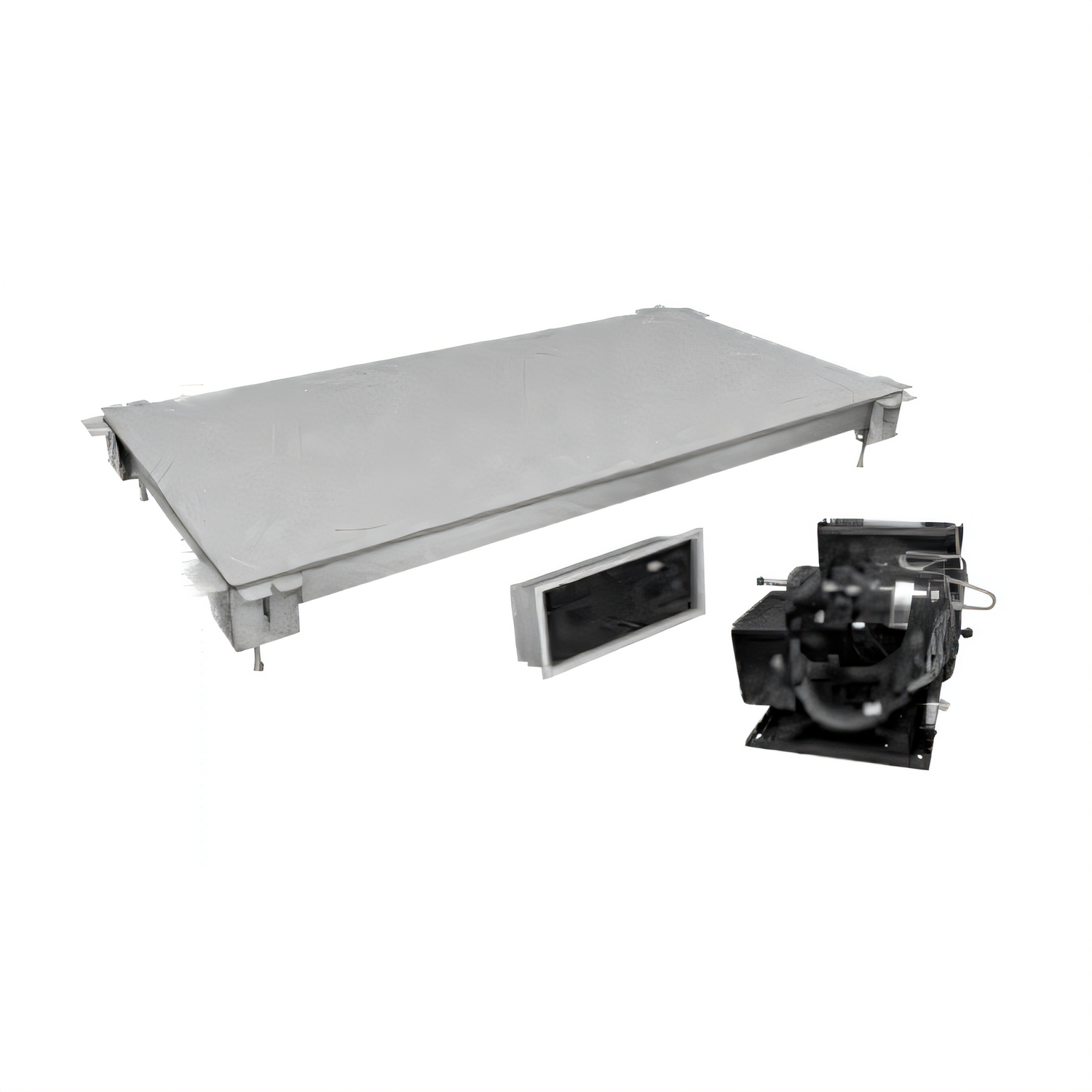

Included With Your Order
- Simulated stone shelf assembly with integrated temperature probe
- Unattached 1/3 HP condensing unit with 4' refrigerant line set
- Electronic Temperature Control Box with 4' lead wire
- TXV valve (pre-assembled), mounting hardware & installation manual
Factory Options (order time only)
- Simulated stone colour: Gray Granite or Bermuda Sand
- Extended 4-year compressor parts warranty (U.S./Canada)
- 7.5' (2286 mm) control-box or condenser cord/conduit kits
Need a different size or a self-contained unit? Browse the full Hatco Hot/Cold Simulated Stone Shelf line or chat with our team for personalised assistance.
