Hatco HCSSBFR-36-I Steam Tables & Food Wells
Description
Hatco Hot/Cold Simulated Stone Shelf – 36″ × 19.5″ (Remote)
Model HCSSBFR-36-I | Flush-Mount | 1/3 HP Remote Condensing UnitServe chilled breakfast bowls at dawn and piping-hot paninis at noon—no equipment swap required. Hatco’s patented Hot/Cold Simulated Stone Shelf transitions from cold to hot (or hot to cold) in about 30 minutes, giving you unmatched day-part flexibility with a premium stone look.
Top reasons operators choose Hatco
- Dual-mode performance: electronic control lets you select precise hot or cold holding at the touch of a button.
- Food-safe Swanstone® simulated stone surface—standard Night Sky finish; Gray Granite and Bermuda Sand are optional.
- Remote 1/3 HP condensing unit (ships loose) mounts up to 4′ (1219 mm) from the shelf for quieter, cooler front-of-house operation.
- Bottom-mount, flush-top design integrates cleanly with counters and self-service islands.
- Patented thermal break minimizes condensation and protects adjacent surfaces.
- Long, flexible refrigerant line makes service and installation easier.
- NSF component, cULus listed, and proudly Made in the USA.
Ideal for
- Grab-and-go merchandisers
- Supermarket service lines
- Hotel breakfast & evening socials
- Convenience stores and cafés with changing menus
Key specifications
| Usable surface | 36″ W × 19.5″ D (914 × 495 mm) |
|---|---|
| Overall shelf (W × D × H) | 39″ × 22.5″ × 7.52″ (991 × 572 × 191 mm) |
| Counter cut-out | 36.375″ W × 19.875″ D, .375″ corner radius |
| Temperature ranges | Cold side: 36–41 °F (2–5 °C) Hot side: 150–200 °F (66–93 °C) |
| Mode change time | ≈ 30 minutes |
| Compressor | 1/3 HP, R-513A refrigerant (remote) |
| Electrical (choose during ordering) |
120 V, 60 Hz, 5.9 A 220–240 V, 50/60 Hz, 3.8–4.1 A |
| Cold / Hot side wattage | 826–1129 W (cold) / 613–730 W (hot) (varies with voltage) |
| Remote line length | 4′ (1219 mm) standard; 7.5′ (2286 mm) optional |
| Control box lead | 4′ (1219 mm) standard; 7.5′ (2286 mm) optional |
| Shipping weight | ≈ 164 lb (75 kg) |

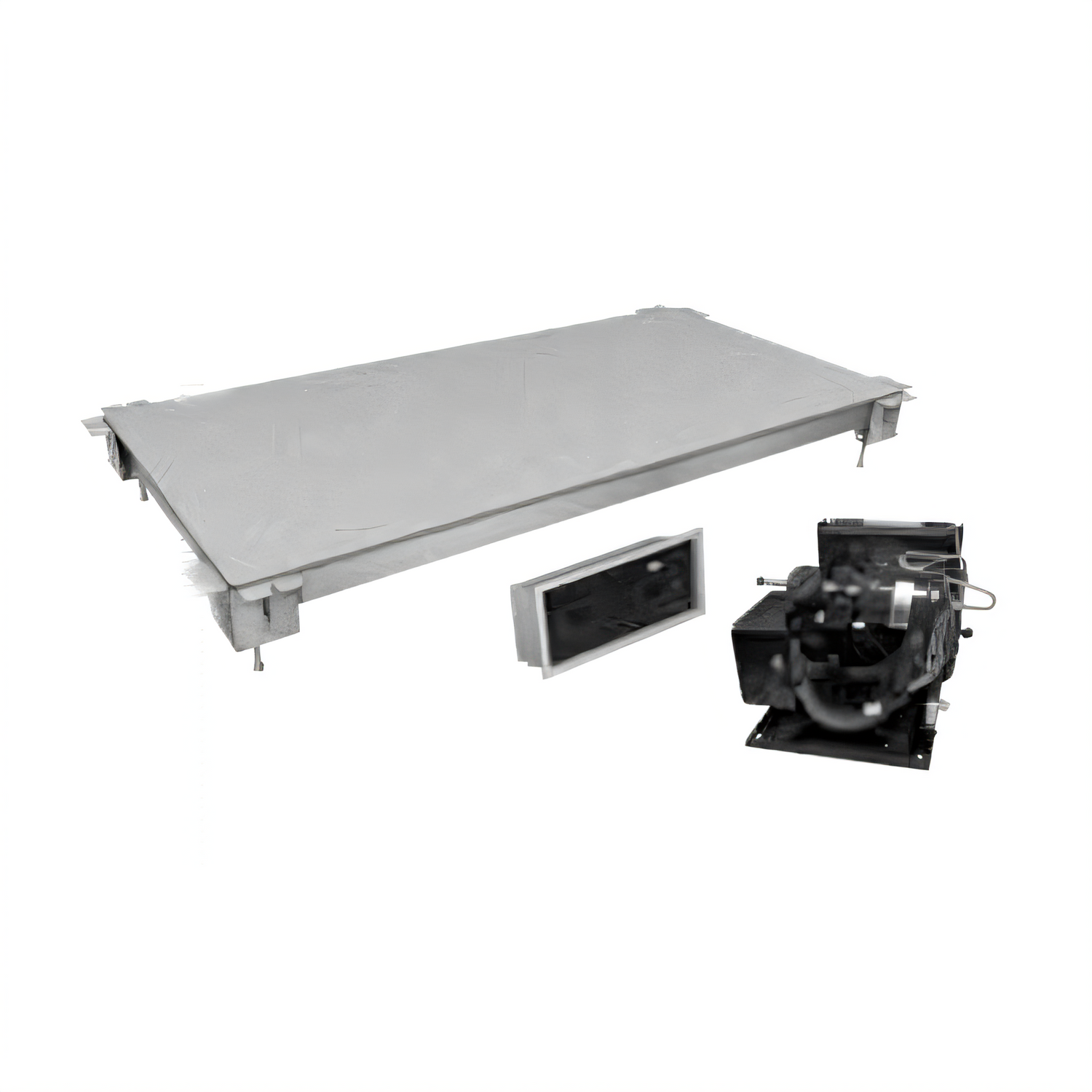

What’s included
- Shelf assembly with integrated temperature probe
- Unattached 1/3 HP remote condensing unit with flexible refrigerant line
- Electronic Temperature Control Box (loose)
- Factory-fit TXV valve and mounting hardware
- Installation & operating manual
Want a different color or longer lead lengths for the control box or condenser? Ask our team about factory-approved options available with your initial order.
