Hatco HCSBFX-48-F Steam Tables & Food Wells
Description

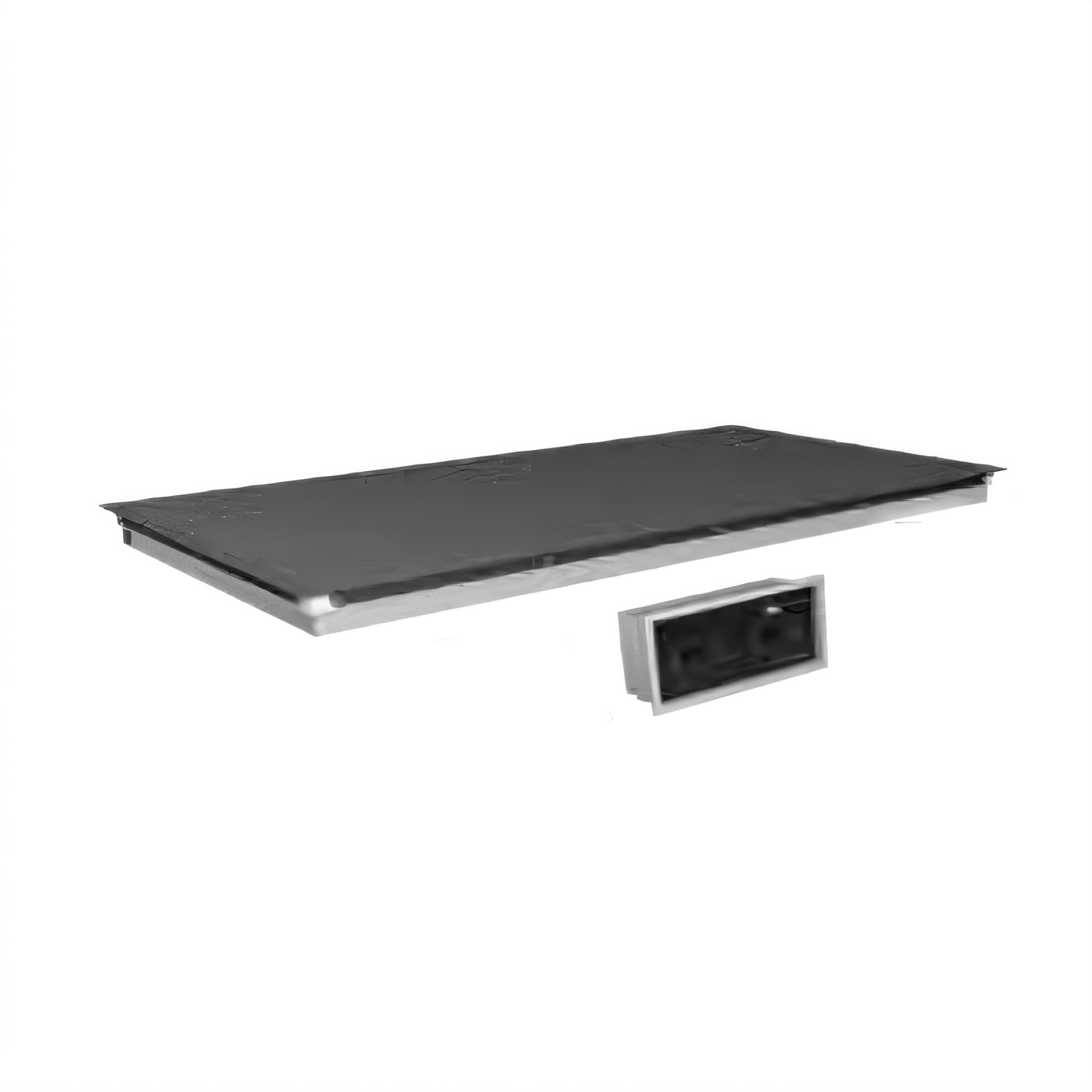

Hatco HCSBFX-48-F Hot/Cold Flush-Top Shelf – 48 in W
Remote-ready | Hardcoat aluminum | Electronic temperature controlOffer piping-hot entrées at lunch and perfectly chilled desserts for dinner—all from the same countertop cut-out. Hatco’s patented Hot/Cold Shelf transitions between heating and cooling in ≤30 minutes, giving operators unrivaled menu flexibility while maintaining a clean, built-in look.
Key advantages
- Dual-mode performance – switch from hot to cold (or back) in as little as 30 minutes.
- Remote refrigeration freedom – condenser is supplied by others, allowing full integration with existing or custom systems.
- Hardcoat aluminum deck – food-safe, scratch-resistant surface wipes clean and stands up to busy service lines.
- Electronic Temperature Control Box – shipped loose with a 4 ft (1.2 m) lead for precise, menu-specific settings.
- Patented thermal break reduces condensation and keeps adjacent countertop areas comfortable to the touch.
- Matches Hatco GRSBF heated shelves for a seamless, coordinated installation.
- cULus Listed, NSF component and proudly Made in the USA.
Technical specs
| Model | HCSBFX-48-F |
|---|---|
| Usable surface area | 48 in W × 15.5 in D (1219 × 394 mm) |
| Overall dimensions | 49.5 in W × 17 in D × 7.29 in H (1257 × 432 × 185 mm) |
| Construction | Hardcoat aluminum, flush top, top-mount |
| Operating modes | Hot or Cold (manual changeover) |
| Electrical |
120 V, 60 Hz, 710 W, 6.9 A
220–240 V export versions available (non-CE). |
| Refrigeration | Remote condenser required – not included |
| Control box lead | 4 ft (1.2 m) – optional 7.5 ft (2.3 m) factory order |
| Certifications | cULus, NSF component |
| Country of origin | USA |
What’s included
- Hot/Cold shelf assembly with integrated temperature probe
- TXV valve (shipped loose for remote connection)
- Liquid-line solenoid valve (factory-mounted)
- Electronic Temperature Control Box
- Installation & operating manual
Need an extended compressor warranty or longer control-box cord? Contact us before ordering for factory-configured options.
