Hatco HCSBFX-36-S Steam Tables & Food Wells
Description

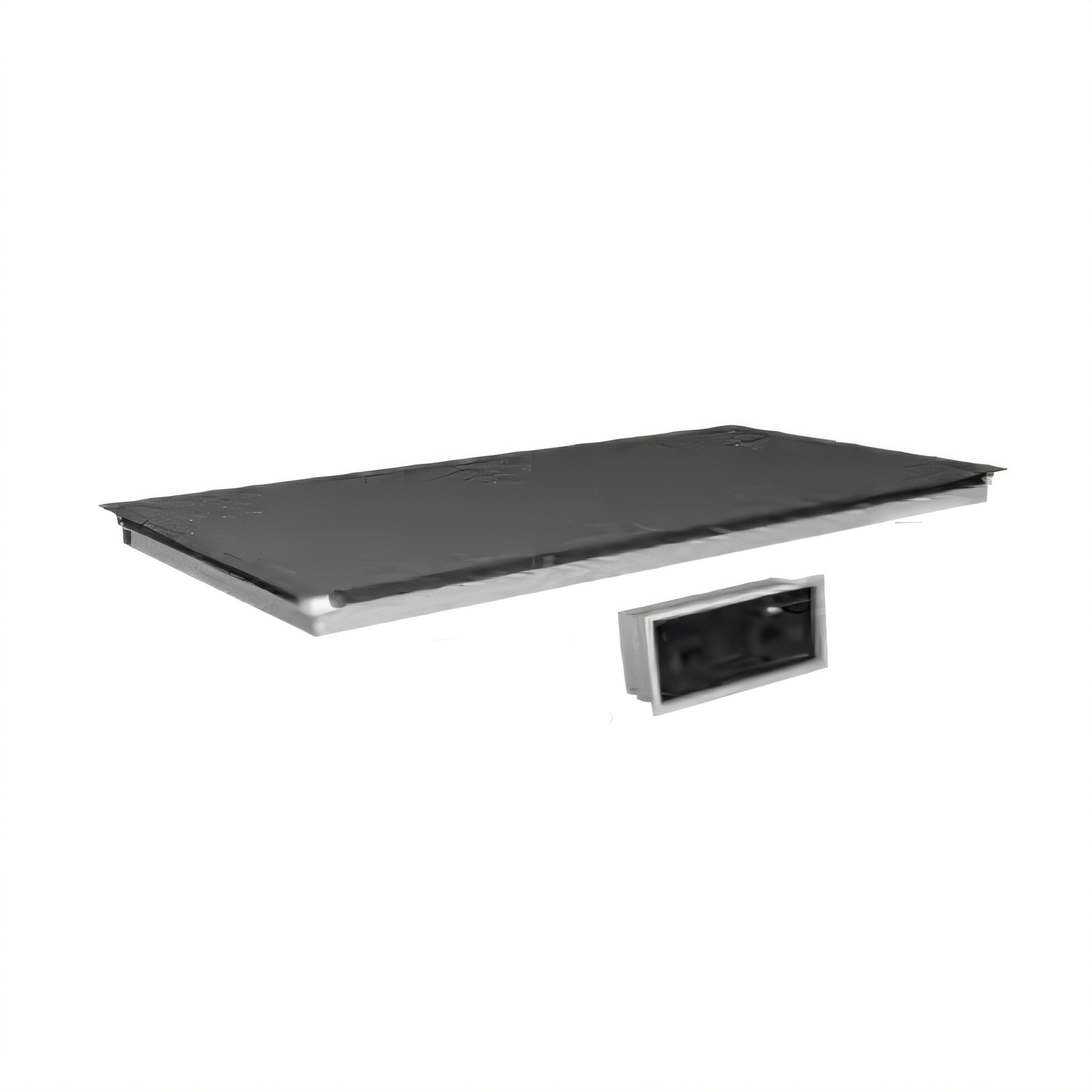

Hot/Cold Built-In Flush Top Shelf – 36" × 24"
Hatco model HCSBFX-36-S | Made in the USAGive your serving line all-day versatility with Hatco’s patented Hot/Cold Shelf. At the touch of a button this hard-coat aluminum deck converts from a NSF-listed hot holding surface to a cold holding shelf (and back again) in about 30 minutes, letting you change menus without changing equipment. The remote-refrigeration (X-Series) design keeps the condenser out of the cabinet, freeing up space under the counter and simplifying service.
Standard features
- Dual-mode operation – switch between hot and cold in ≈30 minutes.
- Remote refrigeration ready – shelf ships with a TXV & liquid-line solenoid; connect to your own condensing unit (refrigerant supplied by others).
- Electronic Temperature Control box (shipped loose) for precise set-point management outside the heat zone.

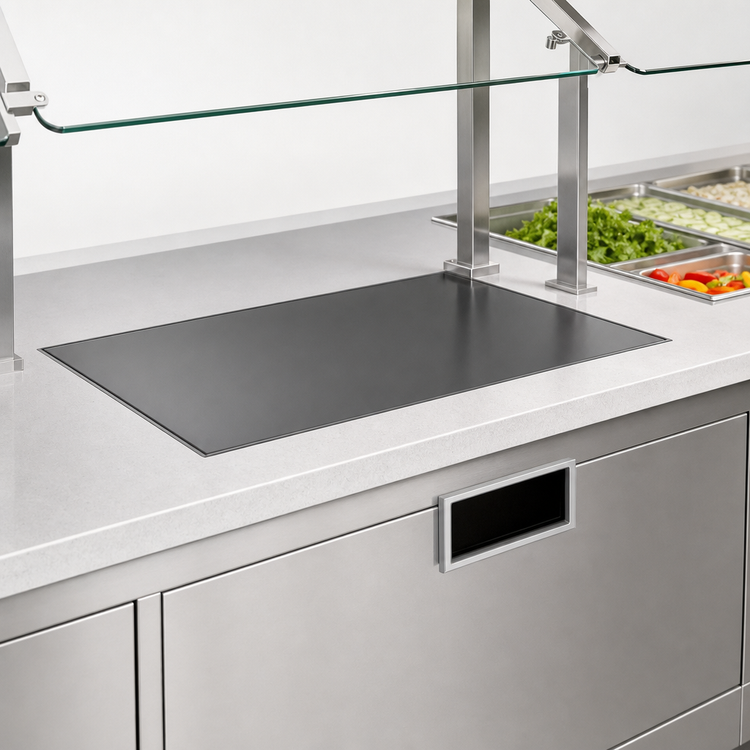

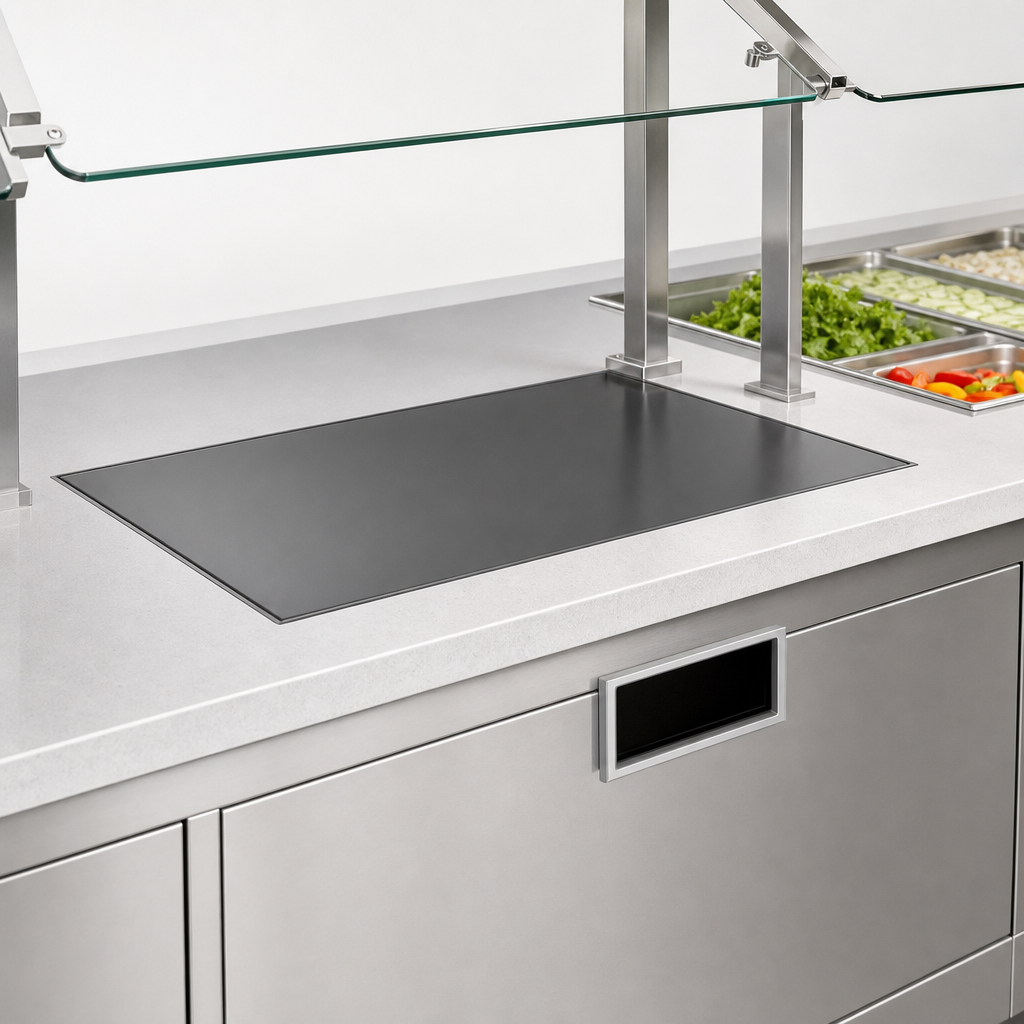

- Hard-coat anodized aluminum top mount installs flush with the counter for a clean, integrated look.
- Patented thermal break minimizes condensation & heat transfer to surrounding surfaces.
- Matches the look of Hatco GRSBF heated shelves for a cohesive serving line.
- cULus & NSF component certified; built and tested in Milwaukee, WI.
Key specifications
| Usable surface | 36" W × 24" D (914 × 610 mm) |
|---|---|
| Overall dimensions | 37.5" W × 25.5" D × 7.29" H (953 × 648 × 185 mm) |
| Electrical (hot mode) |
120 V, 1-ph, 60 Hz – 825 W, 6.9 A 220 V, 1-ph – 755 W, 3.4 A 230 V, 1-ph – 825 W, 3.5 A 240 V, 1-ph – 898 W, 3.7 A |
| Remote refrigeration load (cold mode) |
Approx. 1,649 BTU/hr |
| Ship weight | 119 lb (54 kg) |
| Countertop cut-out | 36.6"–37.0" W × 24.6"–25.0" D (930–940 mm × 625–635 mm) |
What’s in the box
- Hot/Cold shelf assembly with factory-installed temperature probe
- Electronic Temperature Control box (loose, 4' lead)
- Assembled TXV valve (loose for easy line-up)
- Liquid-line solenoid valve (pre-mounted to shelf)
- Installation & operation manual
Ideal applications
- Made-to-order cafés & coffee bars
- Self-service buffets & market halls
- Convenience-store grab & go programs
- Universities & corporate dining
Need a different size or a built-in condenser? Explore the full Hatco HCSBFR & HCSBFX series or chat with our team for assistance.
