Hatco HCSBFX-36-I Steam Tables & Food Wells
Hatco HCSBFX-36-I Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco HCSBFX-36-I Steam Tables & Food Wells
Description

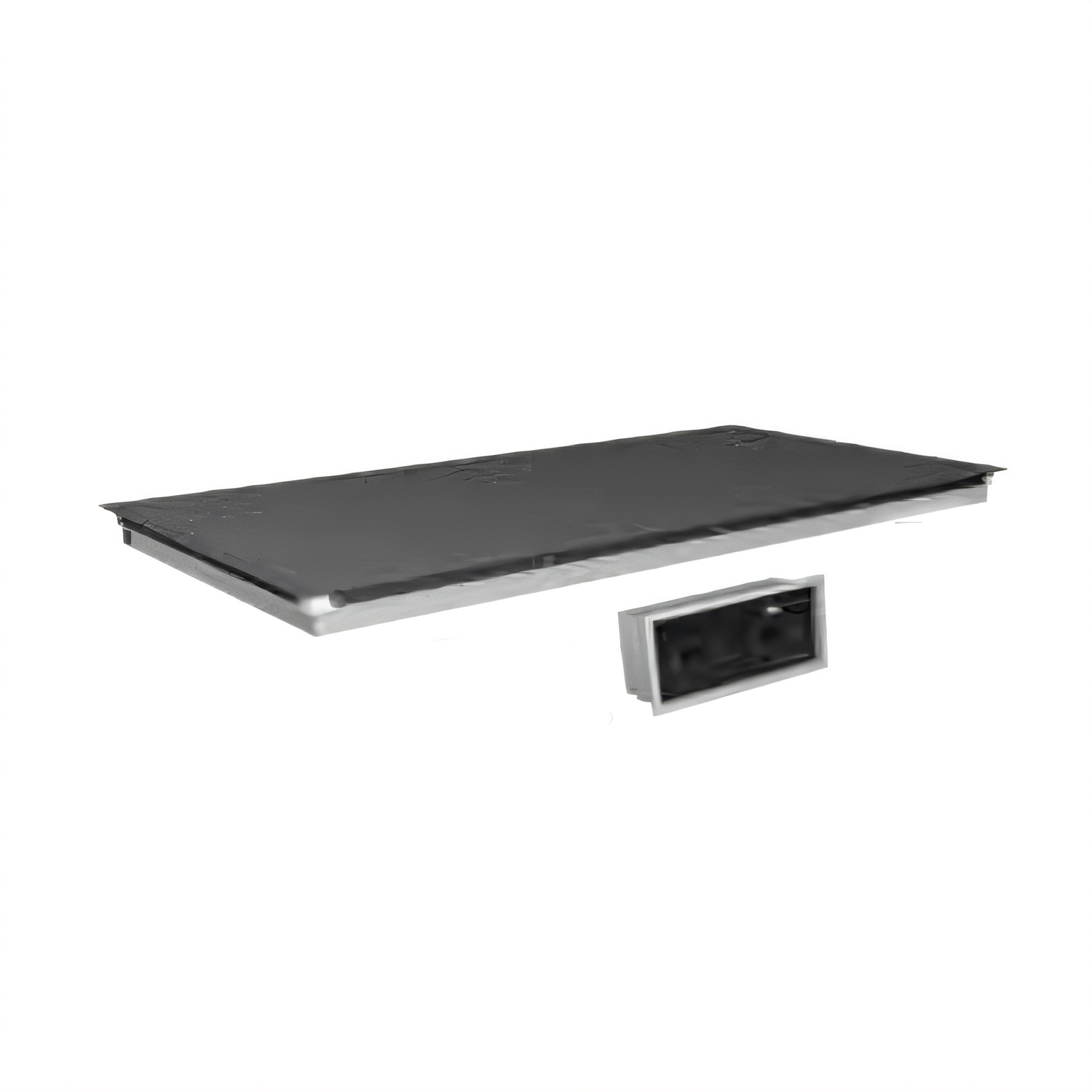

Hatco HCSBFX-36-I Hot/Cold Built-In Flush Shelf – 36″ × 19.5″
Remote-ready dual-mode display surface in food-safe hard-coat aluminumSwitch from a piping-hot merchandiser to a frost-cold display in under 30 minutes—all on the same sleek, flush-mount shelf. Hatco’s patented Hot/Cold Shelf brings true menu flexibility, extended holding times and a polished, integrated look to any front counter.
Key advantages
- Two modes in one shelf – effortless electronic toggle between hot holding and refrigerated display
- Rapid changeover: reaches the opposite temperature band in as little as 30 minutes
- Remote refrigeration design – shelf ships without a condenser so you can tie into an existing rack or specify the exact remote unit you need
- Patented perimeter thermal break reduces condensation and keeps adjacent countertop surfaces comfortable
- Durable, food-safe hard-coat aluminum top cleans easily and resists scratches

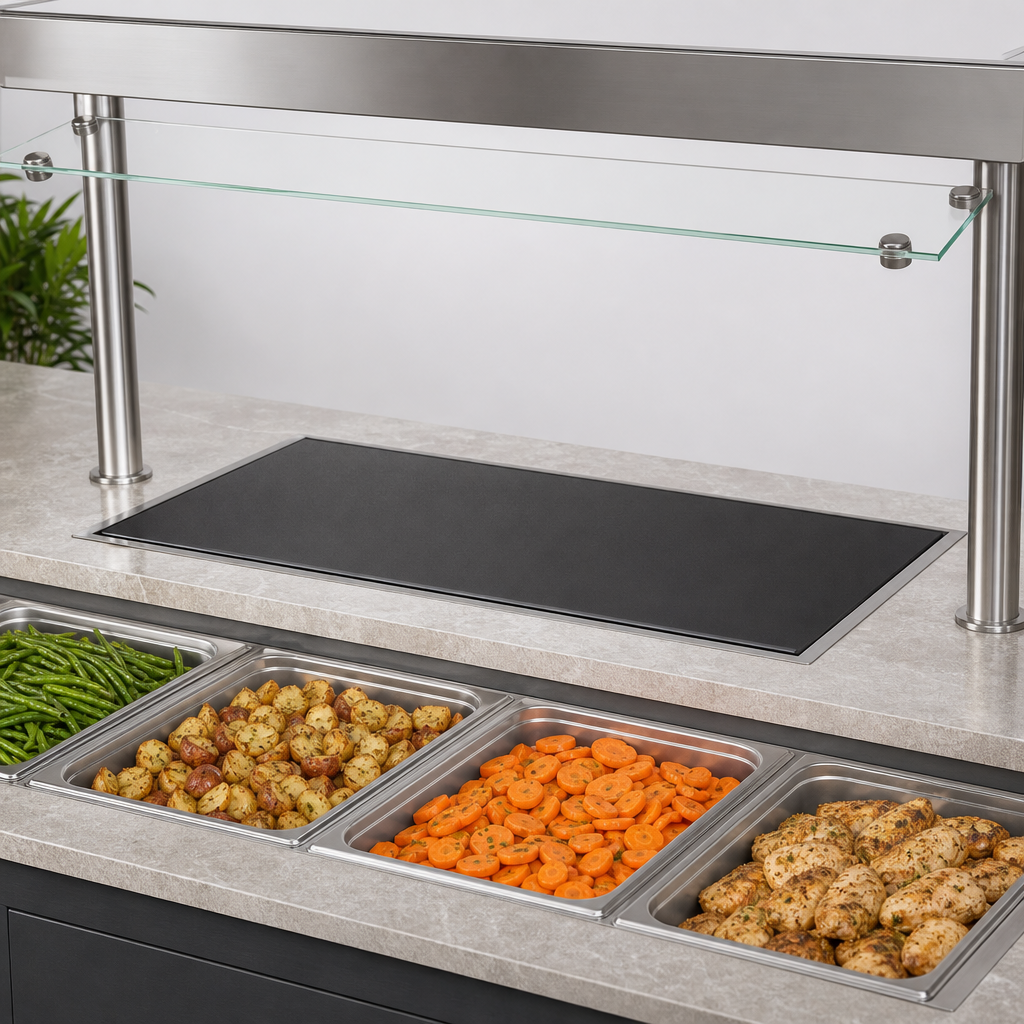

- Flush, top-mounted installation for a seamless, easy-wipe counter surface
- Independent electronic temperature control box (4′ lead, shipped loose) allows cool, out-of-heat-zone mounting
- Matches Hatco GRSBF heated shelves for a unified merchandising line-up
- cULus listed, NSF component recognized and proudly Made in the USA
Technical specifications
| Model | HCSBFX-36-I |
|---|---|
| Overall dimensions | 37.5″ W × 21″ D × 7.29″ H (953 × 533 × 185 mm) |
| Usable display area | 36″ W × 19.5″ D (914 × 495 mm) |
| Counter cut-out | W 36.6–37.0″ (930–940 mm) | D 20.1–20.5″ (511–521 mm) |
| Electrical | 120 V 670 W 5.6 A 60 Hz (220/230/240 V options, 613–730 W) |
| Evaporator load | 1,385 BTU/hr (remote condenser by others) |
| Shipping weight | Approx. 114 lb (52 kg) |
| Construction | Hard-coat anodized aluminum top, stainless steel body |
| Certifications | cULus, NSF component |
Perfect for
- Cafés & bakeries that switch from breakfast to chilled desserts
- QSR and fast-casual service lines seeking versatile grab-and-go solutions
- Convenience stores, stadium kiosks and concession stands with changing day-parts
- Buffets, catering lines and self-serve stations that demand on-the-fly adaptability
Temperature ranges vary with ambient conditions and the remote system selected. Refer to the Installation & Operating Manual for full guidelines.
