Hatco HCSBFX-24-S Steam Tables & Food Wells
Description

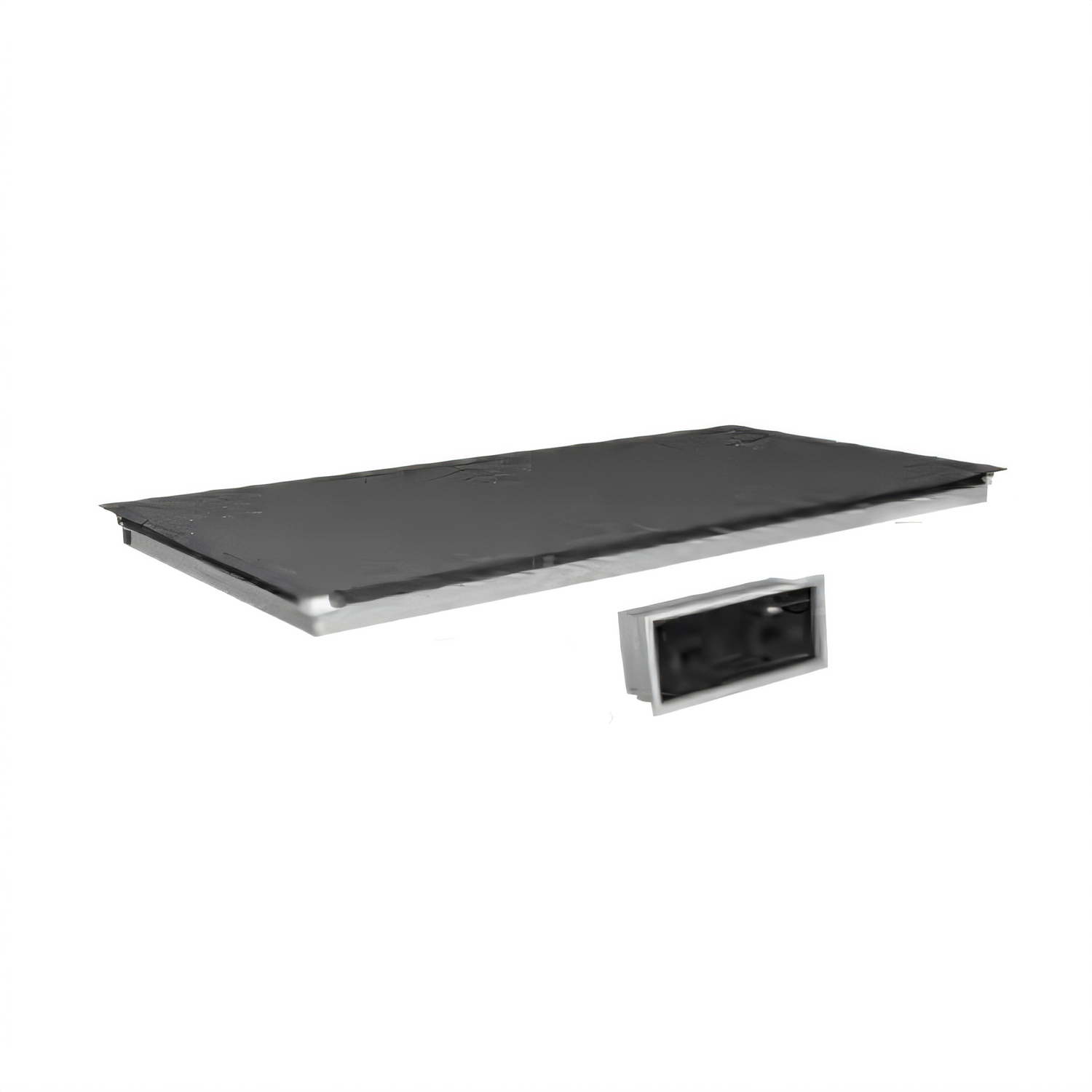

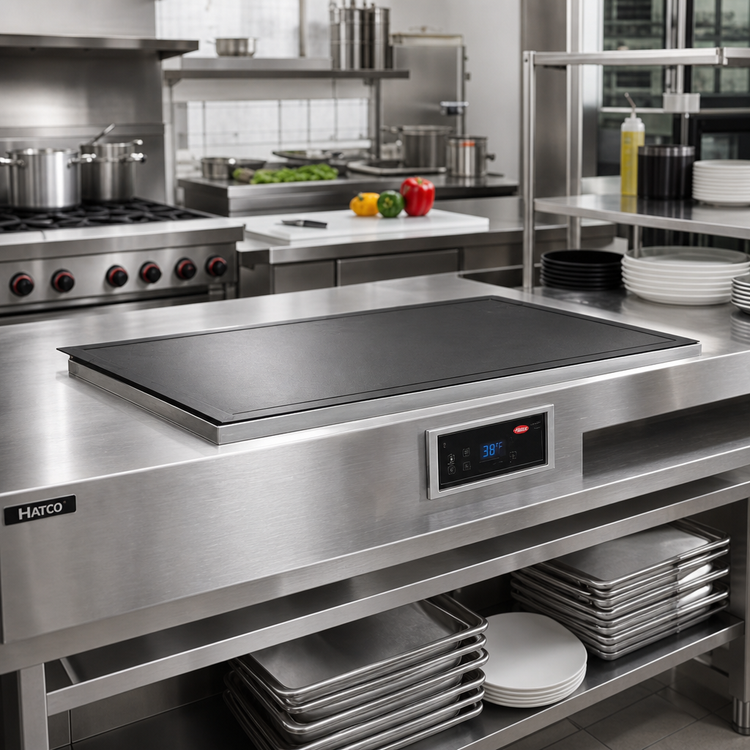

Hatco HCSBFX-24-S 24" × 24" Built-In Hot/Cold Shelf – Remote Refrigeration Ready
Seamlessly switch from hot holding to cold display in minutesTransform any counter into a year-round profit center. Hatco’s HCSBFX-24-S is a flush-mount, hard-coat aluminum shelf that heats or cools at the touch of a button, giving you the freedom to serve breakfast sandwiches at 8 AM and chilled pastries at noon—all from the same sleek surface.
Key Benefits
- Dual-Mode Technology – change from hot to cold (or cold to hot) in as little as 30 minutes.
- Remote-Ready Design – ships without a condenser so you can tie into an existing or shared refrigeration system.
- Hardcoat Aluminum Surface – food-safe, scratch-resistant and built for heavy commercial traffic.
- Patented Thermal Break – limits condensation and keeps surrounding counters comfortable to the touch.
- Precision Electronic Control – loose-shipped control box with 4 ft (1219 mm) lead installs outside the heat zone.

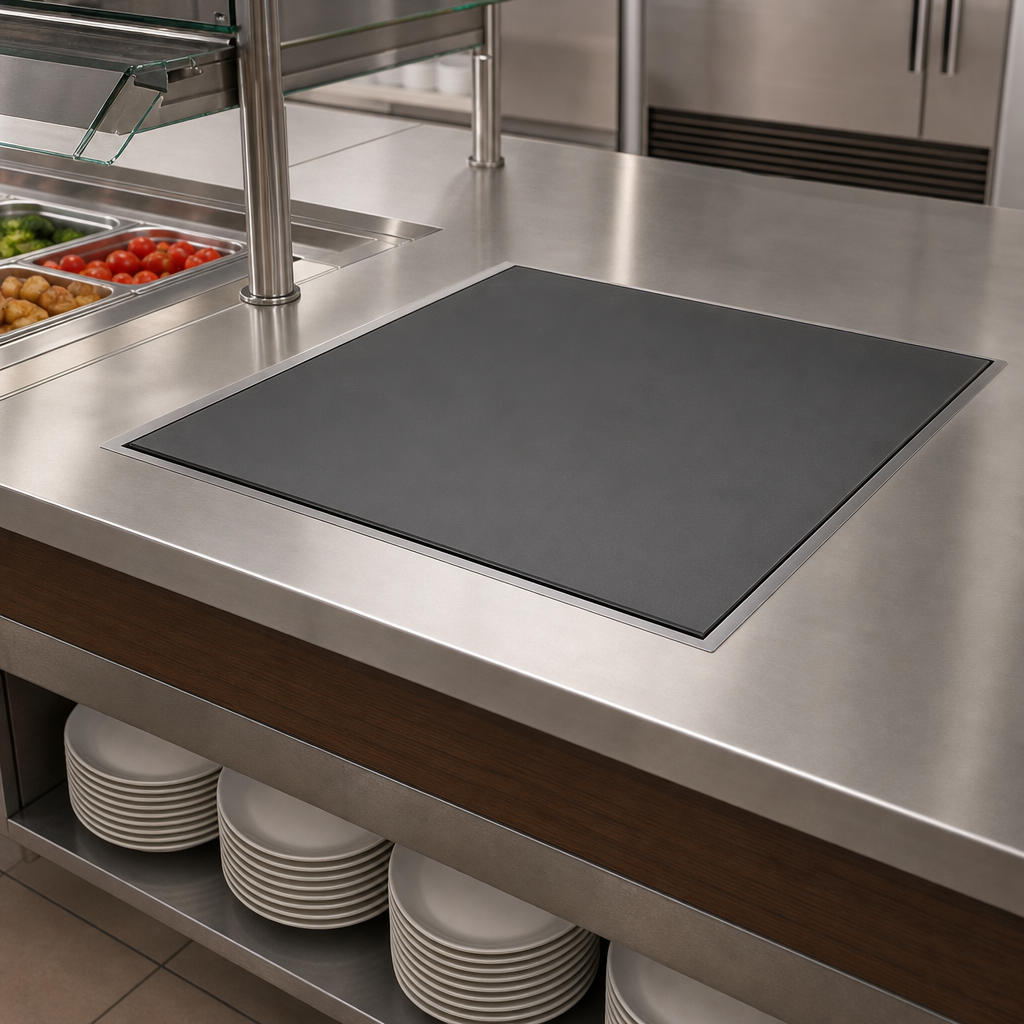

- Low-Profile, Flush Fit – drops cleanly into millwork for a modern, integrated presentation.
- Certified Safe – cULus listed, NSF component and proudly made in the USA.
Technical Specifications
| Model | HCSBFX-24-S |
|---|---|
| Operating Modes | Hot / Cold (built-in flush top) |
| Overall Dimensions (W × D × H) | 25.5" × 25.5" × 7.29" (648 × 648 × 185 mm) |
| Usable Surface | 24" × 24" (610 × 610 mm) |
| Material | Hardcoat aluminum, top-mount |
| Electrical |
120 V / 550 W / 4.6 A 220 V / 503 W / 2.3 A 230 V / 550 W / 2.4 A 240 V / 599 W / 2.5 A |
| Evaporator Load | 1,216 BTU/hr |
| Transition Time | ≈ 30 minutes hot-to-cold or cold-to-hot |
| Shipping Weight | 95 lbs (44 kg) |
| Certifications | cULus, NSF component, Made in USA |
Included with Purchase
- Hot/Cold shelf assembly with factory-installed temperature probe
- Unattached TXV valve (packed loose for installer)
- Electronic Temperature Control Box with 4' (1219 mm) lead
- Liquid line solenoid valve attached to shelf
- Installation & Operating Manual
Looking for a different footprint? Matching Hatco Hot/Cold Shelves are available in 24", 36" and 48" widths to keep your entire line at the perfect temperature.
