Hatco HCSBFX-24-I Steam Tables & Food Wells
$4,253.09
Unit price
/
Unavailable
Description

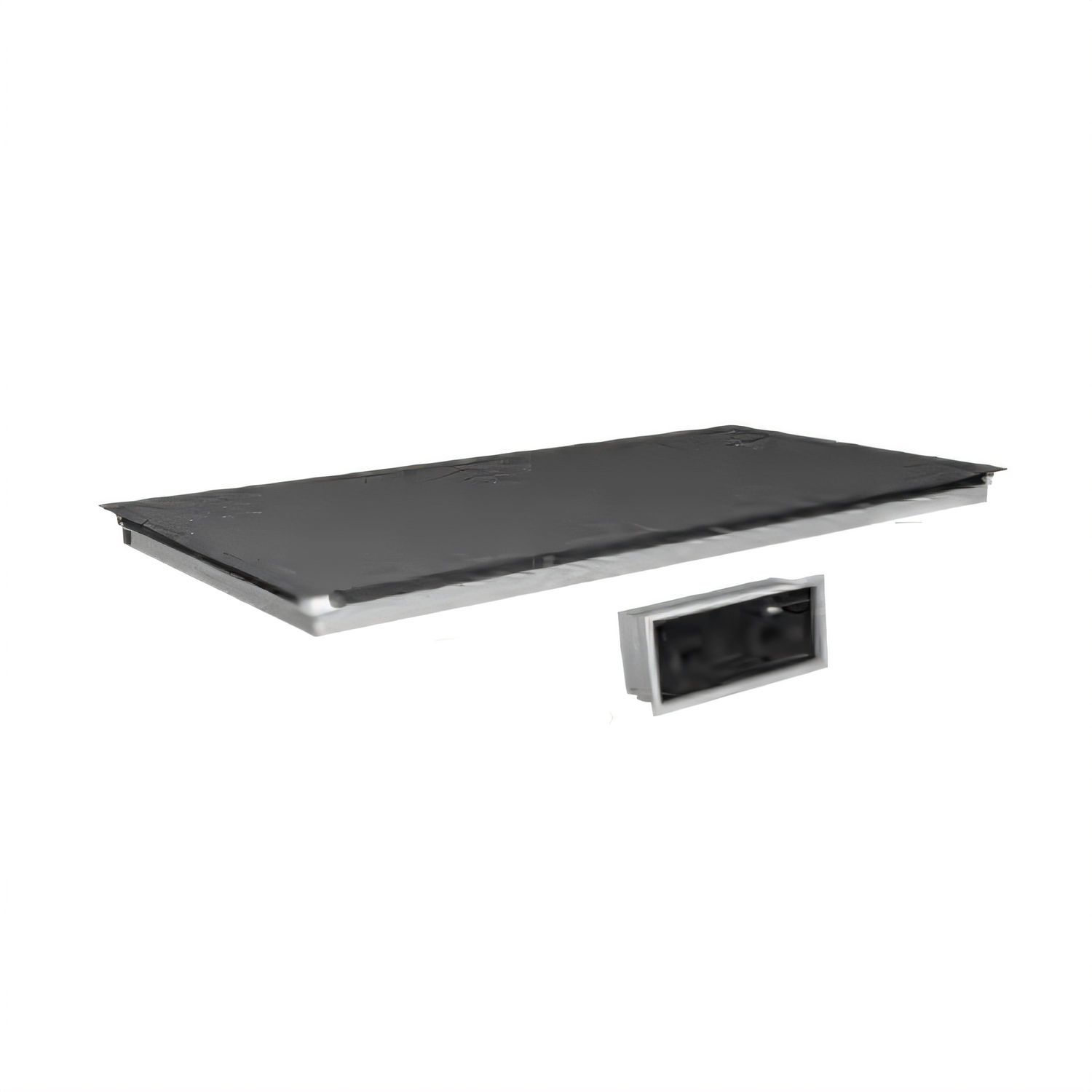

Hatco Hot/Cold Flush-Top Shelf 24" × 19.5"
Model HCSBFX-24-I | Remote Refrigeration (condenser not included)Switch from a chilled merchandising station to a heated pass-through in minutes. Hatco’s patented Hot/Cold Shelf puts two day-parts in one footprint, giving you maximum menu flexibility without sacrificing counter space.
Why You’ll Love It
- Dual-mode operation changes from hot to cold—or cold to hot—in as little as 30 minutes.

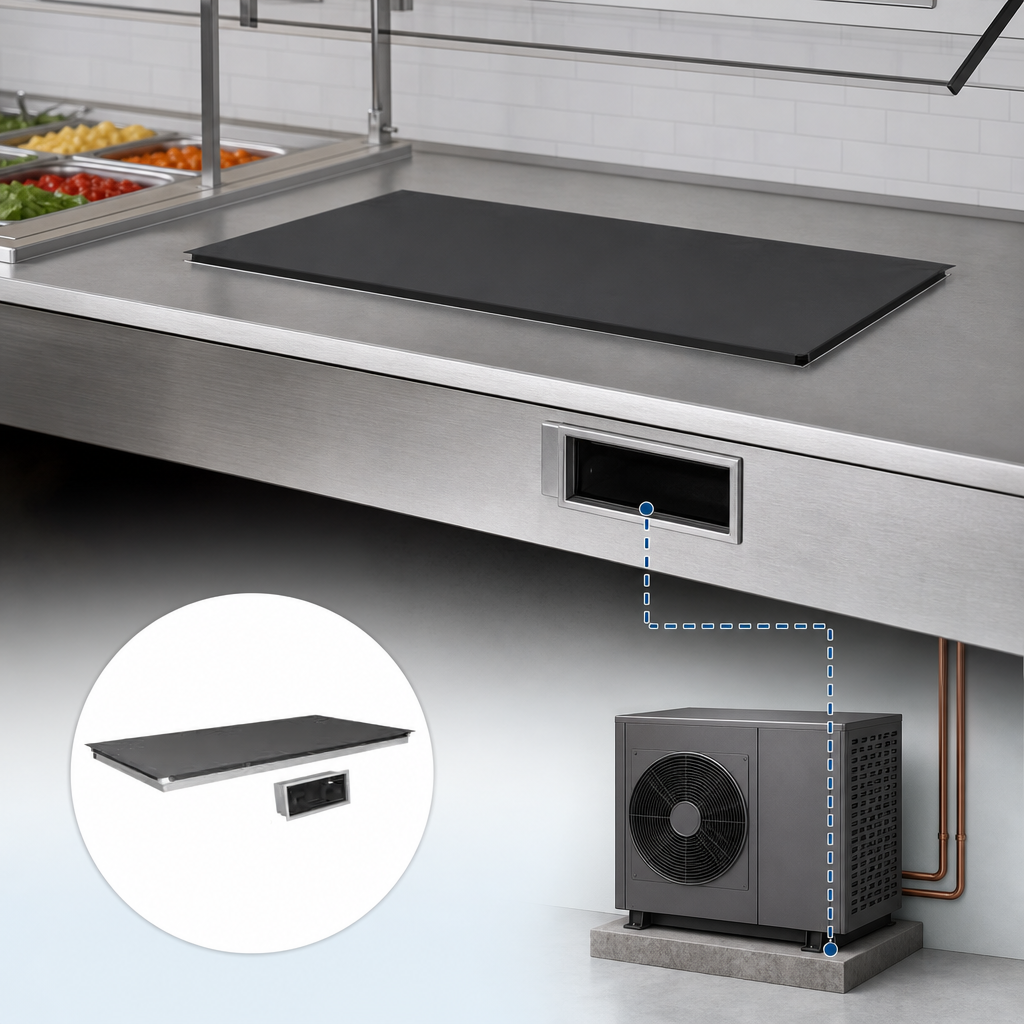

- Remote ready: ships without a condenser so you can integrate with an existing rack or dedicated remote system (≈ 1,019 BTU/hr evaporator load).
- Electronic temperature control box (4 ft lead, shipped loose) delivers precise set-point adjustment at the touch of a button.
- Food-safe hardcoat aluminum surface stands up to heavy pans, acidic foods and daily cleaning.
- Patented thermal break minimizes condensation and reduces heat transfer to adjacent surfaces.
- Low-profile, top-mount design installs flush for a seamless presentation.
- cULus listed, NSF component recognized and proudly Made in the USA.
Included with Your Shelf
- Flush-mount shelf assembly with integrated temperature probe
- Liquid line solenoid valve (factory installed)
- Thermostatic expansion (TXV) valve – shipped loose for field installation
- Electronic temperature control box (hot/cold selector)
- Installation & operation manual
Important: A compatible remote condenser and refrigeration circuit
(not included) are required for cold operation.
Install the control box outside the heated zone to avoid heat-related damage.
Technical Specifications
| Usable Surface | 24" W × 19.5" D (610 × 495 mm) |
|---|---|
| Overall Dimensions | 25.5" W × 21" D × 7.29" H (648 × 533 × 185 mm) |
| Voltage Options | 120 V / 220 V / 230 V / 240 V , 50-60 Hz (non-CE) |
| Power Draw | 445 W @ 120 V | 407 W @ 220 V | 445 W @ 230 V | 485 W @ 240 V |
| Rated Amps | 3.7 A @ 120 V | 1.8 A @ 220 V | 1.9 A @ 230 V | 2.0 A @ 240 V |
| Evaporator Load (Cooling) | 1,019 BTU/hr |
| Countertop Cut-Out | W 24.6"–25.0" (625–635 mm) | D 20.1"–20.5" (511–521 mm) |
| Shipping Weight | Approx. 84 lb (39 kg) |
| Construction | Hardcoat anodized aluminum, top-mount |
| Certifications | cULus, NSF component |
Looking for a turnkey package? Ask our team about Hatco-approved remote condensers, longer control-box cords and extended compressor warranties.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, Made in USA
Height
7.29in
Width
25.5in
Depth
21.0in
Shipping Weight
84.0lbs
Construction
aluminum
Size
24"
Controls
electronic controls
Type
built-in
Specifications
Hot/Cold Shelf, built-in flush top, 24"W x 19-1/2"D, electronic temperature control (shipped loose), designed for remote refrigeration (not included), aluminum hardcoat, top mount, cULus, Made in USA
