Hatco HCSBFX-24-F Steam Tables & Food Wells
Description

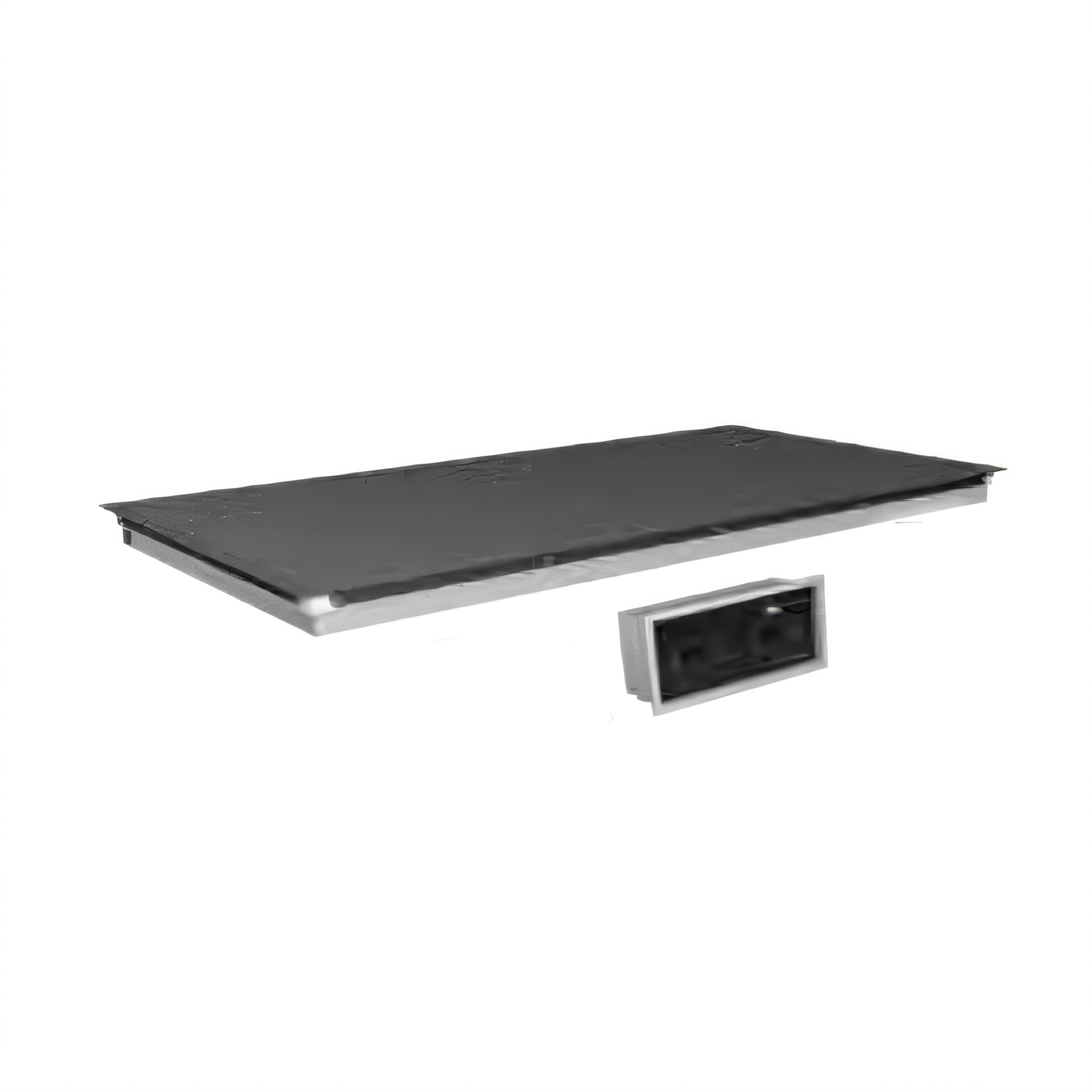

Hatco Built-In Hot/Cold Shelf – Remote Ready (24" W × 15-1/2" D)
Model HCSBFX-24-F | Hardcoat Flush-Top | Made in the USAGive your counter the power to adapt on demand. Hatco’s patented Hot/Cold Shelf seamlessly switches from a frost-cool display to a heated holding zone (and back) in as little as 30 minutes, letting you spotlight chilled desserts for breakfast and piping-hot entrées for lunch—without swapping equipment.
Why you’ll love it
- Dual-mode performance – electronic control toggles between hot and cold at the press of a button.

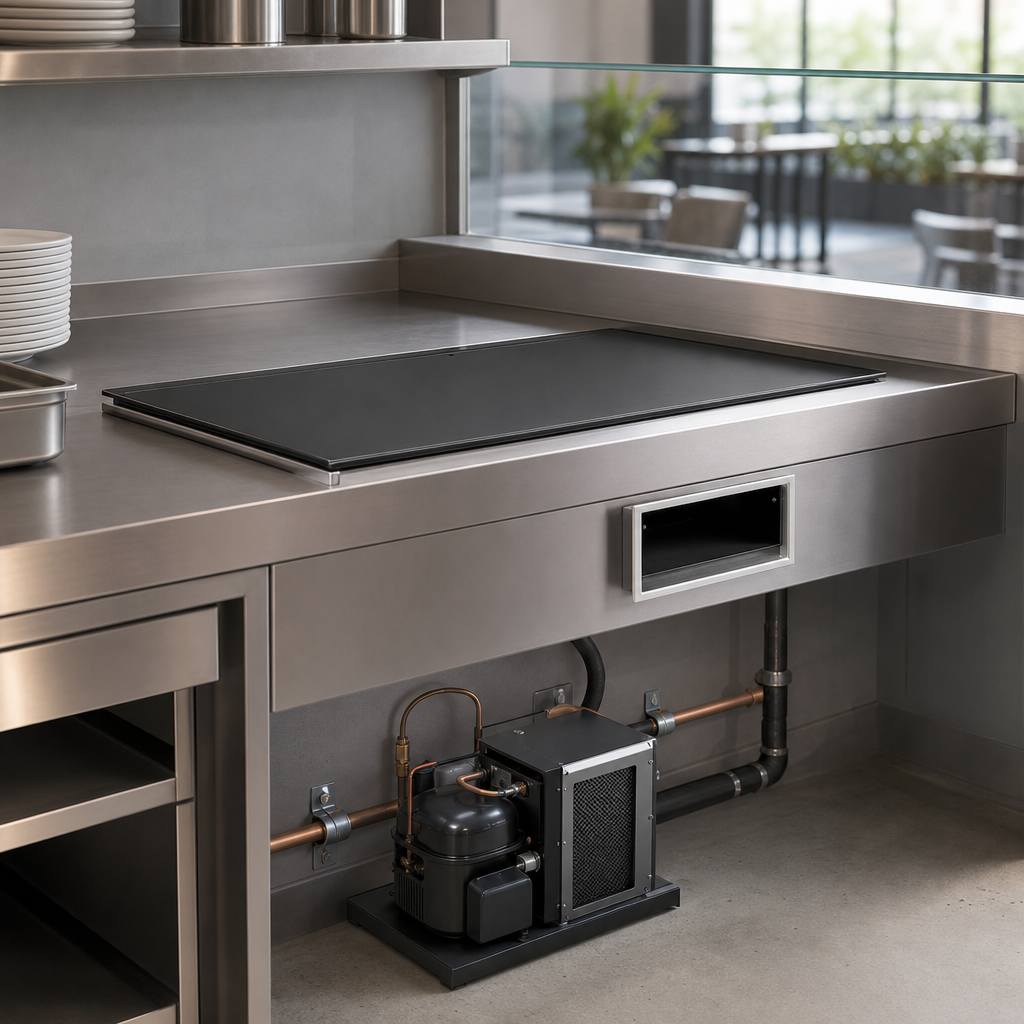

- Remote refrigeration ready – connect to an existing condenser (not included) for a clean, quiet countertop.
- Hardcoat aluminum surface – NSF-listed, scratch-resistant and easy to wipe clean.
- Patented thermal break minimizes condensation and prevents heat transfer to surrounding counters.
- Top-mount, flush installation gives a seamless built-in look that matches Hatco GRSBF heated shelves.
- Electronic Temperature Control Box ships loose with a 4' (1219 mm) lead for flexible placement outside the heat zone.
- cULus listed and fabricated in Milwaukee, Wisconsin.
At-a-glance specs
| Usable surface | 24" W × 15-1/2" D (610 × 394 mm) |
|---|---|
| Overall dimensions | 25-1/2" W × 17" D × 7-5/16" H (648 × 432 × 185 mm) |
| Electrical |
120 V, 355 W, 3.0 A, 60 Hz 220 V, 325 W, 1.5 A, 50/60 Hz Other voltages available; all non-CE |
| Refrigeration | Evaporator load 844 BTU/hr – remote condenser supplied by others |
| Hot-mode power | Up to 355 W (approx.) |
| Shipping weight | ≈ 74 lb (34 kg) |
| Construction | Food-safe hard-anodized aluminum, flush top mount |
| Certifications | cULus, NSF (component) |
| Country of manufacture | USA |
Cut-out guidelines
- Counter opening (min/max): 24.6"–25.0" W × 16.1"–16.5" D (625–635 mm × 409–419 mm)
- Control box cut-out: 13.125" W × 5.625" H (333 mm × 143 mm)
- Allow 4' (1219 mm) for the factory-wired control lead; longer cords available at time of order.
Warranty
24 months parts & service. Optional additional 4-year compressor parts warranty available at purchase (U.S./Canada).
