Hatco HCSBFR-48-I Steam Tables & Food Wells
Description

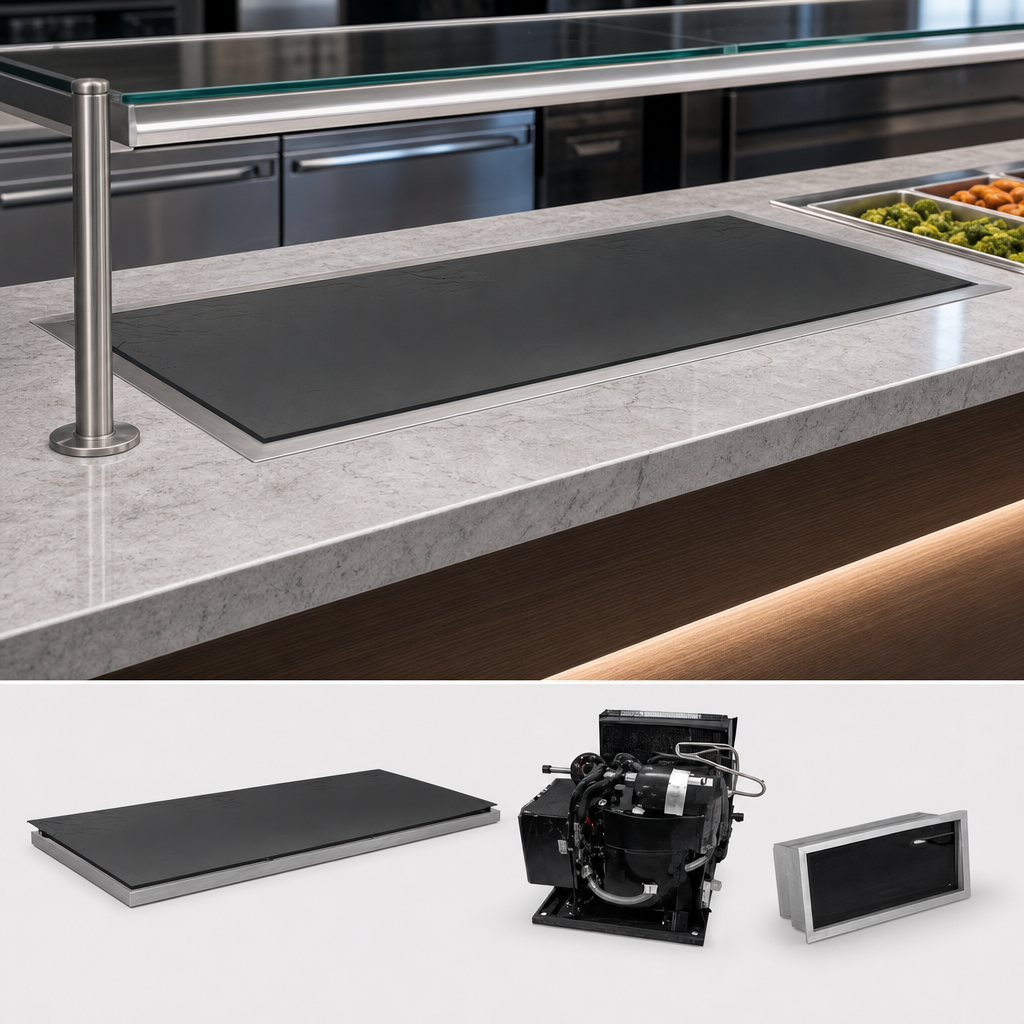

Hatco HCSBFR-48-I Hot/Cold Built-In Flush Top Shelf
48" W x 19.5" D • Remote refrigeration included • Hardcoat aluminumSwitch from a buffet-warming hero to a frost-cold display in just 30 minutes. Hatco’s patented Hot/Cold Shelf gives you the freedom to merchandise hot entrées for lunch, then hold chilled desserts for dinner—all in the same counter cut-out.
Why You’ll Love It
- Dual-mode performance – Electronic control toggles between precise hot or cold operation with a 30-minute changeover.
- Hardcoat aluminum surface – Durable, food-safe, and easy to wipe clean.
- Remote refrigeration package – 1/3 HP condensing unit (R-513A) and control box ship loose for flexible under-counter placement and quiet operation on the line.
- Patented thermal break – Minimizes condensation and temperature transfer to adjacent countertop materials.
- Integrated look – Matches Hatco GRSBF heated shelves for a seamless hot/cold serving line.
- Made in the USA – cULus listed and NSF component recognized for peace of mind.

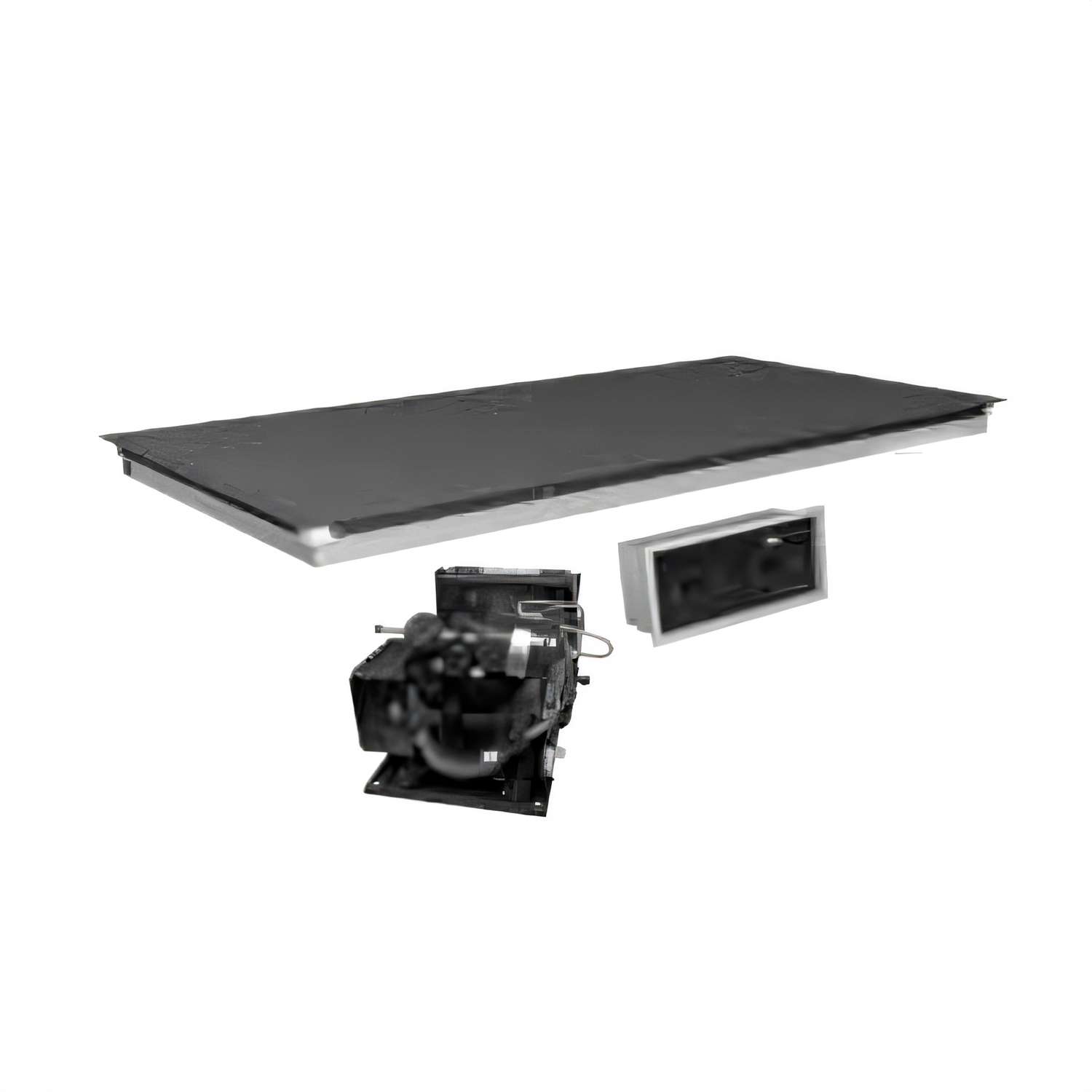

What’s in the Box
- Flush-top shelf assembly with factory-installed temperature probe
- Remote condensing unit (1/3 HP, R-513A refrigerant)
- Electronic Temperature Control Box with 4' lead wire (mount outside the heat zone)
- Pre-charged liquid and suction lines with fittings
- Installation & operation manual
Technical Specifications
| Model | HCSBFR-48-I |
|---|---|
| Usable surface (W × D) | 48" × 19.5" (1219 × 495 mm) |
| Overall dimensions (W × D × H) | 49.5" × 21" × 7.29" (1257 × 533 × 185 mm) |
| Compressor | 1/3 HP, remote, R-513A refrigerant |
| Electrical (120 V) | 450 W (cold) / 890 W (hot), 7.4 A, 60 Hz, single phase |
| Alternate voltages | 220, 230, or 240 V (non-CE) – see manual for ratings |
| Changeover time | ≈ 30 minutes hot-to-cold or cold-to-hot |
| Shipping weight | ≈ 164 lb. (75 kg) |
| Certifications | cULus, NSF (component) |
Countertop Cut-Out
Minimum 48 ⅝" × 19 ⅞" (1234 mm × 505 mm) – see installation manual for maximum tolerances and condenser ventilation requirements.
Factory Options (order with unit)
- 7.5' control-box cord
- 7.5' condenser conduit
- Extended 4-year compressor parts-only warranty (U.S. & Canada)
From cafeterias and buffets to made-to-order stations, the Hatco HCSBFR-48-I delivers unmatched flexibility—one sleek shelf for every menu change.
