Hatco HCSBFR-36-I Steam Tables & Food Wells
Description
Hatco HCSBFR-36-I Hot/Cold Built-In Flush Shelf – 36" x 19.5"

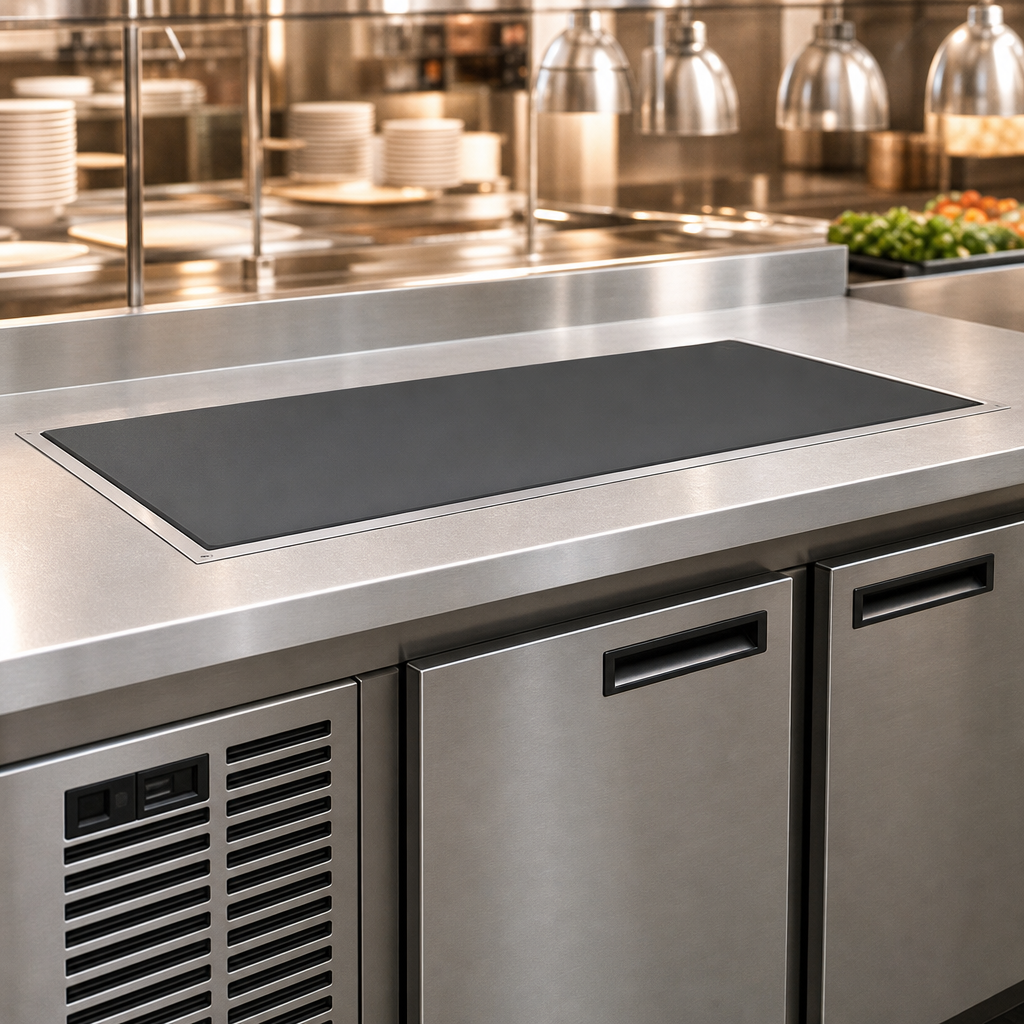

Remote refrigeration package included • Hardcoat aluminum top • Made in USASwitch from piping-hot to perfectly chilled holding in the very same well. Hatco’s patented Hot/Cold Shelf lets you run breakfast, lunch and dinner from a single drop-in footprint, transitioning between modes in as little as 30 minutes while sitting absolutely flush with your counter surface.
Key Advantages
- Dual-mode shelf switches from hot to cold or cold to hot in about 30 minutes.

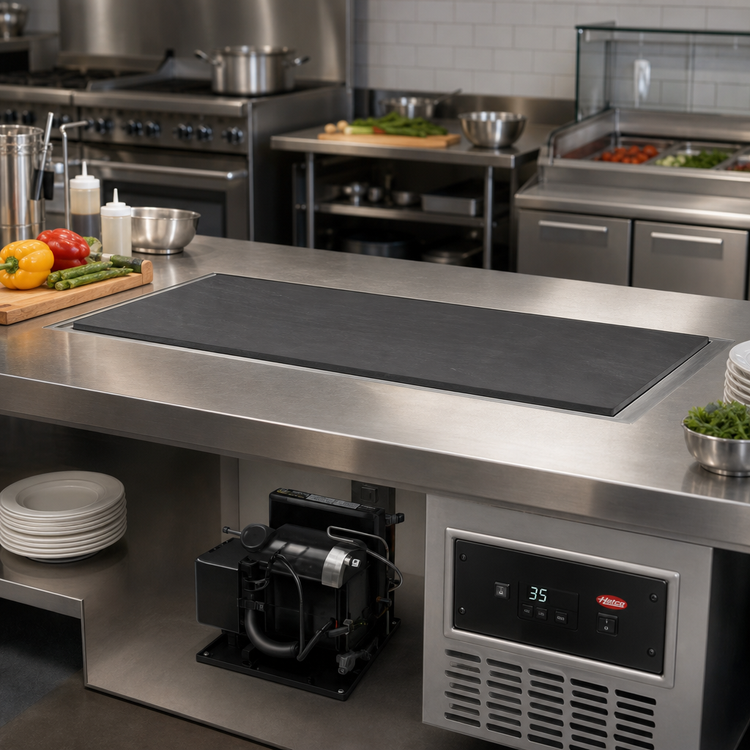

- Remote condensing unit (ships loose) keeps heat, noise and maintenance access below the counter.
- Food-safe Hardcoat aluminum surface resists scratches and wipes clean in seconds.
- Patented perimeter thermal break minimizes condensation and heat transfer to adjacent surfaces.
- Electronic Temperature Control Box with LED read-out and a 4' (1.2 m) factory lead for flexible mounting.
- Uses eco-conscious R-513A refrigerant and an efficient 1/3 HP compressor.
- Matches Hatco GRSBF heated shelves for a seamless, professional line-up.
- cULus listed component, NSF component & proudly built in Milwaukee, Wisconsin.
At-a-Glance Specifications
| Model | HCSBFR-36-I |
|---|---|
| Operating Modes | Hot or Cold (user selectable) |
| Overall Shelf Dimensions | 37.5" W × 21" D × 7.29" H (953 × 533 × 185 mm) |
| Usable Heated/Chilled Area | 36" W × 19.5" D (914 × 495 mm) |
| Countertop Cut-Out | 36.6"–37.0" W × 20.1"–20.5" D (930–940 mm × 511–521 mm) |
| Compressor / Refrigerant | 1/3 HP remote condensing unit, R-513A |
| Electrical – 120 V, 60 Hz | Cold 450 W / 3.8 A • Hot 670 W / 5.9 A NEMA 5-15P |
| Alternate Voltages | 220, 230 or 240 V, 50/60 Hz (consult factory) |
| Condensing Unit Size | 11.9" W × 13.6" D × 11.4" H (302 × 346 × 289 mm) |
| Shipping Weight | Approx. 151 lb (69 kg) |
| Certifications | cULus, NSF component, Ecoization |

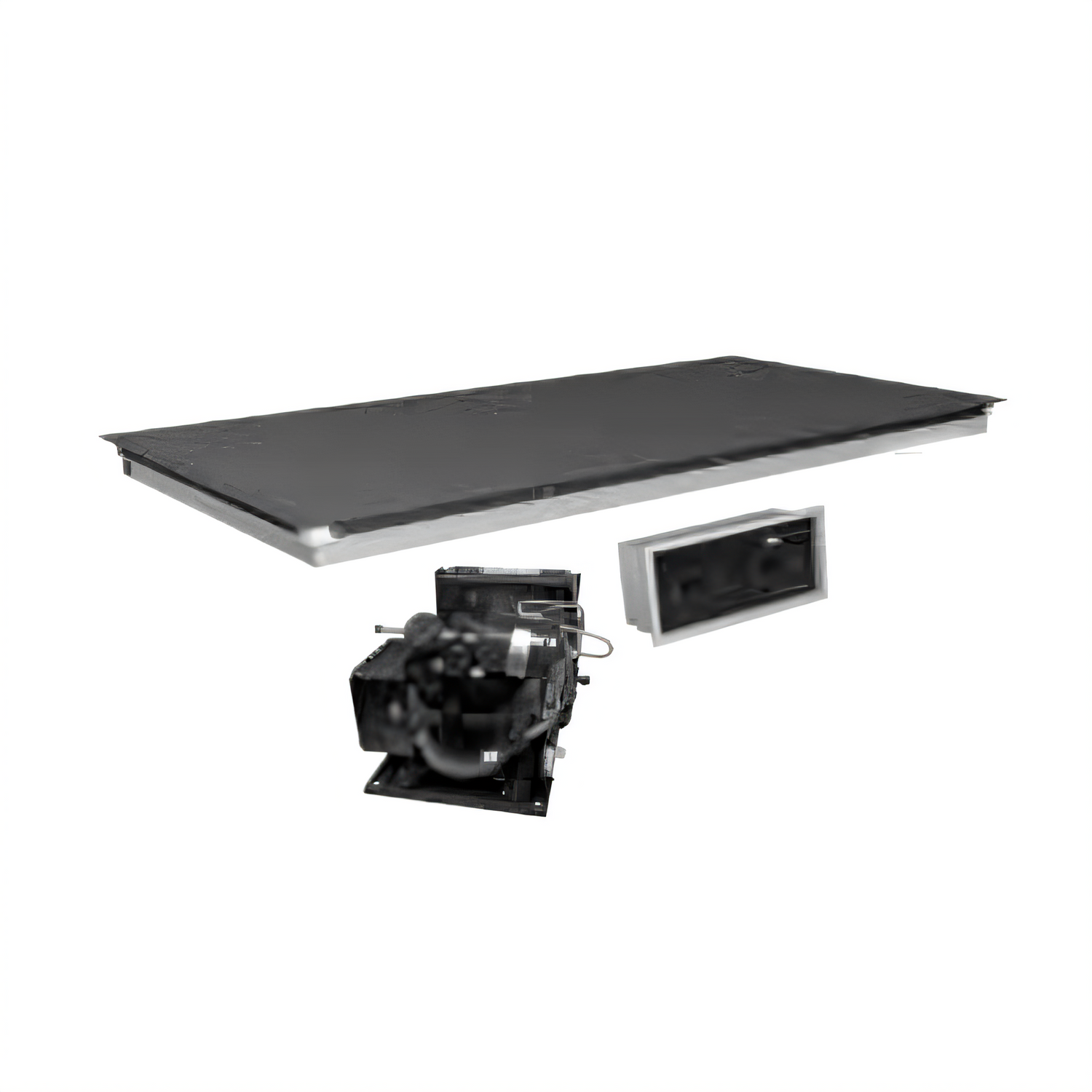

What’s in the Box
- Flush-mount shelf assembly with integrated temperature probe & TXV valve
- Remote condensing unit
- Electronic Temperature Control Box (4' lead)
- 72" (1.8 m) liquid & suction line set
- Installation & Operation Manual
Need extended lengths? 7.5' (2.29 m) control-box cord and condenser conduit options are available at time of order.
