Hatco HCSBFR-24-S Steam Tables & Food Wells
$5,181.46
Unit price
/
Unavailable
Description

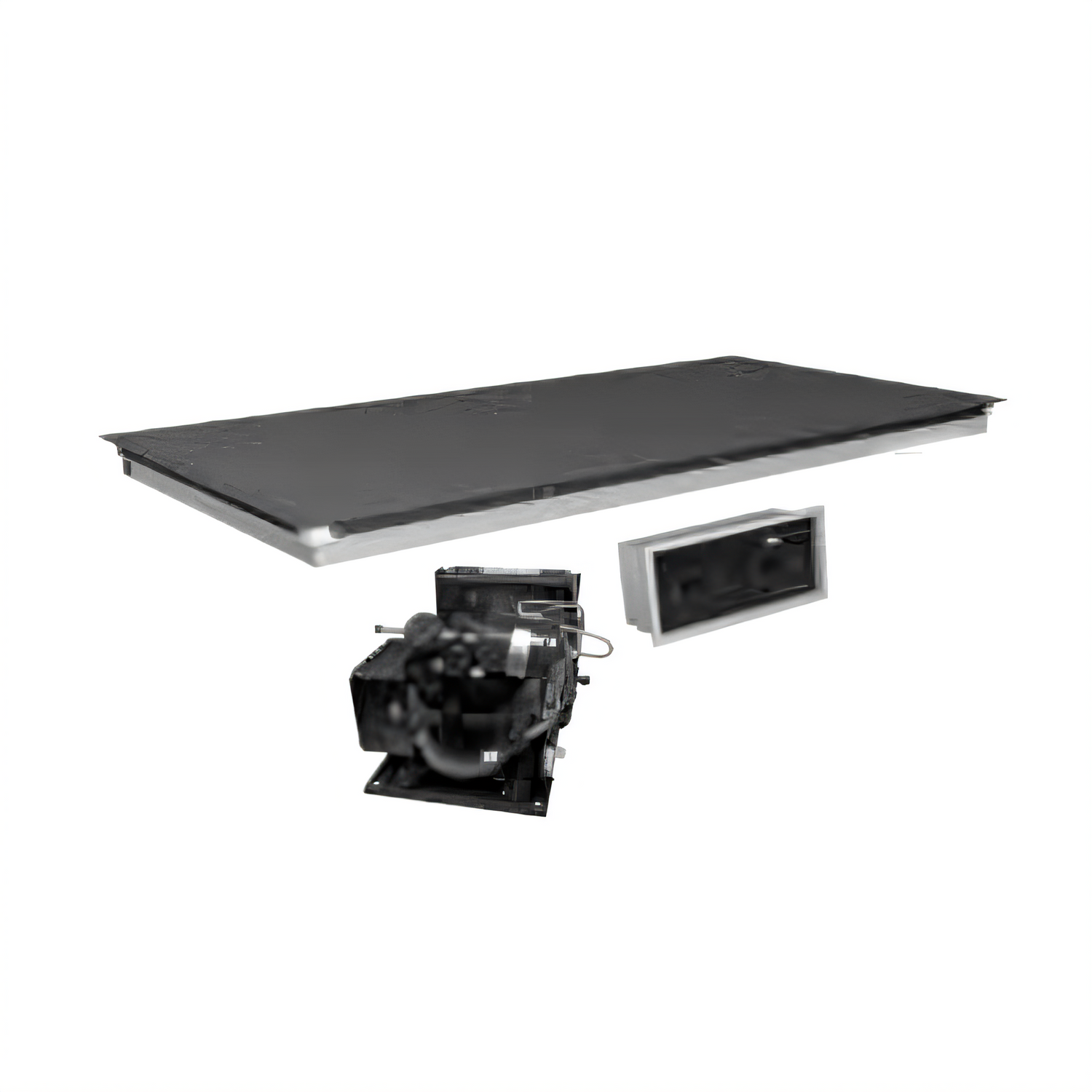

Hatco HCSBFR-24-S Hot/Cold Built-In Shelf – 24" x 24"
Remote refrigeration | Flush-mount | Hardcoat aluminumServe breakfast croissants piping hot this morning and showcase chilled salads for lunch—on the very same surface. Hatco’s HCSBFR-24-S Hot/Cold Shelf switches between temperature modes in minutes, giving you unmatched menu flexibility without sacrificing counter space or aesthetics.
Why you’ll love it
- Rapid mode change – transitions from hot ↔ cold in about 30 minutes.

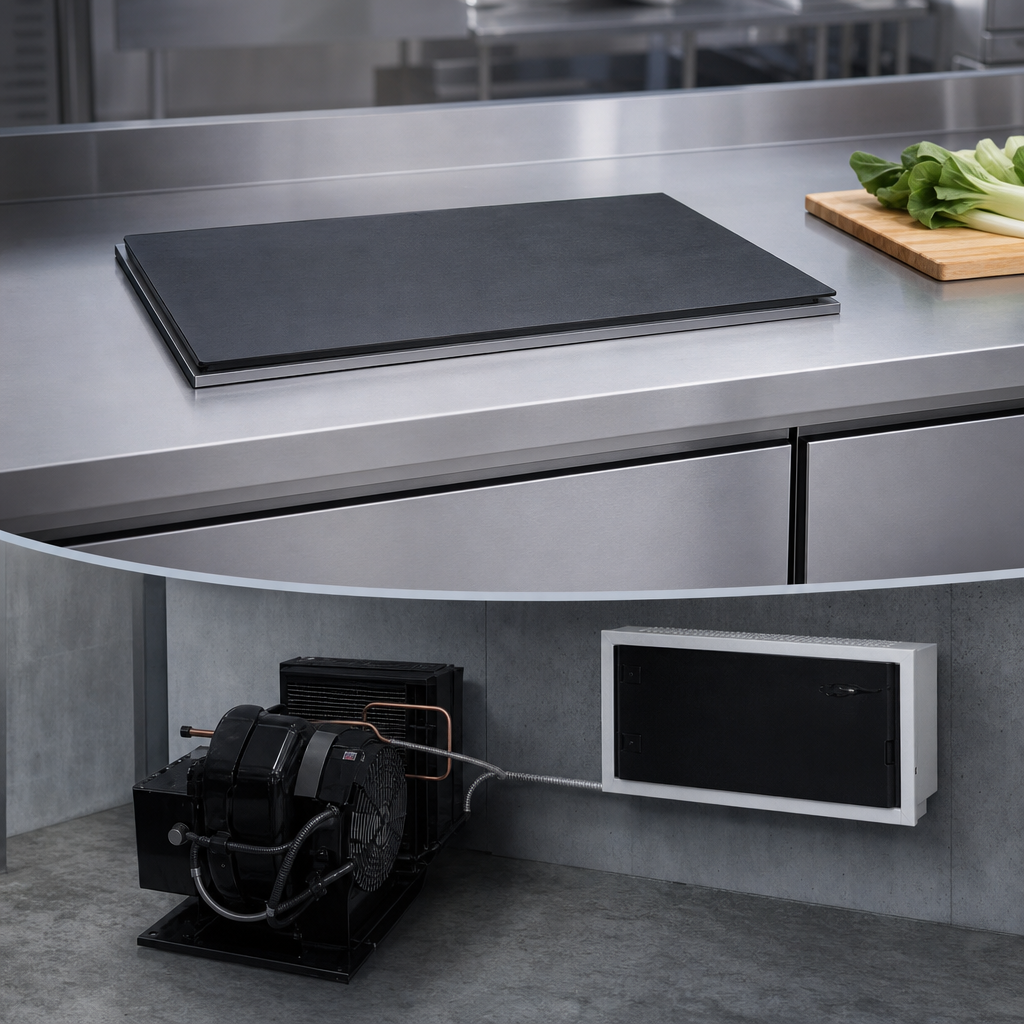

- Remote refrigeration package (condenser & control box) ships loose for quieter, cleaner counters and easier fabrication.
- Food-safe hardcoat aluminum surface resists scratches and wipes clean fast.
- Patented thermal break virtually eliminates condensation and protects surrounding countertop materials.
- Electronic Temperature Control Box with 4 ft lead for precise, push-button adjustments.
- Flush, top-mount design matches Hatco GRSBF heated shelves for a seamless serving line.
- cULus & NSF component listed and proudly made in the USA.
Ideal for
- Hotels switching from continental breakfast to midday cold bars
- Convenience stores & cafés with rotating dayparts
- Event catering lines needing rapid re-sets
- Grocery deli and grab-and-go stations
Technical specifications
| Model | HCSBFR-24-S |
|---|---|
| Overall dimensions | 25.5" W × 25.5" D × 7.29" H (648 × 648 × 185 mm) |
| Usable surface | 24" W × 24" D (610 × 610 mm) |
| Operating modes | Hot or Cold (one mode at a time) |
| Transition time | ≈ 30 minutes |
| Electrical (120 V) | Cold: 300 W • Hot: 550 W • 4.6 A • 60 Hz |
| Compressor size | 1/3 HP (remote condenser included) |
| Refrigerant | R-513A |
| Construction | Hardcoat aluminum, flush top, top-mount |
| Certifications | cULus, NSF (component) |
| Approx. ship weight | 132 lb (60 kg) |
| Included | Shelf assembly with temperature probe & TXV, remote condenser, remote electronic control box, 4 ft lead wire |
Cutout & installation
- Countertop cutout: 24.6"–25.0" W × 24.6"–25.0" D.
- Mount shelf flush with countertop—no overhang required.
- Install control box outside the heated zone to prevent damage.
- Standard 4 ft refrigeration line set; optional 7.5 ft kit available.
- Professional installation and refrigeration hookup required.
Important: Install the remote control box outside the heat zone.
Follow Hatco’s Installation & Operating Manual for safe, reliable performance.
Need a different footprint? Explore additional Hatco sizes or chat with us for a custom quote.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, Made in USA
Height
7.29in
Width
25.5in
Depth
25.5in
Shipping Weight
132.0lbs
Construction
aluminum
Size
24"
Controls
electronic controls
Type
built-in
Specifications
Hot/Cold Shelf, built-in flush top, 24"W x 24"D, electronic temperature control, remote refrigeration (included - shipped loose), aluminum hardcoat, top mount, cULus, Made in USA
