Hatco HCSBFR-24-I Steam Tables & Food Wells
Description
Hatco Hot/Cold Built-In Flush Top Shelf — 24" x 19.5"
Model HCSBFR-24-I | Remote Condenser & Control Box IncludedSwitch from breakfast to lunch service (or chilled dessert displays) in the same footprint. Hatco’s patented Hot/Cold Shelf delivers reliable food-safe temperatures on a single, seamless hard-coat surface — heating or cooling in as little as 30 minutes at the touch of a button.
Why You’ll Love It
- True dual-mode operation — changes from hot to cold or cold to hot in ≈ 30 minutes.
- Flush, top-mount design creates a smooth counterline and pairs perfectly with Hatco GRSBF heated shelves for a unified look.
- Food-safe hard-coat aluminum surface is durable, easy to wipe clean and resists scratching.

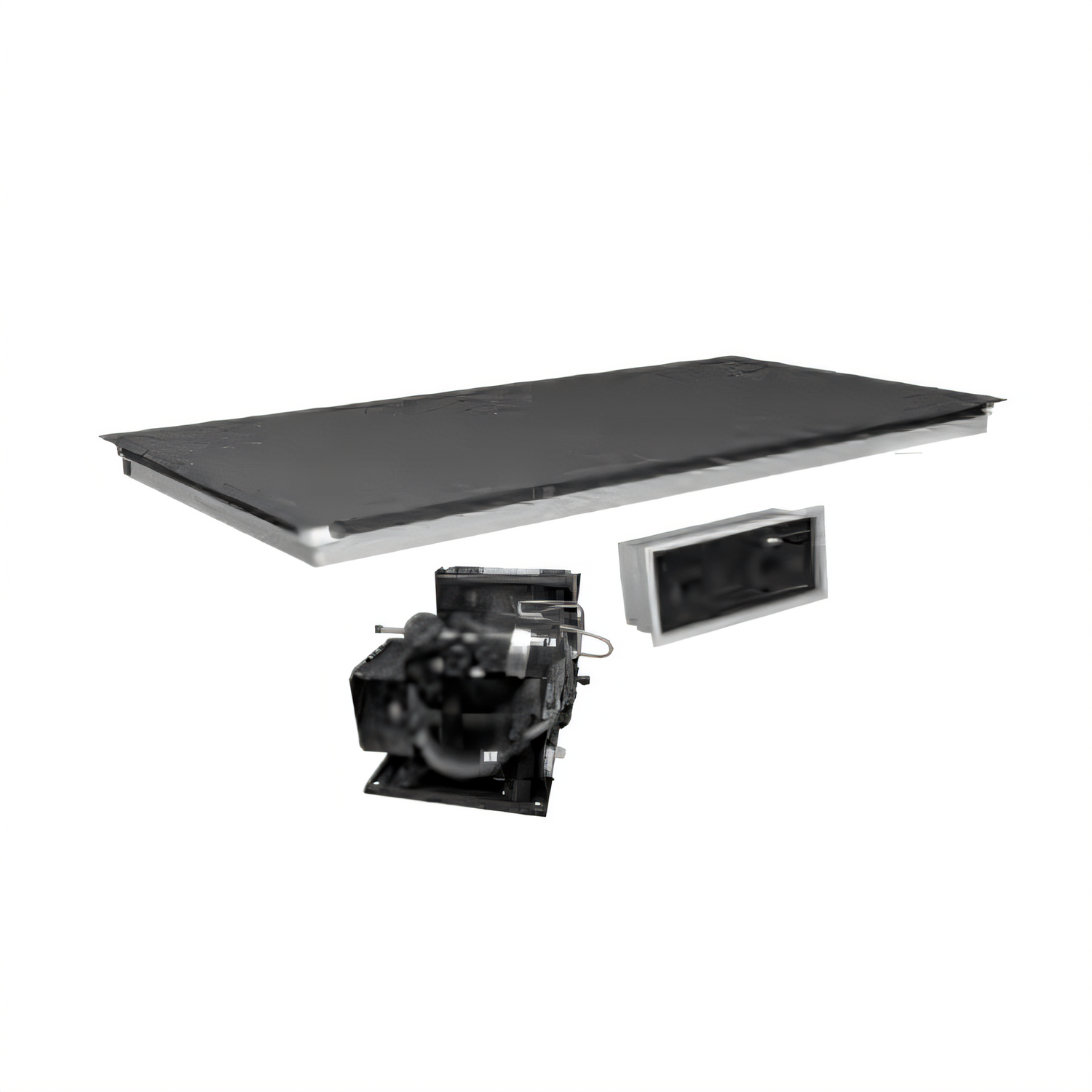

- Remote refrigeration package (condenser + control box) ships loose, giving fabricators maximum layout flexibility.
- Patented thermal break minimizes condensation and heat transfer to adjacent surfaces.
- Electronic Temperature Control with digital read-out keeps settings precise and consistent.
- Uses environmentally friendlier R-513A refrigerant.
- cULus listed, NSF component recognized and proudly Made in the USA.
Quick Specs
| Overall shelf dimensions | 25.5" W × 21" D × 7.29" H (648 × 533 × 185 mm) |
|---|---|
| Usable heated/cooled surface | 24" W × 19.5" D (610 × 495 mm) |
| Mount type | Built-in, flush top (top-mount) |
| Construction | Hard-coat anodized aluminum with integrated temperature probe |
| Refrigeration | Remote condenser, 1/5 HP, R-513A refrigerant (ships loose) |
| Electrical (120 V) | 3.8 A | Cold side 300 W | Hot side 445 W |
| Alternate voltages | 220, 230 or 240 V 50/60 Hz models available |
| Control box lead length | 4 ft (1219 mm) standard – longer lead optional at time of order |
| Counter cut-out (min – max) | 24.6"–25.0" W × 20.1"–20.5" D (625–635 mm × 511–521 mm) |
| Certifications | cULus, NSF (component) |
| Approx. ship weight | ≈ 118 lb (54 kg) |
Perfect For
- Breakfast bars that transition to salad or dessert stations
- Grab-and-go cafés and convenience stores
- Buffets, cafeterias and stadium kiosks with limited counter space
- Display kitchens where a clean, flush installation is essential
Need a longer control-box lead or condenser conduit? Extended lengths are factory options when ordered with the shelf. Additional four-year compressor warranty available in the U.S. and Canada.
