Hatco HCSBFR-24-F Steam Tables & Food Wells
Description

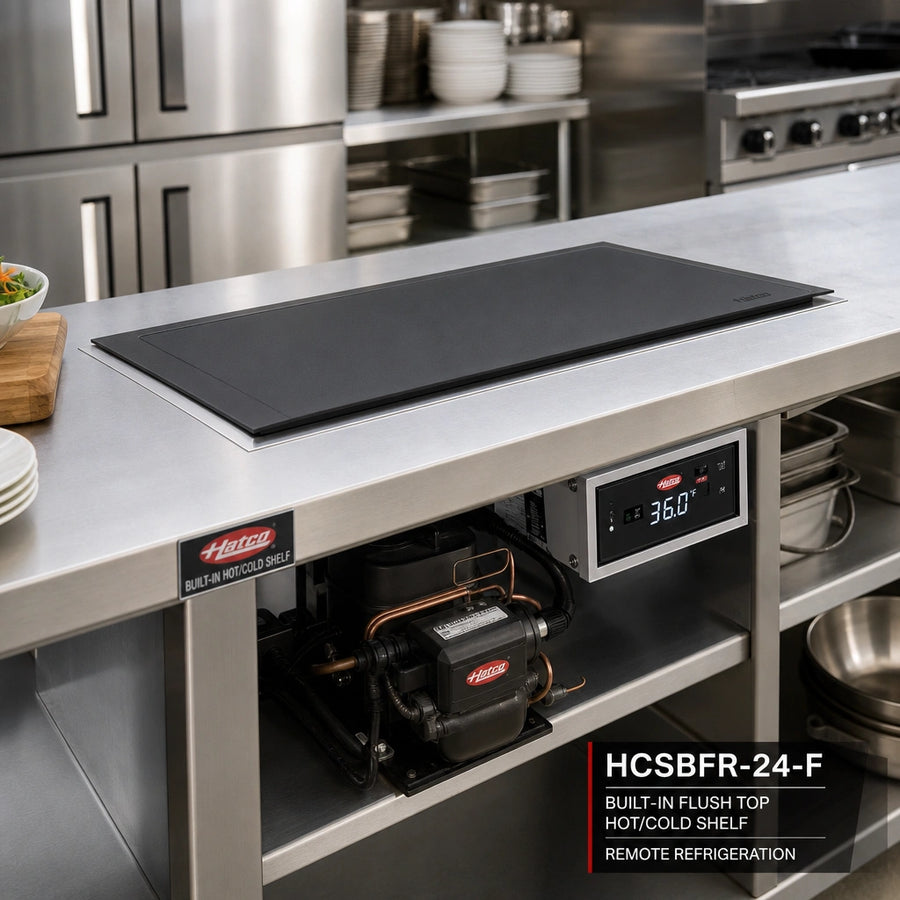

Hatco HCSBFR-24-F Hot/Cold Shelf – Flush Top
24" W x 15-1/2" D usable surface • Remote refrigeration • Hardcoat aluminumGive your countertop a seamless, go-anywhere temperature zone. The Hatco HCSBFR-24-F swaps from a fully heated shelf to a refrigerated deck (or back again) in as little as 30 minutes, letting you serve piping-hot entrées at lunch and chilled desserts at dinner—all from the same footprint.
Key advantages
- Dual-mode operation: switch between hot or cold with the touch of a button.
- Remote package includes unattached condenser and electronic temperature control box for flexible installation.
- Eco-friendly R-513A refrigerant reduces environmental impact and meets current regulatory standards.

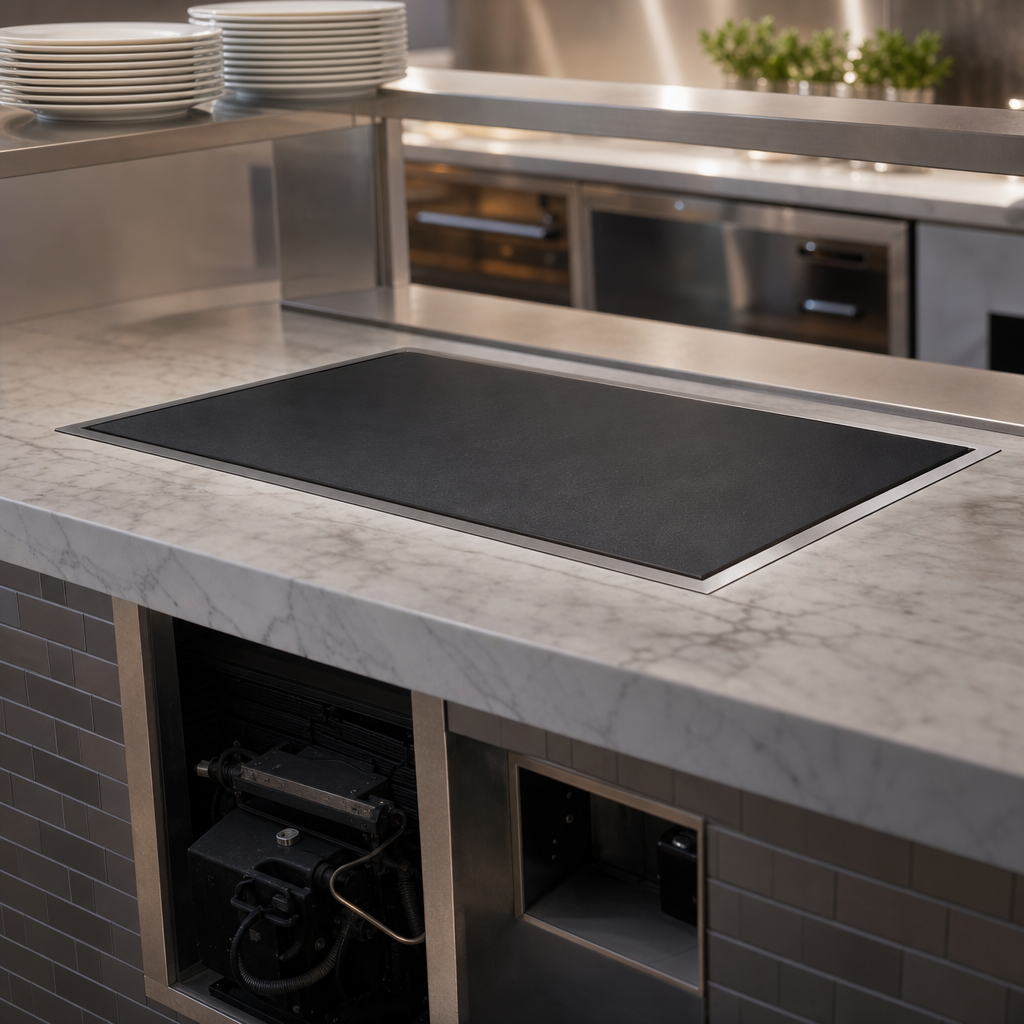

- Hardcoat aluminum top mount sits flush with your counter for a clean, integrated look and easy wipe-down.
- Patented thermal break virtually eliminates condensation and prevents heat transfer to adjacent surfaces.
- NSF component and cULus listed; proudly manufactured in the USA.
Perfect for
- Quick-service & fast-casual build lines
- Hotel breakfast or banquet buffets
- Convenience stores & micro-markets
- Dessert, sushi or tapas bars needing rapid menu changeovers

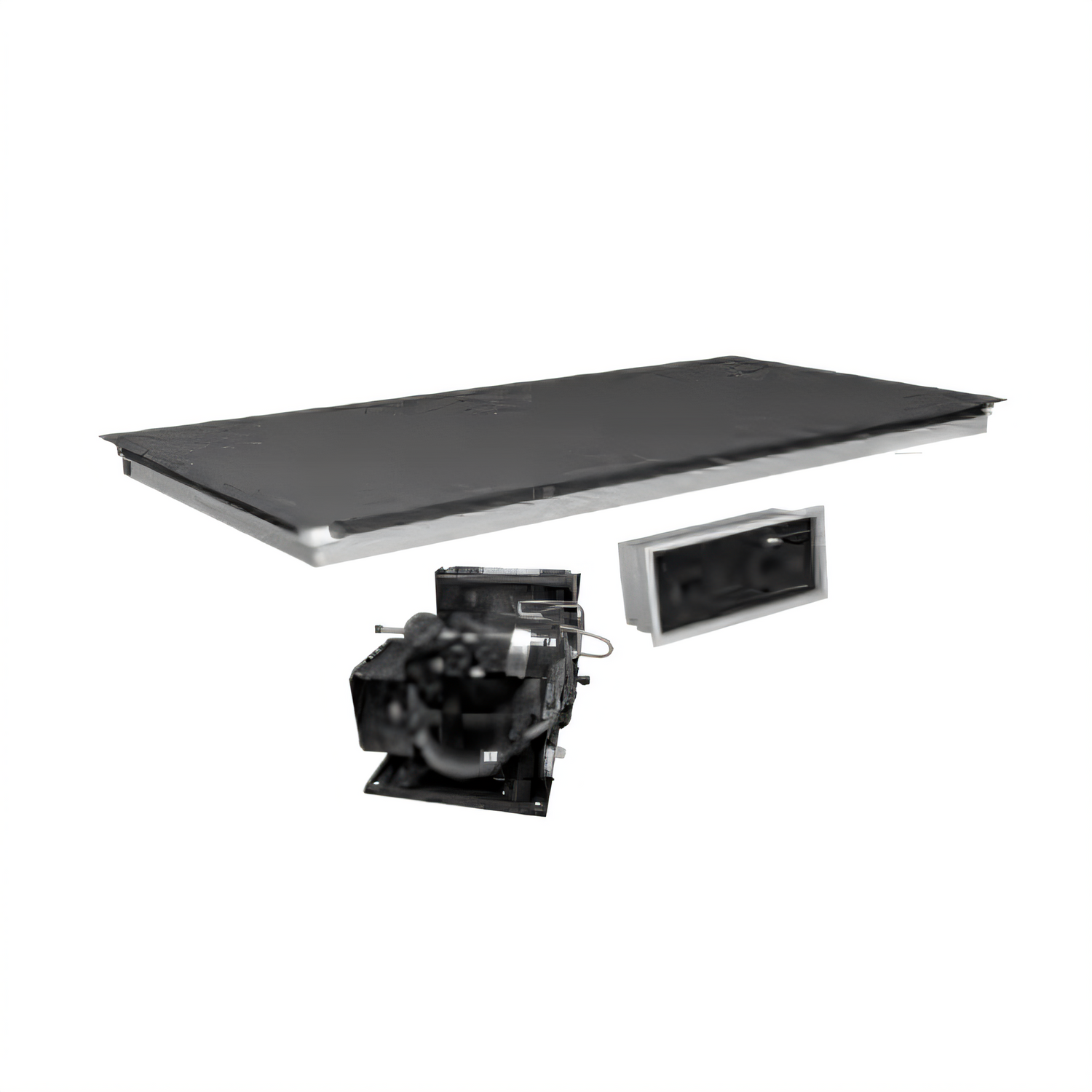

What’s included
- HCSBFR-24-F shelf assembly with built-in temperature probe
- Remote 1/5 HP condensing unit (ships loose)
- Electronic temperature control box with 4' (1219 mm) lead wire
- Factory-assembled TXV valve and refrigerant lines
Technical specifications
| Usable heated/cooled area | 24" W × 15.5" D (610 × 394 mm) |
|---|---|
| Overall dimensions | 25.5" W × 17" D × 7.29" H (648 × 432 × 185 mm) |
| Compressor | 1/5 HP, remote—ships loose |
| Cold-side load | 300 W @ 120 V |
| Hot-side load | 355 W @ 120 V |
| Amps (120 V) | 3.8 A |
| Power options | 120 V 60 Hz standard; 220/230/240 V models available |
| Refrigerant | R-513A (factory charge) |
| Construction | Hardcoat anodized aluminum, flush top mount |
| Certifications | cULus, NSF (component) |
| Ship weight | Approx. 111 lb (51 kg) |
| Country of origin | Made in USA |
Need a longer reach? Optional 7.5' (2286 mm) control-box cord and condenser conduit are available at time of order. Contact your Hatco representative for details.
