Hatco GRSDS-30 Glo-Ray® Hot Food Displays
Description

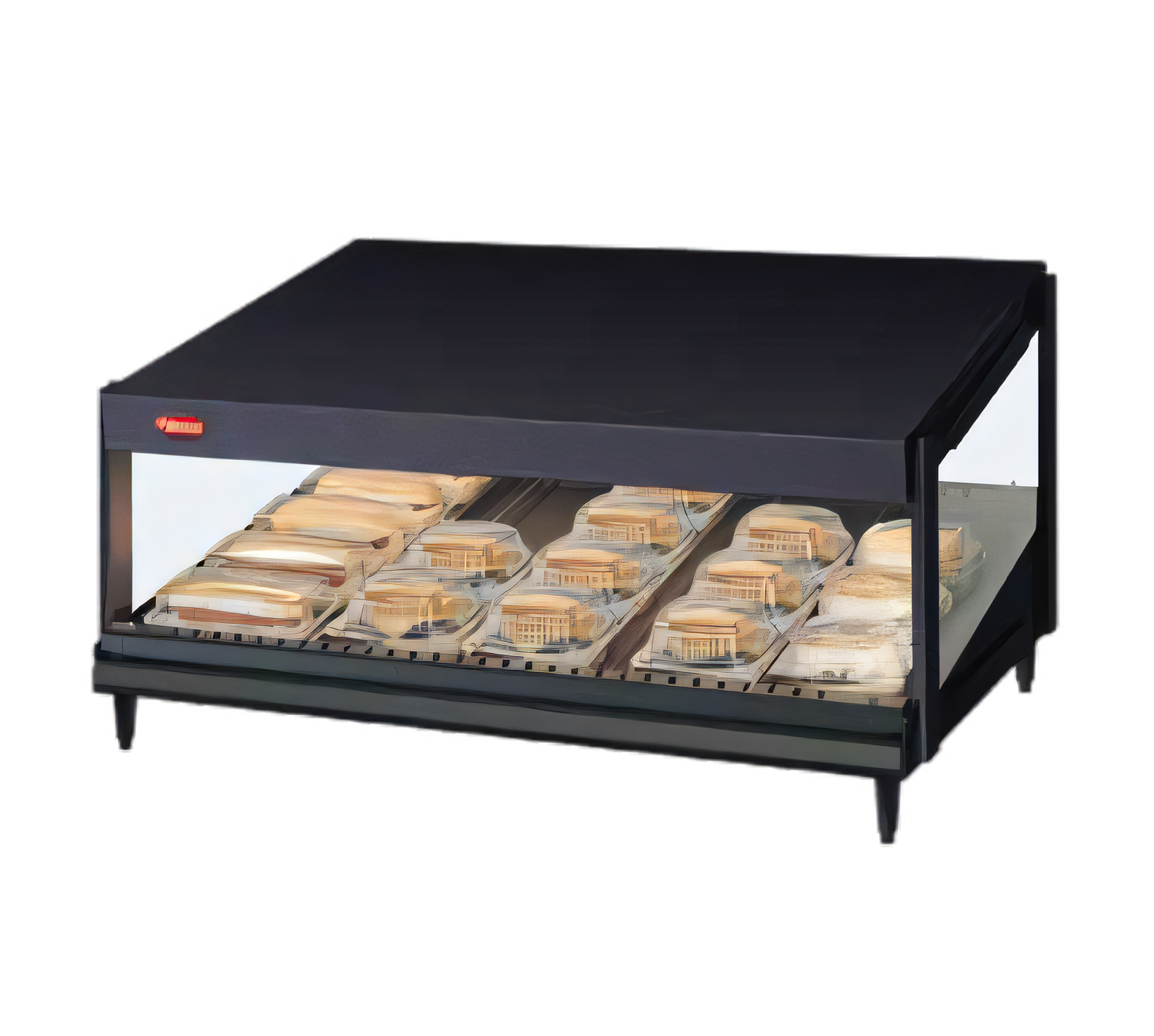

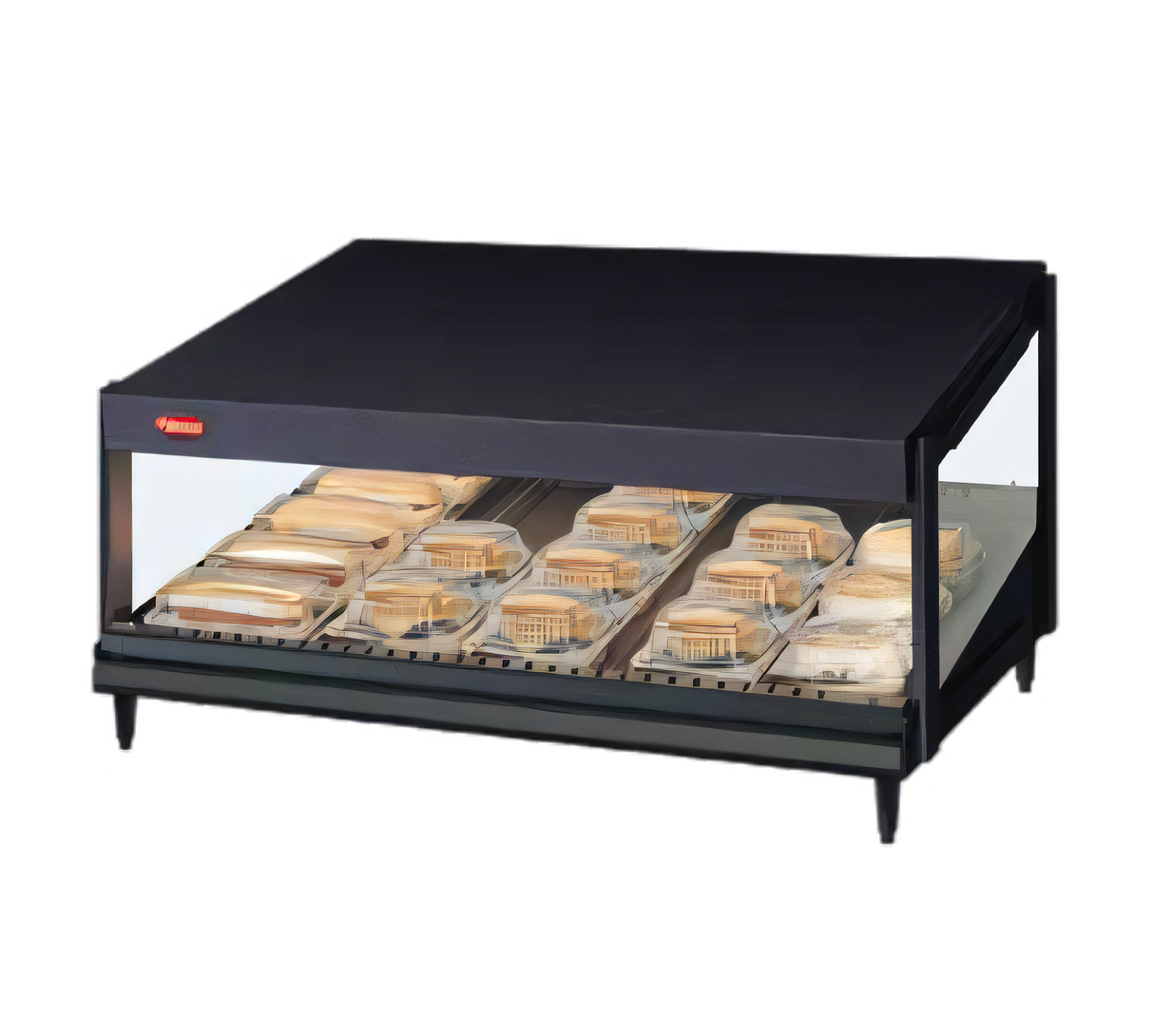

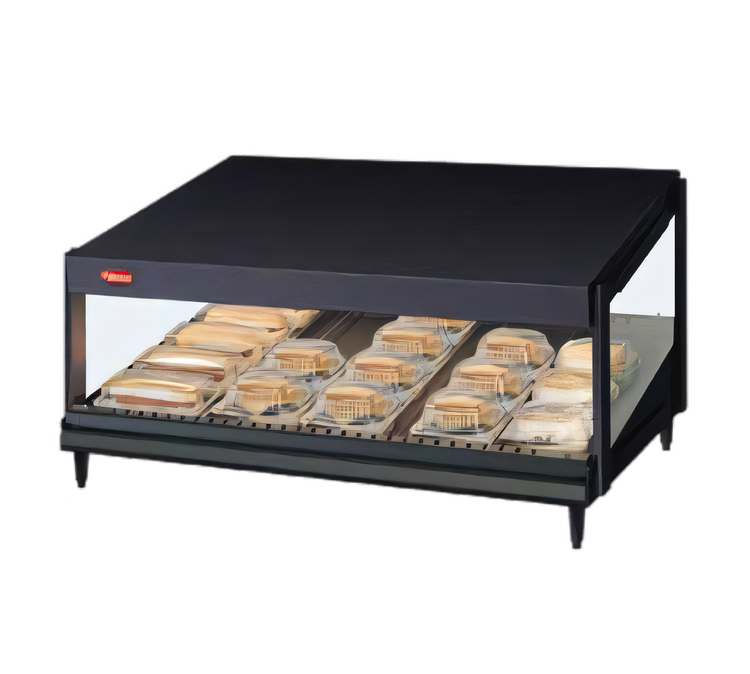

Hatco Glo-Ray® GRSDS-30 Slant Merchandising Warmer – 30"
Single-Shelf • Forward-Slanted • Pass-Thru Countertop DisplayHold hot, wrapped or boxed foods safely at serving temperature while showcasing them in full view. The 30" Hatco Glo-Ray® GRSDS-30 couples pre-focused infrared top heat with a thermostatically-controlled heated base to deliver consistent results and irresistible merchandising appeal.
Key performance features

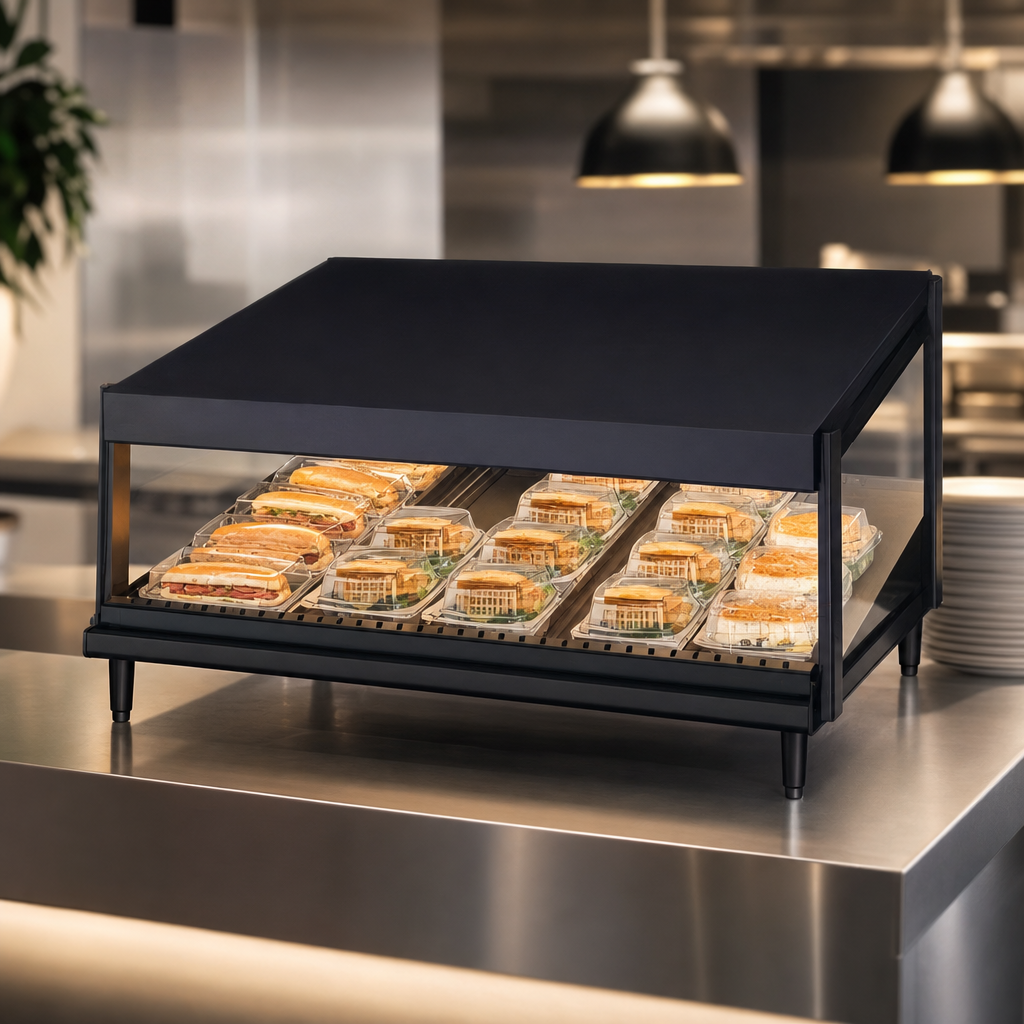

- Forward-slanted shelf positions product for easy self-service and fast impulse sales.

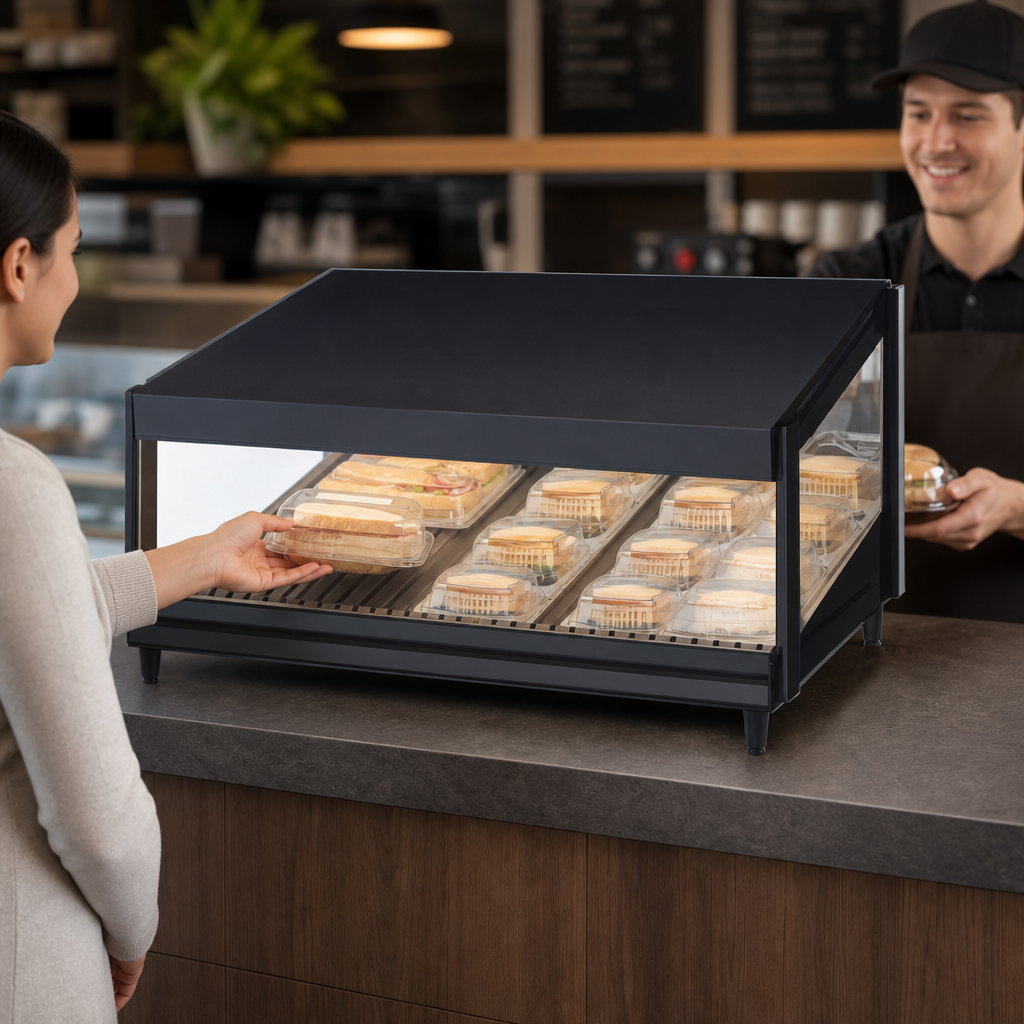

- Pass-thru design lets staff load from the kitchen side while customers or servers grab from the front.
- Pre-focused infrared top heat targets the edges where heat loss is greatest.
- Hard-coated, thermostatically-controlled base maintains 185 – 200 °F (85 – 93 °C).
- Six removable stainless steel divider rods keep sandwiches, pizza slices and meals neatly organized.
- Coated, shatter-resistant incandescent lights illuminate food while safeguarding it from broken glass.
- Tempered glass side panels boost visibility and help retain heat.
- Durable stainless steel & aluminum construction cleans easily and withstands heavy commercial use.
- Ships with a 6 ft (1829 mm) cord and NEMA 5-15P plug for simple plug-and-play installation.
Benefits for your operation
- Increases grab-and-go revenue by keeping food hot, appetizing and in clear sight.
- Streamlines workflow between kitchen and service areas.
- Compact 30" footprint delivers nearly 4 sq ft of heated display area without crowding counters.
- Energy-efficient 790 W draw (120 V) helps keep utility costs in check.
- Proudly made in the USA and backed by Hatco’s reputation for reliability.
Technical specifications
| Model | GRSDS-30 |
|---|---|
| Shelf configuration | Single, forward-slanted, pass-thru |
| Usable heated shelf space | 28.5" W × 21" D (723 × 533 mm) |
| Overall dimensions | 30" W × 24.19" D × 18.65" H (762 × 614 × 474 mm) with 1" legs |
| Divider rods supplied | 6 stainless steel (adjustable/removable) |
| Heat source | Infrared top heat & hard-coated heated base |
| Base temperature range | 185 – 200 °F (85 – 93 °C) |
| Electrical (standard) | 120 V, 790 W, 6.6 A, single-phase; NEMA 5-15P plug |
| Optional voltages | 220 V 730 W | 240 V 870 W |
| Certifications | cULus Listed, UL EPH Classified, NSF compliant |
| Construction | Stainless steel & aluminum body, tempered glass sides |
| Shipping weight | ≈ 80 lb (36 kg) |
| Origin | Made in USA |
Factory-installed options & accessories
- Designer powder-coat colors
- LED indicating temperature controller
- 5" acrylic sneeze guards (customer side or dual-side)
- Plexi-glass flip-up doors
- Display sign holders (top or intermediate shelf)
- 4" adjustable legs for added clearance
- Chef LED display bulbs
Specifications are manufacturer-supplied and subject to change without notice. Refer to the official Hatco installation & operation manual for complete instructions.
