Hatco GRSBF-72-F Glo-Ray® Heated Cabinets & Holding Shelves
Description

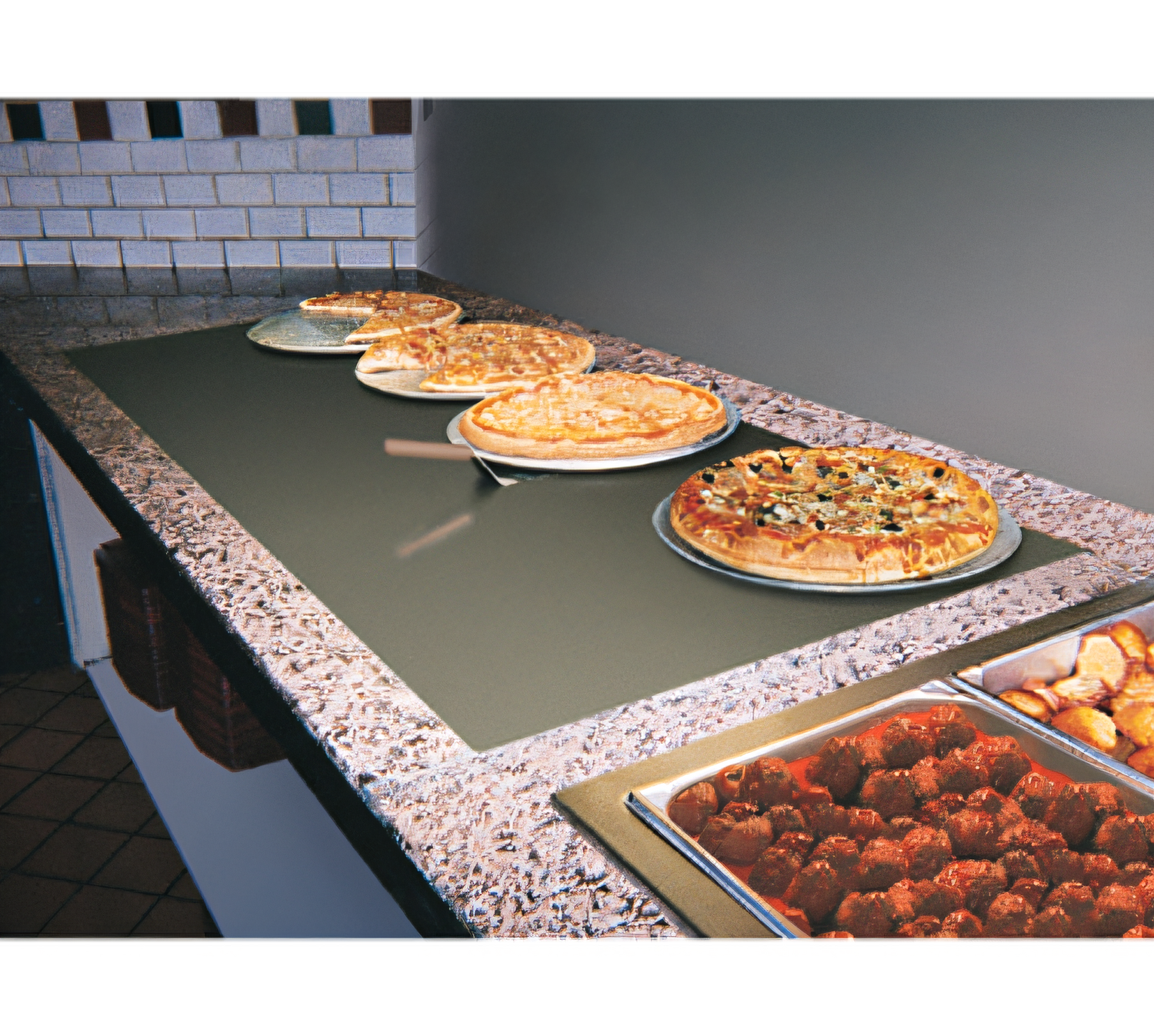

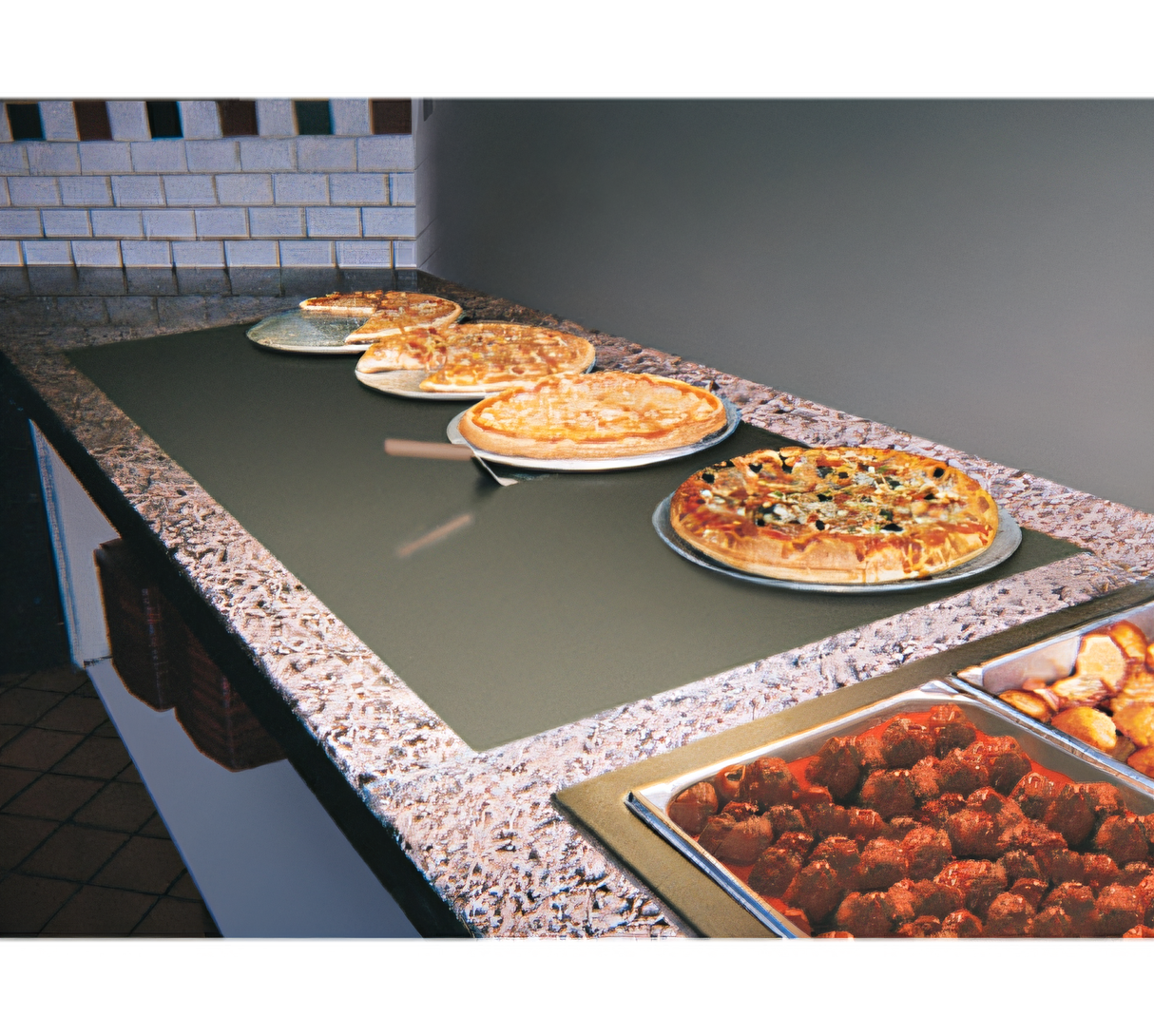

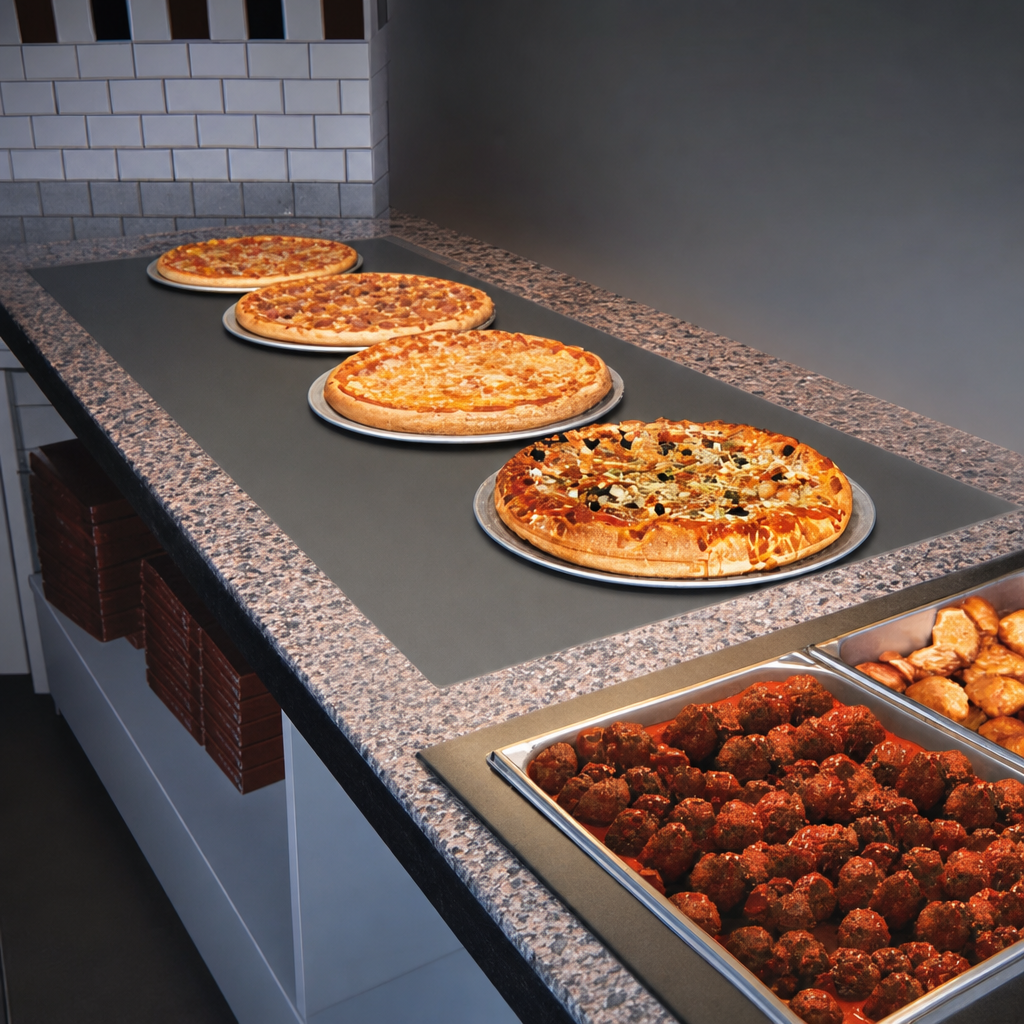

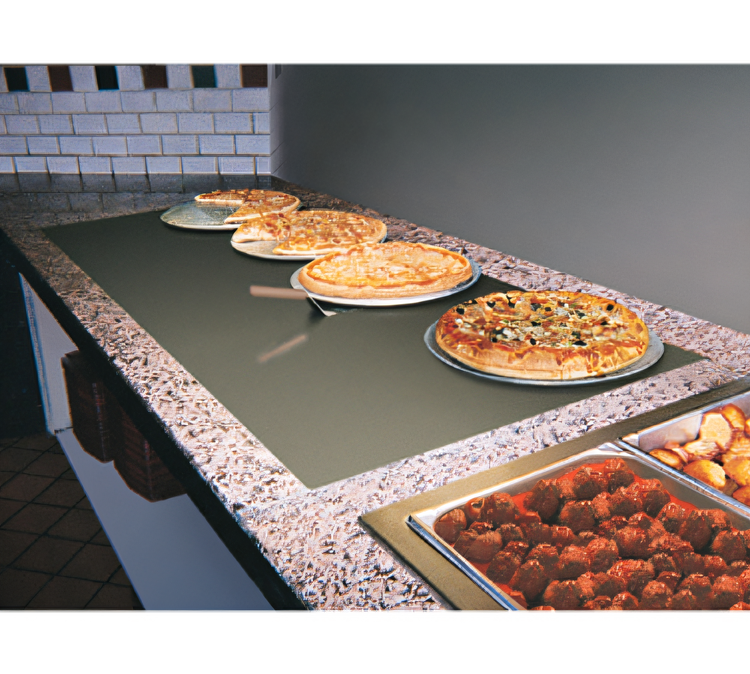

Hatco Glo-Ray® Built-In Heated Shelf – 73½″ x 17″ Flush Top
Model GRSBF-72-F | 1130 W • 120 V • Single-PhaseTransform any metallic counter into a high-performance holding station. The Hatco Glo-Ray® 73 ½″ built-in heated shelf delivers uniform, thermostat-controlled heat that keeps menu items fresh, appetizing and always ready to serve.
Key Benefits- Even heat from edge to edge – blanket-style element and hardcoat aluminum surface eliminate hot & cold spots.
- Precise temperature control – built-in thermostat adjusts surface temps up to 200 °F (93 °C).

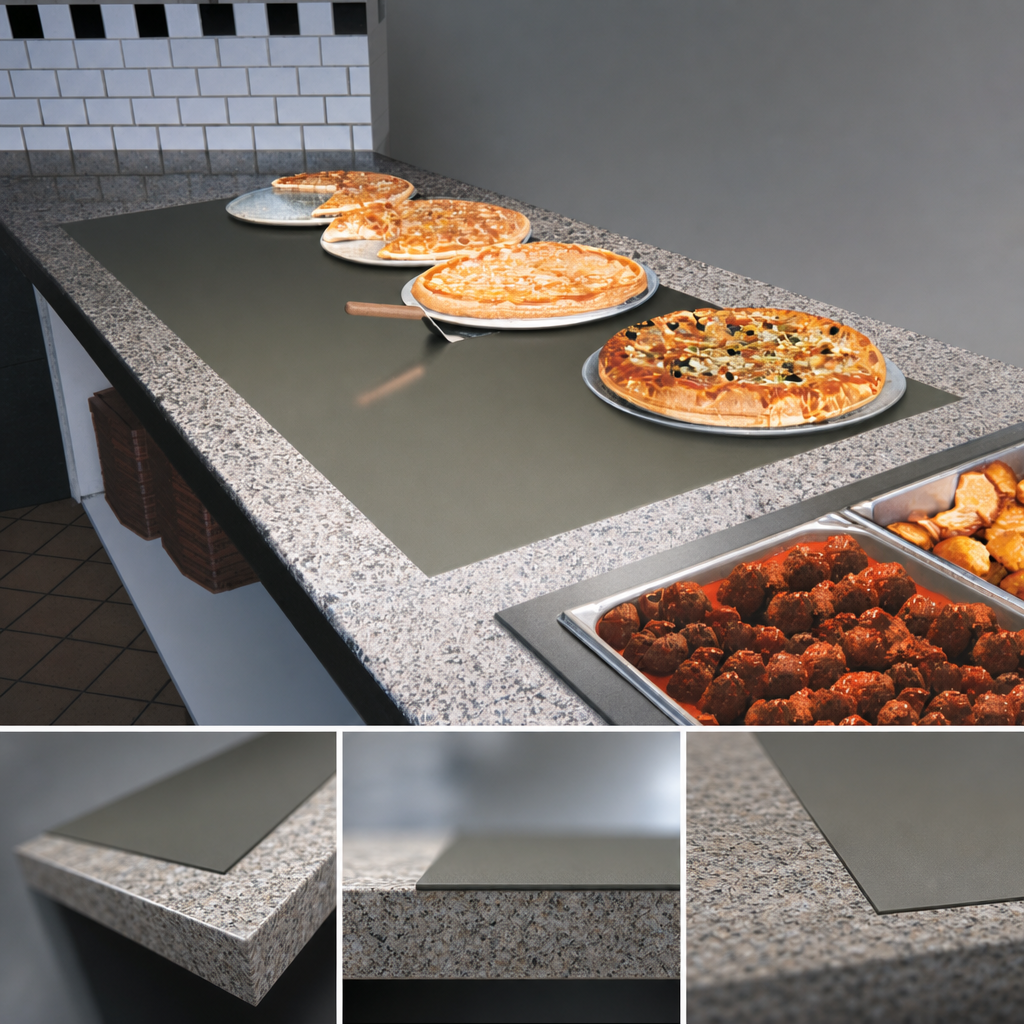

- Space-saving flush mount – 0.75″ flanged rim drops cleanly into counters up to 1¼″ (32 mm) thick.
- Energy-efficient insulation – fiberglass pack keeps heat at the surface, not in your cabinetry.
- Simple operation – illuminated rocker switch shows at-a-glance power status.
- Ready to install – includes 36″ (914 mm) flexible conduit, remote control box & mounting brackets.
- Certified & safe – NSF 4, UL, cUL, UL EPH Classified, CSA and CE listings for worldwide compliance.
| Overall Dimensions (W × D × H) | 73.5″ × 17″ × 2.25″ (1867 × 432 × 57 mm) |
|---|---|
| Usable Heated Area | 73.5″ × 17″ (1867 × 432 mm) |
| Construction | Hardcoat aluminum flush top with fiberglass insulation |
| Heating Element | Blanket-type foil element |
| Controls | Remote thermostat & illuminated on/off rocker |
| Electrical | 120 V, 1-phase, 1130 W, 9.4 A, NEMA 5-15P cord & plug |
| Ship Weight | Approx. 52 lb (24 kg) |
| Certifications | NSF 4, UL, cUL, UL EPH, CSA, CE |
- Designer-color stainless bezel for control box (Warm Red, Black, Gray Granite, White Granite, Navy Blue, Hunter Green, Antique Copper).
- Flush-mount electronic (ITC) or thermostatic control boxes.
- Extended conduit lengths: 6′ (1.8 m) or 10′ (3 m).

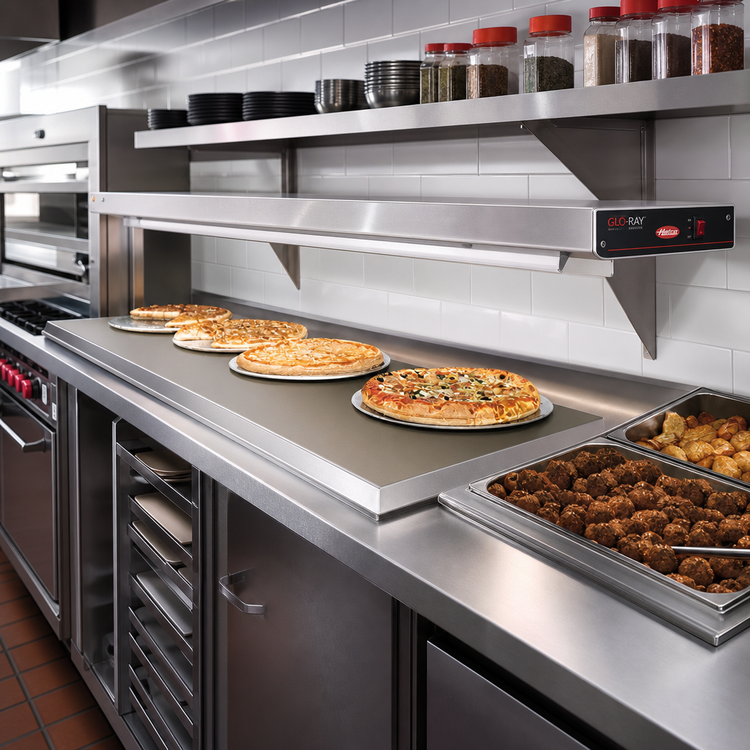

Need a matching overhead warmer? Pair this shelf with a Hatco GRA-78 or GR2A-78 strip heater (sold separately) for complete top-to-bottom holding power.
