Hatco GRSBF-36-F Glo-Ray® Heated Cabinets & Holding Shelves
Description
Hatco Glo-Ray® Built-In Heated Shelf – Flush Top, 37.5" × 17"
(Model GRSBF-36-F)
Seamless countertop integration with blanket-element warmth
Hold plated meals, hotel pans or grab-and-go packages at a safe, appetising temperature without cluttering your counter. The Hatco Glo-Ray® GRSBF-36-F installs flush for a clean look while its hard-coat aluminium surface delivers even, thermostatically-controlled heat across the full 37½ × 17 inch footprint.
Top features
- Uniform heat distribution from a blanket-type element bonded to a hard-coat aluminium top.
- Adjustable surface thermostat (room temp → ≈200 °F / 93 °C) adapts to any menu item.
- Illuminated rocker switch shows power status at a glance.
- Energy-saving fiberglass insulation keeps heat on the food, not in the cabinet.

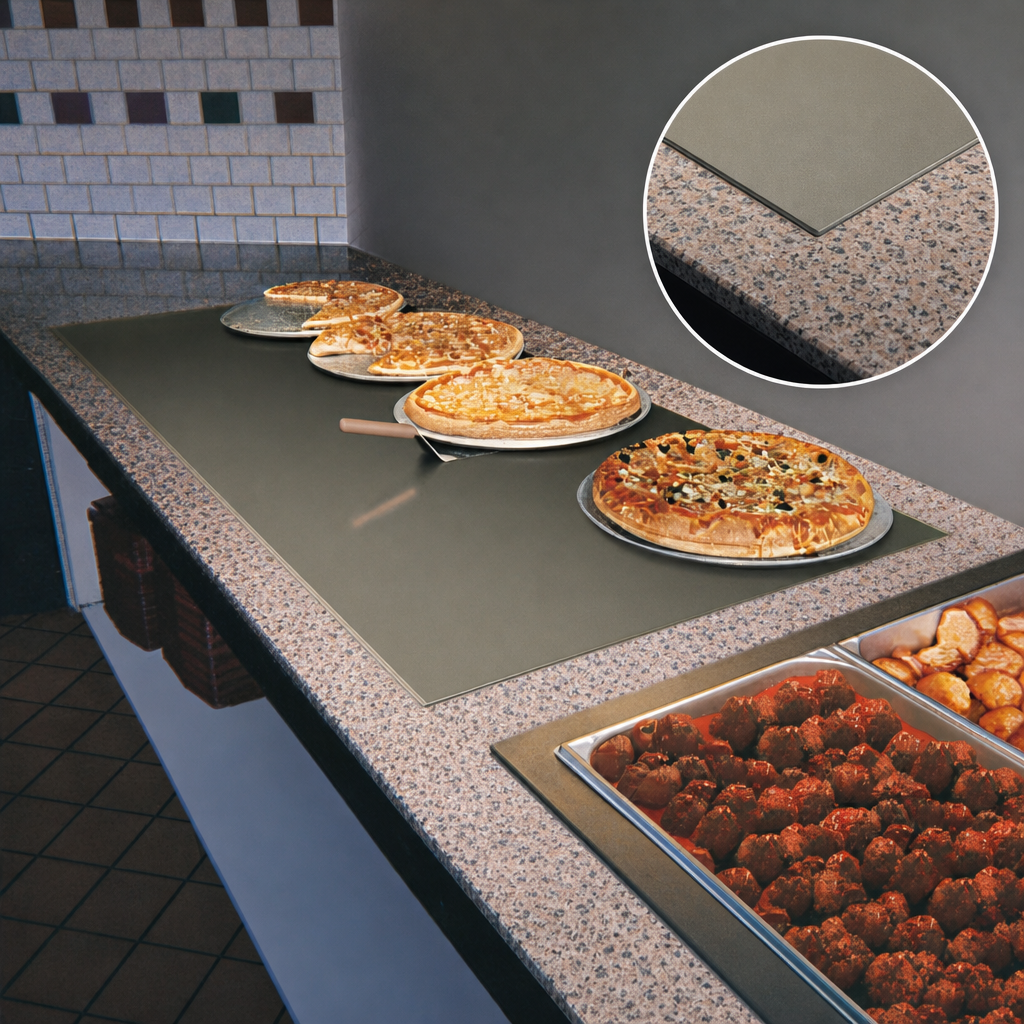

- Low-profile 0.75" (19 mm) flange creates a true flush fit in counters up to 1.25" (32 mm) thick.
- Includes mounting brackets and 3 ft (914 mm) flexible conduit to the control box for quick, code-compliant installation.
- Fully certified: NSF, UL, cUL, UL EPH, CE & CSA.
Perfect for
- Buffet & carving stations
- Pass-through shelves on the cookline
- Hotel breakfast bars & banqueting
- Convenience-store hot hold islands
- Cafeteria tray slides & self-serve lines
Specifications
| Usable surface | 37.5" W × 17" D (953 × 432 mm) |
|---|---|
| Overall dimensions | 37.5" W × 17" D × 2.25" H (953 × 432 × 57 mm) |
| Counter cut-out | 36.5–36.75" W × 16–16.25" D (927–933 × 406–413 mm) |
| Wattage | 590 W @ 120 V, single phase |
| Amperage | 4.9 A |
| Plug | NEMA 5-15P (6 ft cord on control box) |
| Temperature range | Ambient to ≈200 °F (93 °C) adjustable |

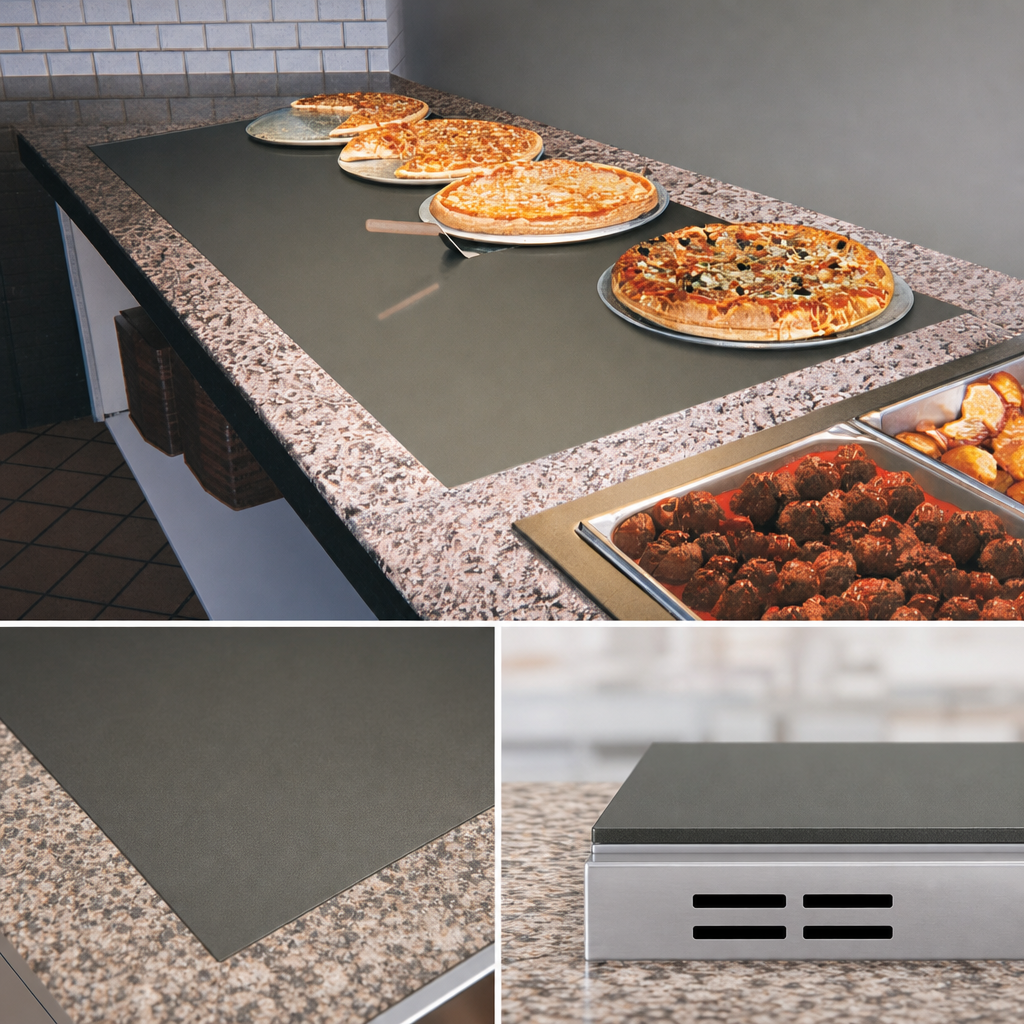

| Construction | Hard-coat aluminium top, stainless steel bezel |
| Certifications | NSF, UL, cUL, UL EPH Classified, CE, CSA |
| Shipping weight | ≈32 lb (15 kg) |
Factory options
- Designer-color flush control bezels – Warm Red, Black, Gray Granite, Navy Blue, Hunter Green, Antique Copper & more.
- Recessed electronic (ITC) or thermostatic control boxes for a streamlined façade.
- Extended flexible conduit lengths: 6 ft (1.8 m) or 10 ft (3 m).
Need overhead heat as well? Match this shelf with a Hatco GRA-42 or GR2A-42 strip heater for complete top-and-bottom coverage.
