Hatco GRSBF-30-S Glo-Ray® Heated Cabinets & Holding Shelves
Description
Hatco Glo-Ray® GRSBF-30-S Built-In Heated Shelf
31 ½ in. × 25 ½ in. flush-mount hard-coat warming surface – 825 WServe every dish at its peak. The Hatco Glo-Ray® flush-top heated shelf drops seamlessly into your counter and blankets a spacious 31-1/2 × 25-1/2 in. surface with uniform, thermostatically controlled heat, keeping food hot and appetizing for hours.
Key benefits

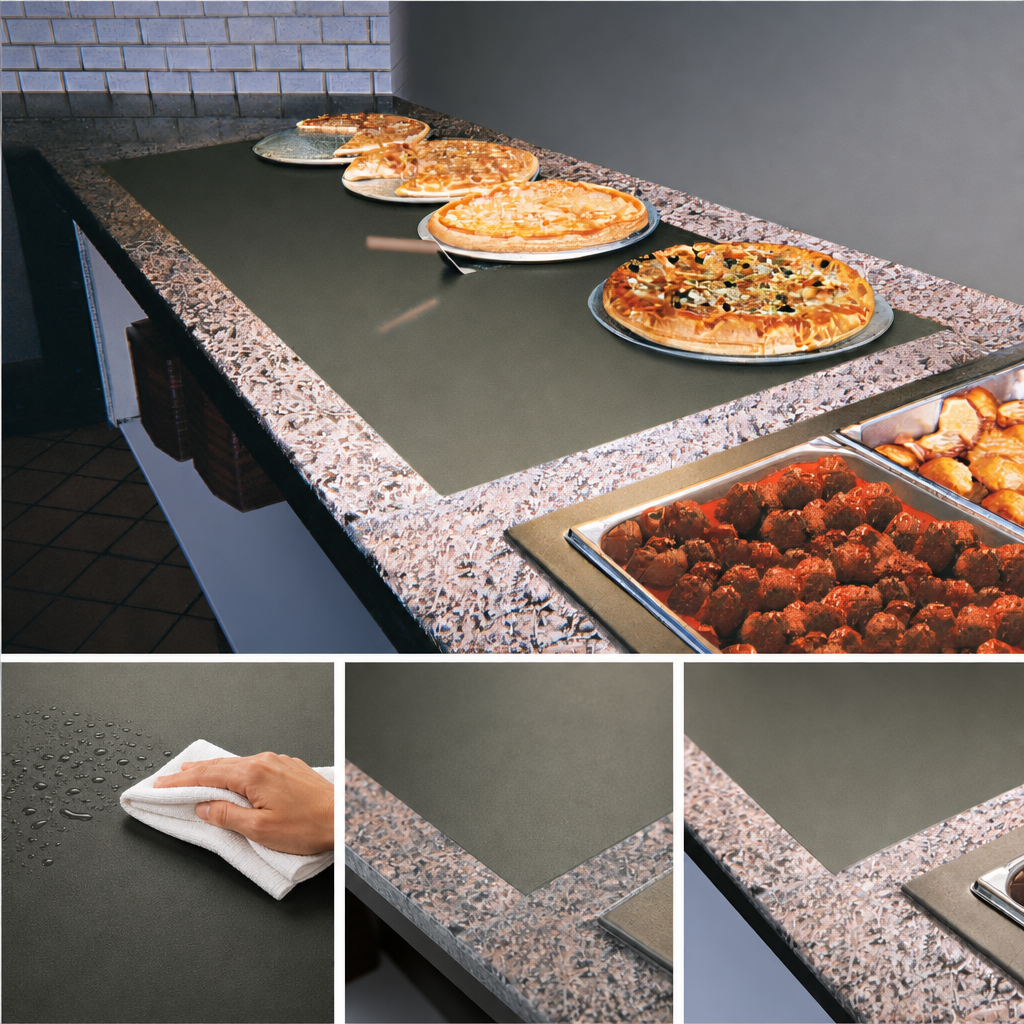

- Even heat distribution via blanket-type element bonded to a hard-coat aluminum top.
- Built-in thermostat (ambient-200 °F / 93 °C) with illuminated rocker switch for at-a-glance status.

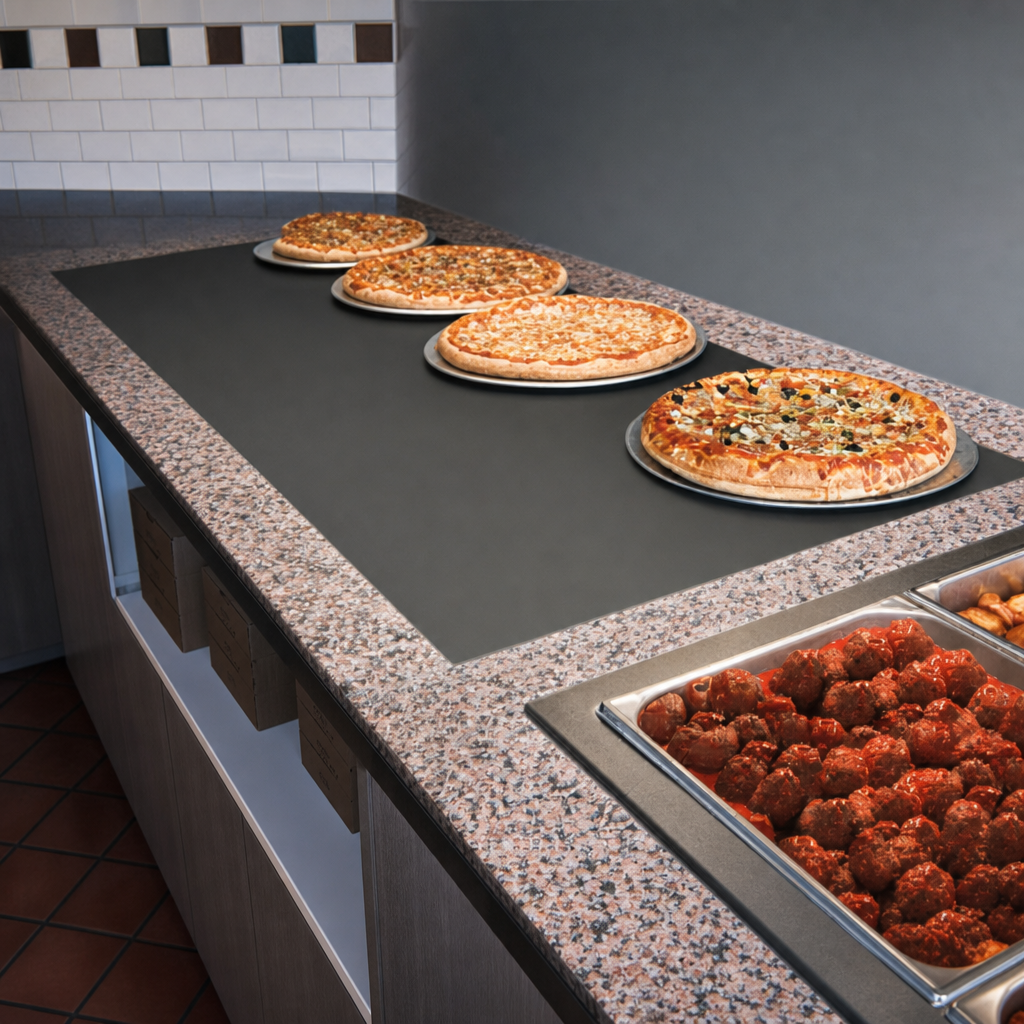

- 0.75 in. (19 mm) flanged edge installs flush for a sleek, snag-free serving surface.
- High-density fiberglass insulation pushes heat upward, protecting counter materials.
- Ships with mounting brackets & 36 in. (914 mm) flexible conduit to the remote control box.
- Certified NSF, UL, UL EPH Classified, cUL, CSA & CE for worldwide code compliance.
Perfect for
- Buffet & cafeteria lines
- Quick-service pass-throughs
- C-stores & grab-and-go kiosks
- Pizza, nacho & appetizer stations
Technical specifications
| Model | GRSBF-30-S |
|---|---|
| Installation | Drop-in, flush mount |
| Usable heated area | 31.5" W × 25.5" D (800 × 648 mm) |
| Overall dimensions | 31.5" W × 25.5" D × 2.25" H (800 × 648 × 57 mm) |
| Material | Hard-coat aluminum top |
| Wattage | 825 W |
| Voltage / Phase | 120 V / 1-phase (NEMA 5-15P) |
| Amperage | 6.9 A |
| Temperature range | Ambient – 200 °F (93 °C) |
| Certifications | NSF, UL, UL EPH, cUL, CSA, CE |
| Approx. ship weight | 33 lb (15 kg) |
Counter cut-out requirements
| Minimum opening | 30.5" W × 24.5" D (775 × 622 mm) |
|---|---|
| Maximum opening | 30.75" W × 24.75" D (781 × 629 mm) |
| Max. counter thickness | 1.25" (32 mm) |
Recommended for metallic countertops. Verify alternative materials can withstand sustained temperatures to 200 °F (93 °C).
Custom options (special-order)
- Designer control-box bezel colors: Warm Red, Black, Gray Granite, White Granite, Navy Blue, Hunter Green, Antique Copper.
- Flush-mount electronic (ITC) or thermostatic control boxes.
- Extended flexible conduit lengths: 6 ft or 10 ft.
