Hatco  |  Glo-Ray®  |  SKU: GRSBF-30-I

Hatco GRSBF-30-I Glo-Ray® Heated Cabinets & Holding Shelves

$1,147.81
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Catalog brochure Color chart Parts list
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hatco Glo-Ray® GRSBF-30-I Built-In Heated Shelf – 31.5" × 21"

Flush-mount rectangular heated shelf for hot holding excellence

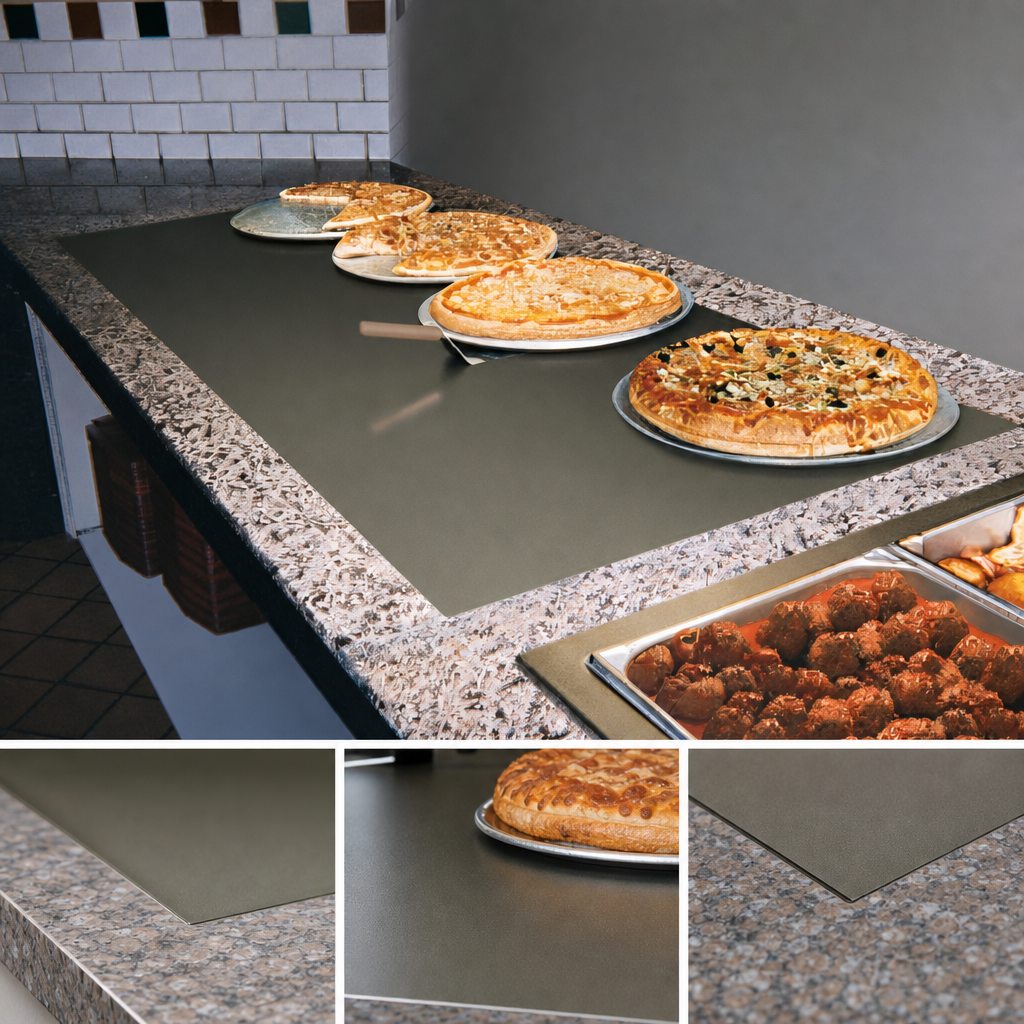

Give your buffet, serving line or pass-through window a seamless, professional look while keeping foods hot and appetizing. The Hatco Glo-Ray® GRSBF-30-I installs flush with the countertop, delivering uniform heat across a generous 31.5" × 21" surface to extend holding times without dry-out.

Why operators choose the GRSBF-30-I

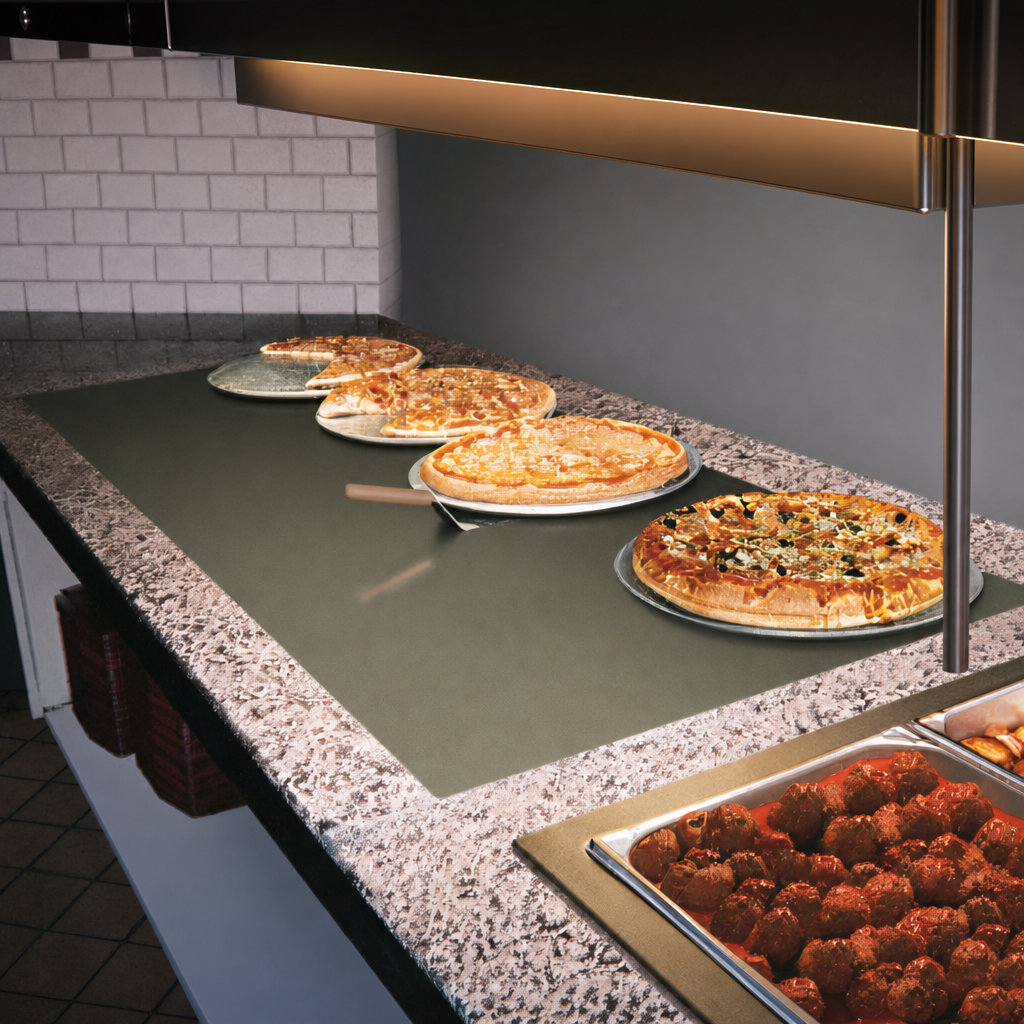

  • Edge-to-edge consistency – blanket-type heating element and hardcoat aluminum top spread heat evenly.
  • Durable flush surface – hard-anodized finish resists scratches and wipes clean fast.
  • Precise temperature control – adjustable thermostat plus illuminated on/off rocker switch.
  • Energy smart – powerful 665 W output keeps food hot with low operating cost.
  • Simple installation – 0.75" flange drops into the cut-out; mounting brackets and 36" conduit included.
  • Certified safe & sanitary – NSF, UL, UL EPH Classified, cUL, CSA & CE listings.

Quick-specs

Model GRSBF-30-I
Usable surface 31.5" W × 21" D (800 × 533 mm)
Overall height 2.25" (57 mm)
Countertop cut-out Width 30.5"–30.75" (775–781 mm)
Depth 20"–20.25" (508–514 mm)
Material Hardcoat aluminum, flush top
Wattage 665 W
Voltage / Amps 120 V – 5.6 A (NEMA 5-15P)
220 V – 3.0 A (CEE 7/7 Schuko)
240 V – 2.8 A (BS-1363)
Control Adjustable thermostat, illuminated rocker switch
Conduit length 36" (914 mm) flexible conduit (6' & 10' optional)
Certifications NSF, UL, UL EPH, cUL, CSA, CE
Ship weight ≈ 30 lb (14 kg)

Popular add-ons (factory-order)

  • Flush-mount ITC or electronic control boxes for sleek front-of-house presentation.
  • Designer-color bezel (Warm Red, Black, Gray Granite, White Granite, Navy Blue, Hunter Green, Antique Copper).
  • Extended 6' (1829 mm) or 10' (3048 mm) conduit for remote control box placement.
  • Overhead strip heater (GR(A)/GR2A-36) for synchronized top-and-bottom heat.
Installation note: Mount in metallic countertops up to 1¼" (32 mm) thick. Position the remote control box outside the heated zone to prevent damage. Ensure non-metallic surfaces are rated to withstand up to 200 °F (93 °C).

Need layout advice or accessory guidance? Our equipment specialists are ready to help at support@hatcocorp.com.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, UL, UL EPH Classified, CSA

Height

2.25in

Width

31.5in

Depth

21.0in

Shipping Weight

30.0lbs

Heated Shelf Construction

aluminum

Type

built-in

Shelf Width (side - side) OA

26" - 42"

Controls

thermostatic controls

Specifications

Glo-Ray® Built In Heated Shelf with Flush Top, 31-1/2" x 21" surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, 665 watts, NSF, CE, cUL, UL, UL EPH Classified, CSA
