Hatco  |  Glo-Ray®  |  SKU: GRSBF-30-F

Hatco GRSBF-30-F Glo-Ray® Heated Cabinets & Holding Shelves

$1,147.81
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

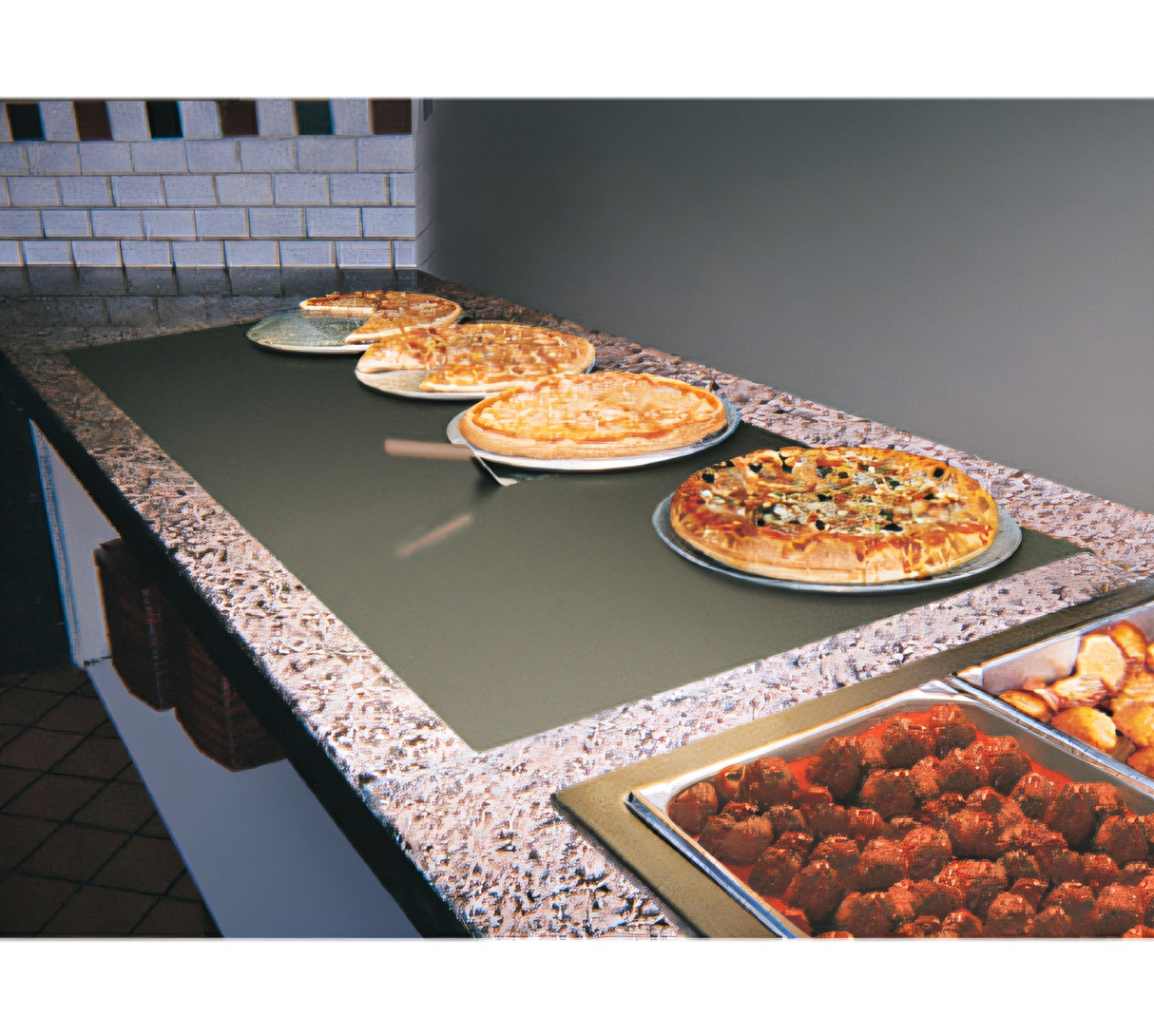

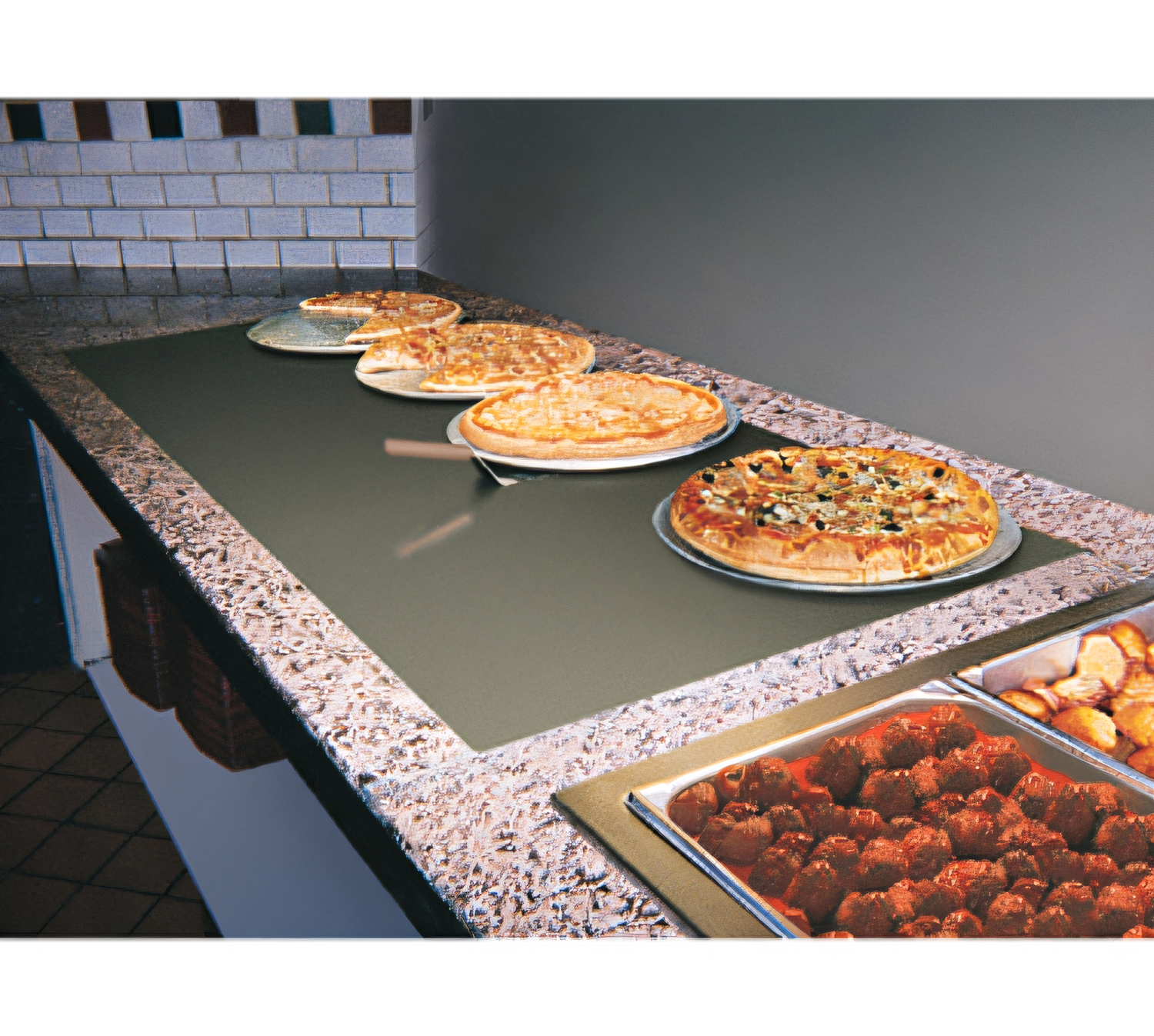

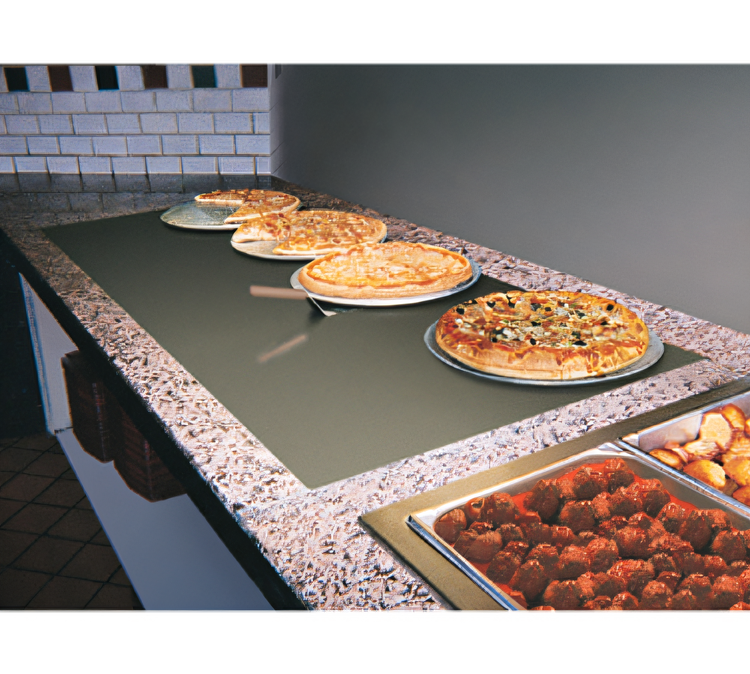

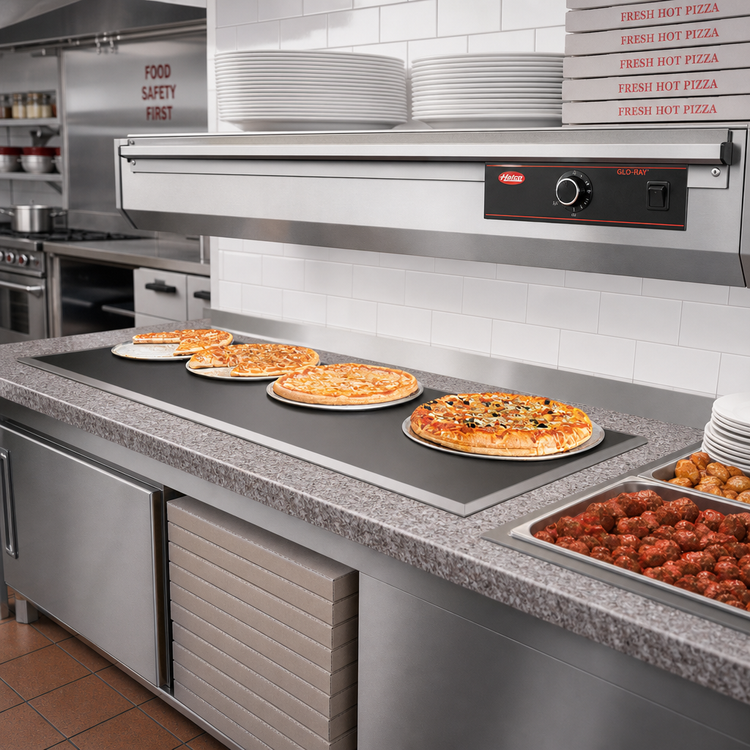

Hatco Glo-Ray® Flush Top Built-In Heated Shelf – 31.5" × 17"

Model GRSBF-30-F | 505 W • 120 V • NSF & UL Certified

Drop consistent, controllable heat straight into your serving counter with the Hatco Glo-Ray® Flush Top Heated Shelf. Its rim-free 31-1/2" × 17" surface keeps pizzas, entrées and sides hot, fresh and ready—while staying virtually invisible to your guests.

Why you’ll love it

  • Hardcoat aluminum top with blanket-type element delivers uniform edge-to-edge heat.
  • Built-in thermostat (up to 200 °F / 93 °C) lets you fine-tune holding temperatures.

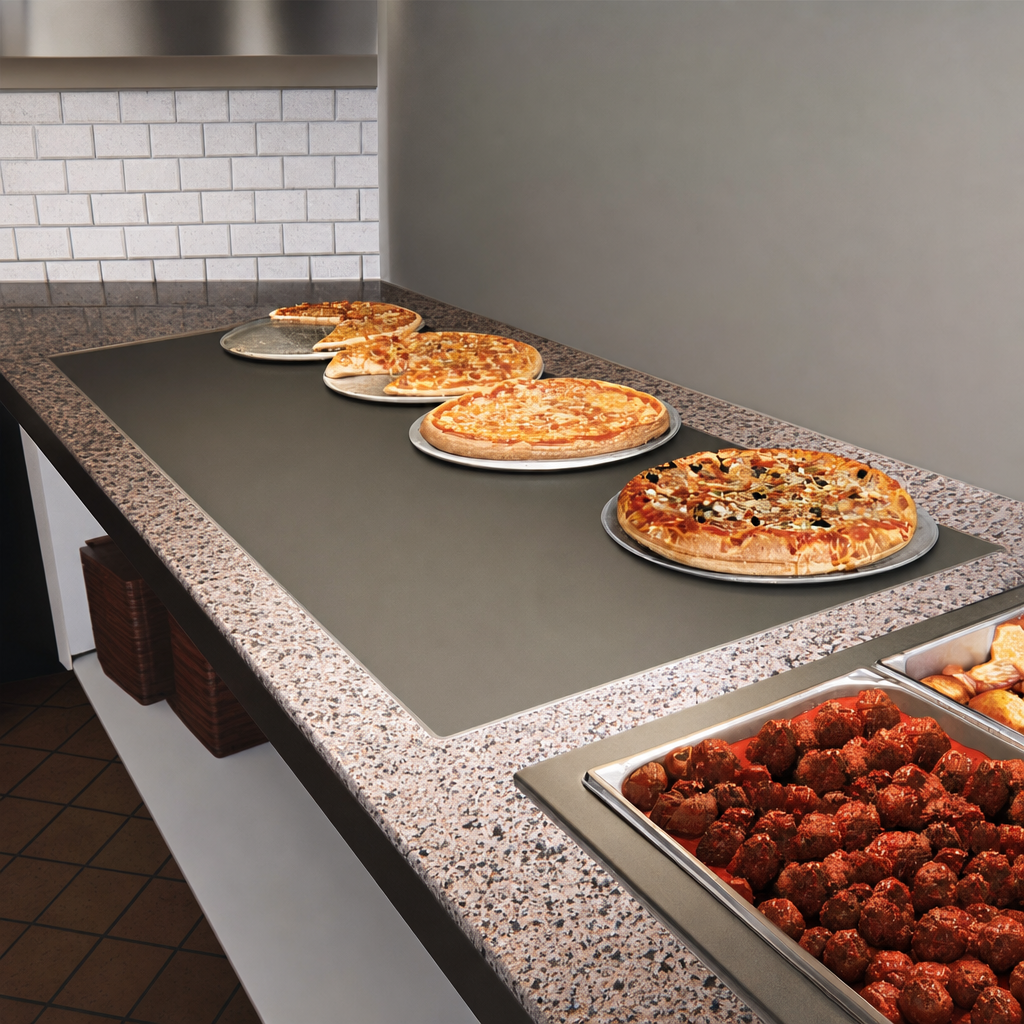

  • Flush, easy-wipe surface keeps food pans sliding smoothly and cleaning simple.
  • Illuminated rocker switch shows at-a-glance when the unit is powered.
  • Includes 3' (914 mm) flexible conduit plus remote control box to keep wiring away from heat.
  • Heavy-duty mounting brackets fit countertops up to 1-1/4" thick.
  • Low 4.2 A draw—plugs into a standard NEMA 5-15 outlet.
  • Fully certified for food-service safety: NSF, CE, UL, cUL, UL EPH Classified & CSA.

Ideal applications

  • Buffet and self-service lines
  • Pass-through windows & expo counters
  • Quick-serve & cafeteria lines
  • Pizza, nacho & snack stations

Technical details

Usable heated surface 31.5" W × 17" D (80 cm × 43 cm)
Overall dimensions 31.5" W × 17" D × 2.25" H (80 cm × 43 cm × 5.7 cm)
Construction Hardcoat aluminum top, fiberglass-insulated base, 0.75" flange for drop-in mounting
Temperature range Ambient to 200 °F (93 °C)
Power 505 W • 4.2 A • Single phase
Voltage / Plug 120 V, NEMA 5-15P
Cord / Conduit 36" (914 mm) conduit to control box + 6' (1829 mm) cord
Shipping weight 24 lb (11 kg)
Certifications NSF, CE, UL, cUL, UL EPH Classified, CSA

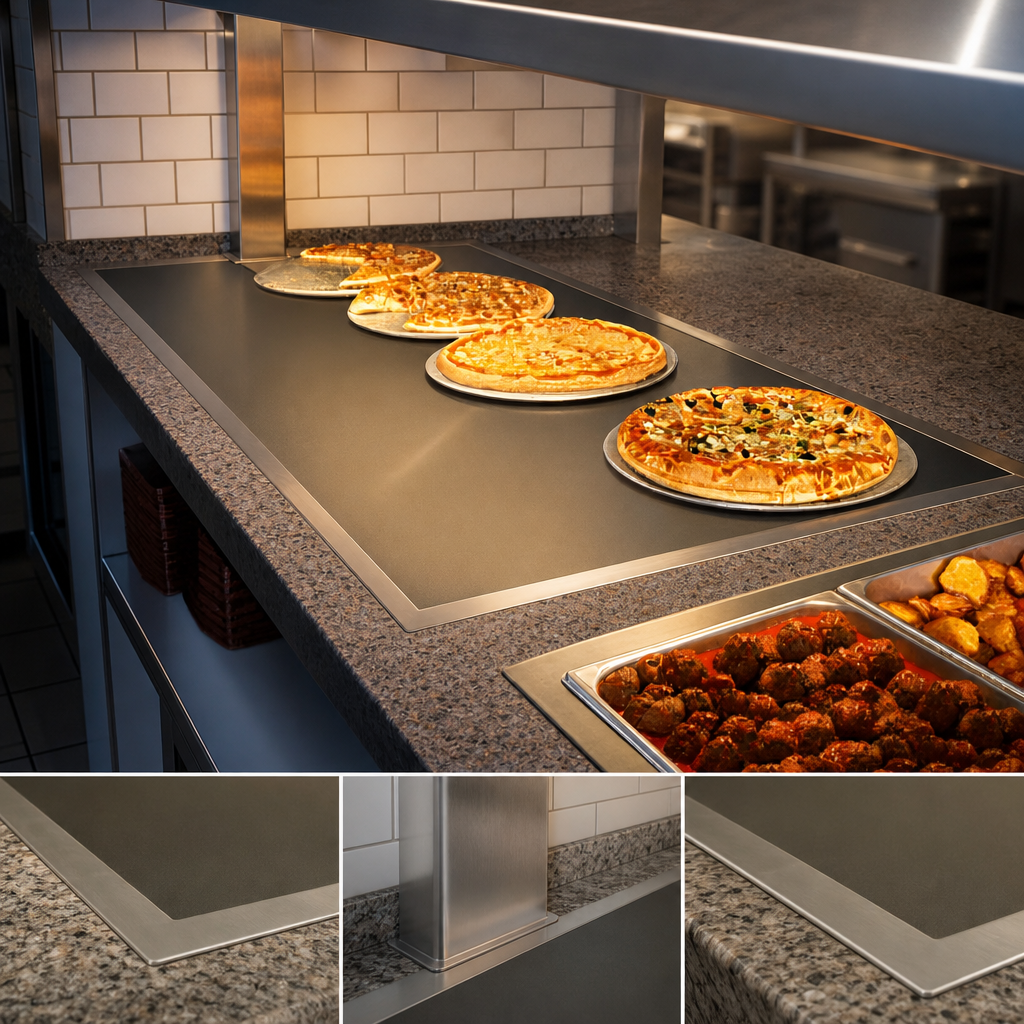

Installation note: Unit is recommended for metallic countertops only. Mount the control box outside the heated zone to prevent heat damage.

Want full top-to-bottom coverage? Pair this shelf with a Hatco Glo-Ray® GRA-36 or GR2A-36 overhead strip heater for the ultimate hot-holding station.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, UL, UL EPH Classified, CSA

Height

2.25in

Width

31.5in

Depth

17.0in

Shipping Weight

24.0lbs

Heated Shelf Construction

aluminum

Type

built-in

Shelf Width (side - side) OA

26" - 42"

Controls

thermostatic controls

Specifications

Glo-Ray® Built In Heated Shelf with Flush Top, 31-1/2" x 17" surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, 505 watts, NSF, CE, cUL, UL, UL EPH Classified, CSA
