Hatco  |  Glo-Ray®  |  SKU: GRSBF-24-O

Hatco GRSBF-24-O Glo-Ray® Heated Cabinets & Holding Shelves

$1,175.03
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Parts list Color chart Owner's manual
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

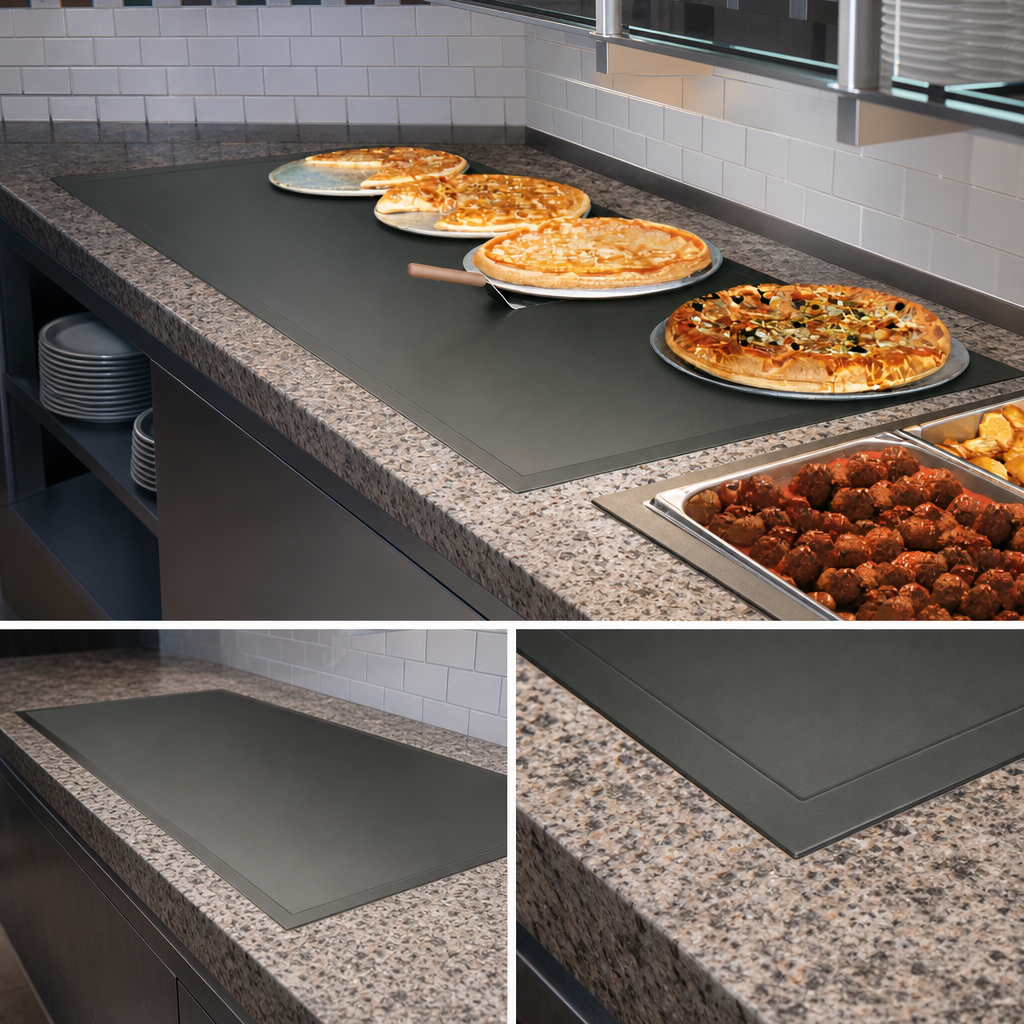

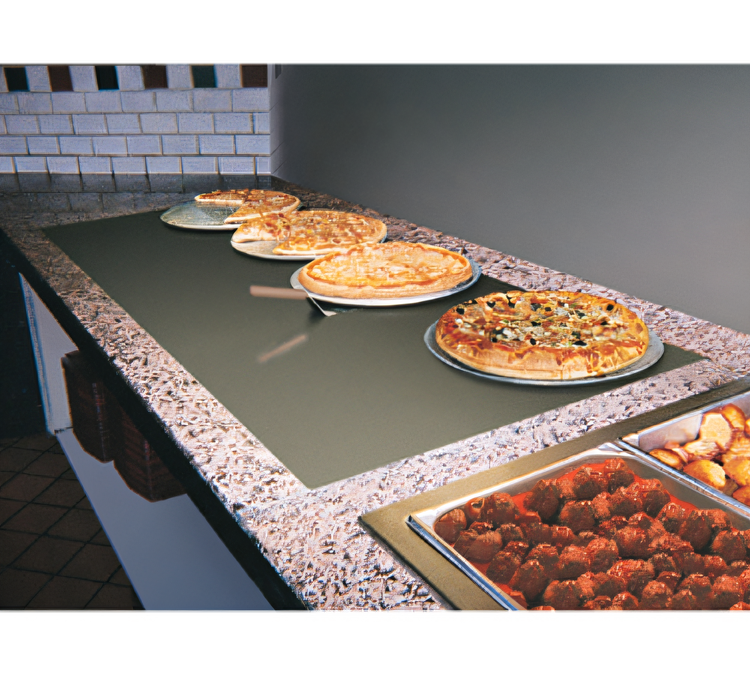

Hatco Glo-Ray® Built-In Flush-Top Heated Shelf – 25.5" × 31.5"

Model GRSBF-24-O | 790 W | Hardcoat Aluminum

Give prepared foods the heat they deserve without adding bulky equipment to your line. The Hatco Glo-Ray® Flush-Top Heated Shelf drops directly into virtually any metallic countertop, delivering uniform, thermostat-controlled warmth that keeps pizzas, pastries, hors d’oeuvres and more at irresistible serving temperatures.

Key advantages

  • Even heat distribution via blanket-type element beneath the entire surface.
  • Durable hardcoat anodized aluminum top wipes clean and resists scratches.
  • Integrated thermostat maintains surface temps up to 200 °F (93 °C) for extended holding times.
  • Illuminated rocker switch provides instant power status at a glance.

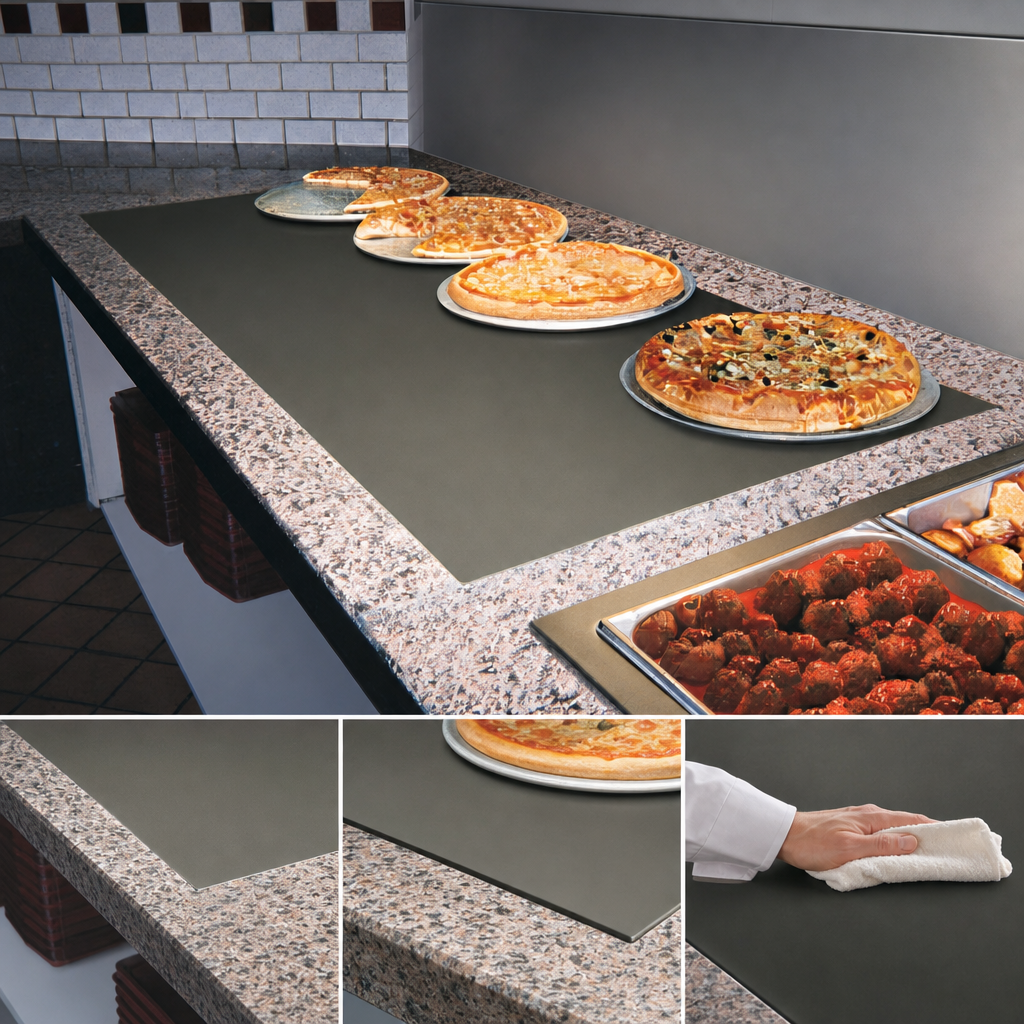

  • Low-profile 0.75" flange creates a seamless, flush installation.
  • 36" (914 mm) flexible conduit routes power safely to the included control box and mounting brackets.
  • Certified to NSF, UL, cUL, UL EPH, CSA and CE standards for worry-free code compliance.

Specifications

Usable surface 25.5" × 31.5" (648 × 800 mm)
Overall dimensions 25.5" W × 31.5" D × 2.25" H (648 × 800 × 57 mm)
Wattage 790 W (120 V)
Voltage / Phase 120 V, 1-phase
Amperage 6.6 A
Plug NEMA 5-15P (pre-wired to control box)
Countertop cut-out 24.5"–24.75" W × 30.5"–30.75" D × up to 1.25" thick (622–629 × 775–781 mm)
Construction Hardcoat aluminum top, fiberglass insulation, stainless control bezel
Shipping weight 35 lb (16 kg)
Certifications NSF, UL, cUL, UL EPH Classified, CSA, CE

Installation at a glance

  • Designed for metallic countertops; verify alternative materials can tolerate 200 °F (93 °C).
  • Fits counters up to 1-¼" (32 mm) thick.
  • 0.75" (19 mm) flanged edge supports the unit and ensures a flush finish.
  • Remote control box must be mounted outside the heat zone.
Important: Install the remote control box outside the heated area to prevent damage and maintain warranty coverage.

Need a different size or control configuration? Explore the full Hatco GRSBF series or contact us for a custom quote.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, UL, UL EPH Classified, CSA

Height

2.25in

Width

25.5in

Depth

31.5in

Shipping Weight

35.0lbs

Shelf Width (side - side) OA

12" - 25"

Type

built-in

Heated Shelf Construction

aluminum

Controls

thermostatic controls

Specifications

Glo-Ray® Built In Heated Shelf with Flush Top, 25-1/2" x 31-1/2" surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, 790 watts, NSF, CE, cUL, UL, UL EPH Classified, CSA
