Hatco  |  Glo-Ray®  |  SKU: GRSBF-24-I

Hatco GRSBF-24-I Glo-Ray® Heated Cabinets & Holding Shelves

$1,081.92
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Color chart Catalog brochure Owner's manual
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

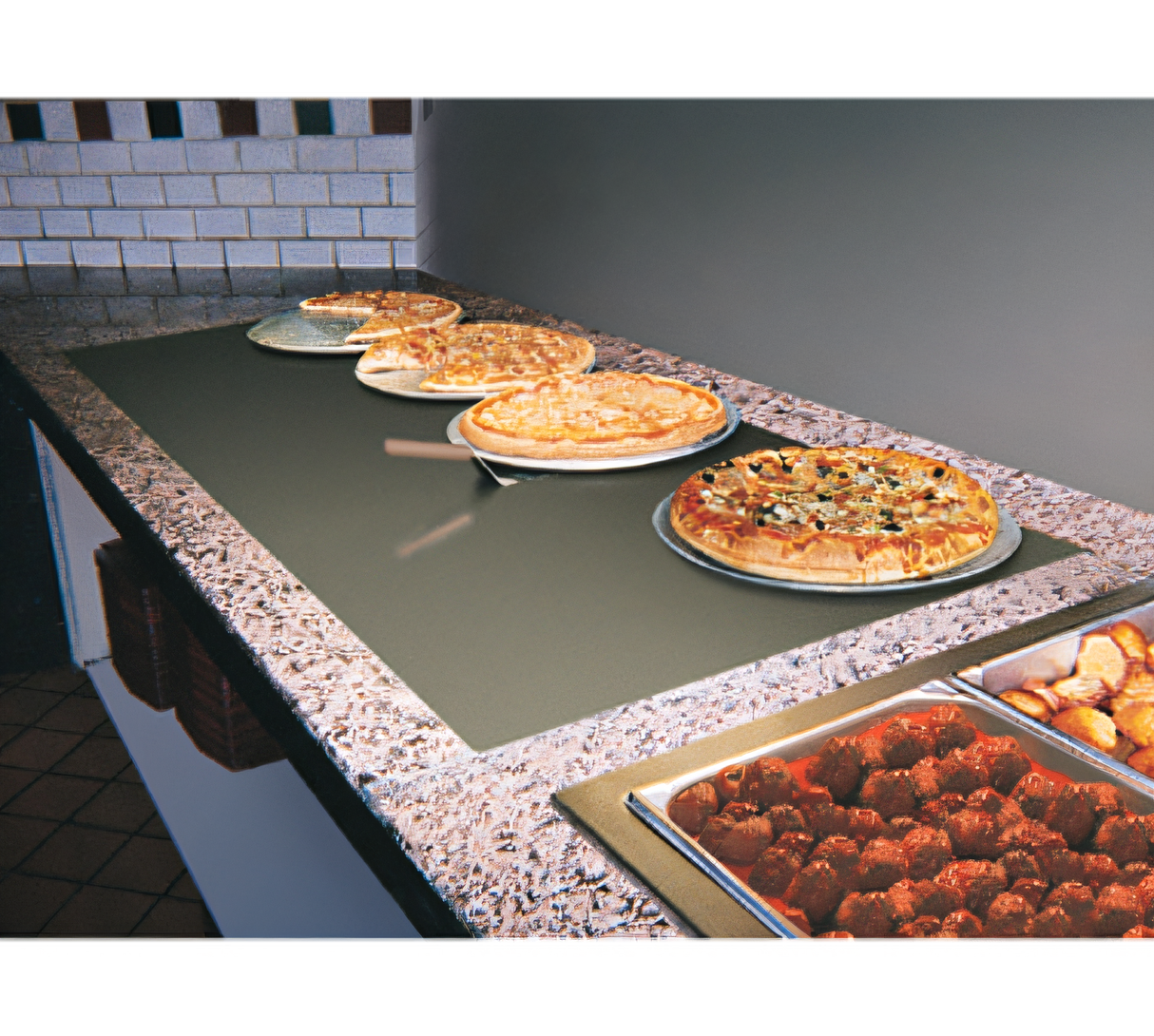

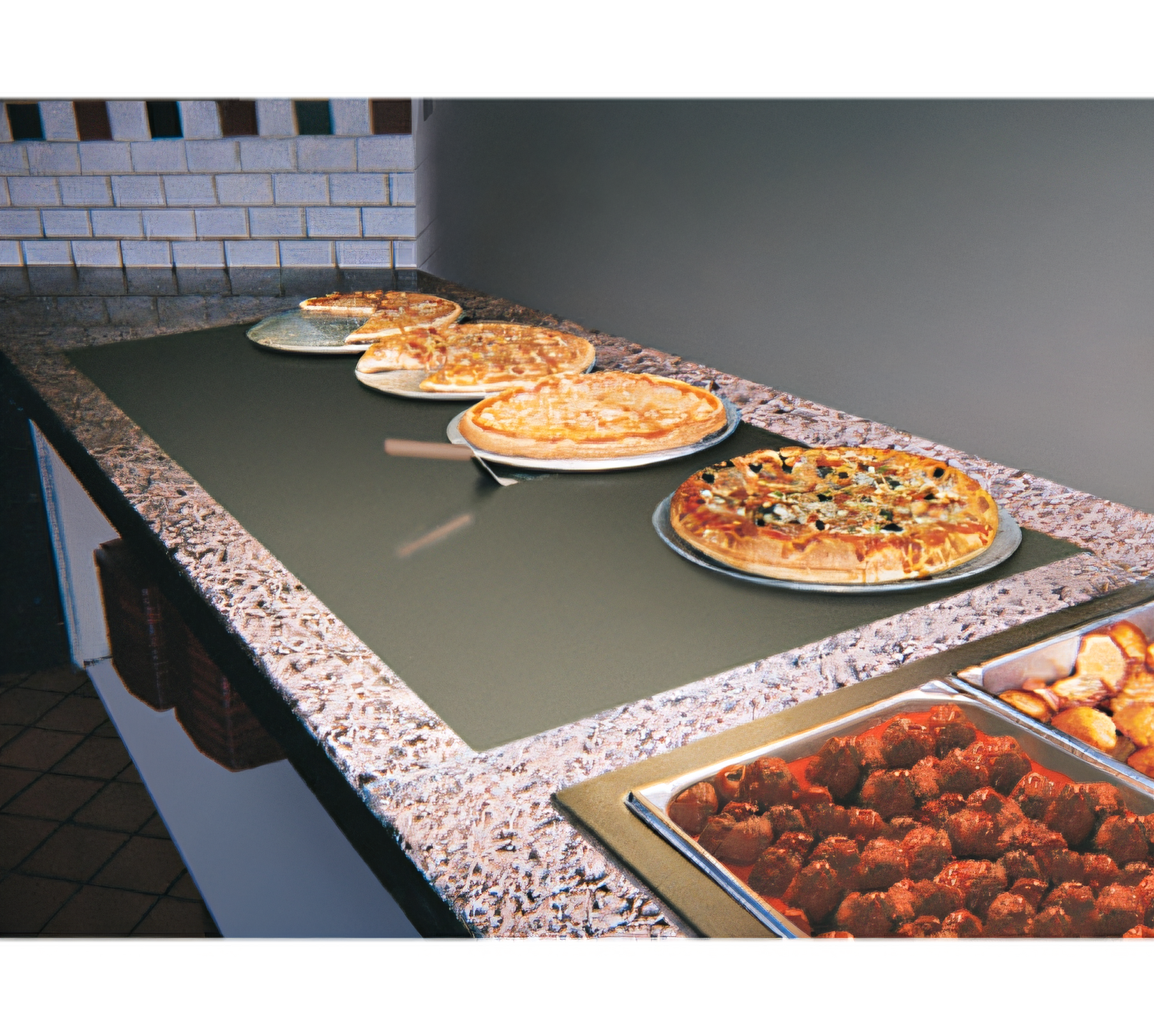

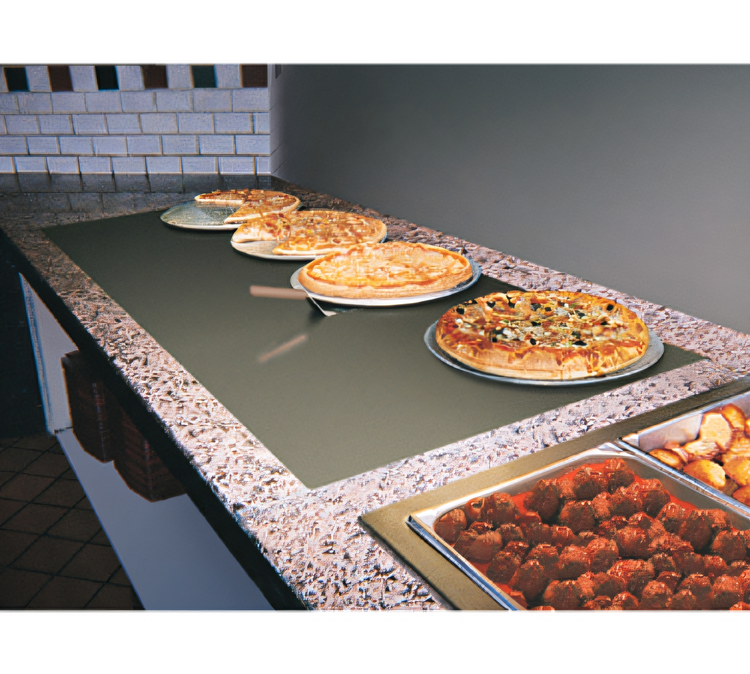

Hatco Glo-Ray® Flush-Top Built-In Heated Shelf

Model GRSBF-24-I | 25 1/2" × 21" surface | 550 W

Give every plated entrée, grab-and-go box, or buffet pan the perfect finishing touch of heat with Hatco’s Glo-Ray® GRSBF-24-I. Designed to sit perfectly flush inside your countertop, this 25 1/2" × 21" hard-coat aluminum shelf delivers uniform holding temperatures—without hot spots—so food stays fresh, appetizing and ready to serve.

Key Features
  • Hard-coat aluminum top plus blanket-type heating element for even, edge-to-edge heat distribution.
  • Integral control thermostat (located in the supplied remote box) lets you fine-tune surface temperature up to 200 °F (93 °C).
  • Illuminated rocker switch provides at-a-glance power confirmation.

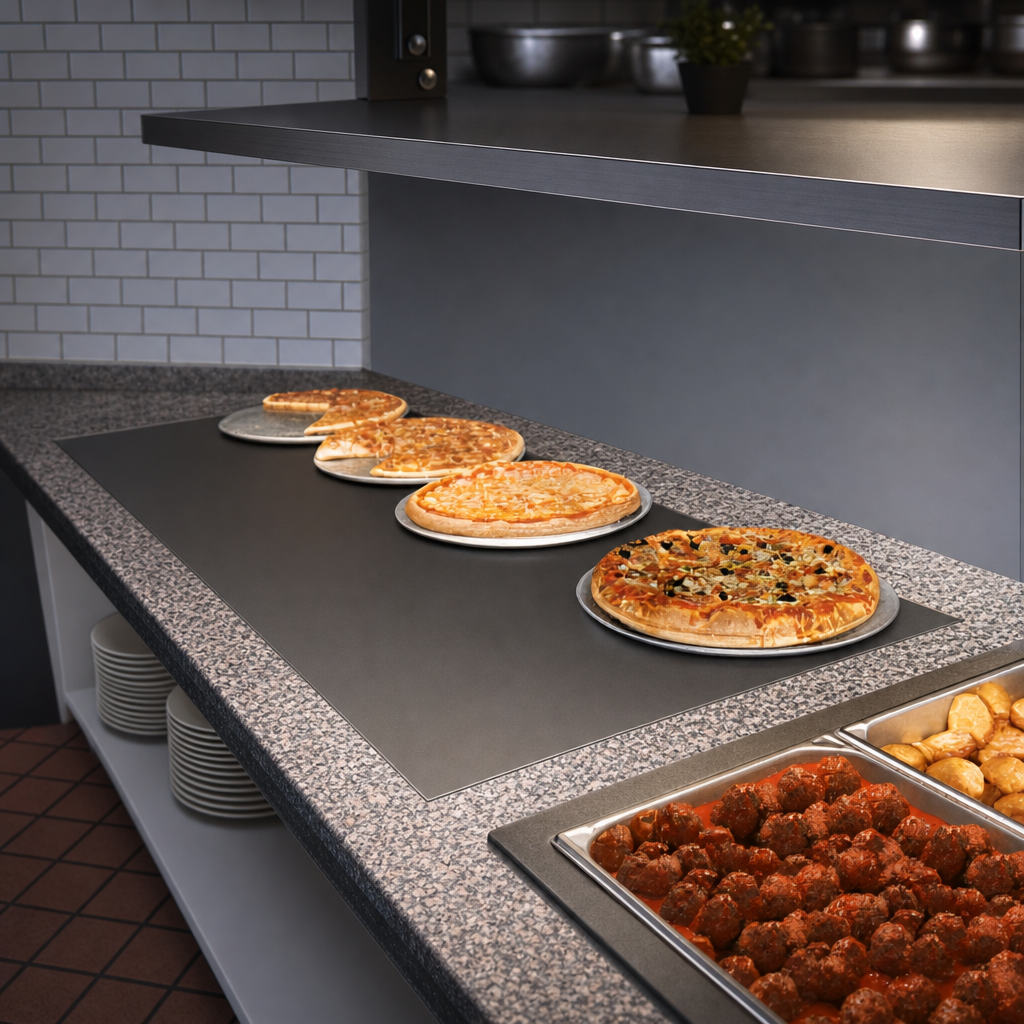

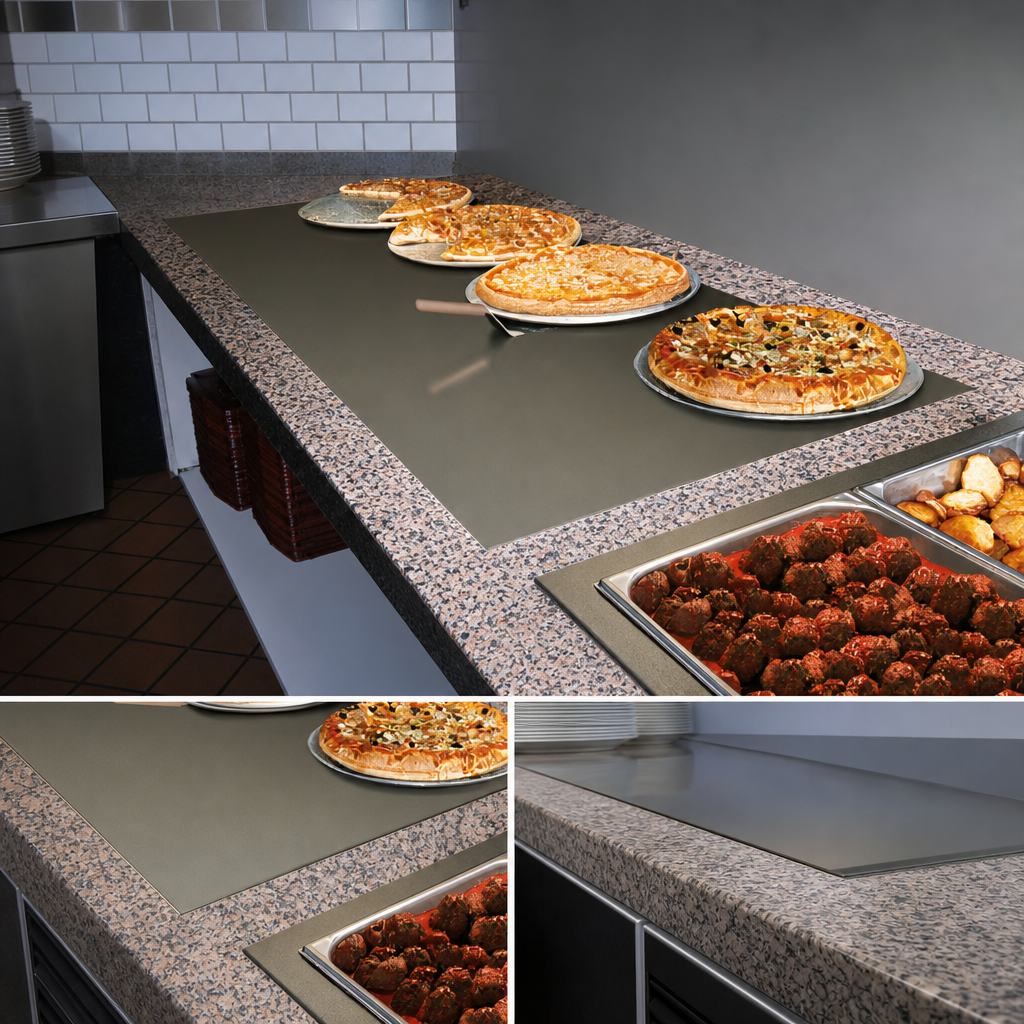

  • ¾" (19 mm) flanged rim drops neatly into the cut-out for a true flush finish.
  • High-density fiberglass insulation directs heat to the holding surface, not your cabinetry.
  • 36" (914 mm) flexible conduit with mounting bracket keeps wiring protected and installation simple.
  • Certified NSF, UL, cUL, UL EPH Classified, CSA and CE for broad regulatory acceptance.
  • Optional designer-color control bezels and electronic (ITC) or small-format control boxes available at time of order.
At-a-Glance Specifications
Model GRSBF-24-I
Usable warming surface 25 1/2" W × 21" D (648 × 533 mm)
Overall dimensions (W × D × H) 25 1/2" × 21" × 2 1/4" (648 × 533 × 57 mm)
Counter cut-out 24 1/2"–24 3/4" W × 20"–20 1/4" D (622–629 × 508–514 mm)
Counter thickness Up to 1 1/4" (32 mm)
Watts 550 W
Voltages available 100 V / 120 V / 220 V / 230-240 V, single-phase
Amperage 5.5 A @ 100 V • 4.6 A @ 120 V • 2.5 A @ 220 V • 2.3 A @ 240 V
Standard plug NEMA 5-15P (100/120 V) • CEE 7/7 Schuko (220 V) • BS-1363 (240 V)
Shipping weight 28 lb (13 kg)
Certifications
  • NSF Listed
  • UL & cUL Listed
  • UL EPH Classified (sanitation)
  • CSA Certified
  • CE Marked
Perfect For
  • Buffet lines & carving stations
  • Quick-service & fast-casual assembly counters
  • C-stores and grab-and-go merchandising
  • Catering drop-ins and banquet service
Installation note: This unit is intended for metallic countertops. If mounting in other materials, confirm they are rated to at least 200 °F (93 °C). Install the remote control box outside the heat zone to prevent damage.

Backed by Hatco’s 24/7 parts & service support (U.S. & Canada). See the full installation and operating manual for additional details and warranty terms.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, UL, UL EPH Classified, CSA

Height

2.25in

Width

25.5in

Depth

21.0in

Shipping Weight

27.0lbs

Shelf Width (side - side) OA

12" - 25"

Type

built-in

Heated Shelf Construction

aluminum

Controls

thermostatic controls

Specifications

Glo-Ray® Built In Heated Shelf with Flush Top, 25-1/2" x 21" surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, 550 watts, NSF, CE, cUL, UL, UL EPH Classified, CSA
