Hatco GRSB-72-I Glo-Ray® Heated Cabinets & Holding Shelves
Description

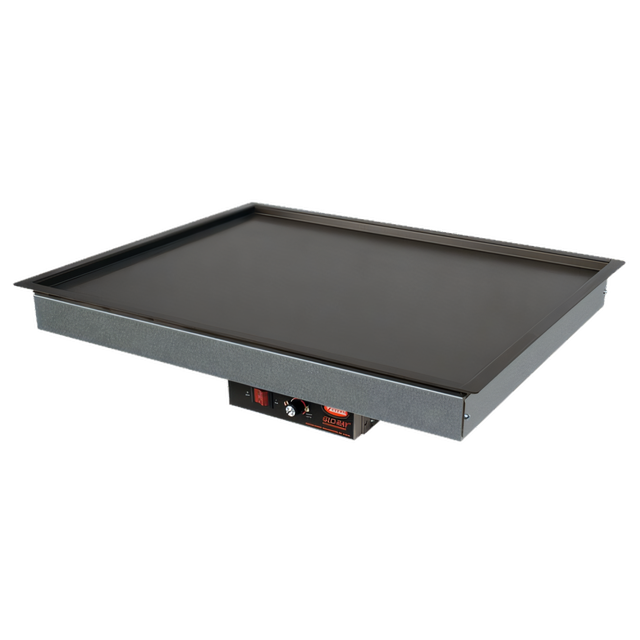

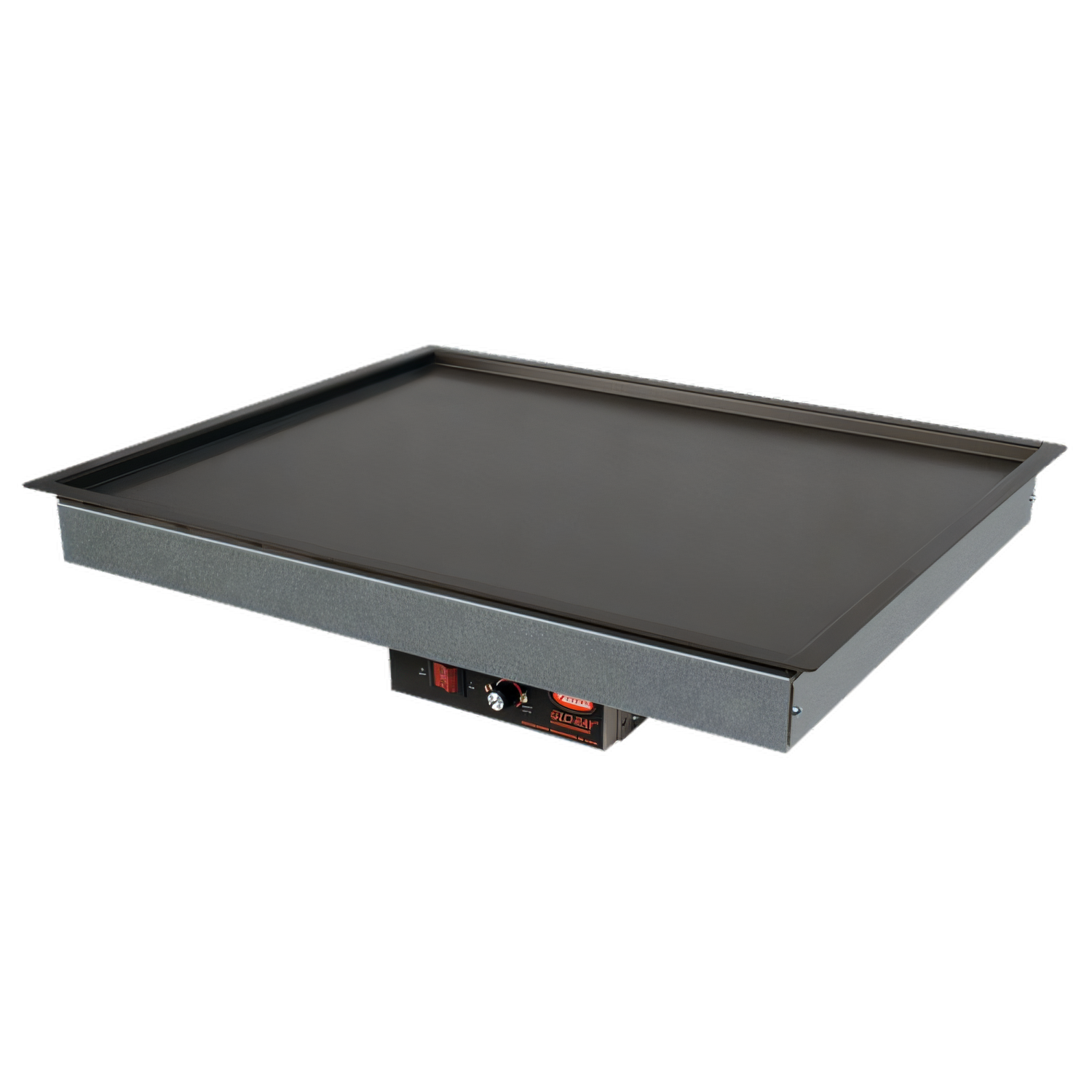

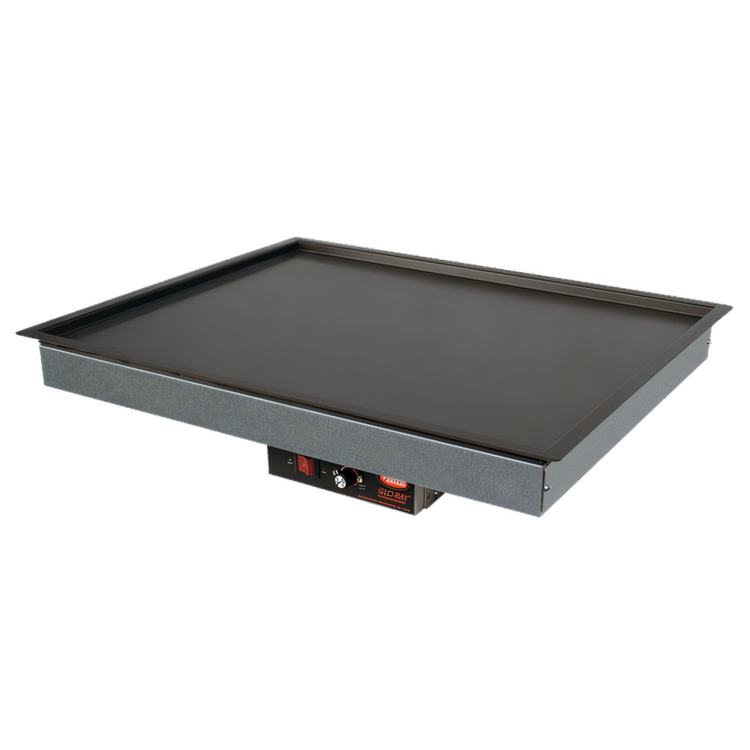

Hatco Glo-Ray® Drop-In Heated Shelf – 73 1/2" W × 21" D (Model GRSB-72-I)
Recessed, thermostatically-controlled holding surface for high-volume foodserviceDesigned to disappear into your counter while delivering edge-to-edge heat, the Hatco GRSB-72-I keeps entrées, sides and baked goods at the perfect serving temperature across a full six-foot span. A hard-coat aluminum surface, blanket-type heating element, and precise thermostat make it the go-to solution for buffets, cafeterias, grab-and-go kiosks and pass-through stations.
Key benefits

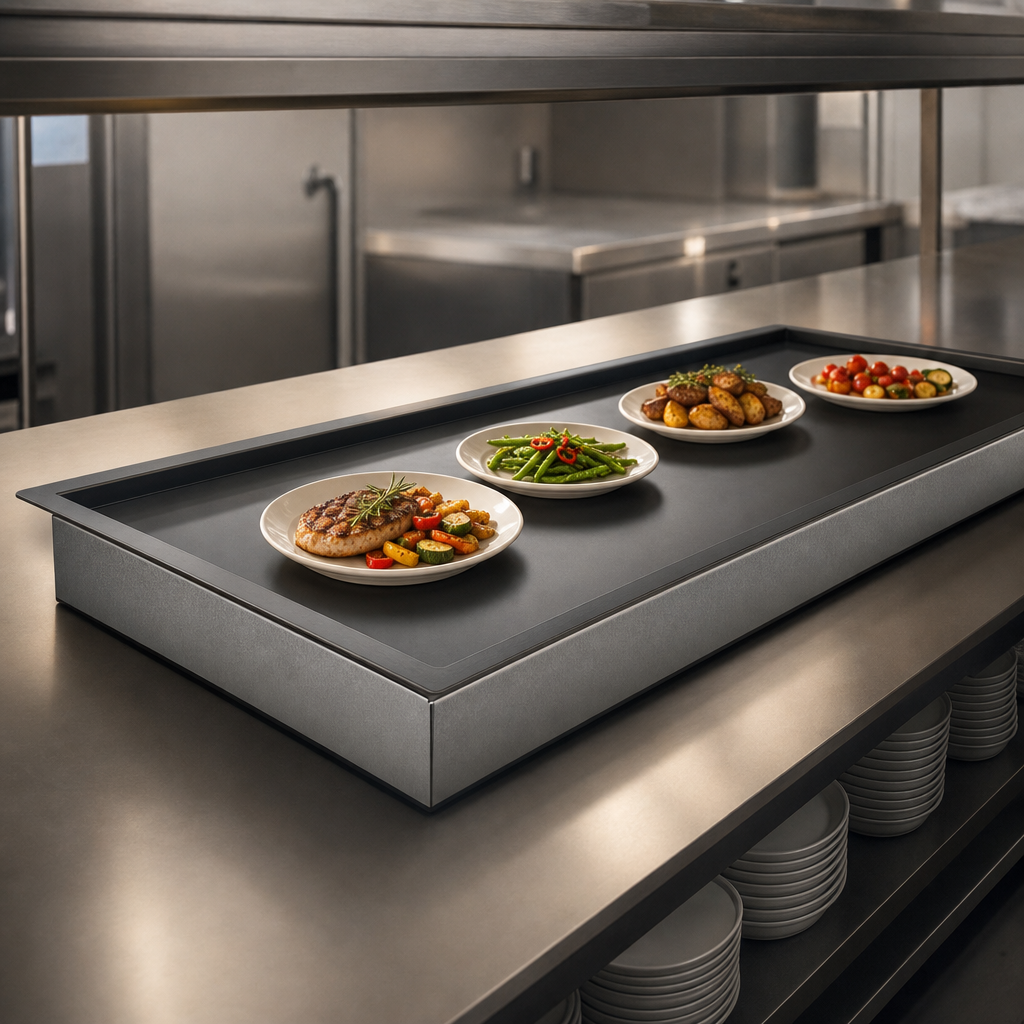

- Uniform heat distribution – blanket-style element is bonded to a hard-coat aluminum top to eliminate hot or cold spots.

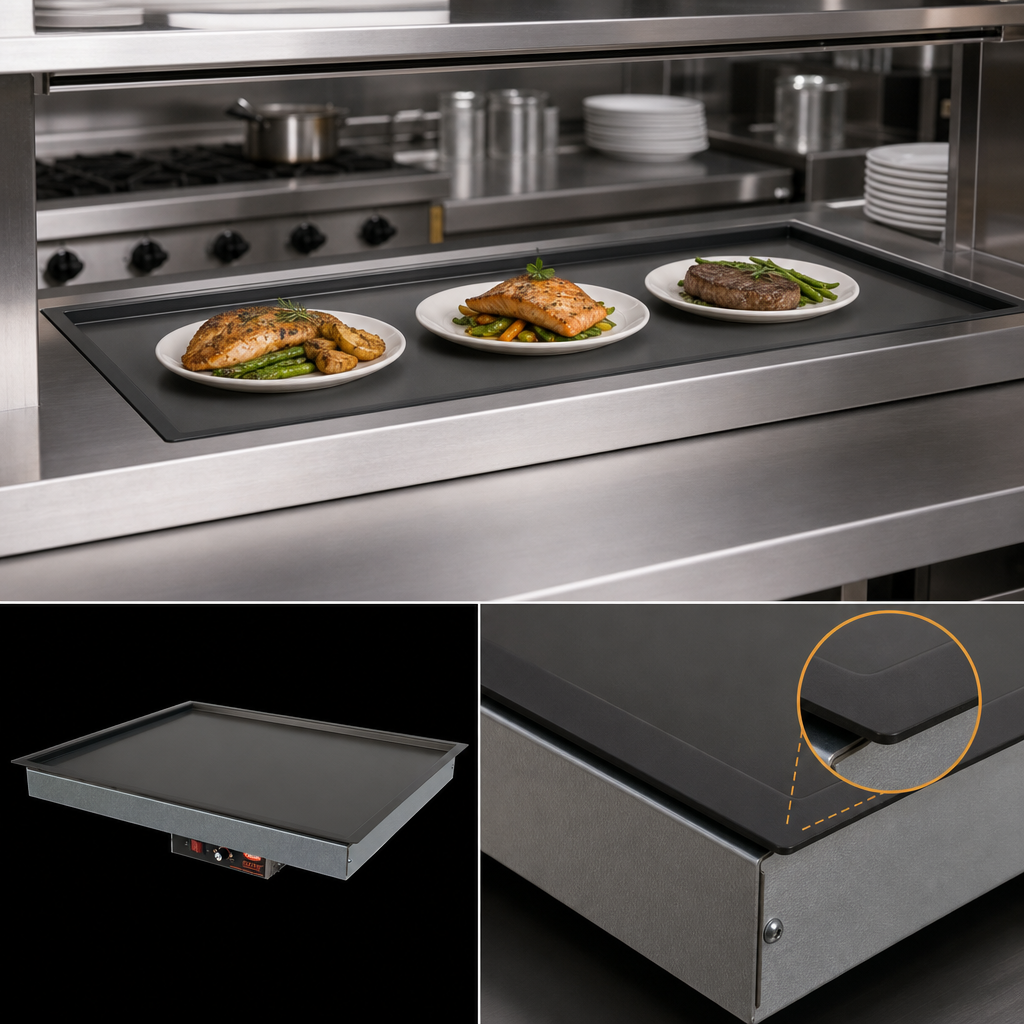

- 0.5" (13 mm) recessed surface cradles pans and platters, keeping the line neat and minimizing spills.

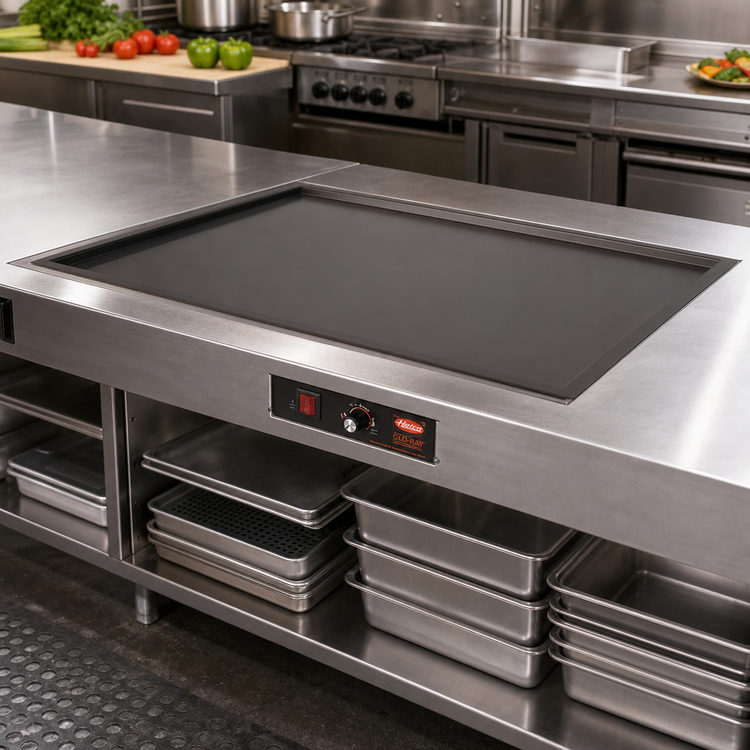

- True flush fit – 0.75" flanged edge drops cleanly into cut-outs in counters up to 1 1/4" (32 mm) thick.
- Adjustable thermostat lets you dial holding temperatures up to 200 °F (93 °C); illuminated rocker switch confirms power status at a glance.
- Energy-saving insulation – high-density fiberglass directs heat to food, not your cabinetry.
- Installer-friendly – 36" (914 mm) flexible, pre-wired conduit and universal brackets simplify semi-remote control-box mounting.
- Certified safe worldwide – NSF, CE, cULus, UL EPH Classified and CSA listed.
Specifications
| Model | GRSB-72-I |
|---|---|
| Overall dimensions | 73.5" W × 21" D × 2.875" H (1867 × 533 × 73 mm) |
| Usable heated area | 72" W × 19.5" D (1829 × 495 mm) |
| Recess depth | 0.5" (13 mm) |
| Construction | Hard-coat aluminum top with 0.75" flanged edge |
| Electrical (single phase) | 120 V / 1 ph / 1440 W / 12 A (220–240 V models available) |
| Power connection | 36" (914 mm) flexible conduit with NEMA 5-15P plug (120 V version) |
| Certifications | NSF, CE, cUL, UL, UL EPH Classified, CSA |
| Approx. ship weight | 50 lb (23 kg) |
Factory-installed options
- Flush-mount electronic or thermostatic control boxes
- Designer bezel colors to match your décor
- 6 ft (1829 mm) or 10 ft (3048 mm) conduit in lieu of standard 3 ft
- Notched channel dividers for pan separation
- Stainless-steel rod kit for an elevated slide surface
Need overhead heat? Pair with a Hatco GRA-78 or GR2A-78 strip heater (next-size-up rule) for maximum holding performance.
