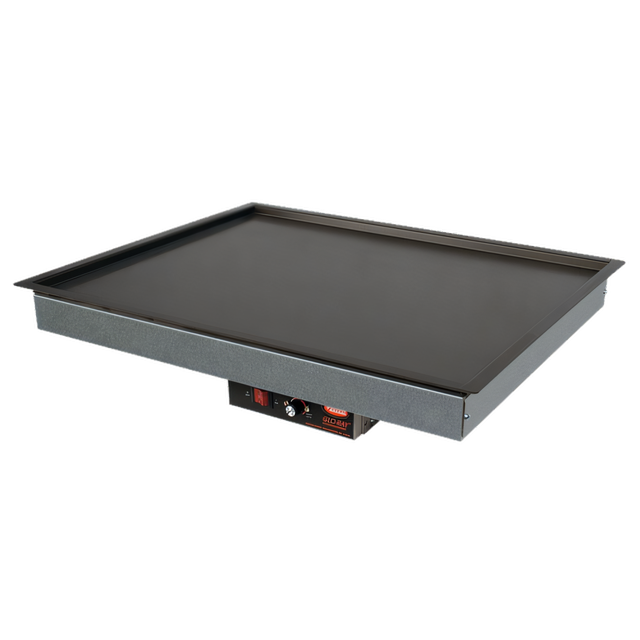

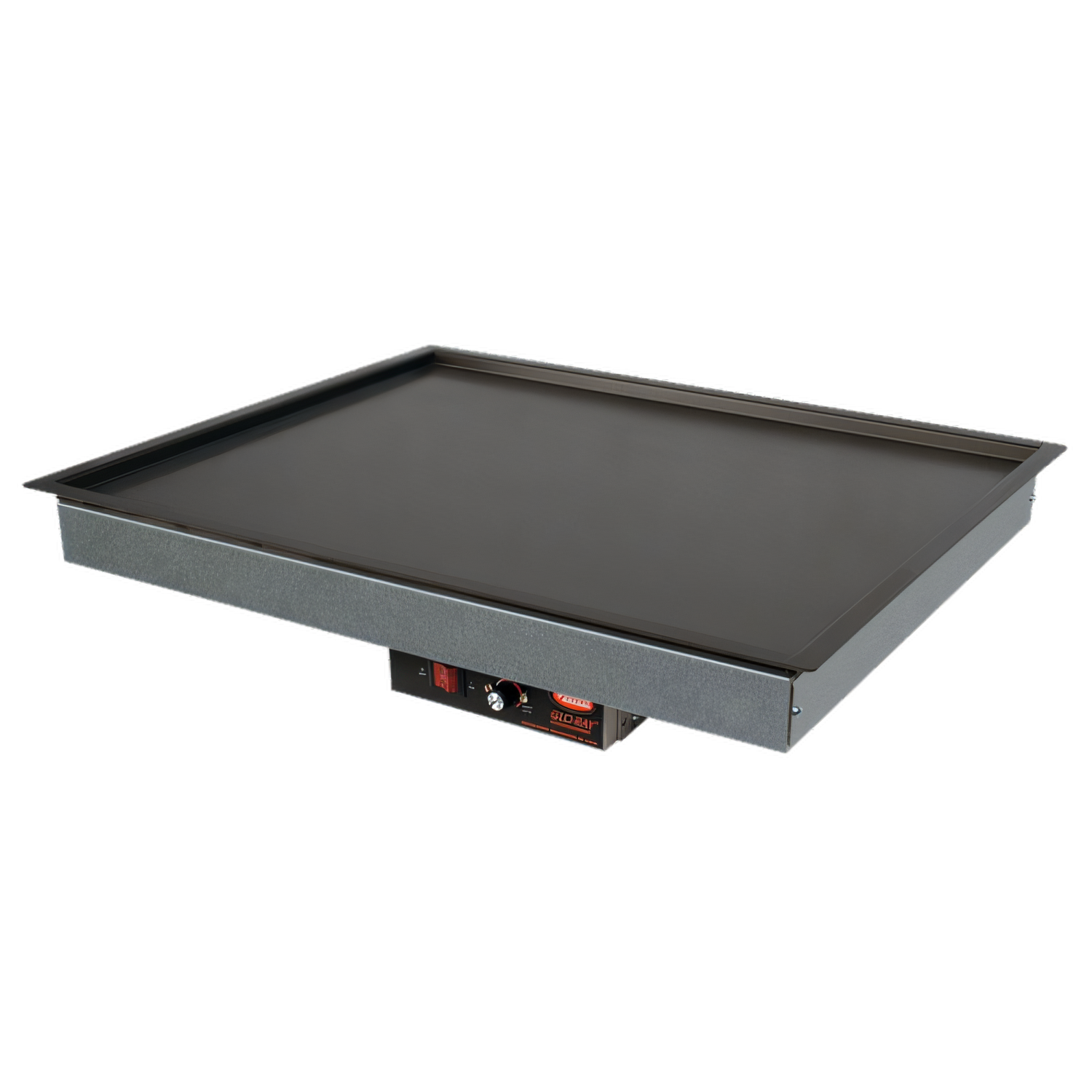

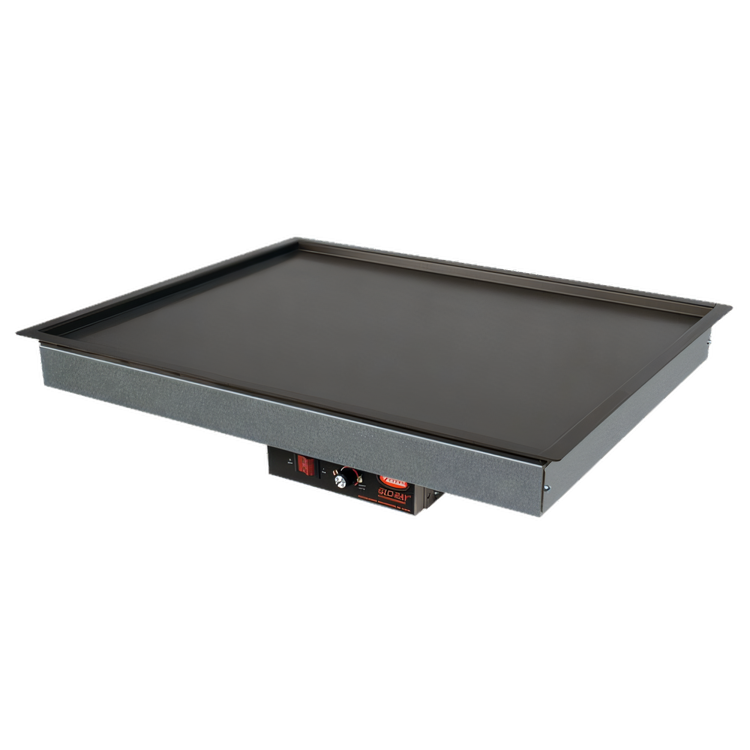

Hatco Glo-Ray Built-In Rectangular Heated Shelf with Recessed Top, 67-1/2" x 21"

SKU: GRSB-66-I
$1,566.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Warming Countertop Food Warming Food Holding & Warming Equipment Food Warmers & Holding Equipment Hatco Heated Cabinets & Holding Shelves Holding Cabinets New Arrivals Restaurant Equipment Warming Shelves Warming Shelves

Hatco Glo-Ray Built-In Rectangular Heated Shelf with Recessed Top, 67-1/2" x 21"

19-1/2" Usable Shelf Depth, Hardcoated Aluminum Surface

Add uniform heat to your serving counter with a recessed built-in shelf that keeps food warm in a clean, space-saving presentation.

  • Built-in rectangular heated shelf with a 0.5-inch recessed serving surface for a clean drop-in look.
  • Hardcoated aluminum top and blanket-type heating element promote even heat distribution across the shelf.
  • Fiberglass insulation helps retain heat at the holding surface for better food quality.
  • Adjustable thermostat, illuminated on/off rocker switch, and mounting brackets simplify operation and installation.
  • Fits countertops up to 1.25 inches thick and is recommended for metallic countertops.
  • Optional channel dividers, stainless steel rods, and flush-mount control box choices are available.

Overall Dimensions:

67.5"W x 21.0"D x 2.88"H

Product Weight:

49.0 lb

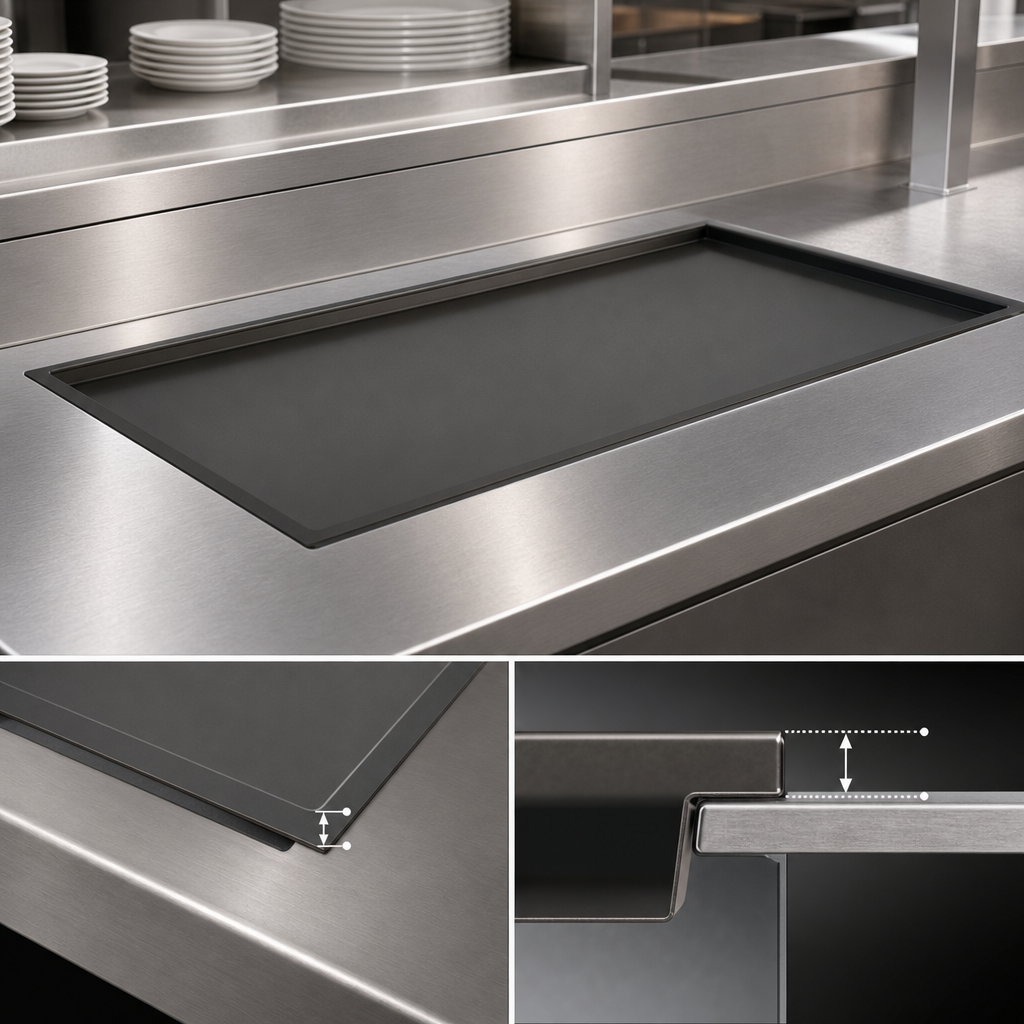

Recessed Built-In Design

67-1/2-inch by 21-inch overall size with a 0.5-inch recessed surface and 0.75-inch flanged edge for drop-in installation.

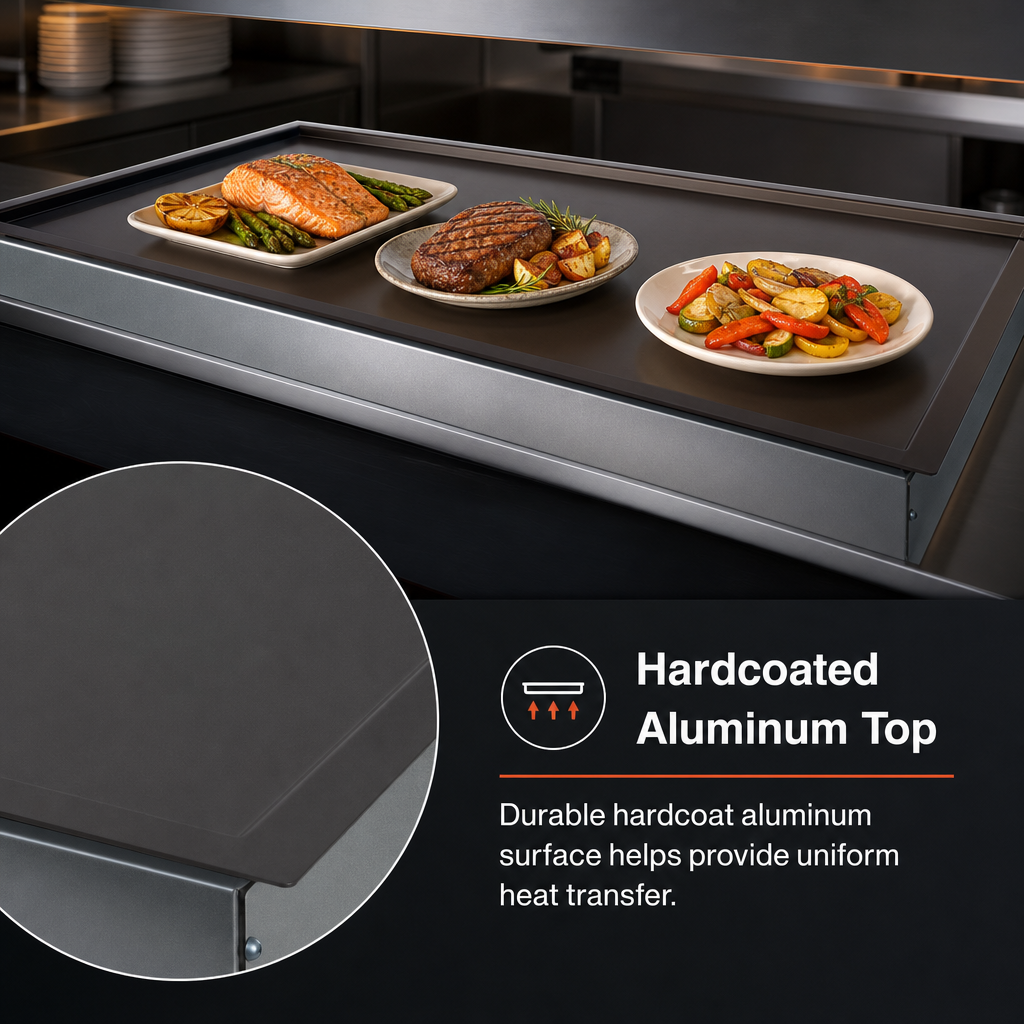

Hardcoated Aluminum Top

Durable hardcoat aluminum surface helps provide uniform heat transfer.

Blanket-Type Heating Element

Designed to deliver even heat across the holding area and extend food holding time.

Fiberglass Insulation

Helps retain heat at the serving surface for better efficiency.

Thermostatic Temperature Control

Built-in adjustable thermostat with an illuminated on/off rocker switch.

Semi-Remote Control Box Support

36-inch flexible conduit and universal brackets allow semi-remote mounting of the control box.

Countertop Compatibility Guidance

Recommended for metallic countertops; for other surfaces, confirm heat resistance up to 200°F and use on countertops up to 1.25 inches thick.

Type Heated Shelf
Style Rectangular Recessed Top
Installation Type Built-In
Material Aluminum
Controls Thermostatic
Voltage 120 Volts
Phase 1-Phase
Watts 1.33 kW
Amps 11.1 Amps
Plug Type NEMA 5-15P
Cord Length 6 Feet
Cutout Width 66.5-66.75 Inches
Cutout Depth 20-20.25 Inches
Shipping Width 68 Inches
Shipping Depth 21 Inches
Shipping Height 3 Inches
Shipping Weight 49 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Catalog brochure PDF Download PDF Owner's manual PDF Download PDF Color chart PDF Download

Frequently Asked Questions

The cutout should be 66.5 to 66.75 inches wide and 20 to 20.25 inches deep.
The overall dimensions are 67.5 inches wide by 21 inches deep by 2.875 inches high, and the usable shelf area is 66 inches by 19.5 inches.
For the standard configuration, it operates on 120 Volts, 1-phase, 1330 watts, and 11.1 amps with a NEMA 5-15P plug.
Hatco recommends metallic countertops. For other surfaces, verify that the material is suitable for temperatures up to 200°F, and use only on countertops up to 1.25 inches thick.
Channel dividers and stainless steel rods are available, along with flush-mount control box options and conduit length choices at purchase.
Yes. Universal brackets and the 36-inch flexible conduit allow semi-remote mounting, but the remote box must be installed outside the heat zone.
