Hatco  |  Glo-Ray®  |  SKU: GRSB-60-F

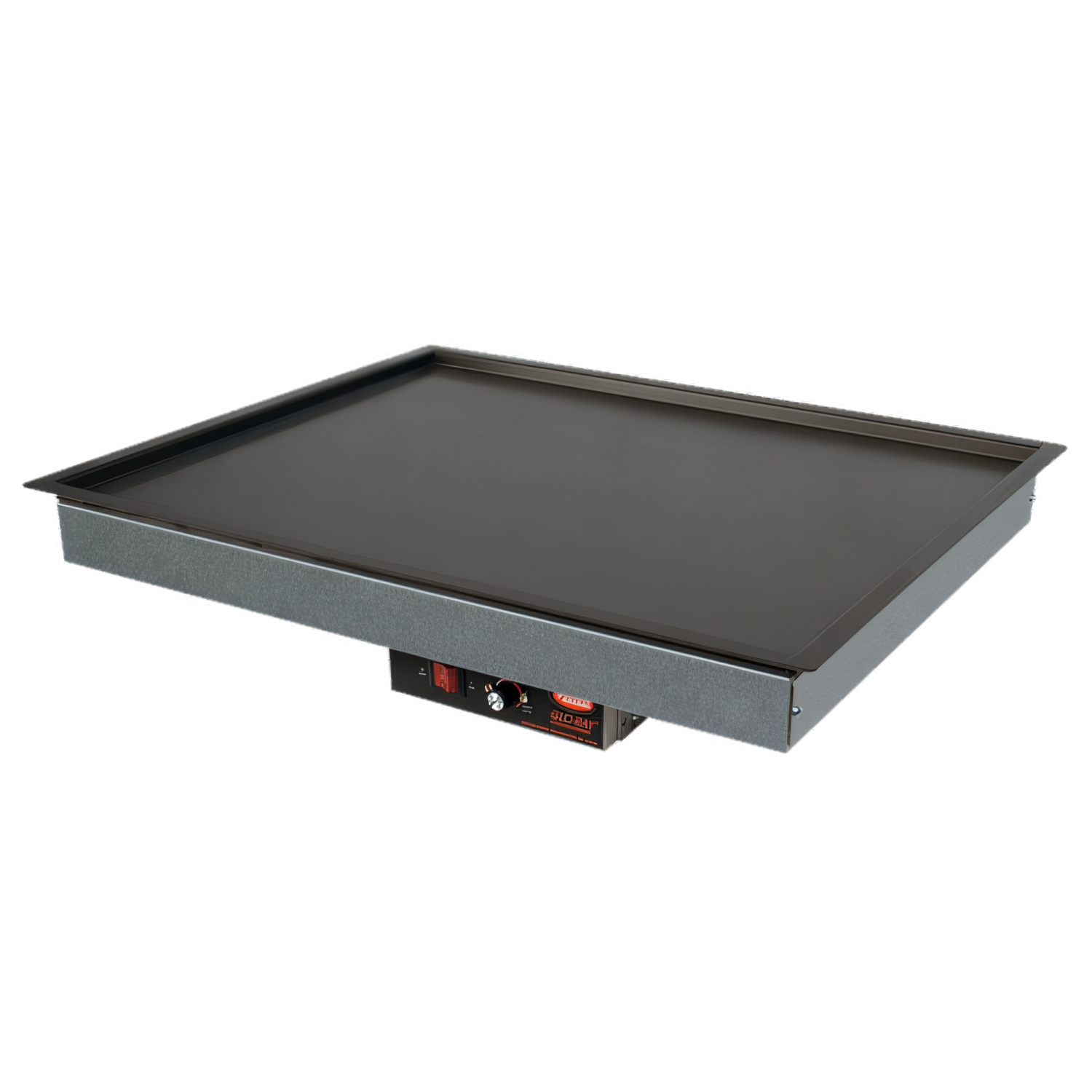

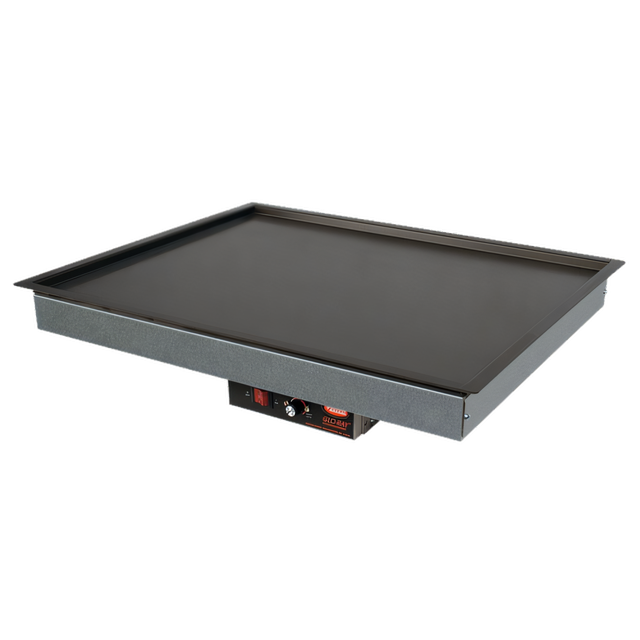

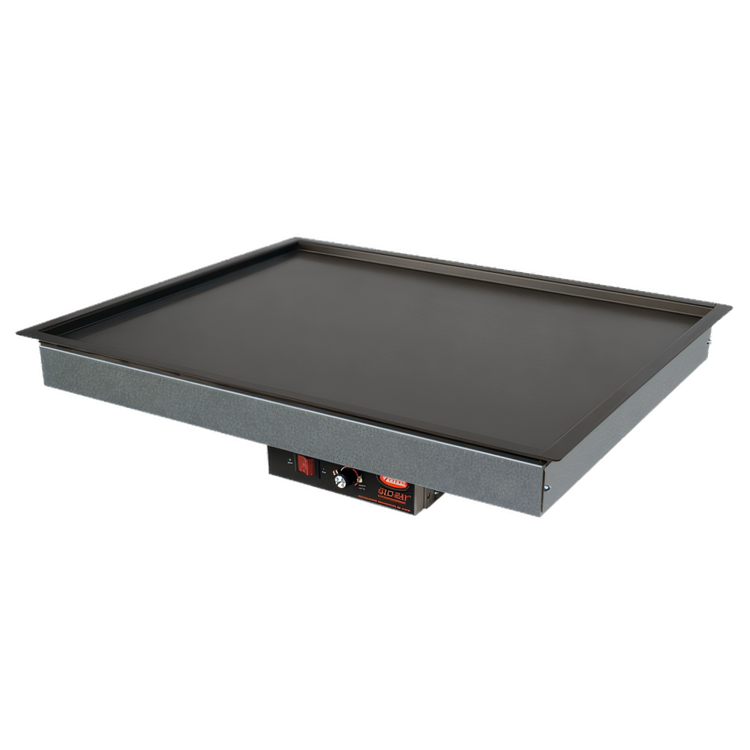

Hatco GRSB-60-F Glo-Ray® Heated Cabinets & Holding Shelves

$1,488.66
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Owner's manual Parts list Color chart
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hatco Glo-Ray® Drop-In Heated Shelf – 61 ½" x 17" Recessed Top

Model GRSB-60-F | Hardcoat Aluminum Surface

Give every dish the perfect finishing touch of heat. Hatco’s Glo-Ray® recessed heated shelf drops seamlessly into your counter, delivering even, thermostatically-controlled warmth across a tough hardcoat aluminum surface – all in a low-profile, ½"-deep design that holds food pans securely in place.

Why Choose the GRSB-60-F?

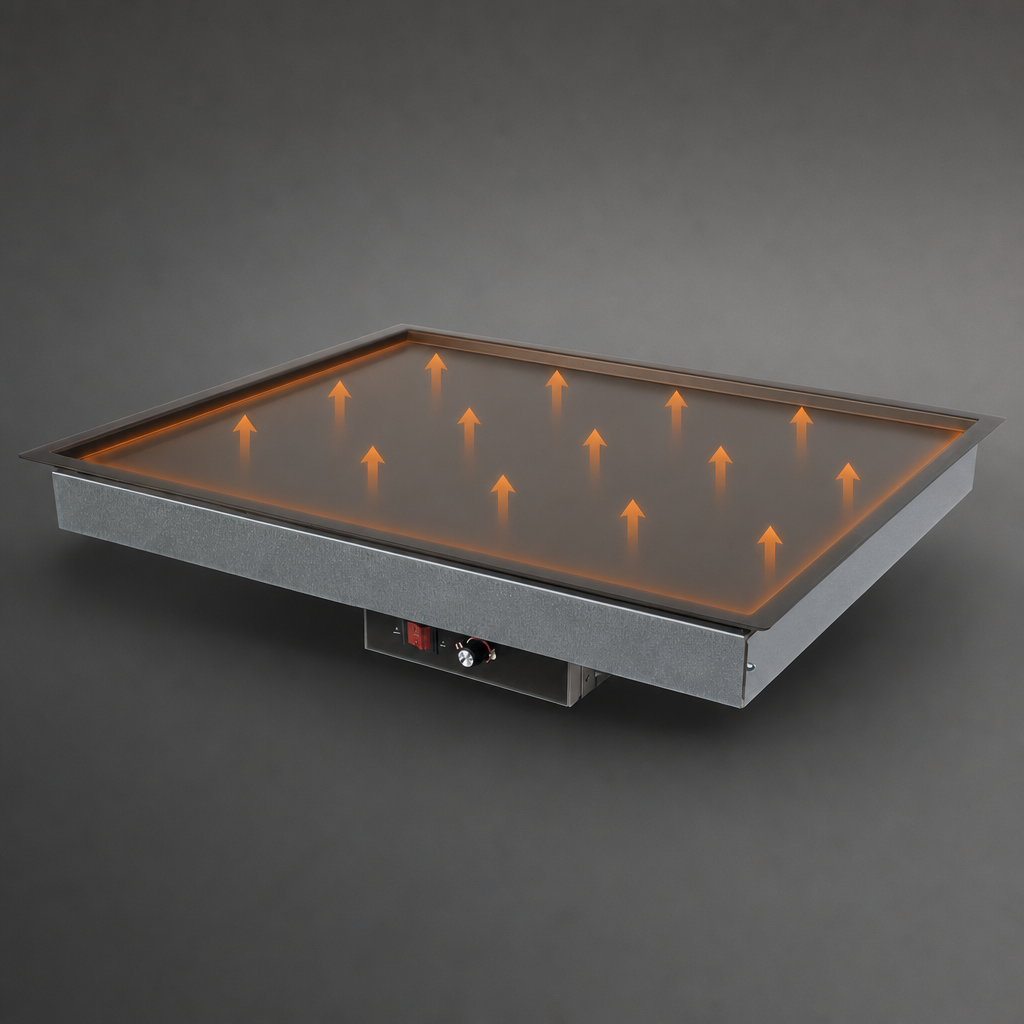

  • Uniform blanket-type element spreads heat evenly from edge to edge – no hot or cold spots.
  • Hardcoat aluminum top resists scratches and cleans up fast after service.

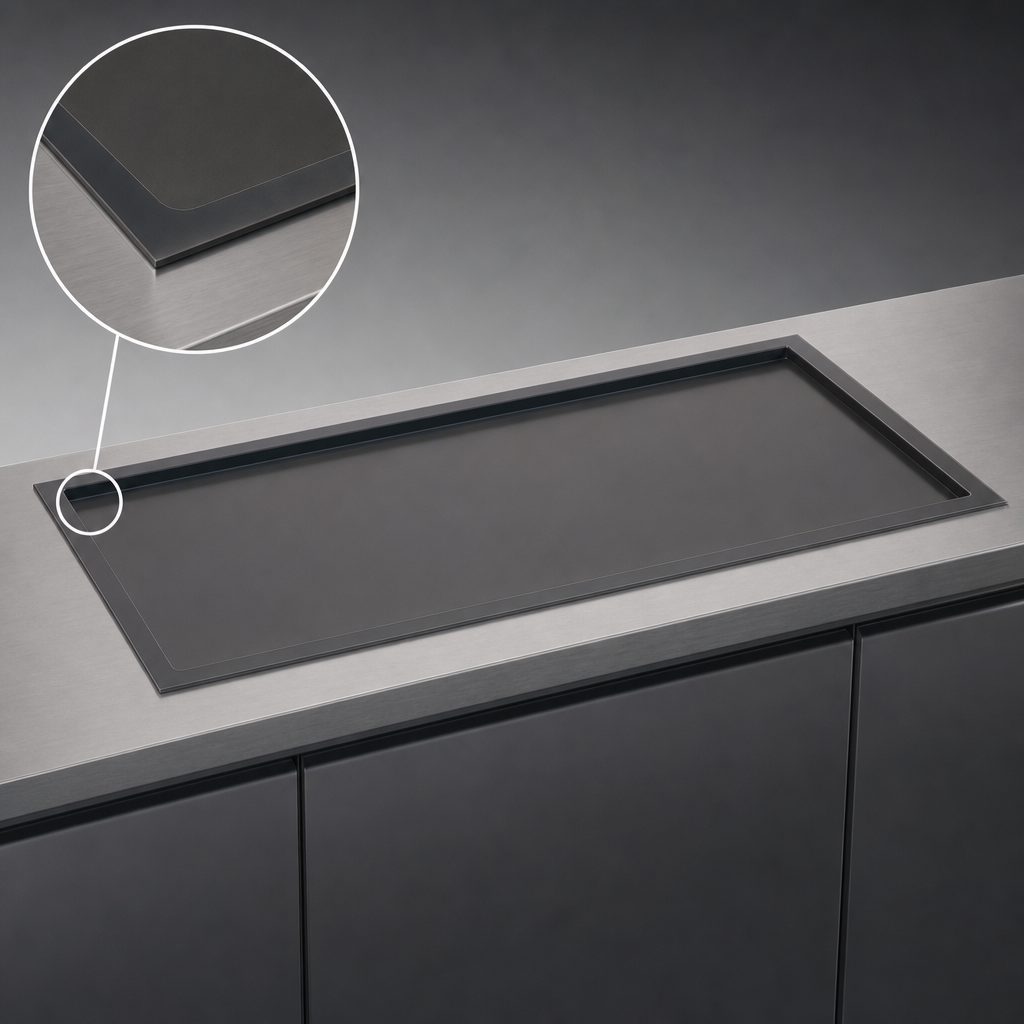

  • ½" recessed surface keeps pans and plates from sliding while reducing drips onto the counter.
  • Adjustable thermostat lets you dial in holding temps (up to 200 °F / 93 °C) for everything from pastries to proteins.
  • Illuminated rocker switch provides instant “heater on” confirmation for staff.
  • Fully insulated base with fiberglass batting locks heat at the surface, keeping counters cooler and energy use low.
  • 36" (914 mm) flexible conduit & mounting brackets included for quick, semi-remote control-box installation.
  • Drop-in flange (¾") seals against the countertop for a clean, flush appearance.
  • Built for busy lines – NSF, UL, UL EPH Classified, cUL, CSA & CE listed.

Ideal For

  • Cafeteria and buffet lines
  • Supermarkets & delis
  • Quick-service & full-service restaurants
  • Catering drop stations

Specifications

Overall dimensions (W × D × H) 61 ½" x 17" x 2 ⅞" (1562 x 432 x 73 mm)
Usable heated surface 60" x 15 ½" (1524 x 394 mm)
Recess depth ½" (13 mm)
Top material Hardcoat aluminum
Temperature control Adjustable thermostat with illuminated On/Off switch
Electrical Single-phase, 120 – 240 V; 950 – 1034 W (max 7.9 A @ 120 V).
Factory wired; plug style varies by voltage.
Control-box conduit 36" (914 mm) flexible metal conduit
Cut-out size* Min 60 ½" x 16" • Max 60 ¾" x 16 ¼"
Certifications NSF, UL, UL EPH Classified, cUL, CSA, CE
Approx. ship weight 53 lb (24 kg)

*Cut-out dimensions refer to metallic countertops up to 1¼" (32 mm) thick.

Installation Note: Recommended for metallic countertops only; if using other materials, confirm they can tolerate continuous temperatures up to 200 °F (93 °C). Always mount the remote control box outside the heat zone to prevent damage.

Need channel dividers, designer control-box colors or longer conduit? Contact us for factory-ordered options available at time of purchase.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, UL, UL EPH Classified, CSA

Height

2.88in

Width

61.5in

Depth

17.0in

Shipping Weight

40.0lbs

Heated Shelf Construction

aluminum

Type

built-in

Shelf Width (side - side) OA

43" - 60"

Controls

thermostatic controls

Specifications

Glo-Ray® Drop In Heated Shelf with Recessed Top, 61-1/2" x 17", 1/2" deep recessed surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, NSF, CE, cUL, UL, UL EPH Classified, CSA
