Hatco GRSB-54-I Glo-Ray® Heated Cabinets & Holding Shelves
Description

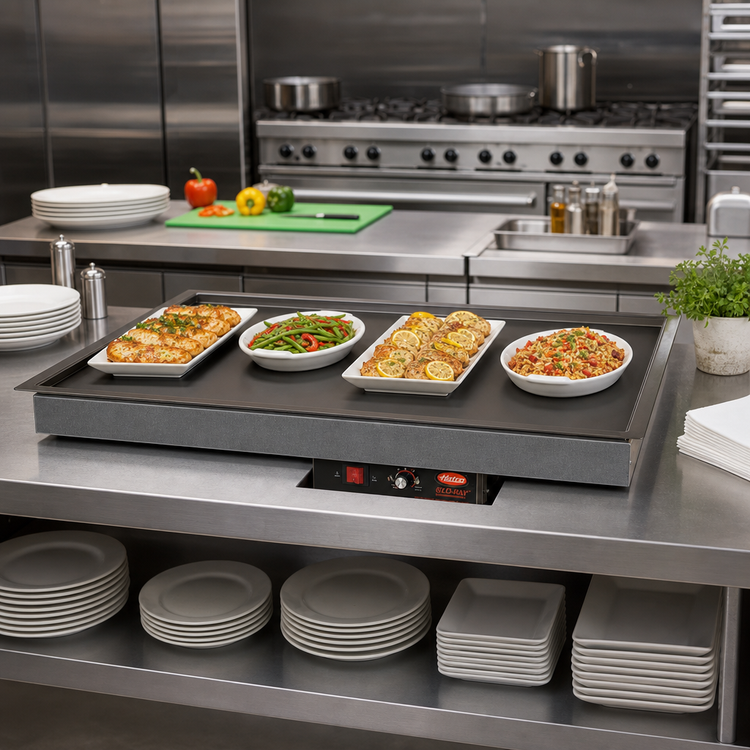

Hatco Glo-Ray® Drop-In Heated Shelf – 55 1/2" x 21" (Model GRSB-54-I)
Recessed top design for flawless, uniform hot-holding directly in your countertopTurn any service line, pass-through, or self-serve station into a high-performance holding zone. Hatco’s Glo-Ray® GRSB-54-I delivers gentle, even heat across its entire hardcoat aluminum surface, keeping entrées and sides at appetizing temperatures without sacrificing food quality or presentation.
Key benefits you’ll notice right away
- True blanket-style heat – A full-coverage element distributes heat uniformly, eliminating cold spots.

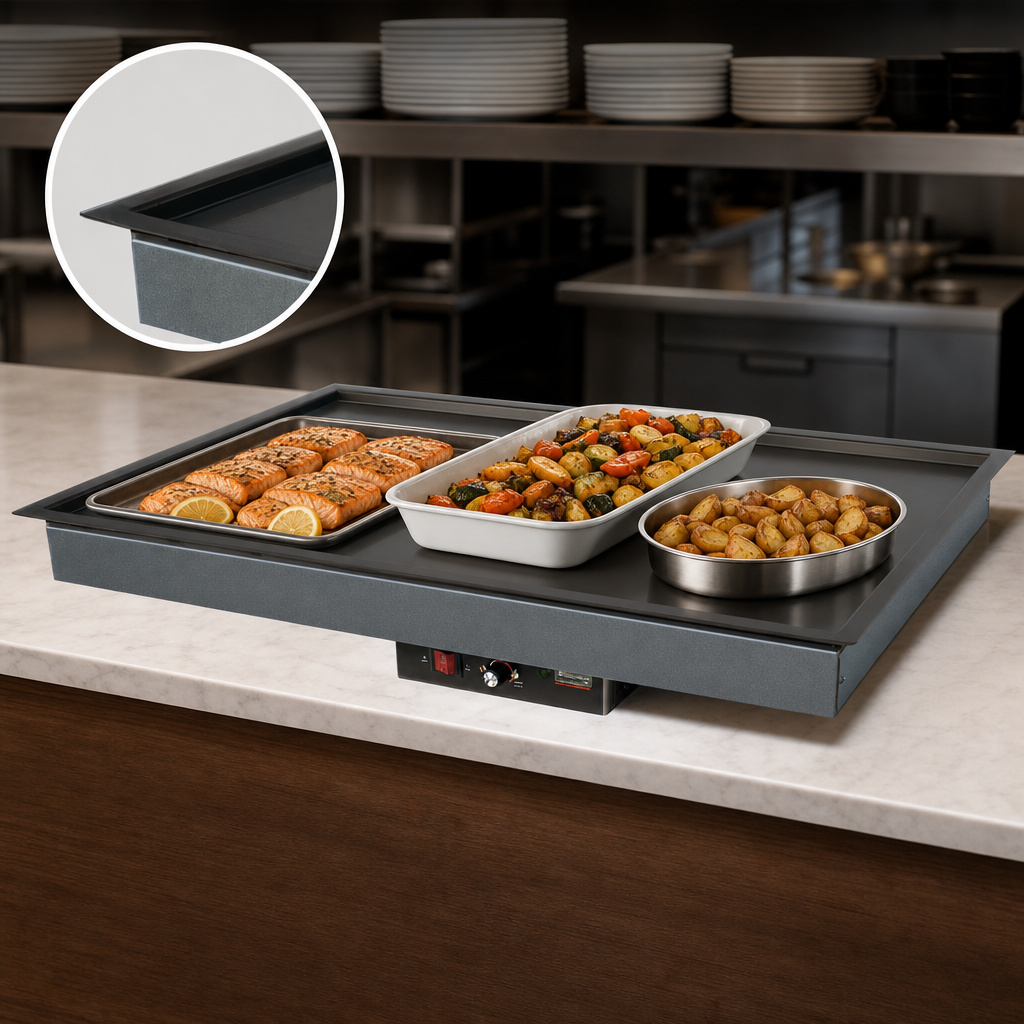

- .5" (13 mm) recessed surface neatly nests pans and contains drips for a tidy counter.

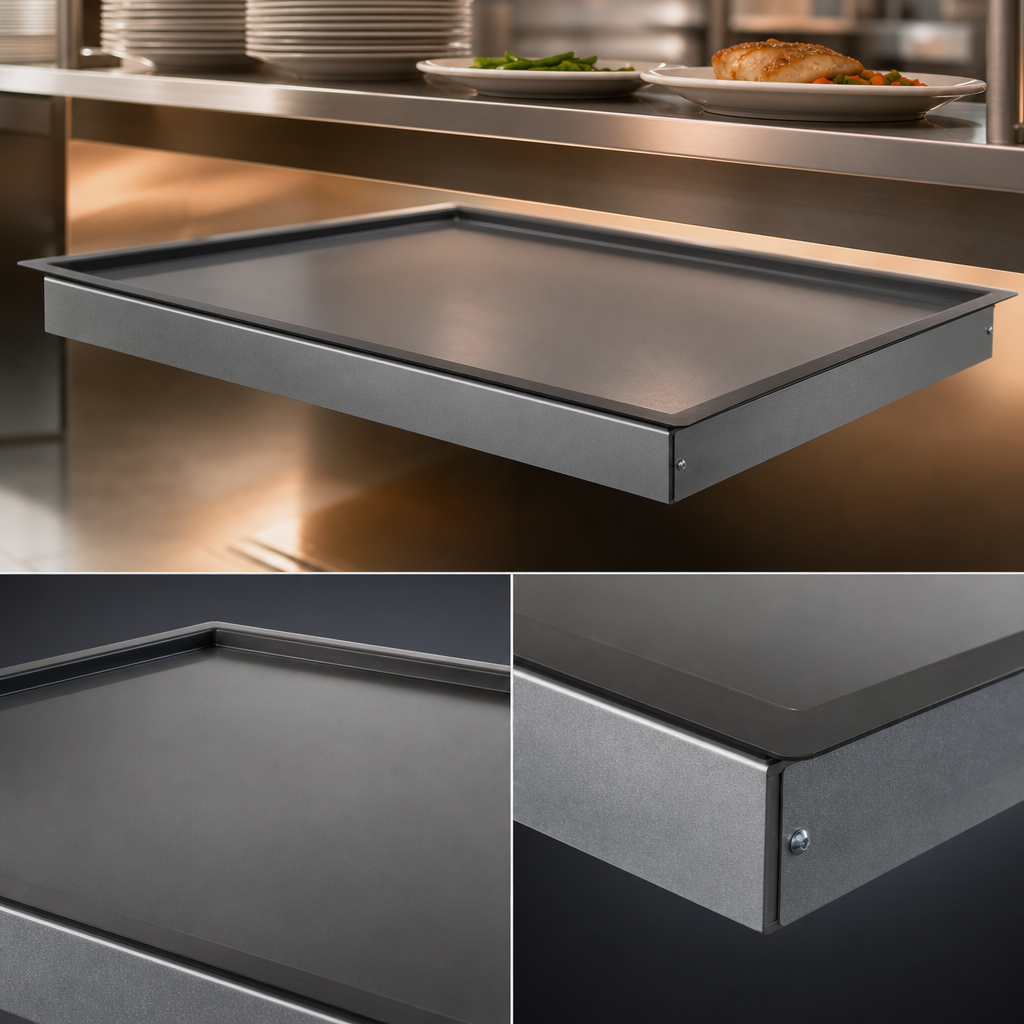

- Hardcoat aluminum top is scratch-, stain- and corrosion-resistant and wipes clean in seconds.
- Built-in thermostat lets you dial in the perfect holding temperature up to 200 °F (93 °C).
- Illuminated rocker switch provides at-a-glance power status for busy staff.
- Energy efficient fiberglass insulation keeps heat directed toward the food—never the counter.
- Flexible installation – 36" (914 mm) armored conduit & universal brackets allow the control box to be mounted away from the heat zone.
- Drop-in convenience – ¾" flanged edge drops cleanly into cut-outs on counters up to 1¼" (32 mm) thick.
Ideal applications
- Buffet & cafeteria lines
- QSR & fast-casual pass-through windows
- Convenience store hot grab-and-go
- Supermarket delis & chef-action stations
At-a-glance specs
| Overall size (W × D × H) | 55 1/2" × 21" × 2 7⁄8" (1410 × 533 × 73 mm) |
|---|---|
| Usable heated area | 54" × 19 1⁄2" (1372 × 495 mm) |
| Recess depth | .5" (13 mm) |
| Construction | Hardcoat aluminum top, stainless control box & flange |
| Electrical | 120 V, single phase, 1110 W, 9.3 A, NEMA 5-15P plug (220–240 V international models available) |
| Shipping weight | ≈ 45 lb (21 kg) |
| Certifications | NSF, UL, cUL, UL EPH Classified, CSA, CE |
| Included | Control thermostat, illuminated on/off switch, mounting brackets, 36" flexible conduit |
Recommended for metallic countertops. Confirm alternative surfaces can safely withstand 200 °F (93 °C).
Pair it with
- Hatco Glo-Ray® strip heaters (use the next larger size GR or GR2 model for optimum coverage)
- Optional channel dividers & stainless-steel rods for organized merchandising
Hatco backs every Glo-Ray® shelf with 24/7 U.S.-based parts & service support.
