Hatco Glo-Ray Built-In Rectangular Heated Shelf with Recessed Top, 49-1/2-Inch x 31-1/2-Inch

48-Inch x 30-Inch Usable Shelf, Hardcoat Aluminum Top

Keep plated food hot and ready to serve with a durable built-in shelf that delivers even heat across a recessed hardcoat aluminum surface.

  • Built-in rectangular heated shelf designed to recess into a countertop opening
  • 1/2-inch recessed top helps keep plated food contained on the warming surface
  • Hardcoated aluminum surface and blanket-type element promote uniform heat distribution
  • Built-in adjustable thermostat and illuminated on/off switch simplify operation
  • Fiberglass insulation helps retain heat at the holding surface
  • Flanged edge and mounting brackets support drop-in installation
  • Recommended for metallic countertops and counters up to 1-1/4 inches thick

Overall Dimensions:

49.5"W x 31.5"D x 2.88"H

Product Weight:

68.0 lb

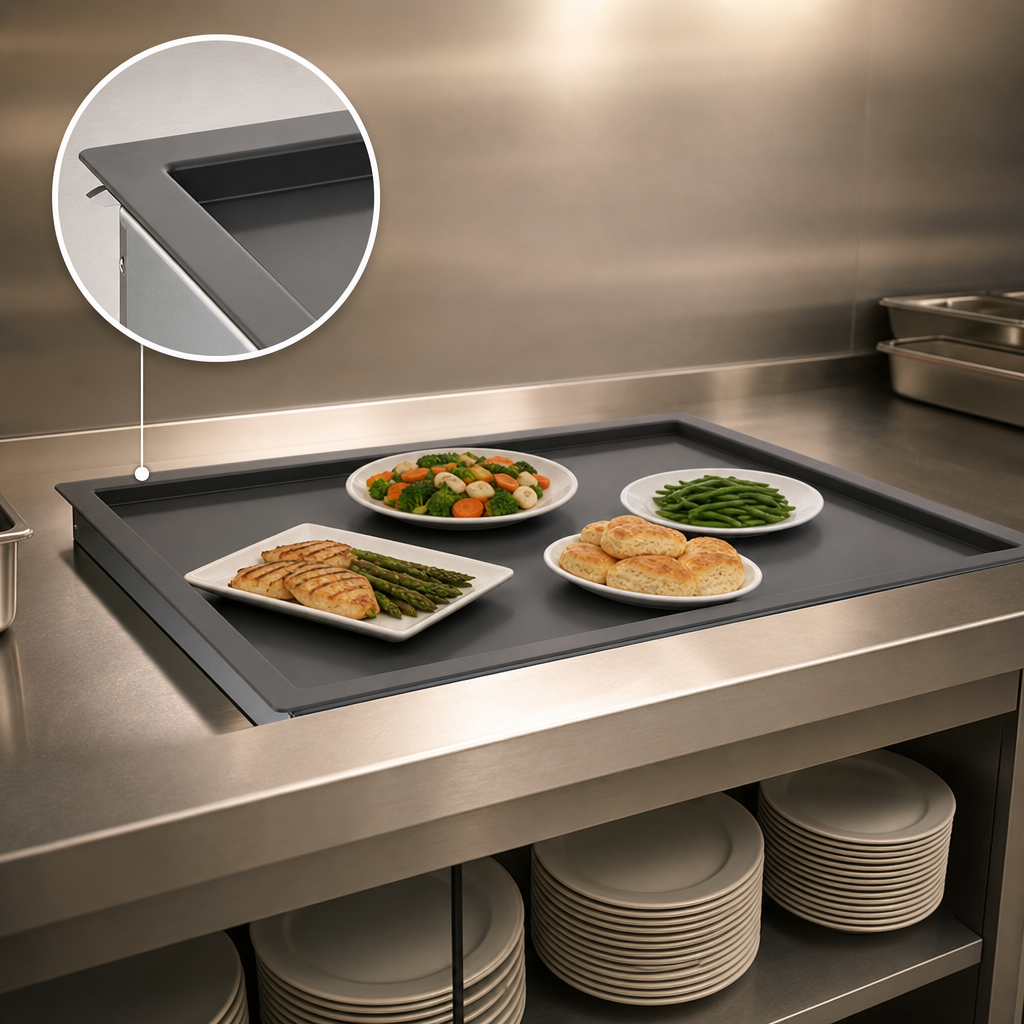

1/2-Inch Recessed Top

Recessed warming surface helps keep dishes and trays positioned on the shelf.

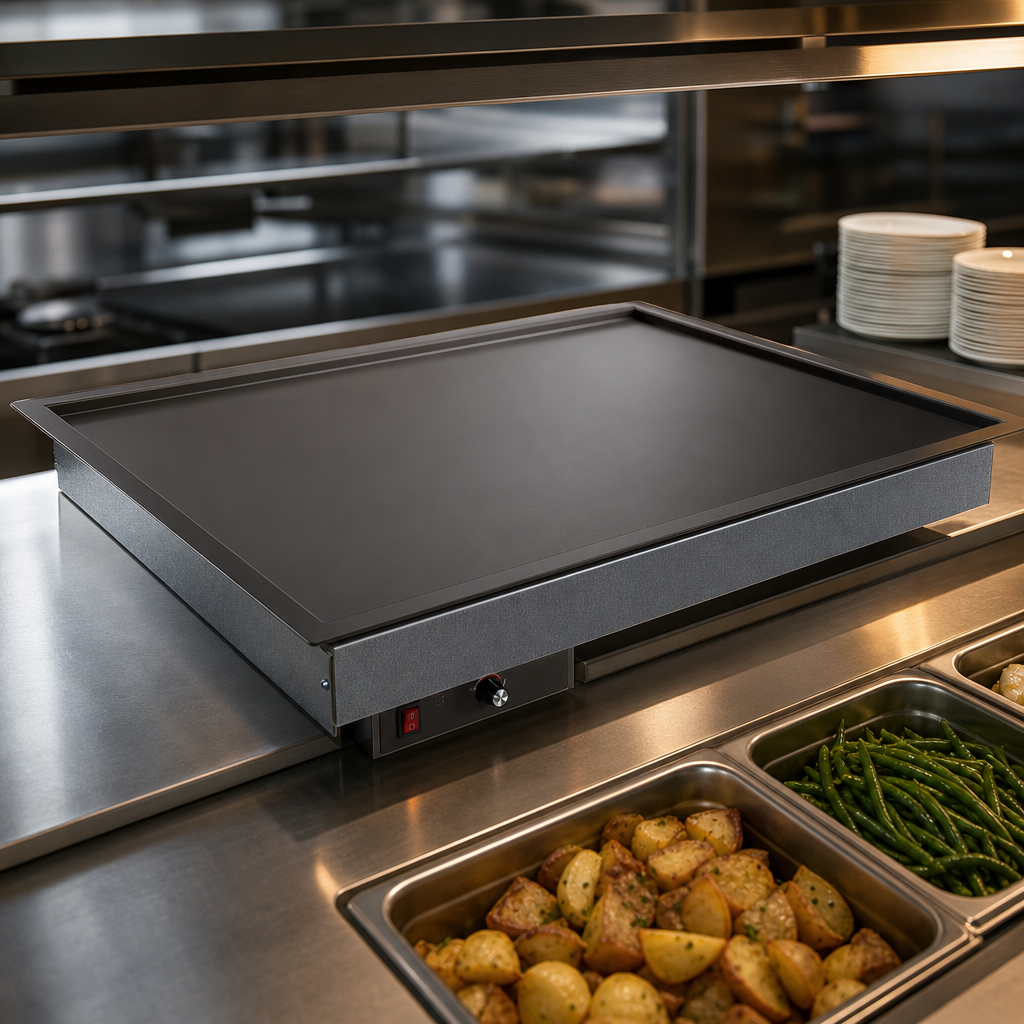

Hardcoated Aluminum Surface

Durable top surface is designed to provide even heat transfer and long service life.

Blanket-Type Heating Element

Helps deliver uniform heat across the full shelf area.

Fiberglass Insulation

Helps keep heat at the holding surface instead of leaking into the counter.

Thermostatic Temperature Control

Built-in adjustable thermostat allows the operator to control surface temperature.

Lighted Rocker Switch

Illuminated on/off switch provides clear visual status at a glance.

Mounting Brackets Included

Standard brackets support installation into a countertop opening.

Flexible Conduit to Control Box

Factory-provided conduit channels power lines from the shelf to the control box.

48-Inch x 30-Inch Usable Shelf Area

Generous holding surface accommodates plated food service in busy serving lines.

Type Heated Shelf
Style Rectangular
Installation Type Built-In
Material Aluminum
Finish Hardcoat Aluminum
Controls Thermostatic
Voltage 120 Volts
Phase 1-Phase
Watts 1.43 kW
Amps 11.9 Amps
Plug Type NEMA 5-15P
Shipping Width 50 Inches
Shipping Depth 32 Inches
Shipping Height 3 Inches
Shipping Weight 68 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Color chart PDF Download PDF Parts list PDF Download PDF Catalog brochure PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The overall dimensions are 49.5 inches wide x 31.5 inches deep x 2.875 inches high.
The usable shelf area is 48 inches wide x 30 inches deep.
This model is rated at 120 Volts, 1-Phase, 1.43 kW, and 11.9 Amps, with a NEMA 5-15P plug.
The cutout dimensions for the GRSB-48-O are 48.5 inches to 48.75 inches wide and 30.5 inches to 30.75 inches deep.
It is recommended for metallic countertops. For other surfaces, the material should be verified for temperatures up to 200°F (93°C).
Available accessories include notched channel dividers and stainless steel rods. Optional control box and conduit choices are also listed in the documentation.
