Hatco GRSB-48-I Glo-Ray® Heated Cabinets & Holding Shelves
Description

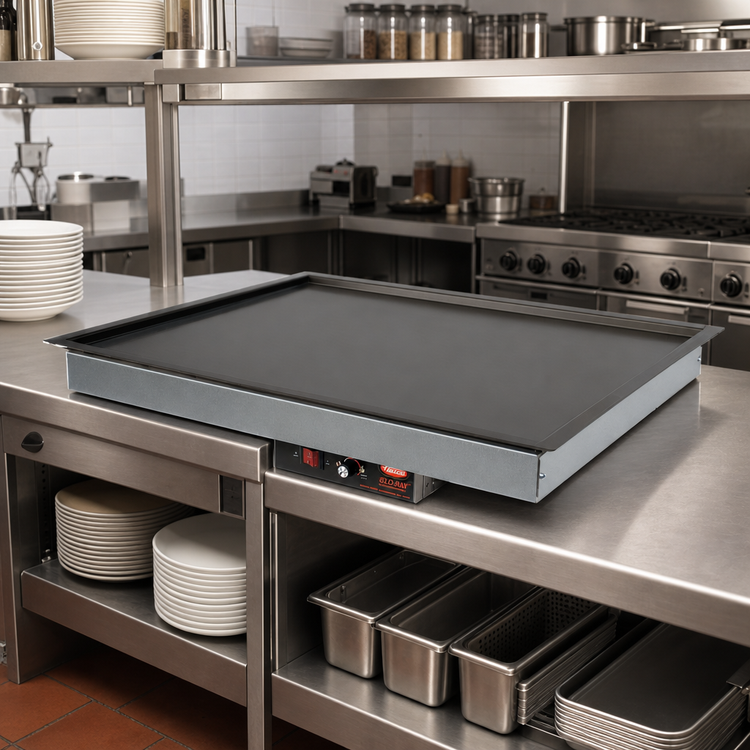

Hatco Glo-Ray® Drop-In Heated Shelf, 49-1/2" x 21"
Model GRSB-48-I • Recessed Top • Hard-Coat AluminumTurn any counter run into a profitable, grab-and-go hot zone. The Glo-Ray® GRSB-48-I nestles flush inside your countertop, providing a ½" deep heated well that holds a full 48" x 19-1/2" of product — evenly, safely and attractively.
Why You’ll Love It

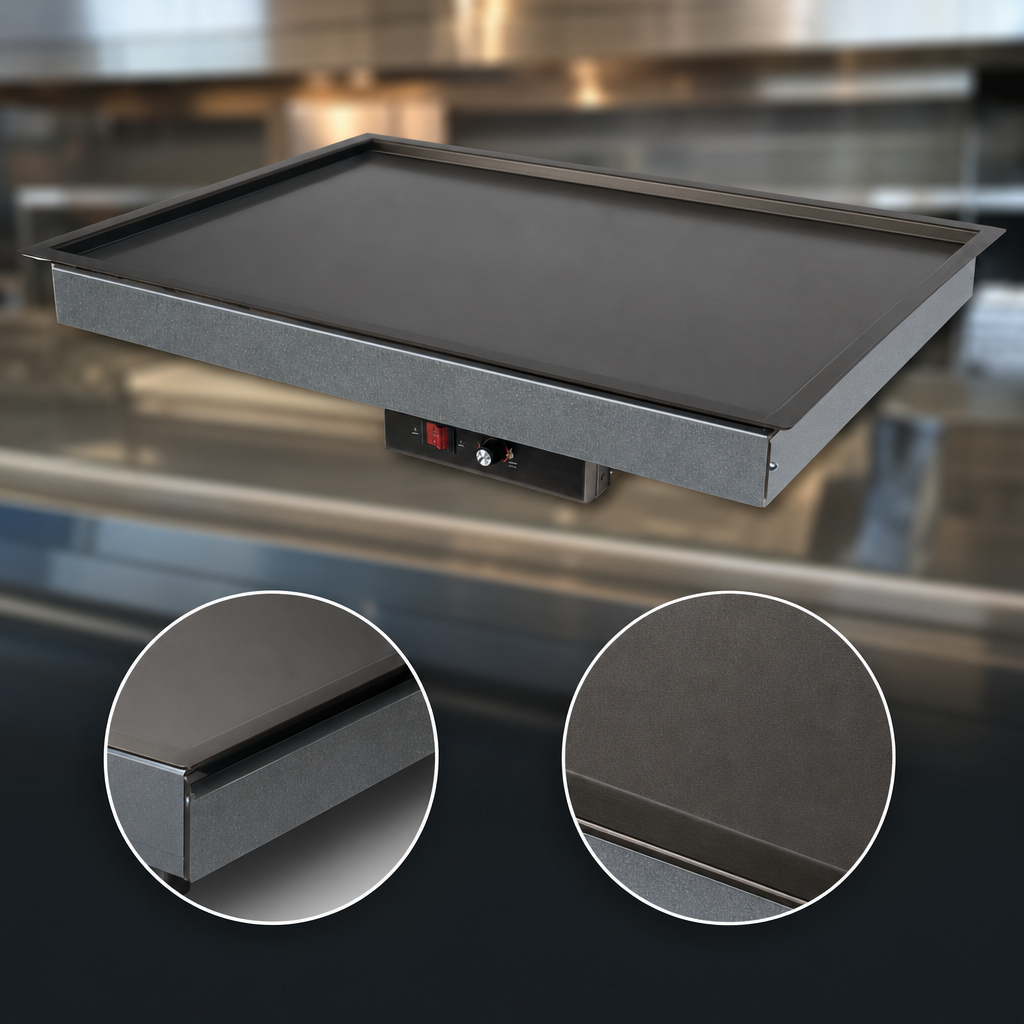

- Uniform heat & texture – blanket-type element paired with a hard-coat aluminum surface eliminates hot spots and maintains food quality.

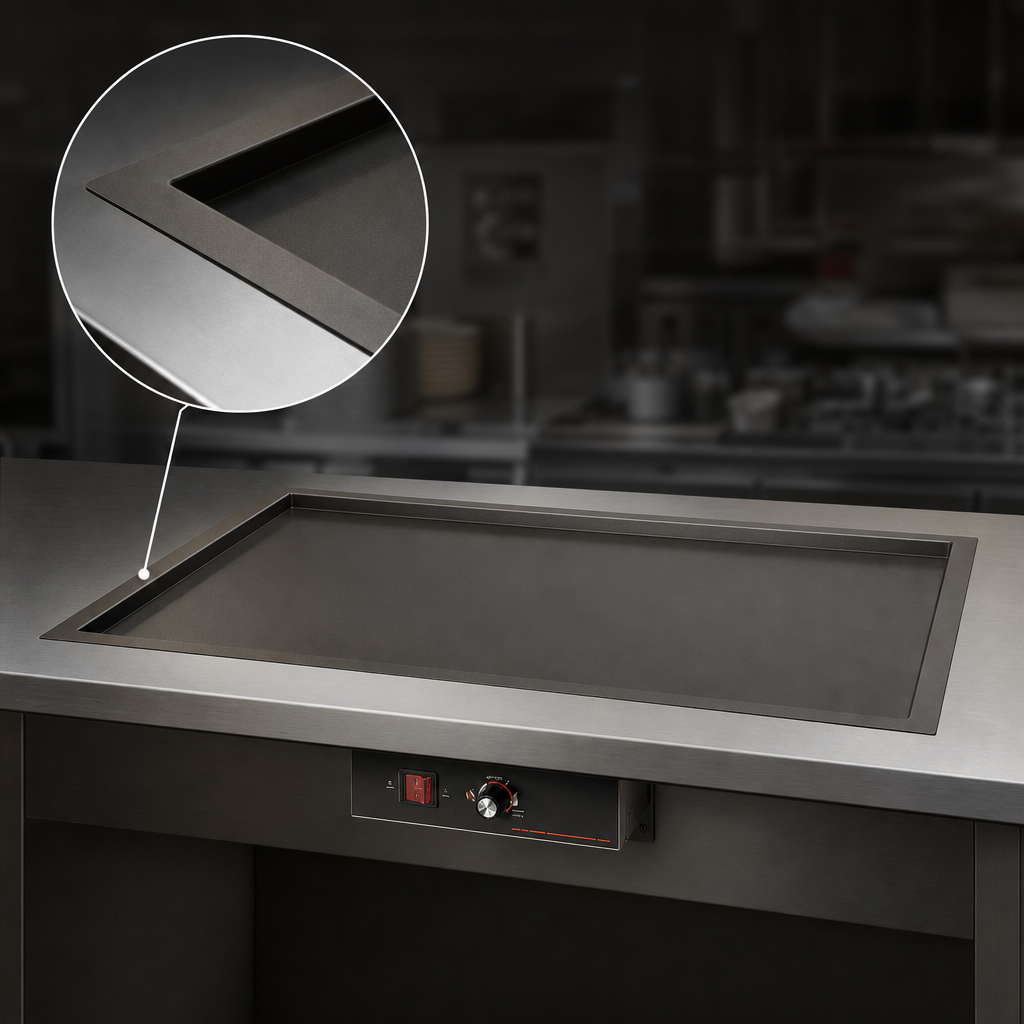

- True drop-in design – ¾" flanged rim installs cleanly into counters up to 1-1/4" (32 mm) thick; only a slim ½" recess is visible to guests.
- Dial-in temperatures – built-in thermostat gives you precise, adjustable control up to 200 °F (93 °C).
- Operator-friendly controls – lighted on/off rocker switch confirms status at a glance.
- Semi-remote mounting – 36" (914 mm) flexible conduit and universal brackets let you position the control box outside the heat zone.
- Energy-focused insulation – fiberglass pack keeps heat on the holding surface, not in your counter cabinet.
- Built for food-service duty – NSF & UL EPH Classified, cULus, CSA and CE listed.
Key Specifications
| Overall dimensions | 49-1/2" W × 21" D × 2-7/8" H (1257 × 533 × 73 mm) |
|---|---|
| Usable heated area | 48" W × 19-1/2" D (1219 × 495 mm) |
| Recess depth | 0.5" (13 mm) |
| Construction | Hard-coat aluminum top, stainless steel sides, fiberglass insulation |
| Electrical | 1000 W, 120 V, 8.3 A, single phase, NEMA 5-15P (220-240 V versions also available) |
| Control lead | 36" (914 mm) flexible conduit to control box |
| Shipping weight | ≈ 40 lb (18 kg) |
| Certifications | NSF, UL, UL EPH, cUL, CSA, CE |
Popular Options & Accessories
- Flush-mount electronic (ITC) or thermostatic control boxes
- Designer color control-box bezels (Warm Red, Black, Gray Granite, White Granite, Navy Blue, Hunter Green, Antique Copper)
- Channel dividers (notched, sold in pairs) and stainless-steel product rods
- Extended control-box conduits: 6 ft (1829 mm) or 10 ft (3048 mm)
Need additional holding power? Pair this shelf with the next-size-up Hatco Glo-Ray strip heater (GR2A-54) for maximum overhead and under-surface heat synergy.
