Description

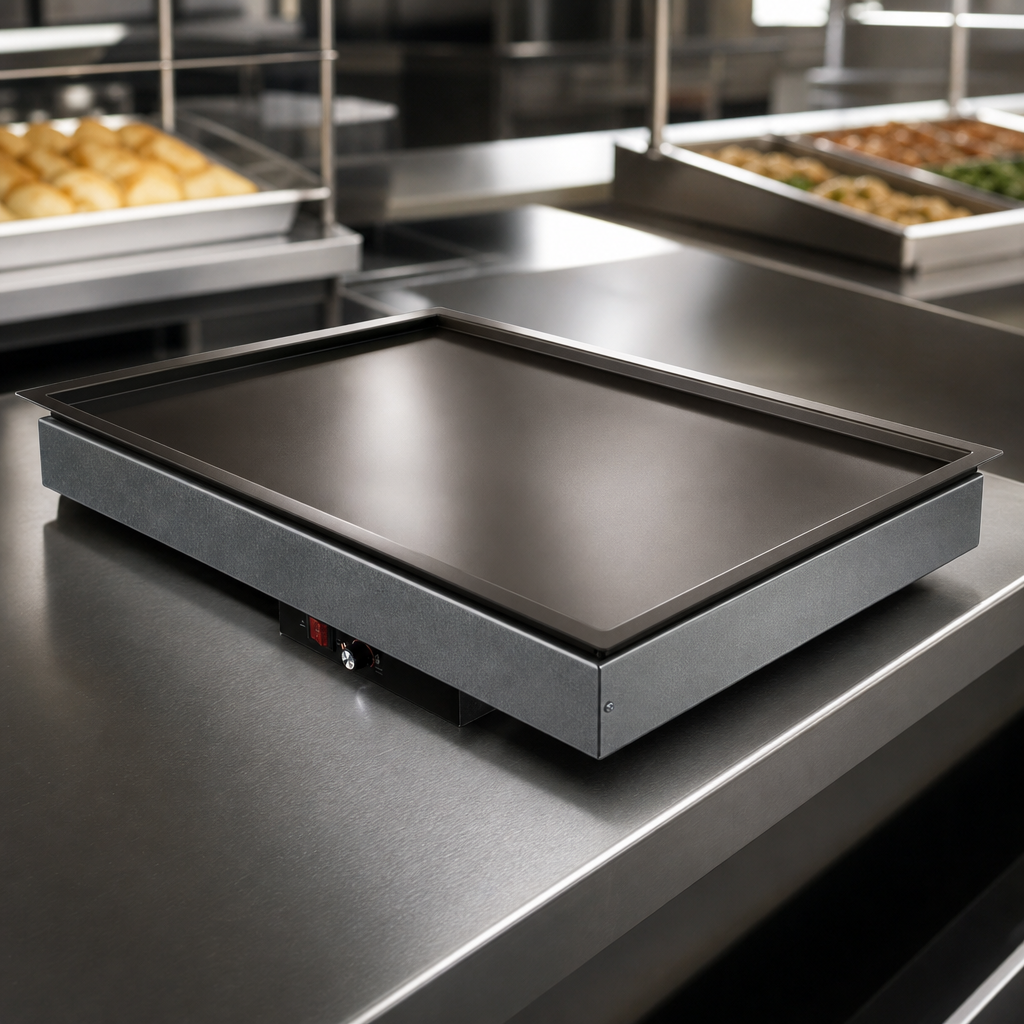

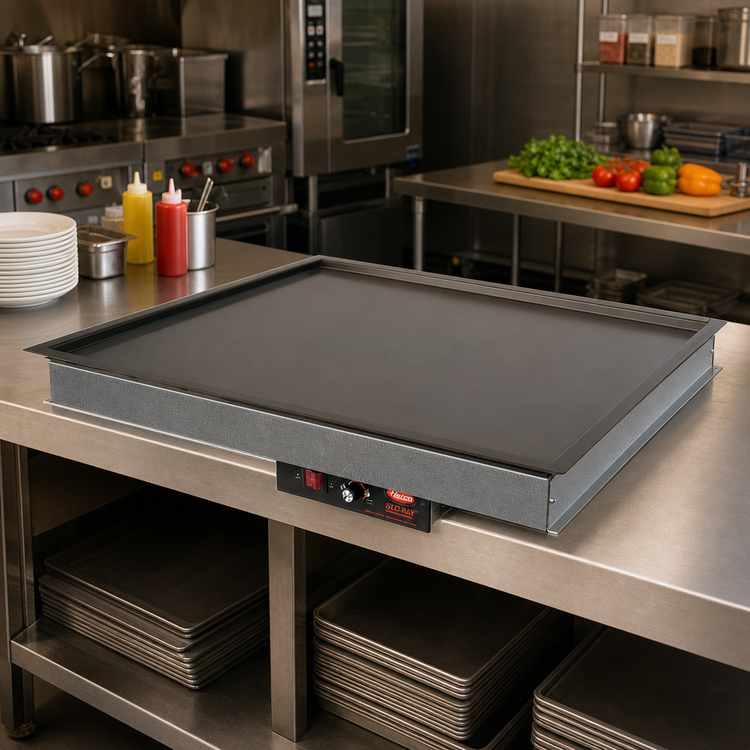

Hatco Glo-Ray® Drop-In Heated Shelf – Recessed Top, 43-1/2" × 21"

Model GRSB-42-I | Hard-coat Aluminum

Give every entrée the just-made appeal your guests expect. Hatco’s Glo-Ray® recessed heated shelf sits flush in your counter, delivering even, thermostat-controlled heat that keeps food hot, flavorful and presentation-ready for extended periods.

Why you’ll love it

  • Uniform blanket-type heating element covers the entire surface—no hot or cold spots.

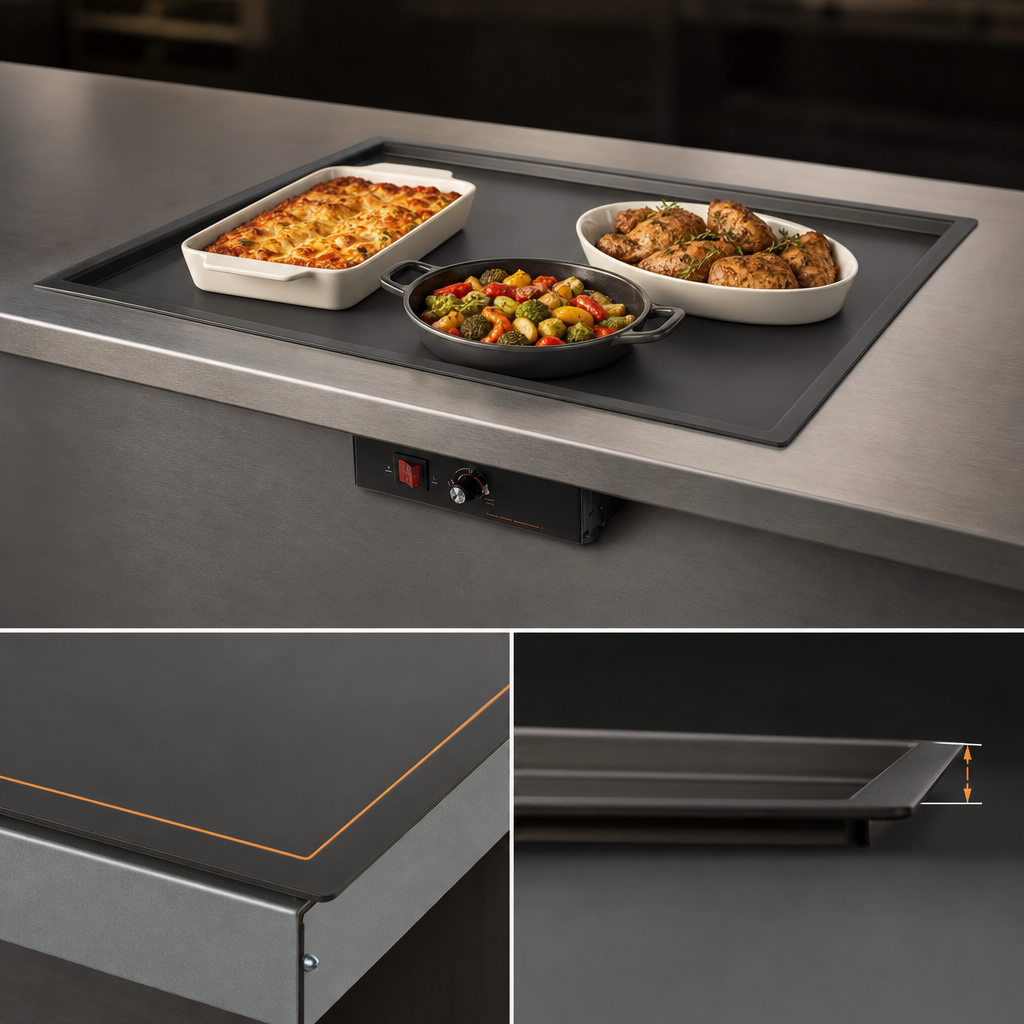

  • 0.5" (13 mm) deep recessed top shields dishes from ambient air and hides minor spills.
  • Hard-coat anodized aluminum surface stands up to daily wear and cleans in seconds.
  • Adjustable thermostat lets you fine-tune holding temps up to 200 °F (93 °C).
  • Illuminated rocker switch gives instant visual confirmation that heat is on.
  • Fiberglass insulation locks heat at the surface, improving efficiency.
  • 0.75" flanged edge and included mounting brackets make drop-in installation fast and secure.
  • 36" (914 mm) flexible conduit connects the shelf to a semi-remote control box for a clean look.
  • Certified NSF, UL, cUL, UL EPH Classified, CE & CSA for worry-free code compliance.

Perfect for

  • Buffets & self-service lines
  • Supermarket delis and grab-&-go stations
  • Convenience stores & cafés
  • Made-to-order display counters

Technical specifications

Overall dimensions (W × D × H) 43.5" × 21" × 2.875" (1105 × 533 × 73 mm)
Usable heated surface 42" × 19.5" (1067 × 495 mm)
Recess depth 0.5" (13 mm)
Counter cut-out Min 42.50" × 20.00" – Max 42.75" × 20.25"
Material Hard-coat anodized aluminum top; stainless steel control enclosure
Electrical (single phase) 120 V - 885 W - 7.4 A – NEMA 5-15P
220 V - 885 W - 4.0 A – CEE 7/7 Schuko
240 V - 885 W - 3.7 A – BS-1363
Conduit length 36" (914 mm) flexible metallic conduit with plug attached
Certifications NSF, UL, cUL, UL EPH Classified, CE, CSA

What’s included

  • Recessed heated shelf module
  • Remote control box with thermostat & illuminated power switch
  • Mounting brackets & hardware
  • Installation and operating manual

Channel dividers and stainless-steel rod inserts are available as factory accessories and sold separately.

Installation note: Mount the control box outside the heated zone. Unit is recommended for metallic countertops; verify other materials can withstand temperatures up to 200 °F (93 °C).

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, UL, UL EPH Classified, CSA

Height

2.88in

Width

43.5in

Depth

21.0in

Shipping Weight

37.0lbs

Heated Shelf Construction

aluminum

Type

built-in

Shelf Width (side - side) OA

43" - 60"

Controls

thermostatic controls

Specifications

Glo-Ray® Drop In Heated Shelf with Recessed Top, 43-1/2" x 21", 1/2" deep recessed surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, NSF, CE, cUL, UL, UL EPH Classified, CSA
