Hatco GRSB-36-I Glo-Ray® Heated Cabinets & Holding Shelves
Description

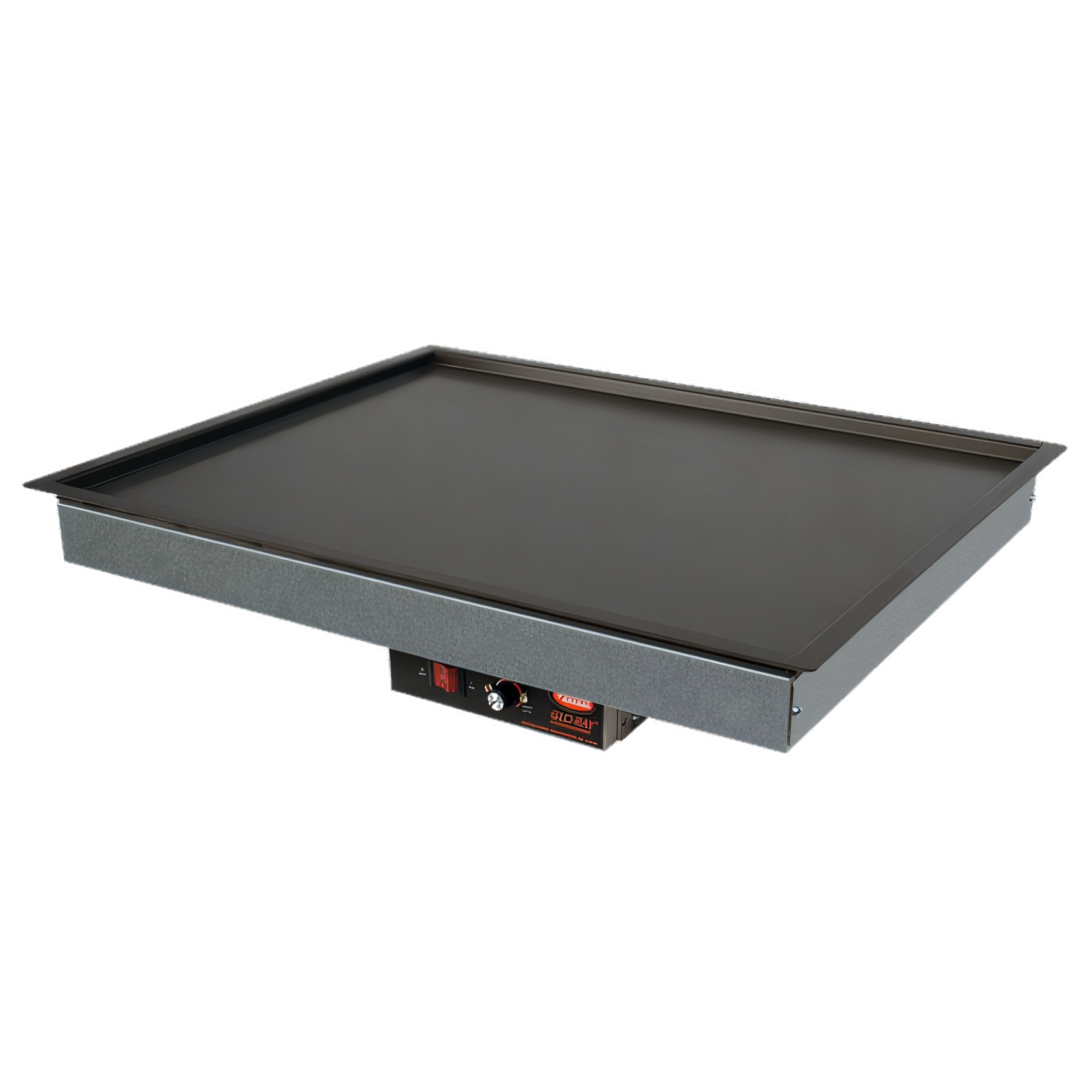

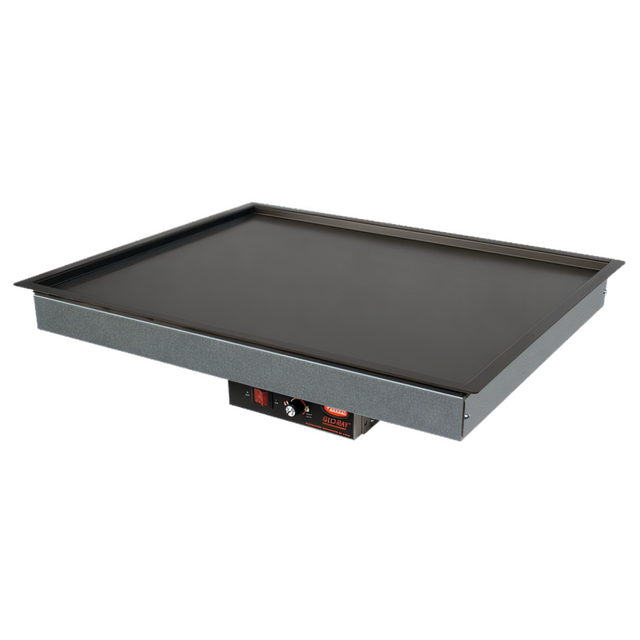

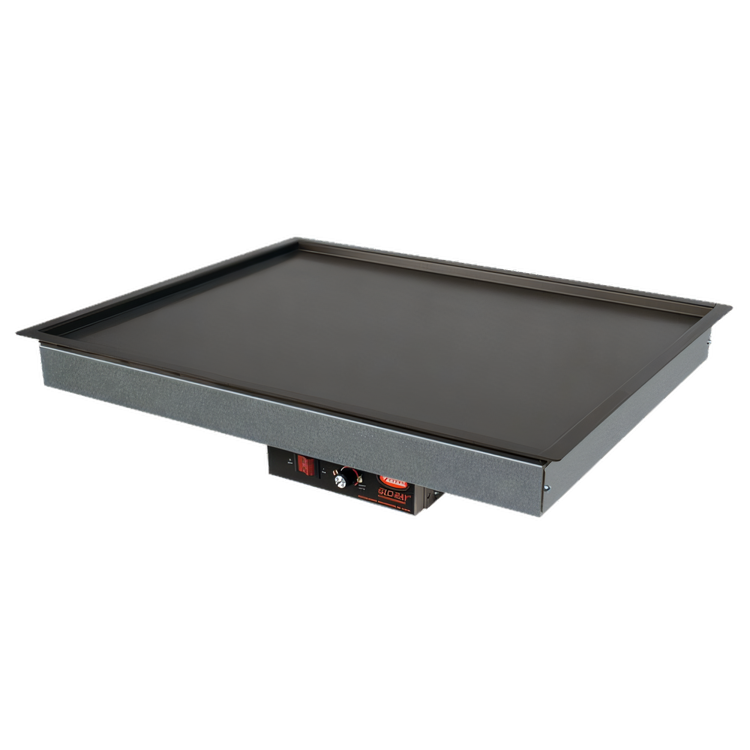

Hatco Glo-Ray® GRSB-36-I Drop-In Heated Shelf
37 ½" W × 21" D • ½" Recessed Top • Hardcoat AluminumKeep entrées, sides and grab-and-go menu items at perfect serving temperature without sacrificing counter space. The Hatco Glo-Ray® GRSB-36-I recessed, drop-in heated shelf delivers uniform, thermostatically-controlled heat across a durable hard-coated aluminum surface—ideal for buffets, cafeterias, pass-through stations and self-serve areas.
Why You’ll Love It

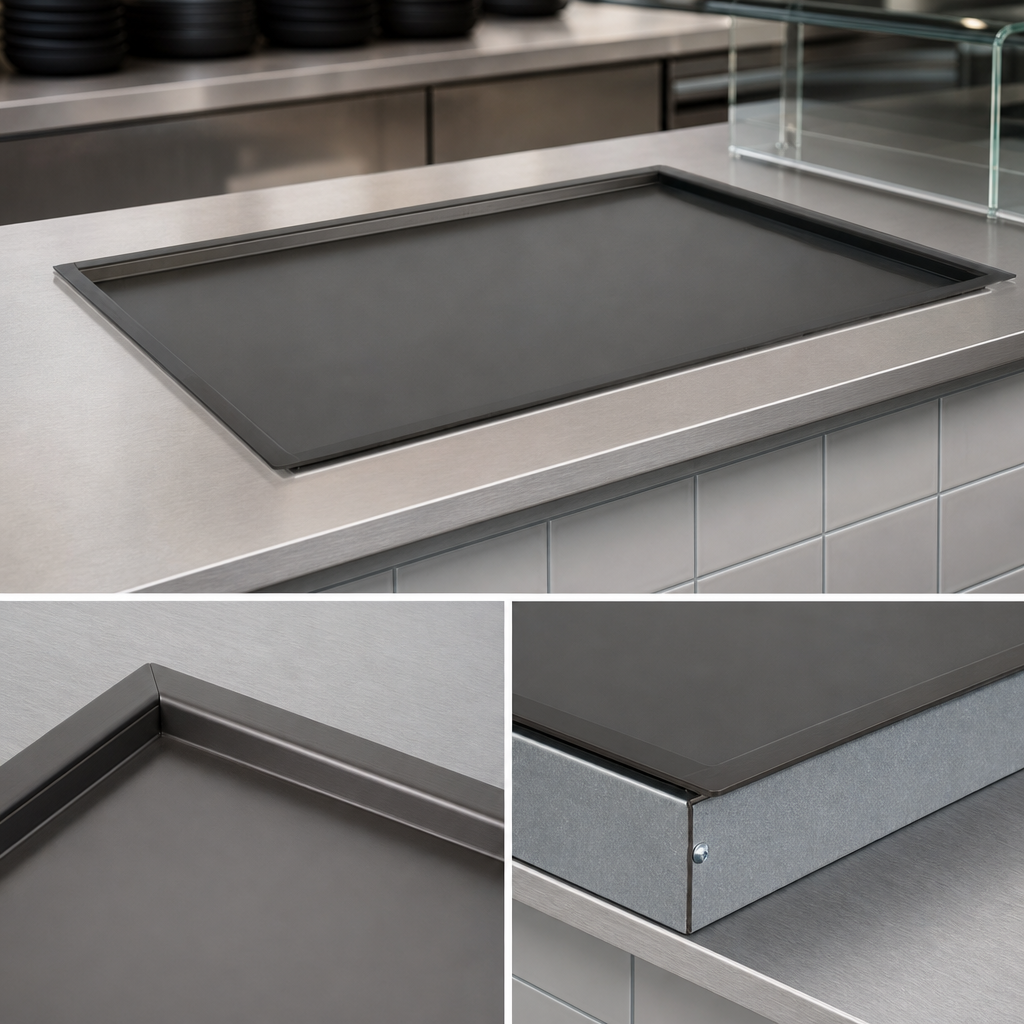

- ½" (13 mm) deep recessed surface keeps plates & pans neatly contained and flush with the counter.
- Blanket-type heating element paired with high-density fiberglass insulation for even heat distribution and maximum efficiency.

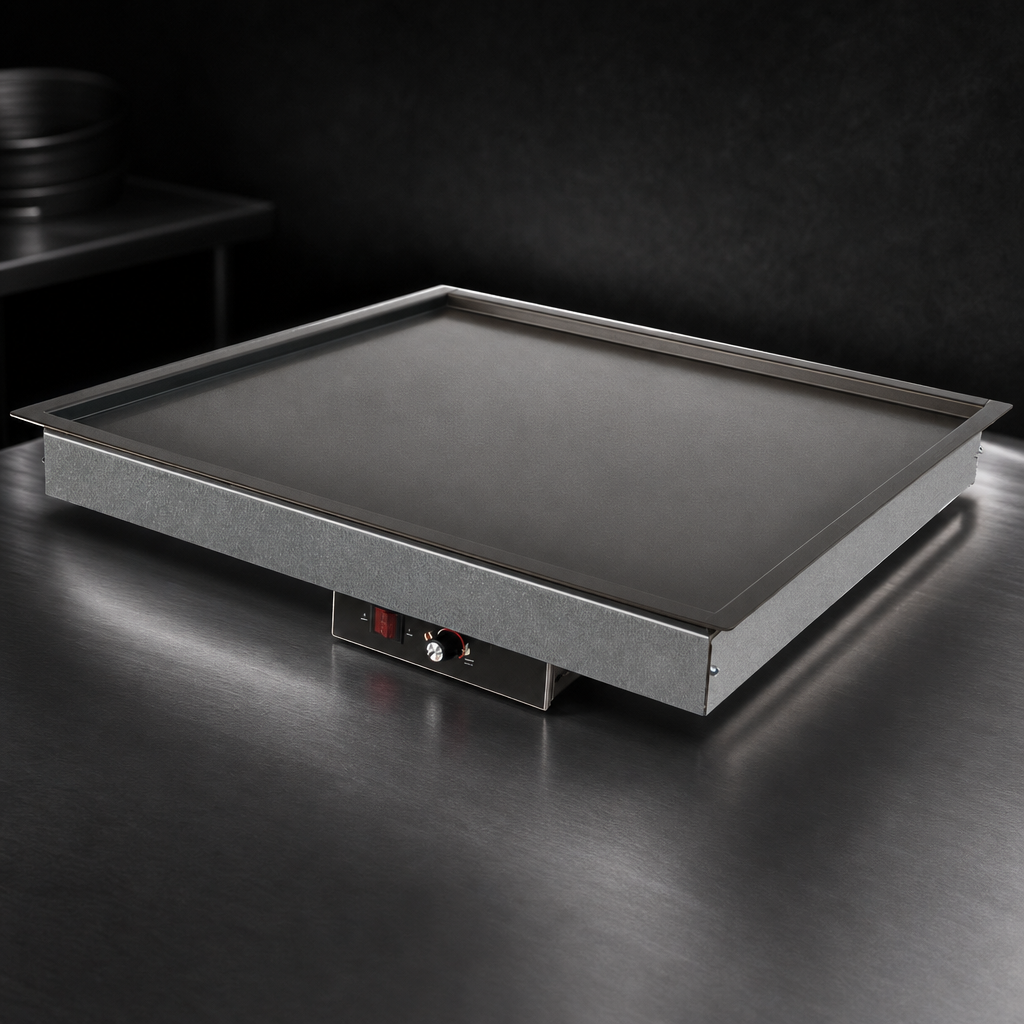

- Hardcoat aluminum top resists scratches, cleans easily and stands up to heavy commercial use.
- Adjustable thermostatic control and illuminated On/Off rocker switch housed in a semi-remote control box (mounting brackets and 36" flexible conduit included).
- Designed for counters up to 1 ¼" (32 mm) thick; ¾" flange simplifies drop-in installation.
- Certified safe and sanitary: NSF, CE, cULus, UL EPH Classified & CSA.
At-a-Glance Specifications
| Model | GRSB-36-I |
|---|---|
| Overall dimensions (W × D × H) | 37 ½" × 21" × 2 ⅞" (953 × 533 × 73 mm) |
| Usable heated area | 36" × 19 ½" (914 × 495 mm) |
| Recess depth | ½" (13 mm) |
| Voltage / Phase | 120 V, single phase • other voltages available (220 V, 240 V) |
| Wattage / Amps (120 V) | 780 W • 6.5 A |
| Power connection | NEMA 5-15P cord & plug (USA 120 V) |
| Ship weight | ≈ 30 lb (14 kg) |
| Construction | Hardcoat aluminum top, aluminized steel housing |
| Included | Control thermostat, illuminated rocker switch, mounting brackets, 36" (914 mm) conduit |
Countertop Cut-Out Requirements
| Width | 36.5" – 36.75" (927 – 933 mm) |
|---|---|
| Depth | 20" – 20.25" (508 – 514 mm) |
| Corner radius | 0" (square cut-out) |
Popular Options (ordered with unit)
- Flush-mount or small flush-mount control boxes (electronic or thermostatic).
- Designer color bezels for the control box—choose from Warm Red, Black, Gray Granite, White Granite, Navy Blue, Hunter Green or Antique Copper.
- Channel dividers (notched) and stainless-steel rods for organized food presentation.
- Longer flexible conduits (6' or 10') for custom installations.
Recommended for installation in metallic countertops. For other surfaces, verify suitability for temperatures up to 200 °F (93 °C). Remote control box must be mounted outside the heat zone.
