Hatco  |  Glo-Ray®  |  SKU: GRSB-36-F

Hatco GRSB-36-F Glo-Ray® Heated Cabinets & Holding Shelves

$1,220.22
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hatco Glo-Ray® Drop-In Heated Shelf – 37 1/2" W x 17" D

Model GRSB-36-F | 0.5" Recessed Hard-Coat Aluminum Top

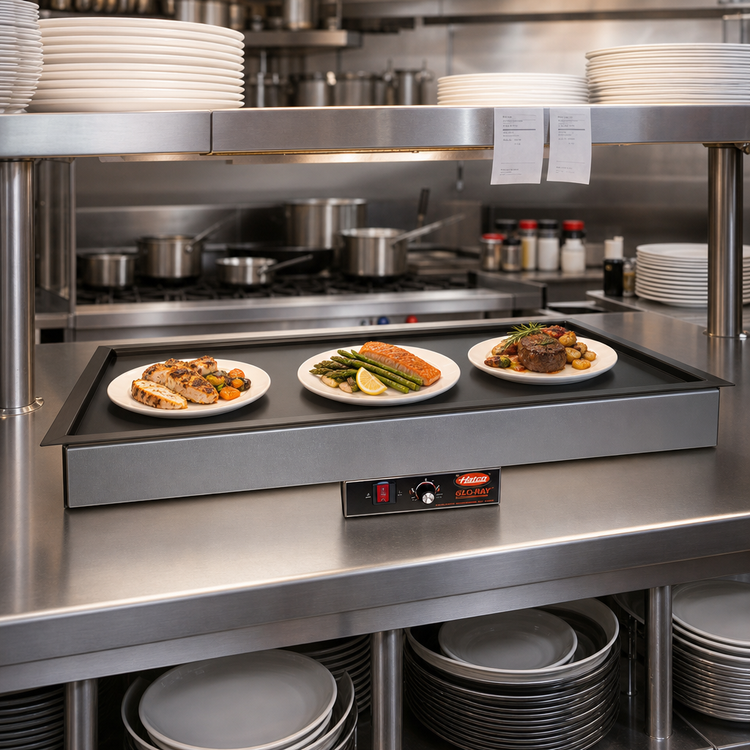

Hold menu items at safe, appetizing temperatures right on the serving line. The Hatco Glo-Ray® recessed heated shelf drops flush into your countertop, delivering even, thermostat-controlled warmth without sacrificing valuable prep or display space.

Key Benefits

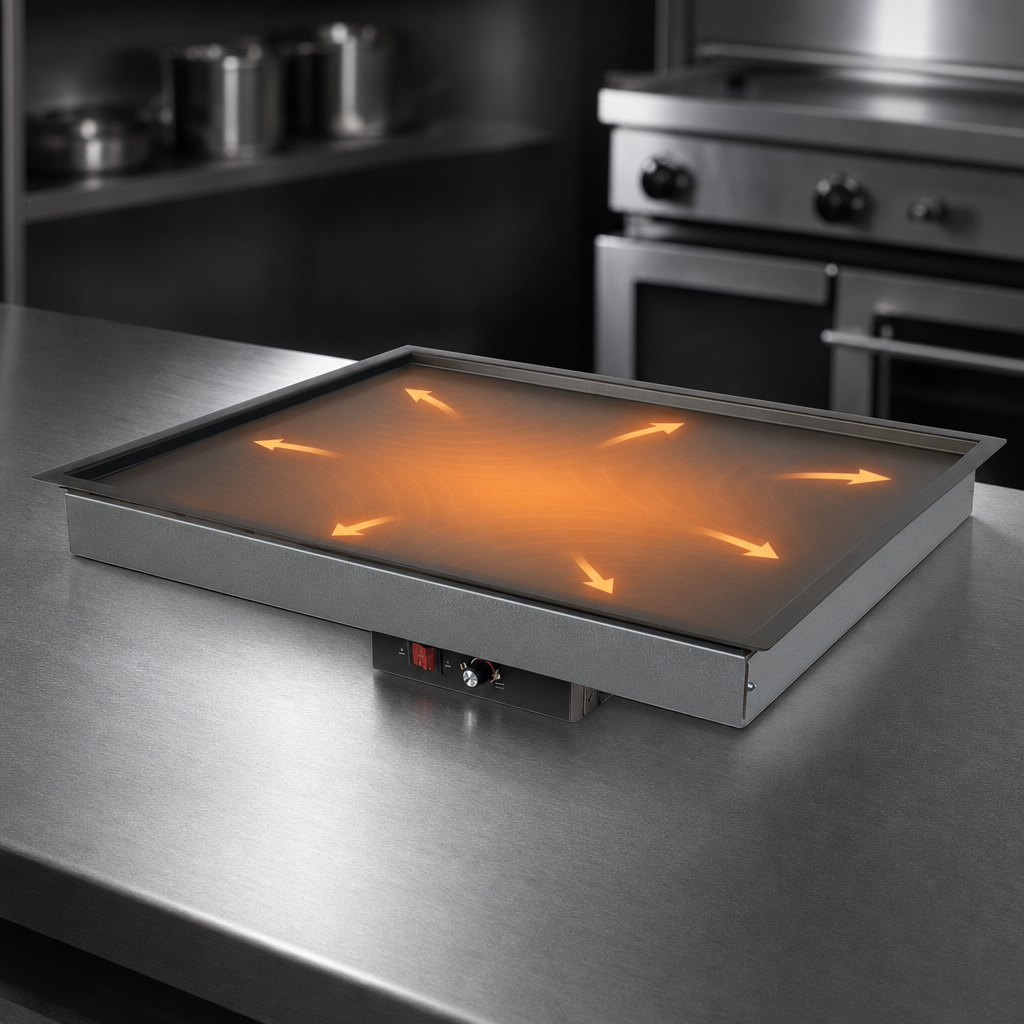

  • Uniform heat distribution from a blanket-type element beneath the hard-coat aluminum surface.

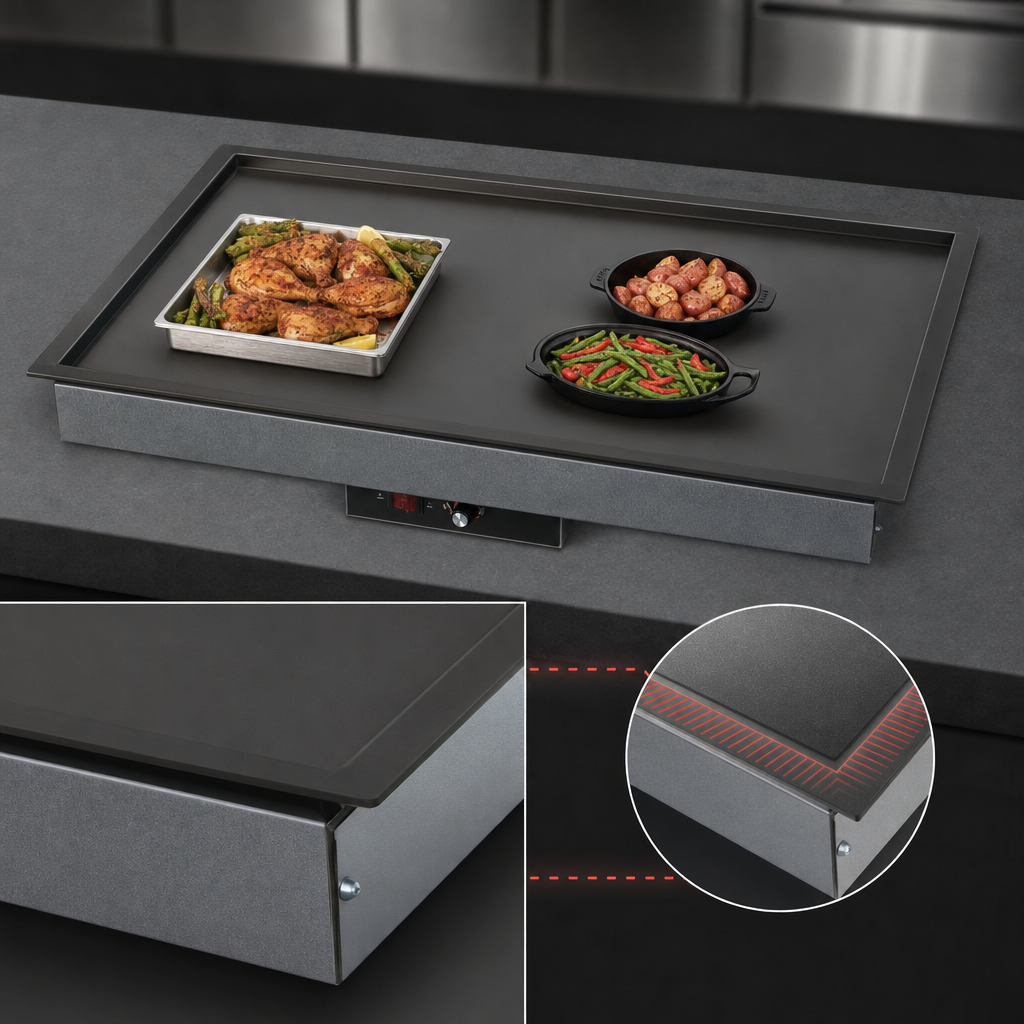

  • .5" (13 mm) recessed top helps prevent product slide-off and contains drips and spills.
  • Built-in adjustable thermostat (up to 200 °F / 93 °C) with illuminated rocker switch for quick, precise control.
  • Fiberglass insulation keeps heat at the holding surface, boosting efficiency and comfort behind the line.
  • 36" (914 mm) flexible conduit and universal brackets let you mount the control box out of the heat zone for easy access.
  • .75" (19 mm) flanged edge creates a clean, flush fit in the counter cut-out.
  • Independent third-party approvals: NSF, UL, UL EPH Classified, cUL, CE & CSA.

Specifications

Exterior Dimensions 37.5" W x 17" D x 2.875" H (953 x 432 x 73 mm)
Usable Heated Area 36" W x 15.5" D (914 x 394 mm)
Recess Depth .5" (13 mm)
Counter Cut-Out 36.5–36.75" W x 16–16.25" D (927–933 mm x 406–413 mm)
Shipping Weight Approx. 26 lb (12 kg)
Electrical (120 V) 590 W | 4.9 A | NEMA 5-15P
Electrical (240 V) 642 W | 2.7 A (UK BS-1363 plug)

Additional international voltages, plugs and designer control-box finishes are available by special order.

Perfect For

  • Buffets & cafeterias
  • C-stores & delis
  • Grab-and-go bakery displays
  • Hotel breakfast bars
  • Supermarket hot food islands
Installation Note: Mount the control box outside the heat zone and verify counter materials are rated for sustained exposure to 200 °F (93 °C). Recommended for use in metallic countertops.

Optional Accessories

  • Notched channel dividers (pairs) for easy product separation.
  • Stainless-steel rods (individual) for elevated display.
  • Designer-color flush-mount control bezels.
  • 6' or 10' flexible conduit in place of the standard 3' length.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, UL, UL EPH Classified, CSA

Height

2.88in

Width

37.5in

Depth

17.0in

Shipping Weight

28.0lbs

Heated Shelf Construction

aluminum

Type

built-in

Shelf Width (side - side) OA

26" - 42"

Controls

thermostatic controls

Specifications

Glo-Ray® Drop In Heated Shelf with Recessed Top, 37-1/2" x 17", 1/2" deep recessed surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, NSF, CE, cUL, UL, UL EPH Classified, CSA
