Hatco  |  Glo-Ray®  |  SKU: GRSB-30-F

Hatco GRSB-30-F Glo-Ray® Heated Cabinets & Holding Shelves

$1,264.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

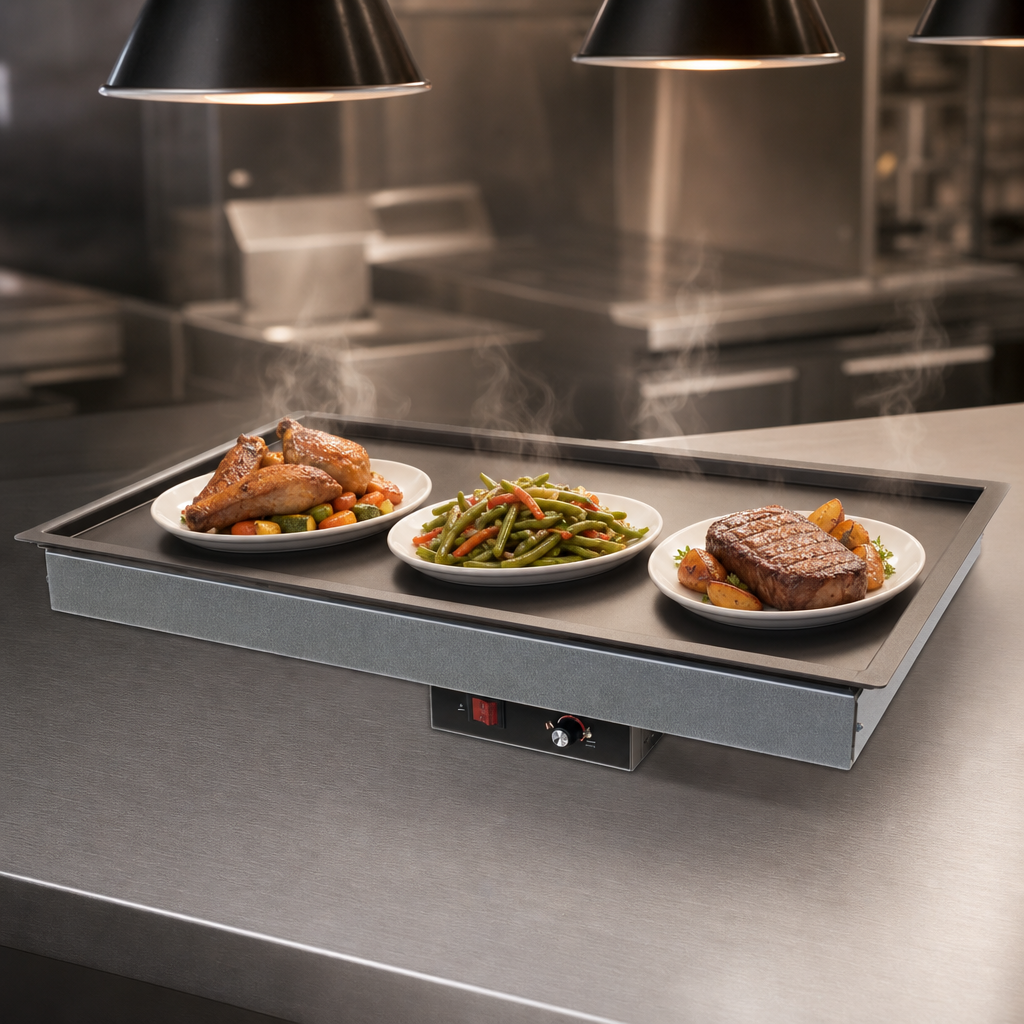

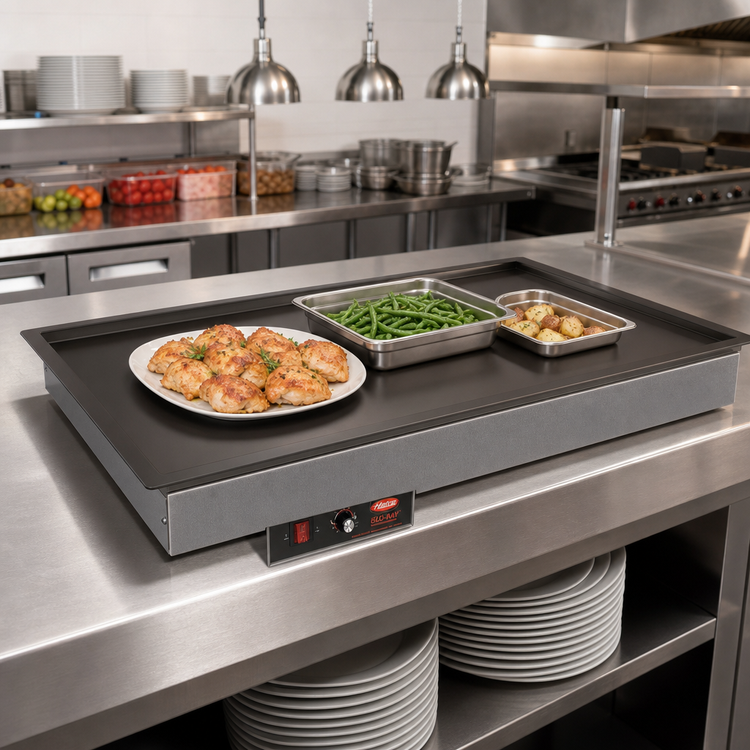

Hatco Glo-Ray® Drop-In Heated Shelf with Recessed Top – 31-1/2" × 17"

Model GRSB-30-F | Hardcoat aluminum, ½" recessed surface

Transform your buffet, expo line, or grab-and-go station into a high-performance hot holding zone. Hatco’s Glo-Ray® GRSB-30-F sits flush inside your countertop, delivering even, blanket-type heat across a durable hard-coat aluminum surface while keeping surrounding areas comfortable and cool. The result? Food that looks and tastes its best for longer – with the clean, built-in aesthetic today’s operations demand.

Why you’ll love it

  • Uniform heat distribution via recessed, blanket-type heating element.

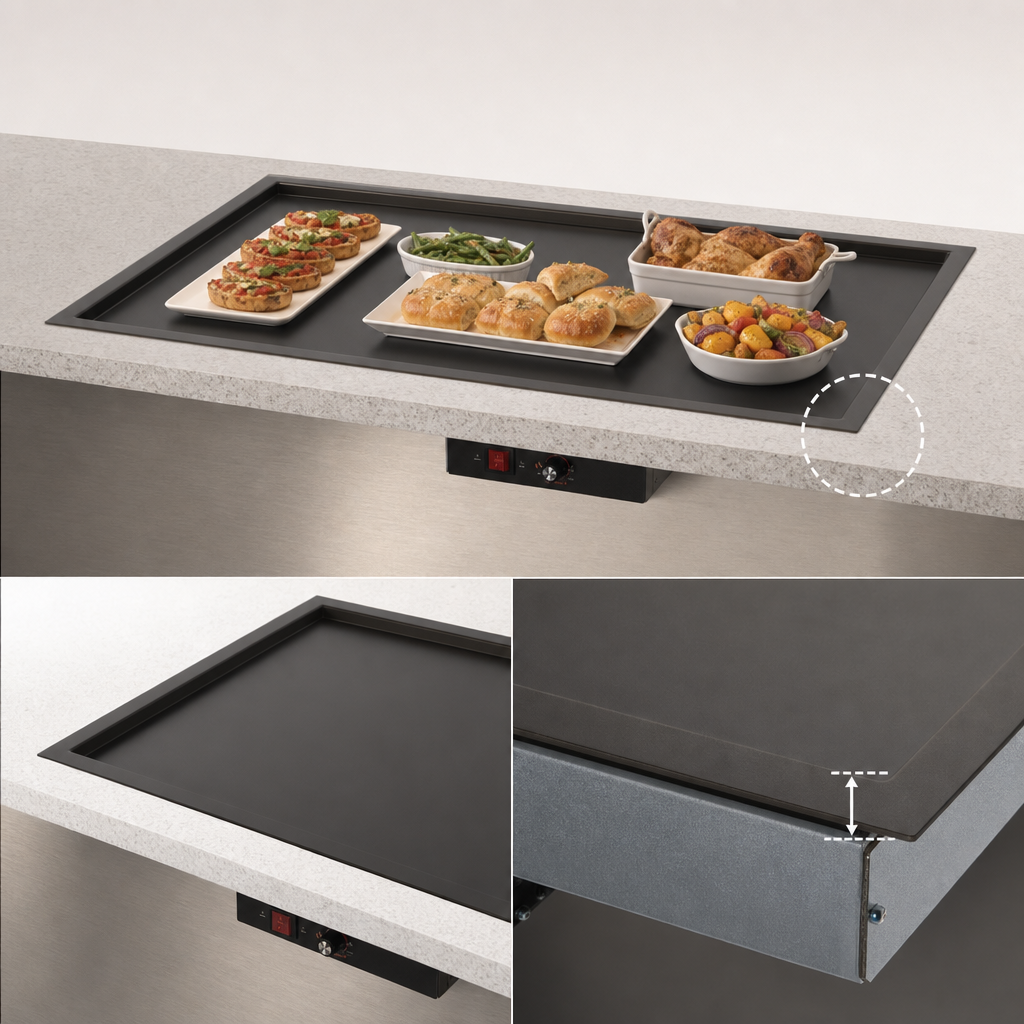

  • 0.5" (13 mm) deep recess prevents spills and keeps pans from sliding.
  • Field-adjustable thermostat (up to ≈200 °F / 93 °C) for precise holding control.
  • Illuminated on/off rocker switch for at-a-glance power status.
  • 36" (914 mm) flexible conduit with pre-wired control box & universal mounting brackets – install exactly where you need it.
  • High-performance fiberglass insulation keeps heat on the food, not in your counter.
  • Hardcoat aluminum top stands up to heavy commercial use and wipes clean fast.
  • Fully certified – NSF, UL, UL EPH Classified, cUL, CSA & CE – for worry-free code compliance.

At-a-glance specs

Overall dimensions (W × D × H) 31.5" × 17" × 2.875" (800 × 432 × 73 mm)
Usable heated area 30" × 15.5" (762 × 394 mm)
Recess depth 0.5" (13 mm)
Surface material Hardcoat aluminum
Control type Thermostat with illuminated power switch
Electrical (standard) 120 V, 505 W, 4.2 A, NEMA 5-15P (single-phase)
Alternate voltages 220 V (462 W) • 240 V (550 W) – contact us for details
Ship weight ≈ 25 lb (11 kg)
Certifications NSF • UL • UL EPH • cUL • CSA • CE

Popular accessories

  • Channel dividers (notched, pair) – keeps menu items separated.
  • Stainless-steel rods – elevate product for enhanced air flow.
  • Flush-mount ITC or thermostatic control boxes (designer colors available).
Installation note: • Designed for countertops up to 1-1/4" (32 mm) thick.
• Remote control box must be mounted outside the heat zone.
• For non-metallic surfaces confirm material is rated to ≥ 200 °F (93 °C).

Need a different size? Glo-Ray® recessed shelves are available in widths from 24" to 72" – just ask!

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, UL, UL EPH Classified, CSA

Height

2.88in

Width

31.5in

Depth

17.0in

Shipping Weight

25.0lbs

Heated Shelf Construction

aluminum

Shelf Width (side - side) OA

26" - 42"

Type

built-in

Controls

thermostatic controls

Specifications

Glo-Ray® Drop In Heated Shelf with Recessed Top, 31-1/2" x 17", 1/2" deep recessed surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, NSF, CE, cUL, UL, UL EPH Classified, CSA
