Hatco  |  Glo-Ray®  |  SKU: GRSB-24-O

Hatco GRSB-24-O Glo-Ray® Heated Cabinets & Holding Shelves

$1,175.03
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Color chart Catalog brochure
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

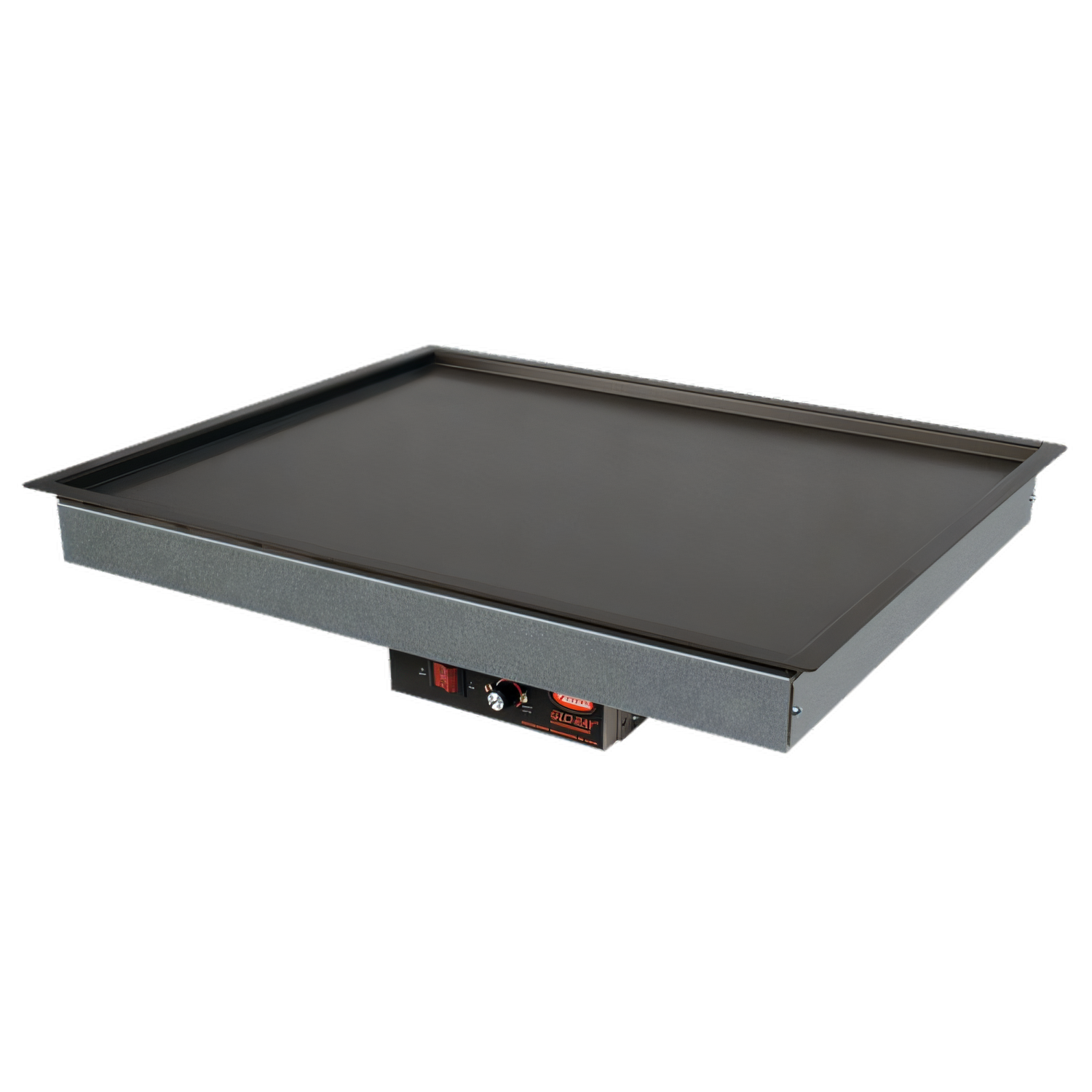

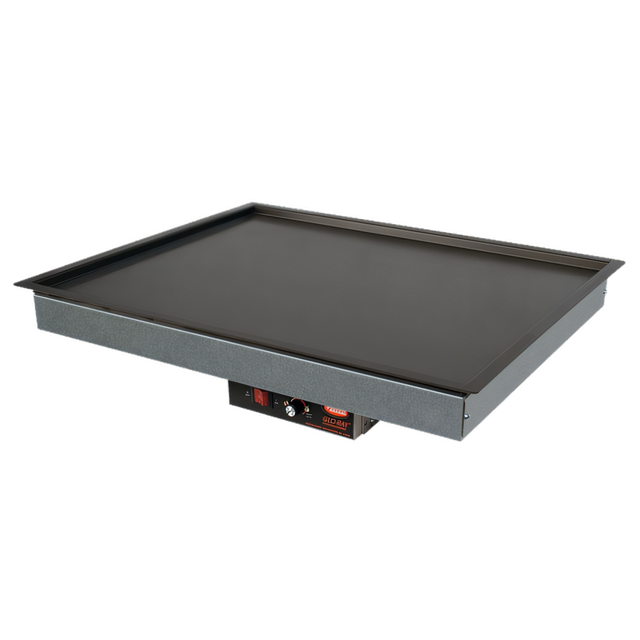

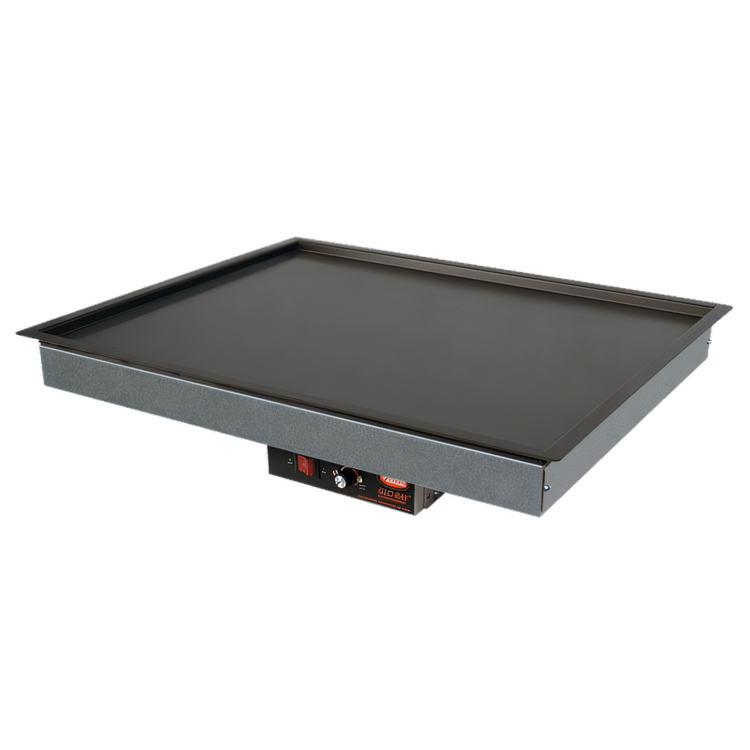

Hatco Glo-Ray® Drop-In Heated Shelf – 25-1/2" × 31-1/2"

Model GRSB-24-O | Recessed Top, Hardcoat Aluminum Surface

Add dependable hot holding power to any counter or buffet line. The Hatco Glo-Ray® GRSB-24-O keeps entrées, sides, and grab-and-go foods at safe, appetizing temperatures with uniform, thermostat-controlled heat across a spacious 24" × 30" surface.

Top Benefits

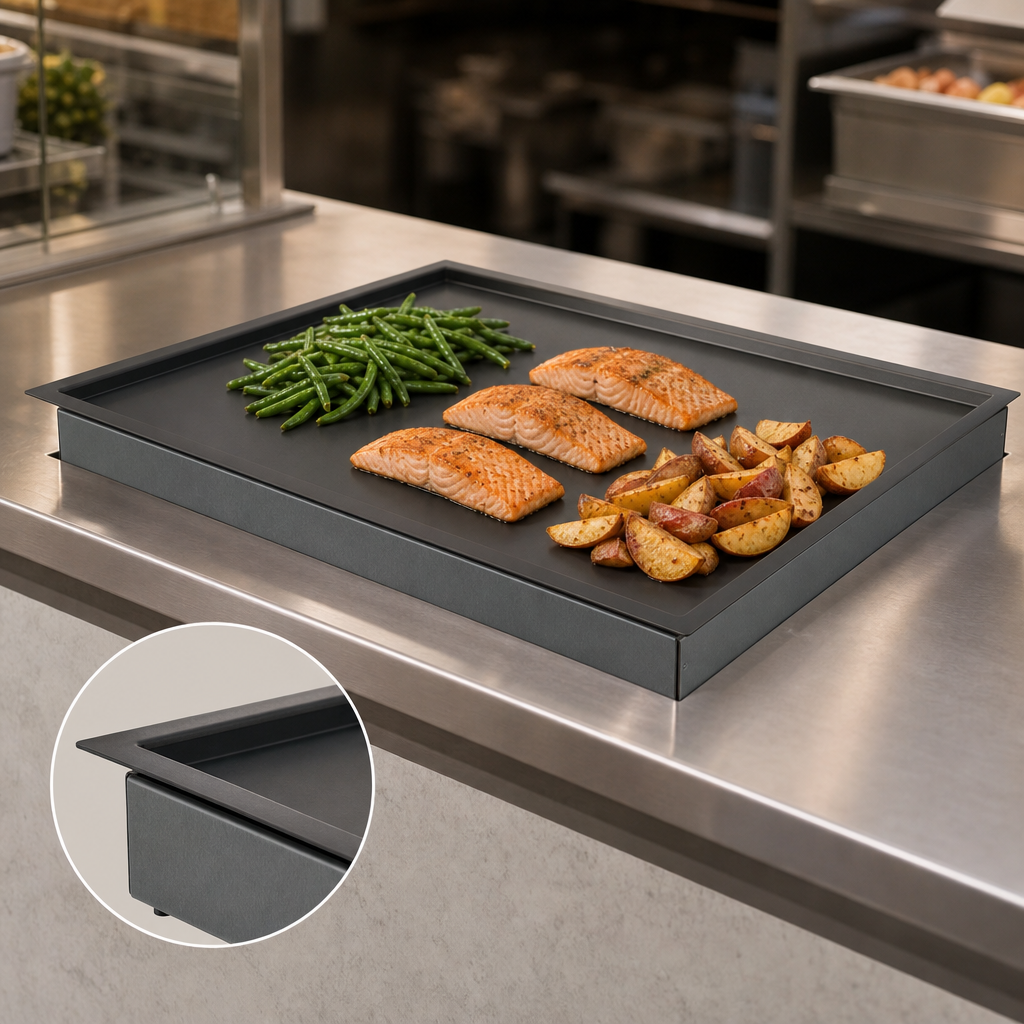

  • 0.5" (13 mm) recessed top cradles pans and trays, minimizing heat loss and product movement.

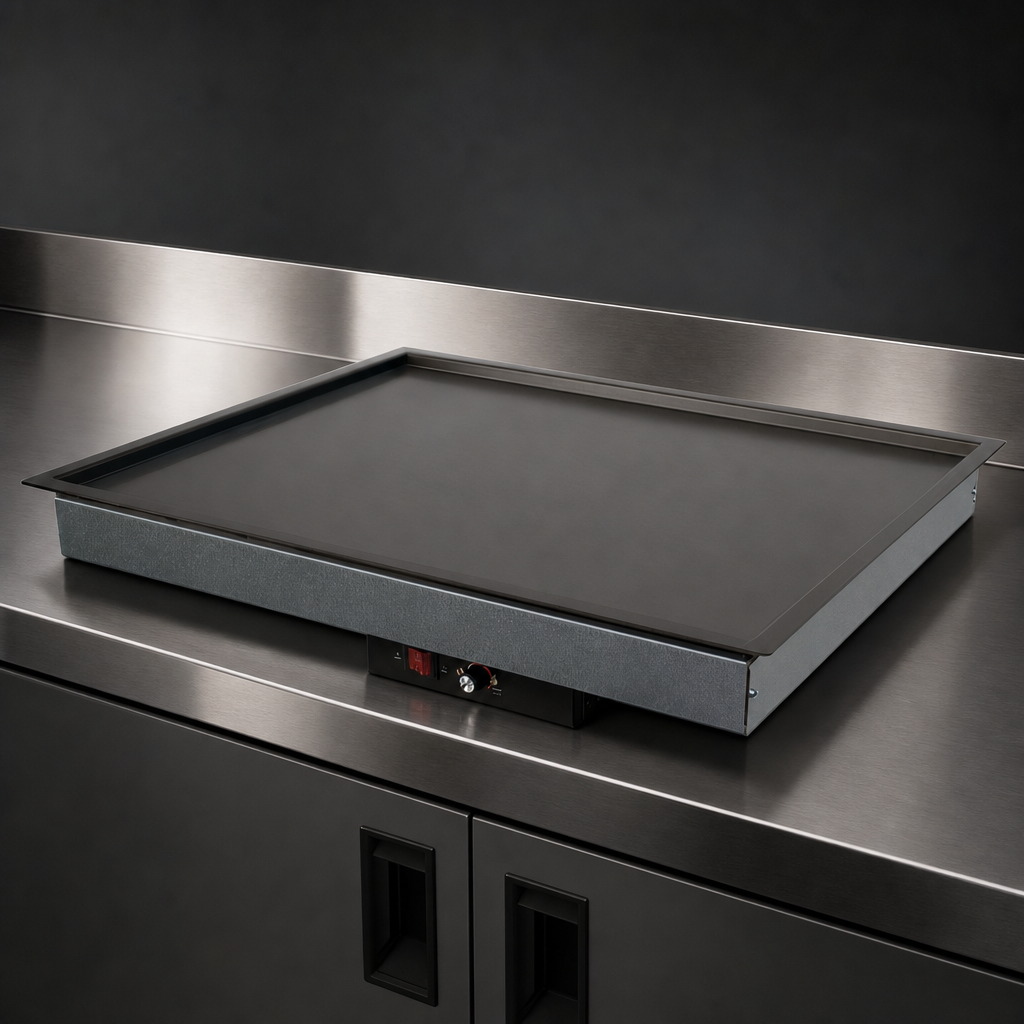

  • Hardcoat aluminum surface and blanket-type element distribute heat evenly from edge to edge.
  • Built-in thermostat with illuminated rocker switch provides precise, intuitive temperature control.
  • Fiberglass insulation directs heat to the food—not your counter—for better energy efficiency.
  • Includes universal mounting brackets and a 36" (914 mm) flexible conduit for semi-remote control-box placement.
  • Certified NSF, UL, UL EPH, cUL, CE & CSA for worry-free code compliance worldwide.

Ideal Applications

  • Buffet & cafeteria service lines
  • Hotel breakfast bars
  • Convenience-store grab-and-go stations
  • Pass-through & expo counters

Technical Specifications

Overall dimensions (W × D × H) 25.5" × 31.5" × 2.875" (648 × 800 × 73 mm)
Usable heated area 24" × 30" (610 × 762 mm)
Recess depth 0.5" (13 mm)
Surface material Hardcoat aluminum
Voltage options 120 V, 220 V, 240 V, 220-230 V (CE), 230-240 V (CE) – single-phase
Wattage / amps 790 W / 6.6 A (120 V)  |  722 W / 3.3 A (220 V)  |  860 W / 3.4 A (240 V)
Control interface Infinite thermostat & illuminated rocker switch
Electrical connection 36" (914 mm) flexible conduit with appropriate plug (see voltage)
Certifications NSF, UL, UL EPH, cUL, CE, CSA
Shipping weight 33 lb (15 kg)
Included hardware Mounting brackets, control box & conduit

Optional Accessories

  • Notched channel dividers for pan organization
  • Stainless-steel rods for enhanced airflow under foods
  • Designer-color flush-mount control bezels
  • 6' or 10' conduit extensions for remote installations
Installation Note: Mount the control box outside the heat zone to prevent damage. Recommended for metallic countertops; verify any surface can withstand 200 °F (93 °C) and is no more than 1-1/4" (32 mm) thick.

Need overhead heat? Pair with a Hatco GRA-30 or GR2A-30 strip heater for complete top-to-bottom holding power.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, UL, UL EPH Classified, CSA

Height

2.88in

Width

25.5in

Depth

31.5in

Shipping Weight

33.0lbs

Heated Shelf Construction

aluminum

Controls

thermostatic controls

Shelf Width (side - side) OA

12" - 25"

Type

built-in

Specifications

Glo-Ray® Drop In Heated Shelf with Recessed Top, 25-1/2" x 31-1/2", 1/2" deep recessed surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, NSF, CE, cUL, UL, UL EPH Classified, CSA
