Hatco GRSB-24-I Glo-Ray® Heated Cabinets & Holding Shelves
Description
Hatco Glo-Ray® GRSB-24-I Drop-In Heated Shelf with ½" Recess
25.5" W × 21" D hard-coat aluminum top – 550 W thermostatic controlAdd dependable holding power to any serving counter, buffet, or pass-thru line with the Hatco Glo-Ray® GRSB-24-I recessed heated shelf. A blanket-style element beneath the hard-coat aluminum surface delivers uniform, gentle heat that keeps menu items fresh and appetizing without hot spots or product dehydration.
Key advantages

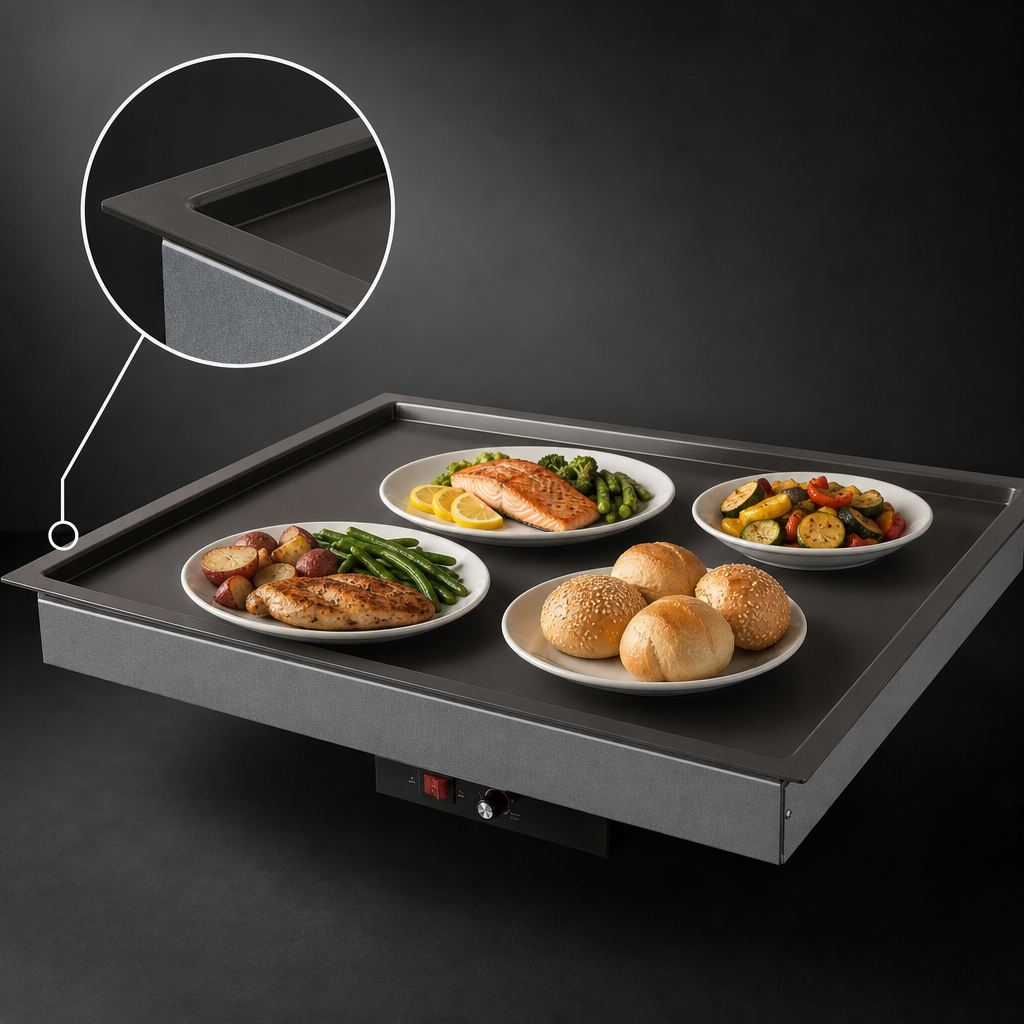

- ½" (13 mm) recessed surface prevents spills and keeps pans securely in place.

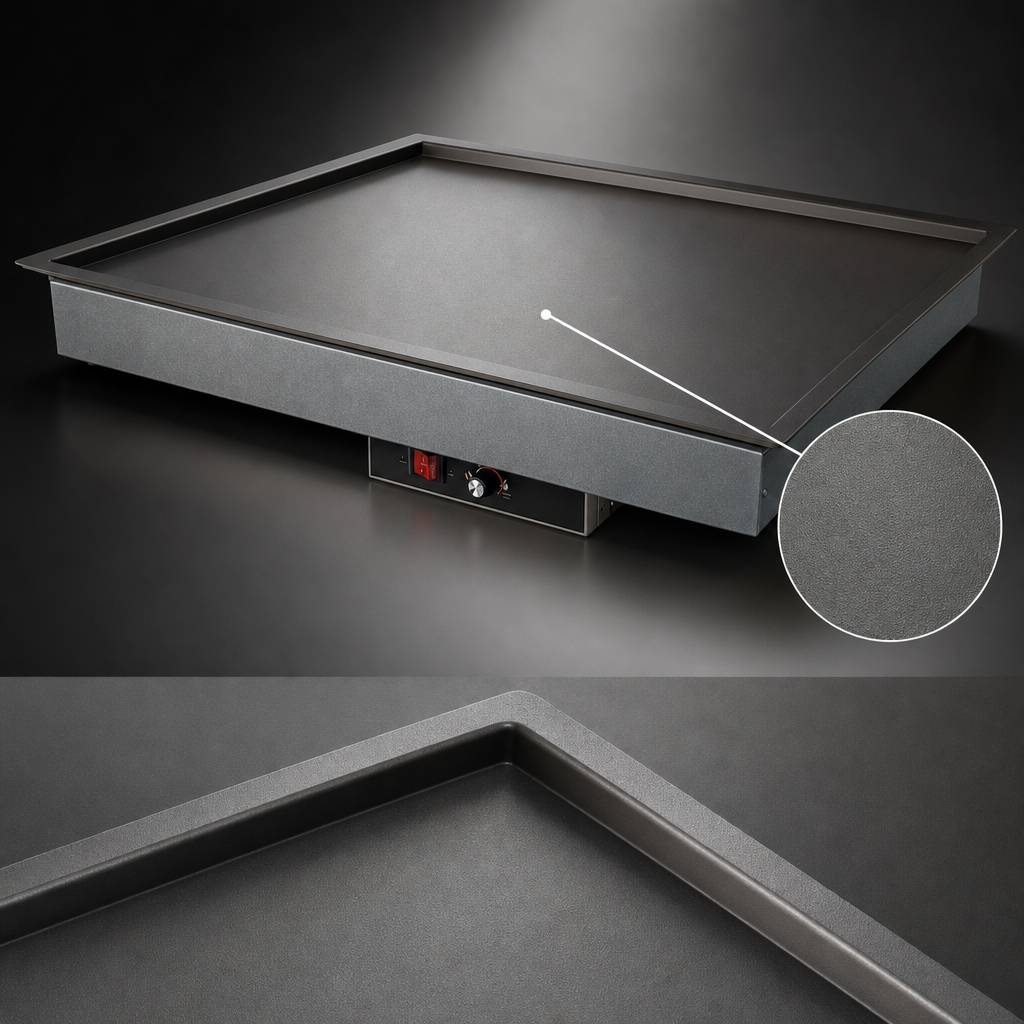

- Hard-coat aluminum top resists scratching and cleans up fast.
- Blanket-type heating element provides even heat across the entire 24" × 19.5" usable area.
- Adjustable thermostat (up to 200 °F / 93 °C) with lighted rocker switch for at-a-glance status.
- 36" (914 mm) flexible, factory-wired conduit and universal mounting brackets for simple semi-remote control box installation.
- Fully insulated with fiberglass to keep heat at the holding surface, not in your counter.
- 0.75" flanged edge drops neatly into the countertop cut-out for a flush, professional look.
- Certified safe & sanitary – NSF, UL, UL EPH Classified, cUL, CSA & CE.
At-a-glance specs
| Model | GRSB-24-I |
|---|---|
| Overall dimensions | 25.5" W × 21" D × 2.875" H (648 × 533 × 73 mm) |
| Usable heated area | 24" W × 19.5" D (610 × 495 mm) |
| Countertop cut-out | 24.5–24.75" W × 20–20.25" D (622–629 × 508–514 mm) |
| Surface recess | 0.5" (13 mm) deep |
| Construction | Hard-coat aluminum top, stainless control box bezel |
| Temperature control | Thermostatic, knob adjustable |
| Electrical |
120 V / 550 W / 4.6 A / NEMA 5-15P 220 V / 550 W / 2.5 A / CEE 7/7 Schuko 240 V / 550 W / 2.3 A / BS-1363 |
| Shipping weight | Approx. 28 lb (13 kg) |
| Certifications | NSF • UL • UL EPH • cUL • CSA • CE |
| Warranty | 24/7 parts & service support (U.S. & Canada) |
Factory options & accessories
- Flush-mount or small flush-mount control boxes (thermostatic or electronic ITC).
- Designer powder-coat bezel colors: Warm Red, Black, Gray Granite, White Granite, Navy Blue, Hunter Green, Antique Copper.
- Channel dividers (notched, pairs) – organize pans for precise portion control.
- Stainless-steel horizontal rods – slide-in separator bars.
- Extended conduit lengths: 6' (1829 mm) or 10' (3048 mm).
Looking for a coordinated overhead warmer? Pair this shelf with the next-size-up Hatco Glo-Ray® GRA-36 or GR2A-36 strip heater for optimal top-to-bottom holding performance.
