Hatco

Hatco Glo-Ray Built-In Rectangular Heated Shelf with Recessed Top, 24-Inch x 19.5-Inch, 120V

SKU: GRSB-24-I-120QS
$1,092.85
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Hatco Glo-Ray Built-In Rectangular Heated Shelf with Recessed Top, 24-Inch x 19.5-Inch, 120V

Hardcoat aluminum surface with thermostatic control

A low-profile built-in heated shelf that keeps plated foods hot with uniform heat, thermostatic control, and a durable recessed serving surface.

  • Built-in rectangular heated shelf designed to recess cleanly into a countertop opening.
  • 1/2-inch recessed top and hardcoat aluminum surface provide a durable, low-profile serving area.
  • Blanket-type heating element and fiberglass insulation help deliver uniform heat and retain warmth.
  • Adjustable thermostat and illuminated on/off switch make operation simple and easy to monitor.
  • 24-inch x 19.5-inch usable shelf area fits compact serving and holding stations.
  • Includes mounting brackets; recommended for metallic countertops and counters up to 1.25 inches thick.

Overall Dimensions:

25.5"W x 21.0"D x 2.88"H

Product Weight:

28.0 lb

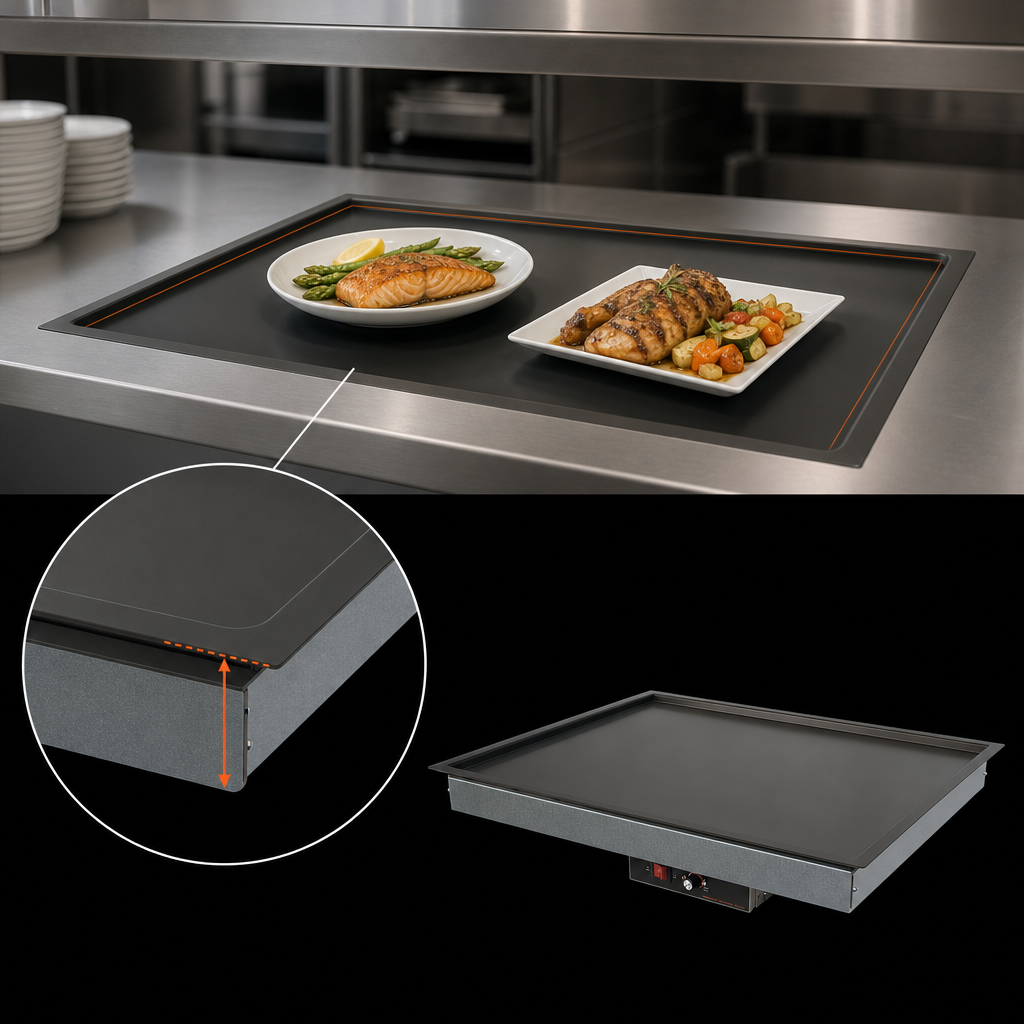

Recessed Top Design

The 1/2-inch recessed surface helps keep plates and trays stable while creating a clean, built-in presentation.

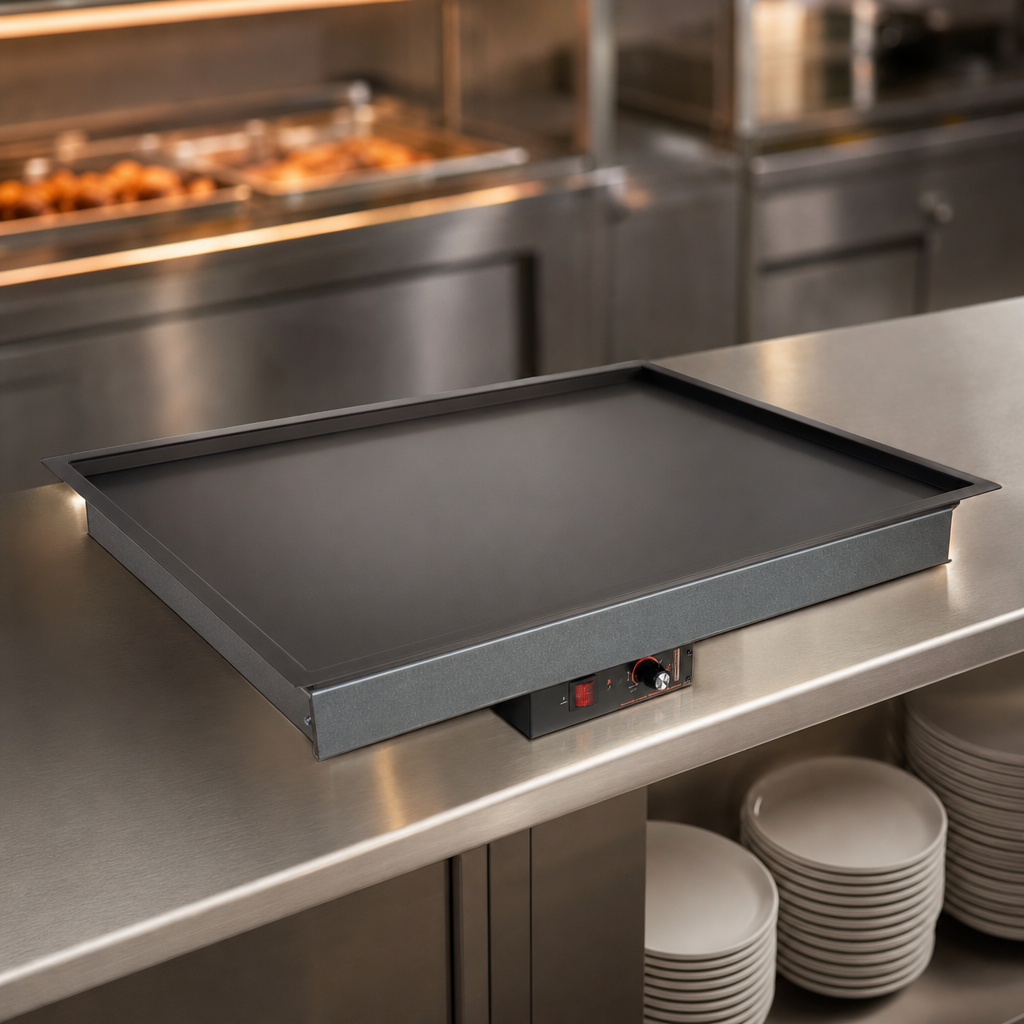

Hardcoat Aluminum Surface

The aluminum top is built for durability and even heat distribution across the holding area.

Thermostatic Control

An adjustable thermostat lets operators maintain the desired holding temperature.

Illuminated On/Off Switch

The lighted rocker switch provides clear power status at a glance.

Mounting Brackets Included

Included brackets support straightforward built-in installation.

Fiberglass Insulation

Insulation helps retain heat at the holding surface for improved efficiency.

Countertop Fit

A .75-inch flanged edge allows the unit to fit into a countertop opening; recommended for metallic countertops and counters up to 1.25 inches thick.

Type Heated Shelf
Style Rectangular
Installation Type Built-In
Material Aluminum
Controls Thermostatic
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Watts 550 Watts
Amps 4.6 Amps
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 26 Inches
Shipping Depth 21 Inches
Shipping Height 3 Inches
Shipping Weight 28 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

24/7 parts and service assistance

Frequently Asked Questions

For the GRSB-24-I, the countertop cutout is 24.5 to 24.75 inches wide and 20 to 20.25 inches deep.
It operates on 120 volts, 60 Hz, single phase, and draws 4.6 amps at 550 watts.
Yes. Standard control includes a thermostat, lighted rocker switch, and mounting brackets.
Hatco recommends use on metallic countertops. For other surfaces, verify the material is suitable for temperatures up to 200°F.
Notched channel dividers and stainless steel rods are available for compatible GRSB models.
