Hatco  |  Glo-Ray®  |  SKU: GRSB-24-F

Hatco GRSB-24-F Glo-Ray® Heated Cabinets & Holding Shelves

$1,077.57
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Color chart Parts list Catalog brochure
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

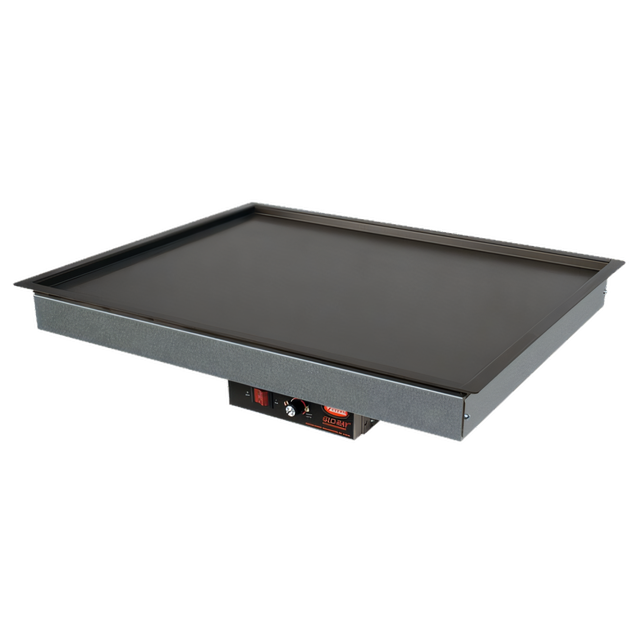

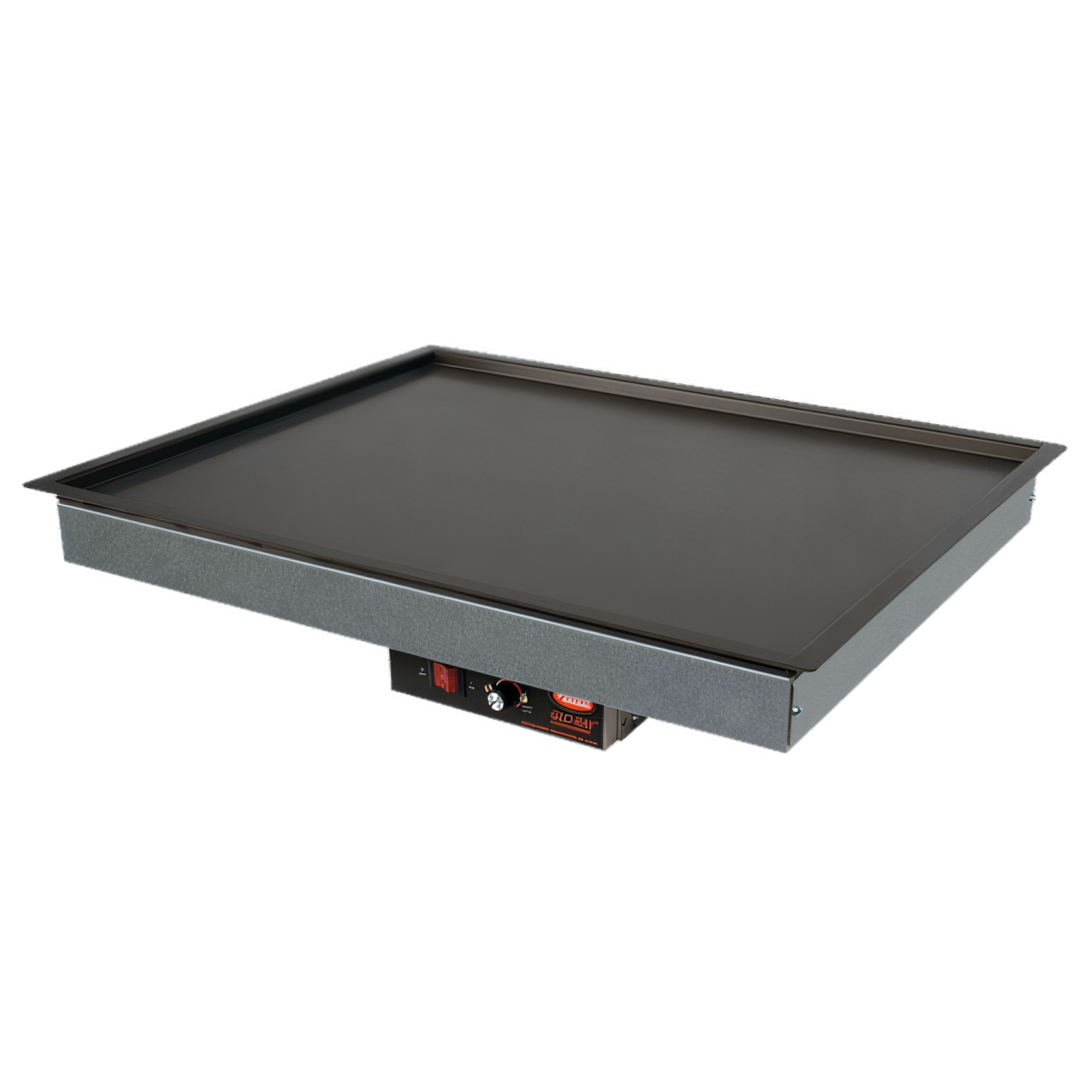

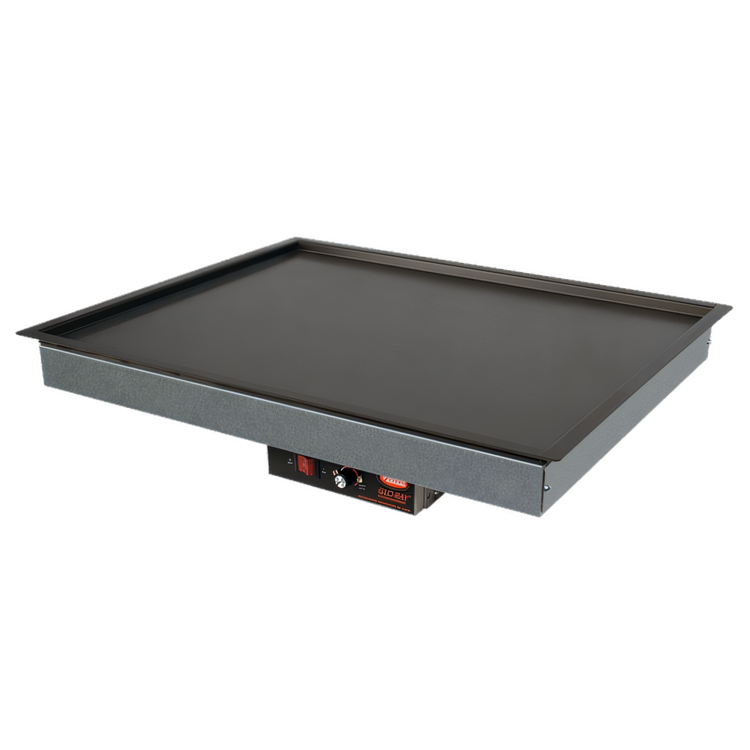

Hatco Glo-Ray® GRSB-24-F Drop-In Heated Shelf

25-1/2" W × 17" D hardcoat aluminum with ½" recessed top

Give every plate the just-made taste customers crave. The Hatco Glo-Ray® GRSB-24-F built-in heated shelf delivers uniform, thermostatically-controlled heat across a durable hard-coat aluminum surface—perfect for hot bars, grab-and-go counters or made-to-order stations.

Key benefits

  • Blanket-type heating element covers the entire surface—no cold corners.

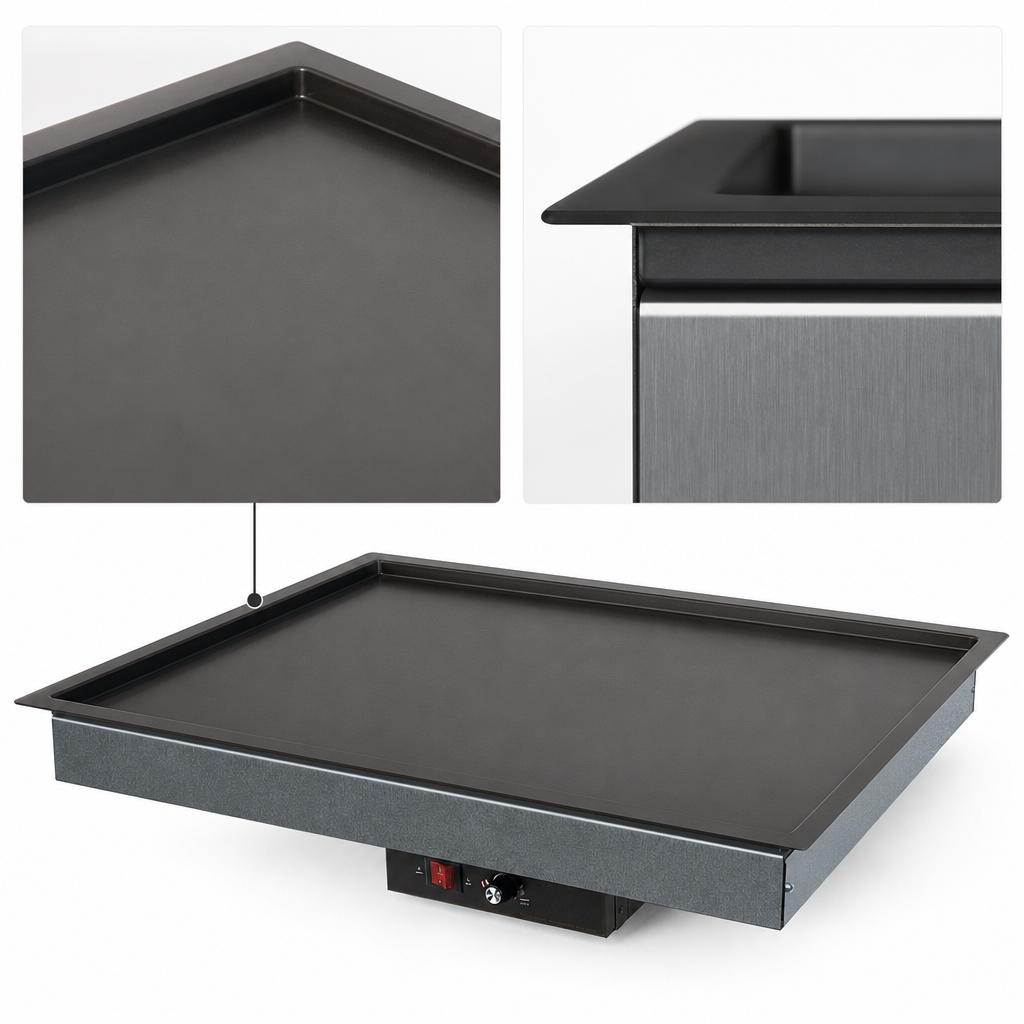

  • ½" (13 mm) recessed top keeps pans and packaging neatly contained.

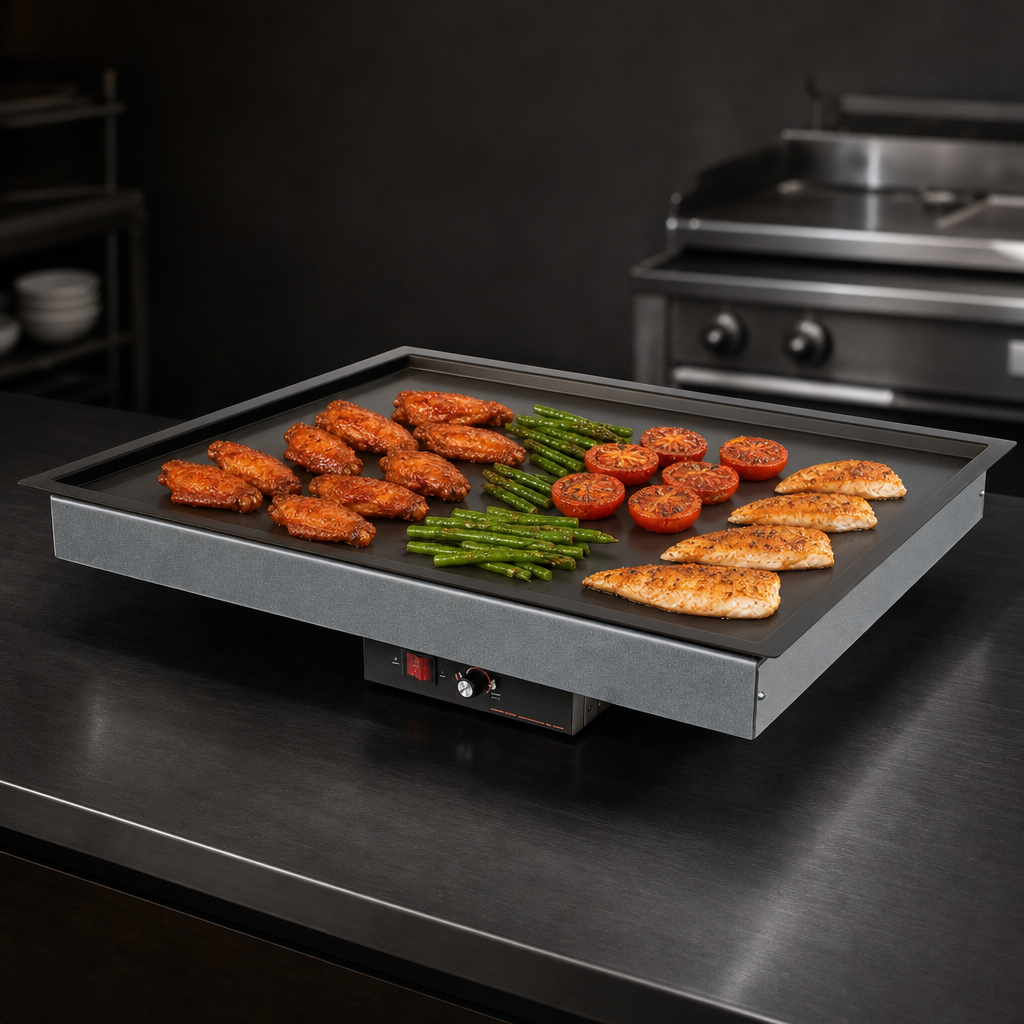

  • Hard-coat aluminum resists scratches and wipes clean in seconds.
  • Adjustable thermostat with illuminated On/Off rocker switch for simple, precise control.
  • Fiberglass insulation focuses heat on food, not your countertop.
  • Ships with 36" (914 mm) flexible conduit, control box and universal mounting brackets for semi-remote installation.
  • Full food-service approvals: NSF, UL, UL EPH Classified, cUL, CE & CSA.

Specifications

Model GRSB-24-F
Exterior size 25.5" W × 17" D × 2.875" H (648 × 432 × 73 mm)
Usable heated area 24" W × 15.5" D (610 × 394 mm)
Recess depth 0.5" (13 mm)
Material Hard-coat aluminum with ¾" (19 mm) flanged edge
Thermostat range Ambient to approx. 200 °F (93 °C)
Electrical (single phase) 120 V – 420 W / 3.5 A
220 V – 384 W / 1.7 A
240 V – 458 W / 1.9 A
Standard plug 120 V: NEMA 5-15P  |  220 V: CEE 7/7 Schuko  |  240 V: BS-1363
Ship weight Approx. 25 lb (11 kg)
Counter cut-out 24.5"–24.75" W × 16"–16.25" D × up to 1.25" thick (622–629 × 406–413 mm)
Certifications NSF, UL, UL EPH Classified, cUL, CE, CSA

Optional accessories

  • Notched channel dividers (pair) for organizing multiple menu items.
  • Stainless-steel horizontal rods for pan support.
  • Designer-color or flush-mount control boxes with 6' or 10' conduit.
Installation note: Mount the control box outside the heat zone. Hatco recommends use in metallic countertops; confirm alternative materials can withstand temperatures up to 200 °F (93 °C).

Need another size? Glo-Ray® recessed shelves are available from 24" to 72" wide—search “GRSB” for the full line.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, UL, UL EPH Classified, CSA

Height

2.88in

Width

25.5in

Depth

17.0in

Shipping Weight

25.0lbs

Heated Shelf Construction

aluminum

Controls

thermostatic controls

Shelf Width (side - side) OA

12" - 25"

Type

built-in

Specifications

Glo-Ray® Drop In Heated Shelf with Recessed Top, 25-1/2" x 17", 1/2" deep recessed surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, NSF, CE, cUL, UL, UL EPH Classified, CSA
