Hatco  |  Glo-Ray®  |  SKU: GRS-66-I

Hatco GRS-66-I Glo-Ray® Heated Cabinets & Holding Shelves

$1,055.79
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Color chart Owner's manual Parts list Catalog brochure
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

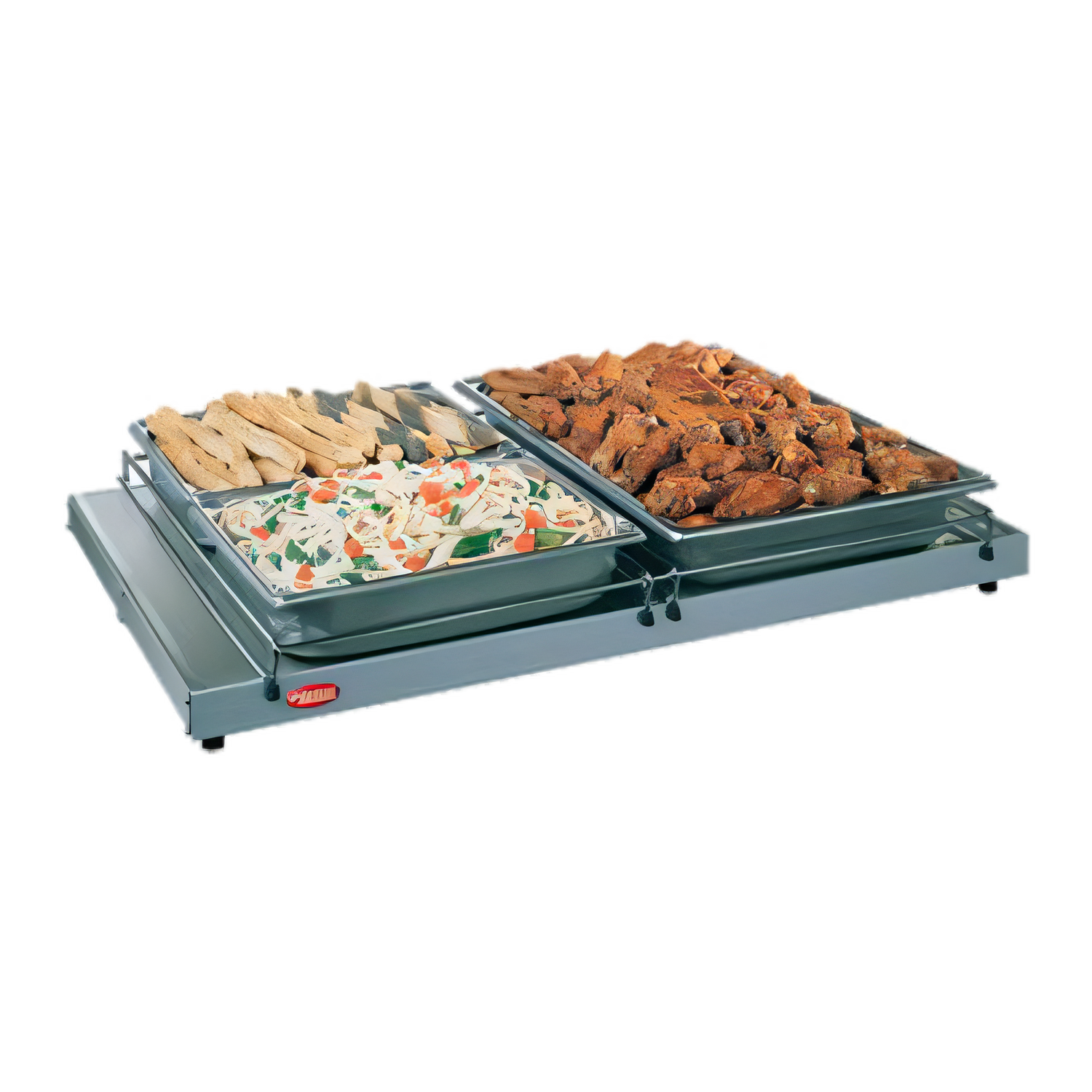

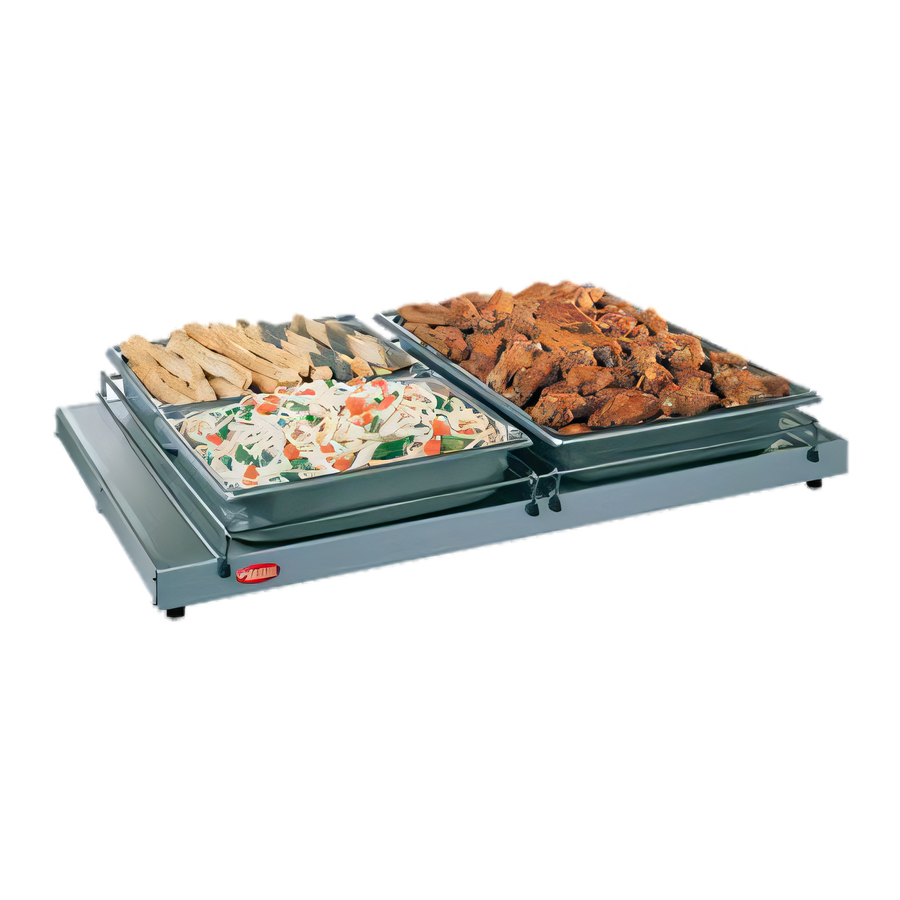

Hatco Glo-Ray® GRS-66-I Heated Shelf – 66″ x 19-1/2″

Free-standing countertop heated shelf, blanket-element technology

Designed for high-volume pass-throughs, buffet lines and back-of-house workstations, the 66″ Glo-Ray® heated shelf delivers consistent, energy-efficient heat across its entire surface—holding up to five 12″ x 20″ steam-table pans of food at safe, appetising temperatures.

Why you’ll love it

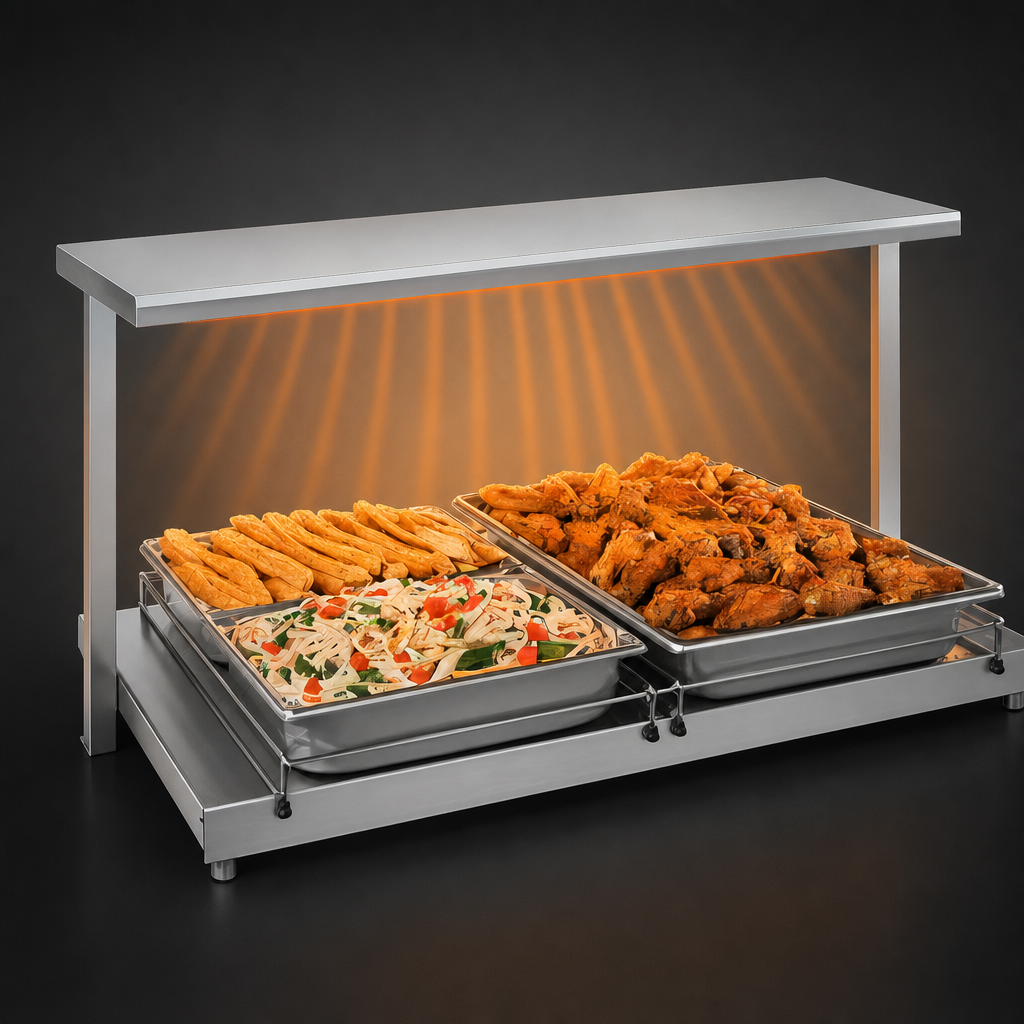

  • Uniform heat distribution – blanket-type element eliminates hot or cold spots.

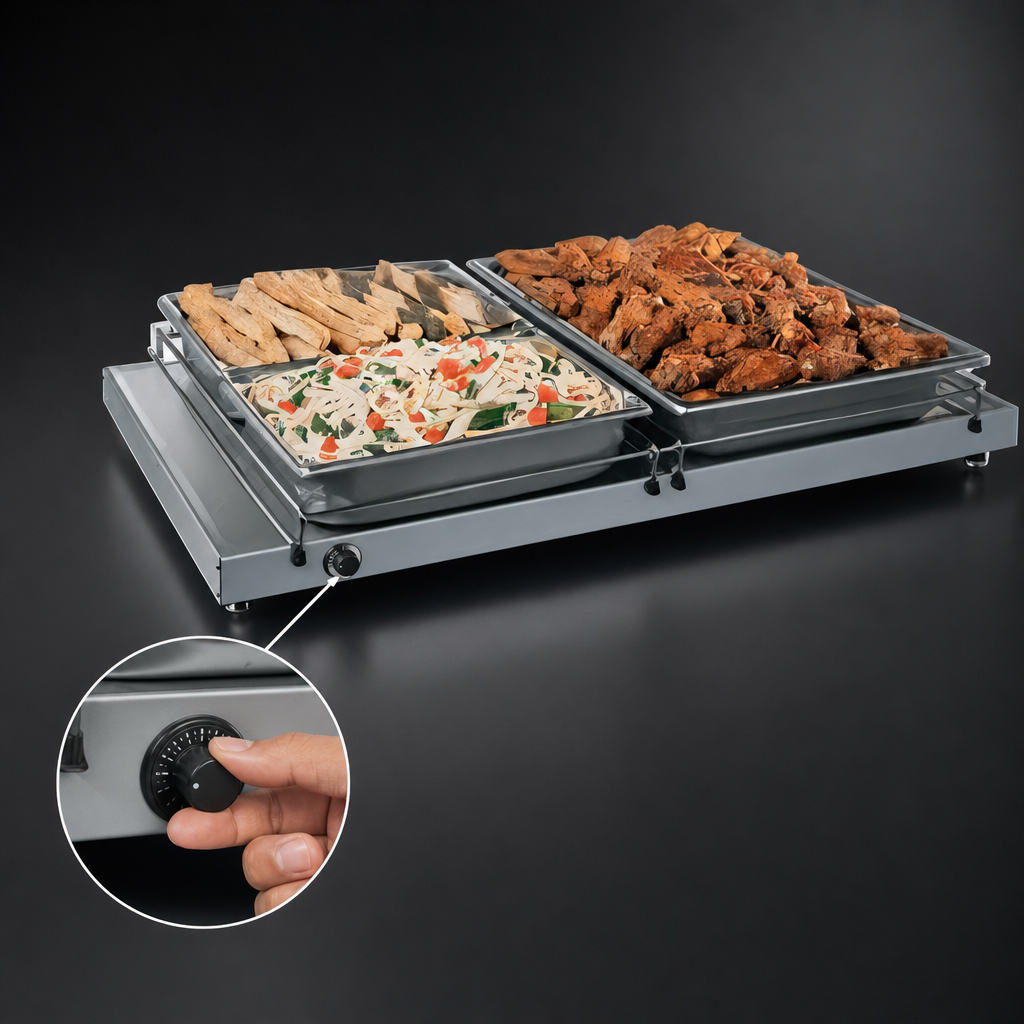

  • Precise holding control – built-in adjustable thermostat lets you dial in the ideal surface temperature for any menu item.
  • Heavy-duty construction – stainless steel top resists scratches and corrosion; extruded aluminum base adds strength without excess weight.
  • 4″ adjustable legs provide the NSF-required clearance for easy cleaning and proper airflow.
  • Plug-and-play – 72″ (183 cm) factory-installed cord with NEMA 5-15P plug for quick set-up (alternate 230 V plugs available).
  • Certified & safe – CE, cULus & UL EPH Classified; built in the USA at Hatco’s Milwaukee facility.

Technical specifications

Model GRS-66-I
Overall size (W × D × H) 66″ × 19-1/2″ × 5.38″
(1676 × 495 × 137 mm incl. legs)
Pan capacity 5 × 12″ × 20″ (full-size) steam pans
Electrical (USA) 120 V, 1-phase, 1100 W, 9.2 A, NEMA 5-15P
Electrical (Intl.) 230 V, 1-phase, 1000–1089 W, 4.3–4.5 A, BS-1363 or CEE 7/7 plug
Controls Built-in surface thermostat with dial knob
Top surface 18-ga. stainless steel (optional hard-coated aluminum, factory order)
Base / insulation Extruded aluminum base, fiberglass insulation
Cord length 72″ (1.83 m)
Ship weight ≈ 50 lb (23 kg)
Certifications CE, cULus, UL EPH Classified, NSF compliant when installed with legs
Country of origin Made in USA

Factory-order options

  • Hard-coated aluminum surface (19-1/2″ depth models only)
  • Designer powder-coat colors for the base (top surface remains stainless)
  • Thermostat guard
  • Pan rails: 2- to 5-pan configurations for organised serving
  • Slant-leg kit for angled presentation
NSF requirement: Units 36″ (914 mm) and wider—including this 66″ model—must be installed on the supplied 4″ legs or sealed to the counter surface.

Looking for a different size? The Glo-Ray® series is available from 18″ to 72″ wide. Browse all models.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

cULus, UL EPH Classified, Made in USA

Height

5.38in

Width

66.0in

Depth

19.5in

Shipping Weight

50.0lbs

Controls

thermostatic controls

Shelf Width (side - side) OA

61" - 80"

Type

freestanding

Heated Shelf Construction

stainless steel

Specifications

Glo-Ray® Heated Shelf, Free-standing, 66" W, 19-1/2"D, adjustable thermostat, aluminum base, stainless steel top, 4" legs, CE, cULus, UL EPH Classified, Made in USA
